Choose Gaodetec,choose high quality!
GDH90 exported to Singapore Malaysia popular grout pumps
GDH90 High Pressure used grout pumps description
GEC Hydraulic drive grouting pumps are a universal high-pressure grouting pump .
GDH90 High Pressure Grouting Pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
GDH90 used grout pumps Features
1.Single piston with double-acting
2.Hydraulic drive
3.Compact structure
4.Ball valve
GDH90 used grout pumps Technical Data
Specification: |
|
Item |
GDH90 |
Rated Output |
0-100 L/Min |
Rated Pressure |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
Stroke/Minute |
45 |
Inlet Dia. |
38mm |
Outlet Dia. |
32mm |
Power Unit |
11kW |
Transmission |
Hydraulic drive |
Chassis |
Skid |
Weight |
580Kg |
Overall Dimension |
1505x770x1110mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | |
If think the GDH90's output too big, we also have low output for option
GDH70 used grout pumps Technical Data
Specification: |
|
Item |
GDH70 |
Rated Output |
0-70 L/Min |
Rated Pressure |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
Stroke/Minute |
31 |
Inlet Dia. |
38mm |
Outlet Dia. |
32mm |
Power Unit |
7.5kW |
Transmission |
Hydraulic drive |
Chassis |
Skid |
Weight |
450Kg |
Overall Dimension |
1505x770x1110mm |

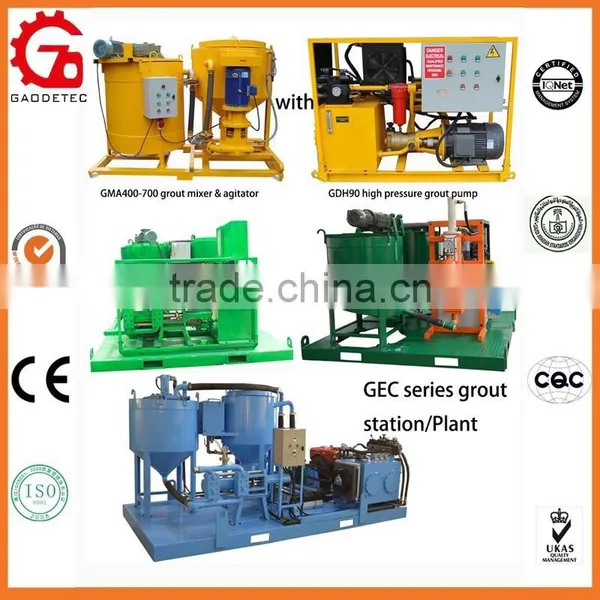

We also could make cement mixer with the grouting pump on one station or plant,

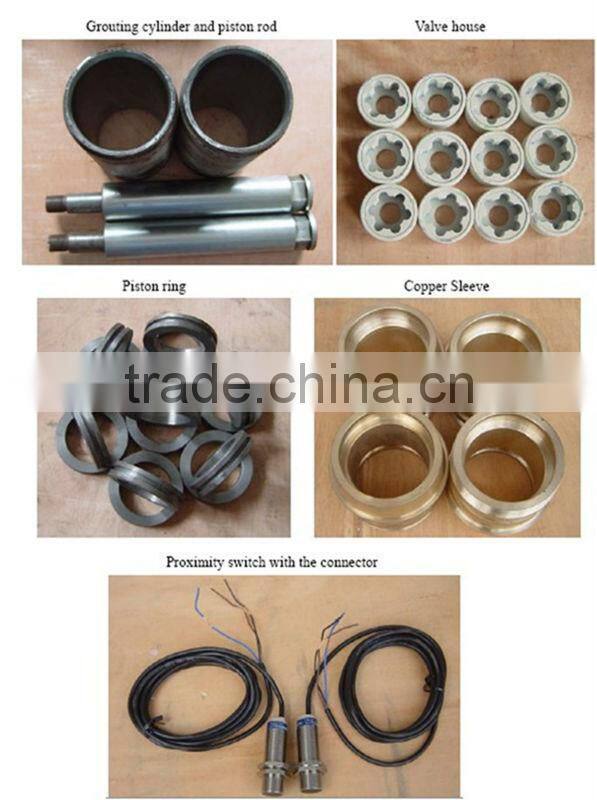

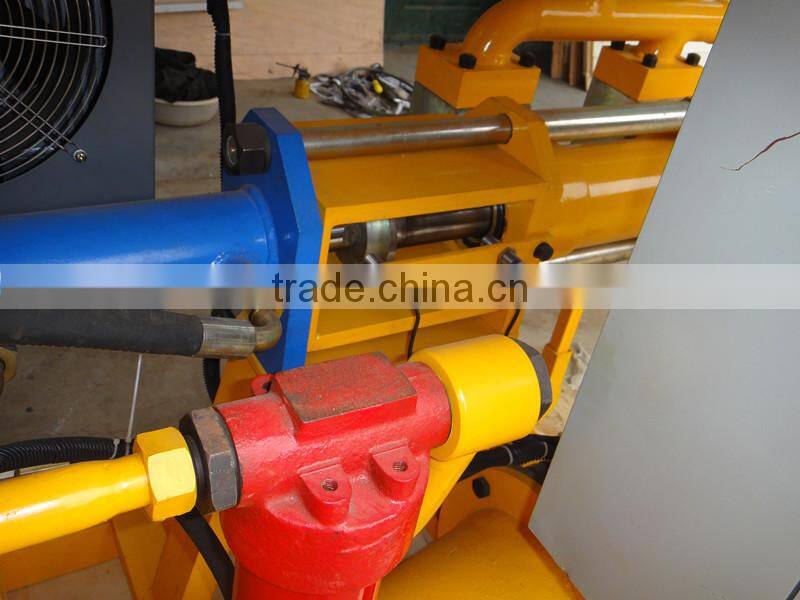

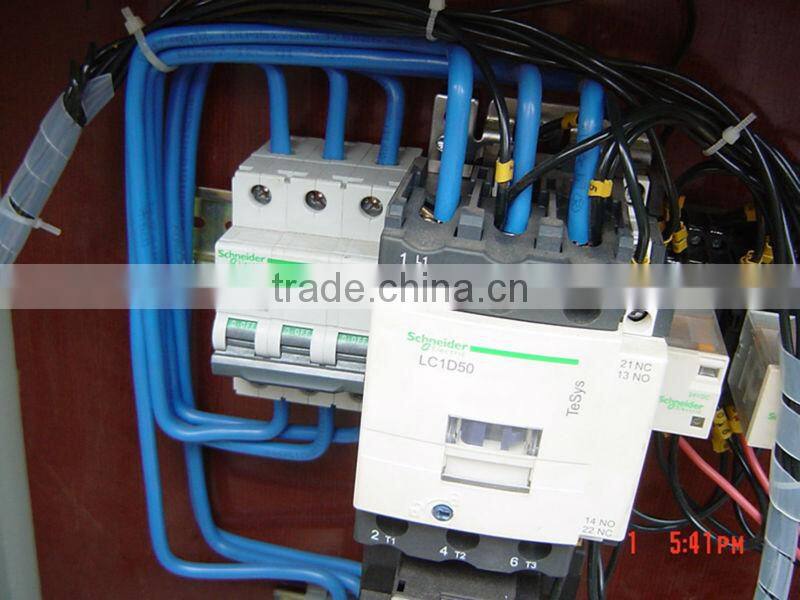

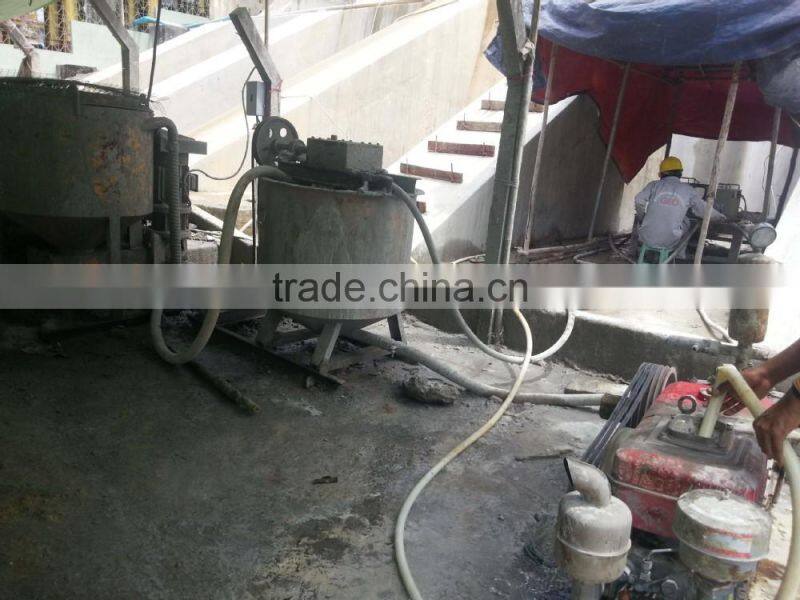

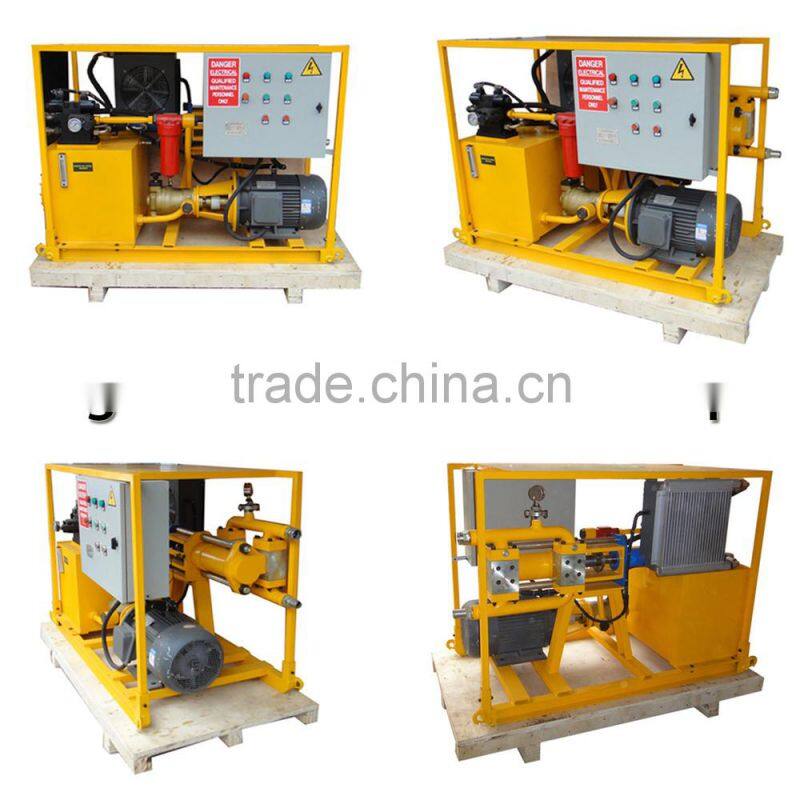

Photoes
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Certification of our company:
A: Suitable type will be recommend according to your project, output, pressure etc. factor.
2. Q: What's the project of the grout pump would be used for?
A: pressure grouting in tunnel, mining engineering, dam, foundation engineerig of bridges, building, and other different kinds of underground engineering.
3. Q: You are factory or trading company?
A: Gaode Equipment is has our own factory and technology team, also could be according to your demands to offer the best solution.
4. Q: What's the delivery time?
A: For common type: in one week;
If customize: need 3-4 weeks
If you have any question please feel free to contact me.
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
Thank you for your time and Welcome to Visit our factory!
