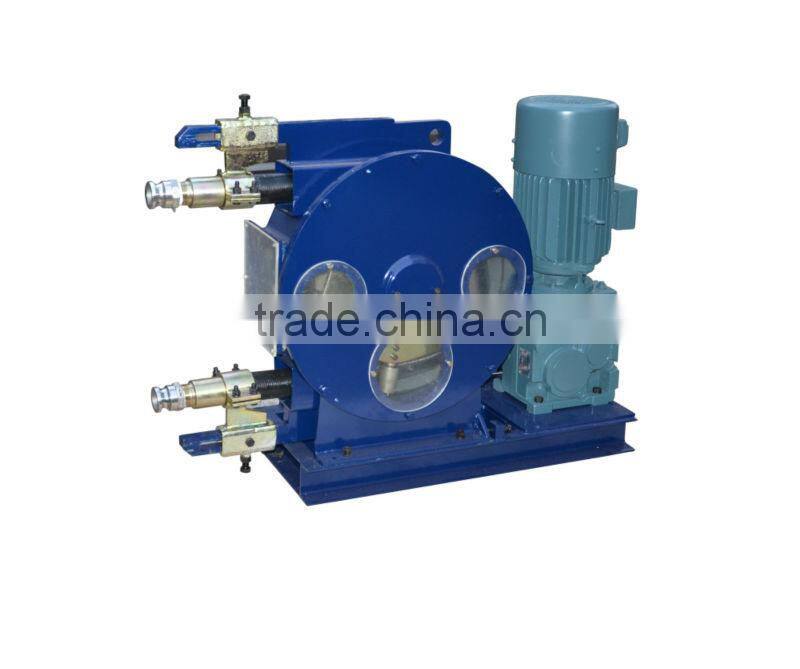

GH32 Used for TBM Customized Hose Squeeze Pump

GH32 Used for TBM Customized Hose Squeeze Pump thumbnail-1
GH32 Used for TBM Customized Hose Squeeze Pump photo-1
US$ 965 - 10,050 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
GEC
Model Number:
GH32
Contact Supplier Request Quote Chat Now
Zhengzhou Gaode Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai tianjin or Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name GEC
Model Number GH32
Theory Rotary Pump
Structure Other, Hose pump
Usage Other, Chemical, industrial, sewage, etc
Power Electric
Standard or Nonstandard Nonstandard
Fuel Diesel
Pressure Low Pressure
Application Metering

Choose GEC,choose high quality!

GH32 used for TBM customized Hose Squeeze Pump



GH32 customized hose squeeze pump





Product Description

GH series hose pump working principle

GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.



GH32 used for TBM customized Hose Squeeze Pump

GH series hose pump advantage

No seals

No valves

Self -priming

Only tube to replace

Dry –running without damage

Reversible

No contact between product and mechanical parts

Able to pump products with solid parts inside

Easy maintenance, low-cost, short down time

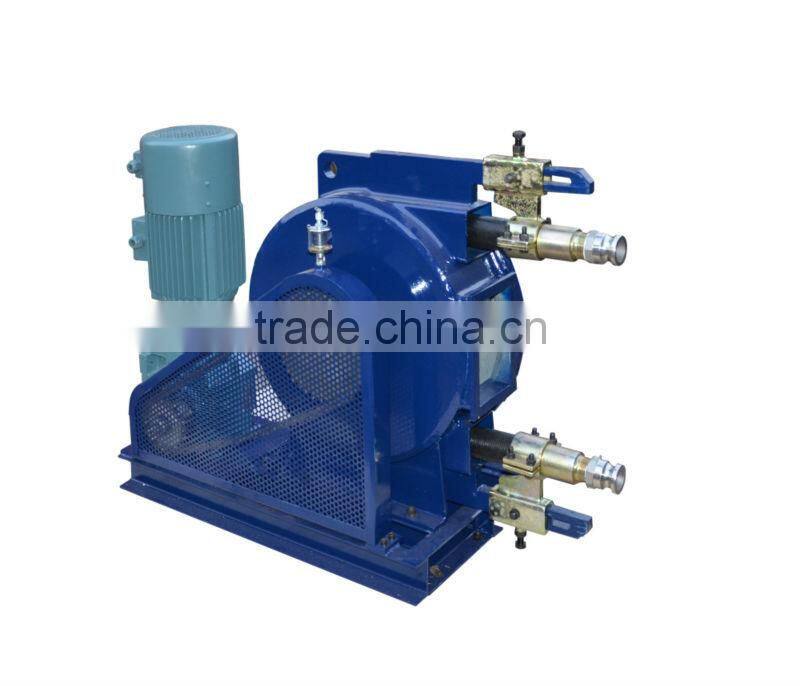

GH32 Hose Squeeze Pump pictures in different angles



GH32 used for TBM customized Hose Squeeze PumpGH32 used for TBM customized Hose Squeeze PumpGH32 used for TBM customized Hose Squeeze Pump

 GH32 used for TBM customized Hose Squeeze Pump



Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.



We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Our Services

  We can according to your demands to design various types hose squeeze pump

Pump mode

Output
l/h

Pressure
MPa

Hose ID
mm

Rev.
r/mm

Max.
Particle Dia
mm

Max.
Suct.Left
m

Motor Power
kw

GH10

60

0.6

10

45

2

2

0.37

GH10B

100

0.6

10

80

2

2

0.37

GH15

210

0.6

15

45

2

2

0.55

GH15B

300

0.6

15

75

2

2

0.55

GH25

800

1.5

25

50

3

3

1.1

GH25B

1300

1.5

25

80

3

3

1.5

GH32

1300

1.5

32

50

3

4

2.2

GH32B

1800

1.5

32

75

3

4

2.2

GH38

2000

1.5

38

40

5

4

2.2

GH38B

2700

1.5

38

55

5

4

3.0

GH38C

3500

1.5

38

70

5

4

4.0

GH50-558

4200

1.5

51

35

6

5

4.0

GH50-558B

5400

1.5

51

45

6

5

5.5

GH50-680

6300

1.5

51

35

6

5

7.5

GH50-680B

8000

1.5

51

45

6

5

7.5

GH65-680

9200

1.2

64

40

8

5

7.5

GH65-680B

12000

1.5

64

45

8

5

11.0

GH65-770

13500

1.2

64

45

8

5

11.0

GH65-770B

16500

1.0

64

55

8

5

11.0

GH76-770

18000

1.0

76

45

10

5

11.0

GH76-770B

22000

1.0

76

55

10

5

15.0

GH76-915

24000

1.0

76

50

10

5

15.0

GH76-915B

28000

1.0

76

40

10

5

18.0

GH100

33500

1.0

102

35

15

5

18.0

GH100B

42000

0.75

102

45

15

5

18.0



























































































Note:1,The pump can be produced according to your requirement.
          2,The pump's output is metered by water.

The Explanation of Model

GH XX-XXX X

XX: the inner Diameter (mm) of pump tube

XXX: the rotary diameter (D) of pump house

X: gearbox type:

Gearbox A means cycloidal decelerator gearbox,

Gearbox B means Helical--bevel gear units (SEW technical )

Gearbox C means sprocket chain transmission

GH32 used for TBM customized Hose Squeeze Pump

Company Information

Gaode Equipment Co., Ltd, short name Gaodetec, Since 1998, we have become main supplier of pump head for one of world’s famous hose pump manufacturer. From recent years, we are also providing matched hose pumps for TBM machine manufacturer in China. Our hose pumps are widely applied in architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, pharmacy, and papermaking.



If you have any question please feel free to contact me.

Gaode Equipment Co.,Ltd.

Tel:+86-371-55951210 Fax:+86-371-63526676

Skype: lena.liu8

Whatsapp&viber: 86-15903613994



Thank you for your time and Welcome to Visit our factory!
