Place of Origin Henan, China
Brand Name GEC
Model Number GH89
Theory Rotary Pump
Structure Other, Hose pump
Usage Other, Chemical, industrial, sewage, etc
Power Electric
Standard or Nonstandard Nonstandard
Fuel Diesel
Pressure Low Pressure
Application Other, Metering, high viscosity, high density, corrosive acids

Choose GEC,choose high quality!

Suitable for High Density High Viscosity with CE ISO Squeeze Pump

Product Description

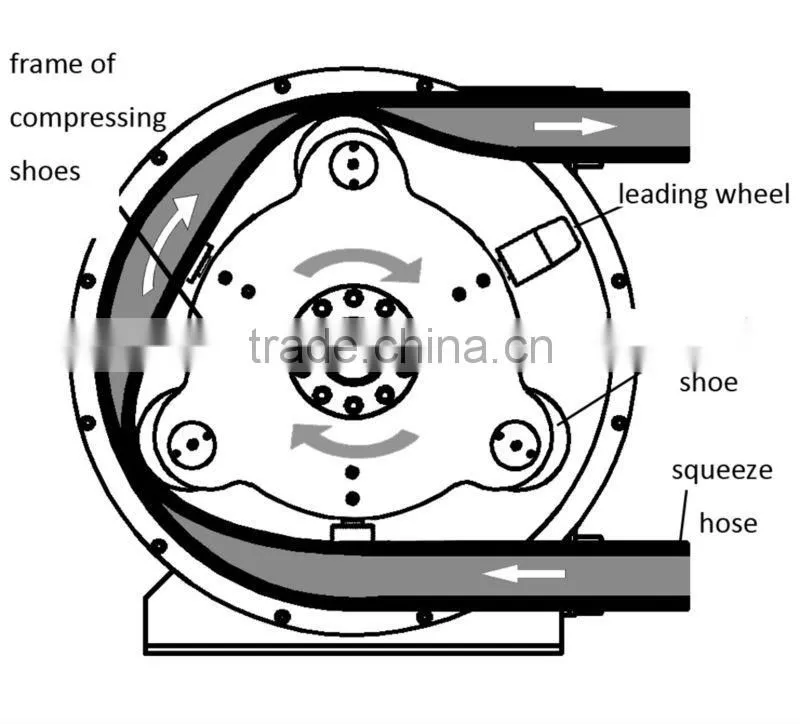

 Working principle:

GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.



Suitable for High Density High Viscosity with CE ISO Squeeze Pump

Feature:

No seals

No valves

Self -priming

Only tube to replace

Dry –running without damage

Reversible

No contact between product and mechanical parts

Able to pump products with solid parts inside

Easy maintenance, low-cost, short down time



Technical Description

Pump mode

Output
  l/h

Pressure
  MPa

Hose ID
  mm

Rev.
  r/mm

Max.
  Particle Dia
  mm

Max.
  Suct.Left
  m

Motor Power
  kw

GH10

60

0.6

10

45

2

2

0.37

GH10B

100

0.6

10

80

2

2

0.37

GH15

210

0.6

15

45

2

2

0.55

GH15B

300

0.6

15

75

2

2

0.55

GH25

800

1.5

25

50

3

3

1.1

GH25B

1300

1.5

25

80

3

3

1.5

GH32

1300

1.5

32

50

3

4

2.2

GH32B

1800

1.5

32

75

3

4

2.2

GH38

2000

1.5

38

40

5

4

2.2

GH38B

2700

1.5

38

55

5

4

3.0

GH38C

3500

1.5

38

70

5

4

4.0

GH50-558

4200

1.5

51

35

6

5

4.0

GH50-558B

5400

1.5

51

45

6

5

5.5

GH50-680

6300

1.5

51

35

6

5

7.5

GH50-680B

8000

1.5

51

45

6

5

7.5

GH65-680

9200

1.2

64

40

8

5

7.5

GH65-680B

12000

1.5

64

45

8

5

11.0

GH65-770

13500

1.2

64

45

8

5

11.0

GH65-770B

16500

1.0

64

55

8

5

11.0

GH76-770

18000

1.0

76

45

10

5

11.0

GH76-770B

22000

1.0

76

55

10

5

15.0

GH76-915

24000

1.0

76

50

10

5

15.0

GH76-915B

28000

1.0

76

40

10

5

18.0

GH100

33500

1.0

102

35

15

5

18.0

GH100B

42000

0.75

102

45

15

5

18.0





















































































Note:1,The pump can be produced according to customer's requirement.
          2,The pump's output is metered by water.

The Explanation of Model

GH XX-XXX X

XX: the inner Diameter (mm) of pump tube

XXX: the rotary diameter (D) of pump house

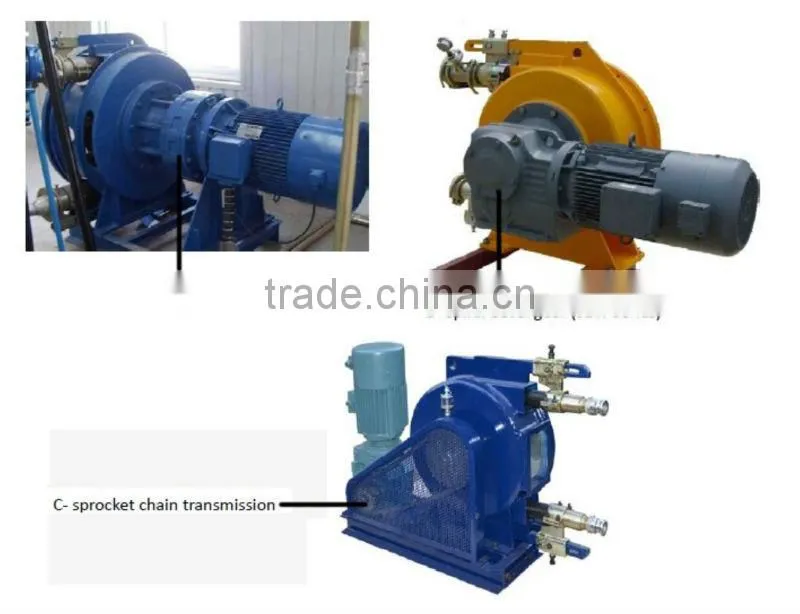

X: gearbox type:

Gearbox A means cycloidal decelerator gearbox,

Gearbox B means Helical--bevel gear units (SEW technical )

Gearbox C means sprocket chain transmission

 Suitable for High Density High Viscosity with CE ISO Squeeze Pump



Application

Perfect application:

Corrosive

Abrasives

Shear sensitive fluids

High viscosity fluids

High density fluids

Large solids

Metering(±1%)

High Pressure (3 MPa)



Suitable for High Density High Viscosity with CE ISO Squeeze Pump

Packaging & Shipping

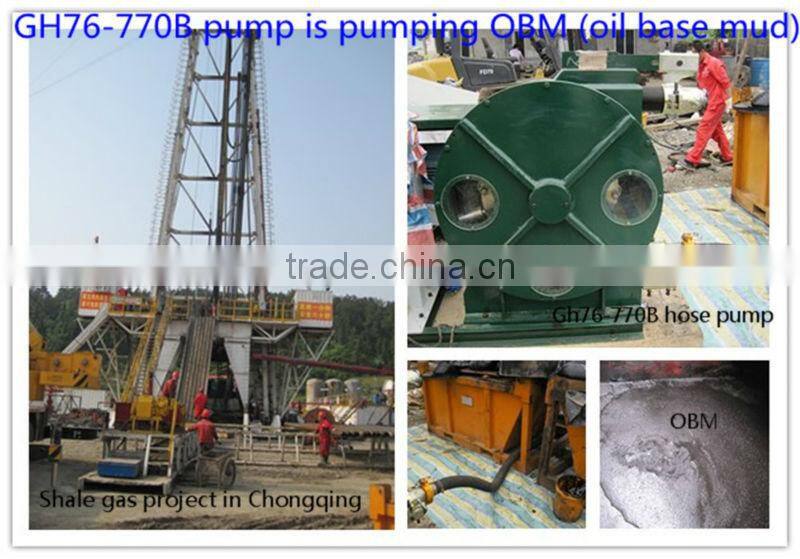

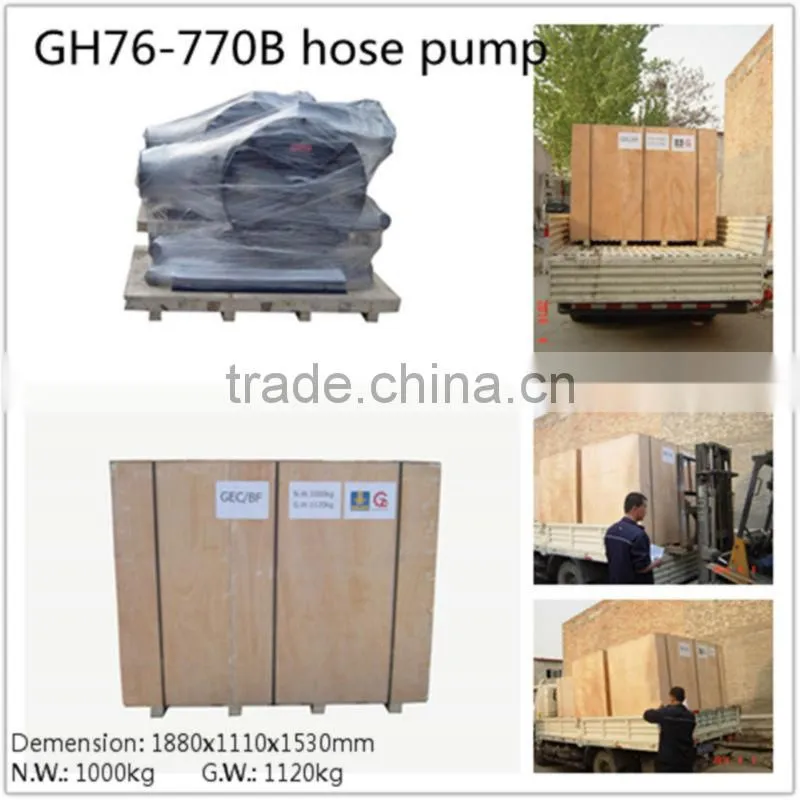

Please check ourGH76-770B squeeze pump for reference

Suitable for High Density High Viscosity with CE ISO Squeeze Pump


Our Services

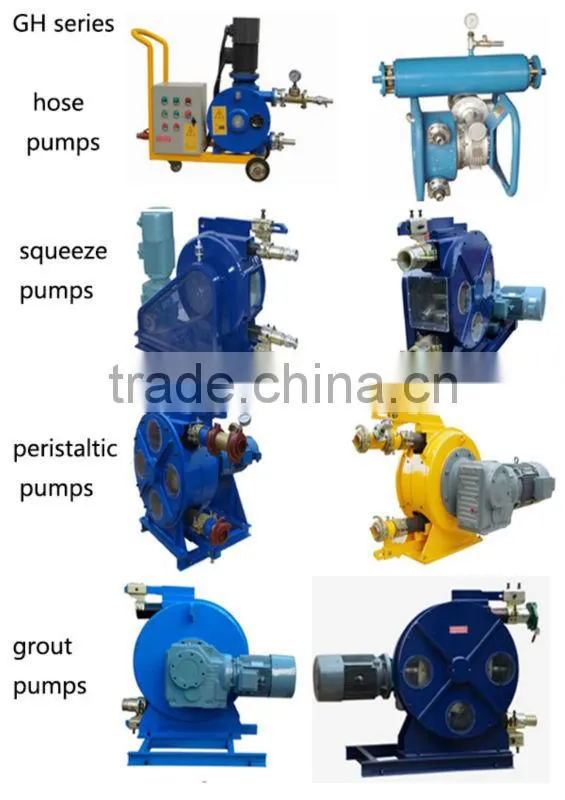

There are severial kind hose pump for choose

Suitable for High Density High Viscosity with CE ISO Squeeze Pump

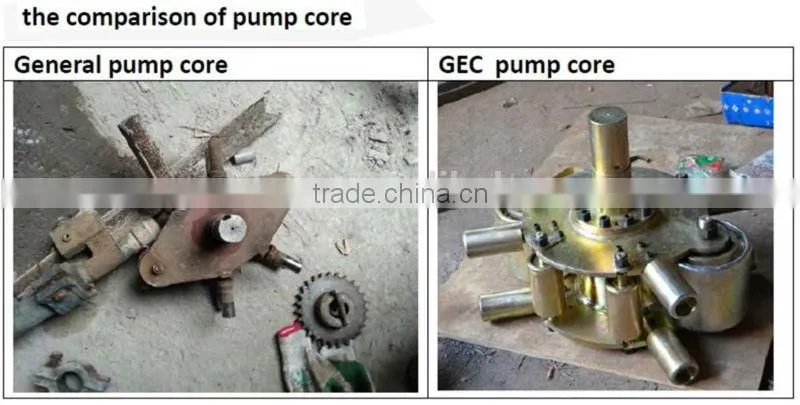

We offer more better pump core

Suitable for High Density High Viscosity with CE ISO Squeeze Pump



We also can offer special certification

 Suitable for High Density High Viscosity with CE ISO Squeeze Pump



Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.

Company Information

Gaode Equipment Co., Ltd, short name Gaodetec, is a manufacturer specialized in R&D, manufacture and sale of industrial hose pump.

Since 1998, we have become main supplier of pump head for one of world’s famous hose pump manufacturer. From recent years, we are also providing matched hose pumps for TBM machine manufacturer in China. Our hose pumps are widely applied in architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, pharmacy, and papermaking.

Suitable for High Density High Viscosity with CE ISO Squeeze Pump



FAQ



1. Q: What's the output of hose pump?

     A: 60-42000L/h, if need, we also ca according your demands to redesign the pump.

2.  Q: What's the running parts?

     A: The squeeze hose is the only consumpation part.

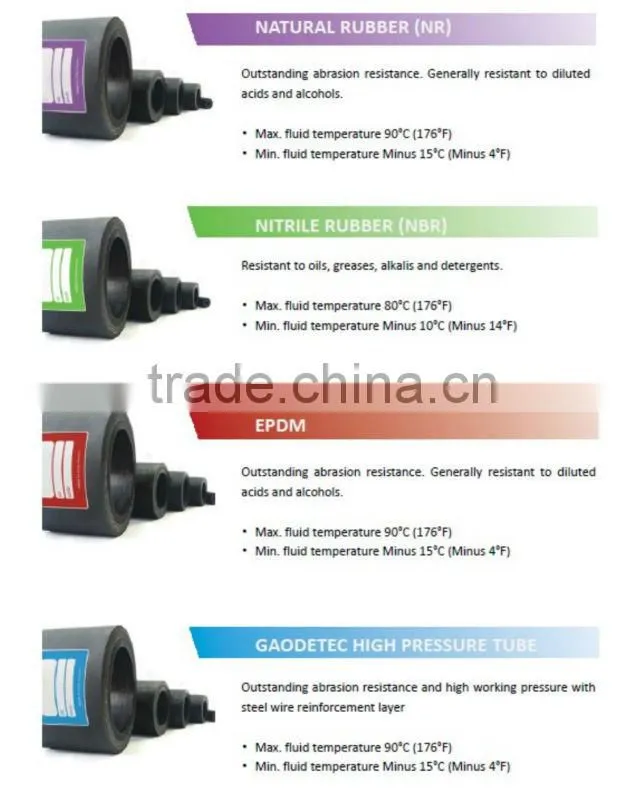

         Now we have three types hose for choose, Chinese hose, Britain hose, and Trelleborg hose.

3. Q: Whether can according customer's demands customized?

    A: Of course. But we need to make clear the following points: what's project will use the pump do? What's the output and pressure do you need?

4. Q: Whether can only offer pump head?

    A: Of course. we can offer pump hear without gearbox and electric motor. And also can make OEM for you.

5. Q: Payment item?

     A: TT, 30% deposit ,70% before shipment.

          L/C at sight (high bank charge, not suggest , but acceptable )





If you have any question please feel free to contact me.

Gaode Equipment Co.,Ltd.

Tel:+86-371-55951210 Fax:+86-371-63526676

Skype: lena.liu8

Whatsapp&viber: 86-15903613994

Thank you for your time and Welcome to Visit our factory!
