GH100-915B customized big output 50m3/h Hose Peristaltic Pump
GH serises pumps Working principle:
GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
Advantage:
No seals
No valves
Self -priming
Only tube to replace
Dry –running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
Technical Description
Type |
GH100-915B |
Max. ouput |
50m3/h |
Rotation |
45 RPM |
Squeeze hose ID |
102mm |
Working pressure |
7.5 bar |
Voltage |
3 phase, 380V, 50HZ |
Power |
18.5 KW |
Note:1,The pump can be produced according to customer's requirement.
2,The pump's output is metered by water.
The Explanation of Model

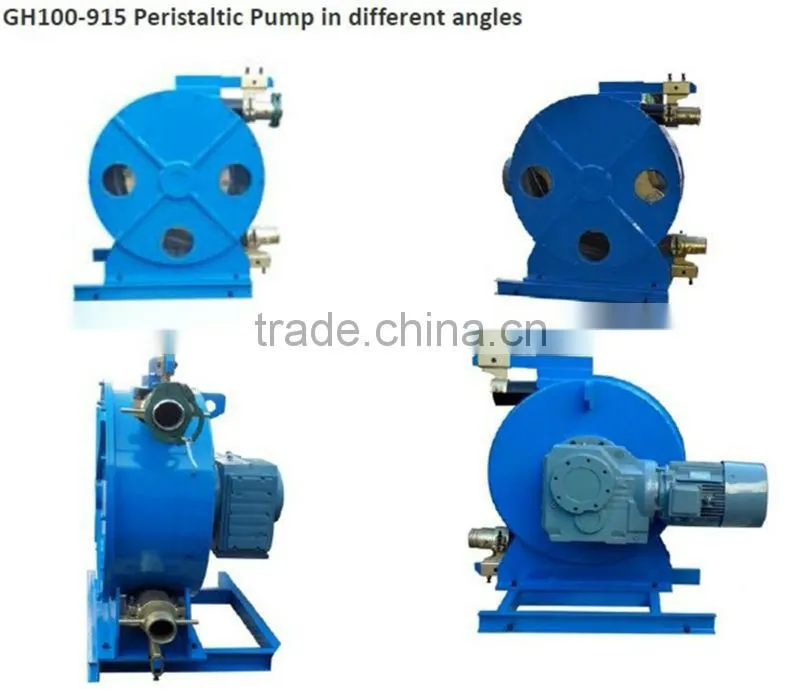

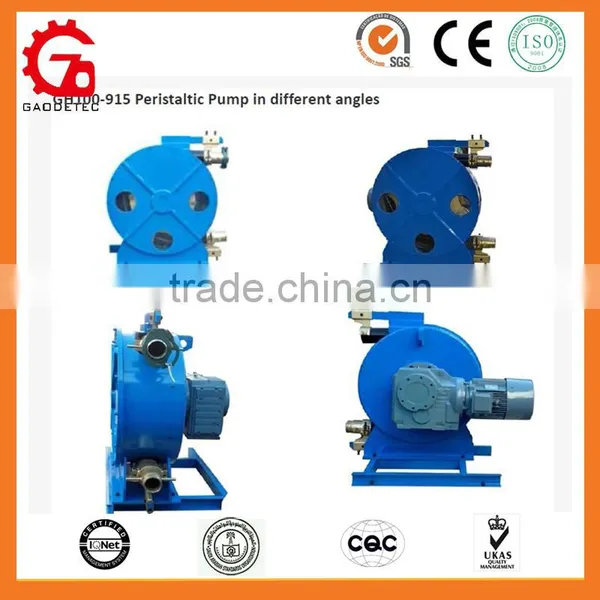

GH 100-915B peristaltic Pumps in different angles and accessories :

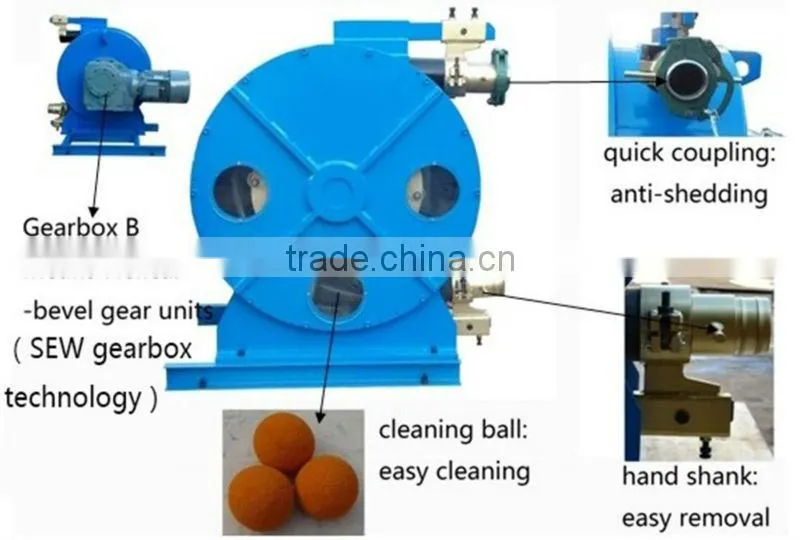

Accessories
We offer more better pump core
There are severial kind hose pump for choose
We also can offer special certification
Gaode Equipment Co., Ltd, short name Gaodetec, is a manufacturer specialized in R&D, manufacture and sale of industrial hose pump.
Since 1998, we have become main supplier of pump head for one of world’s famous hose pump manufacturer. From recent years, we are also providing matched hose pumps for TBM machine manufacturer in China. Our hose pumps are widely applied in architecture, underground construction, petrochemical industry, metallurgy, food industry, ceramic, mining, water treatment, pharmacy, and papermaking.
Our order from famous company
Contact:
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
1. Q: What's the output of hose pump?
A: 60-42000L/h, if need, we also ca according your demands to redesign the pump.
2. Q: What's the running parts?
A: The squeeze hose is the only consumpation part.
Now we have three types hose for choose, Chinese hose, Britain hose, and Trelleborg hose.
3. Q: Whether can according customer's demands customized?
A: Of course. But we need to make clear the following points: what's project will use the pump do? What's the output and pressure do you need?
4. Q: Whether can only offer pump head?
A: Of course. we can offer pump hear without gearbox and electric motor. And also can make OEM for you.
5. Q: Payment item?
A: TT, 30% deposit ,70% before shipment.
L/C at sight (high bank charge, not suggest , but acceptable )
