J5 Series High Pressure Large Flow Hydydraulic Electric Double Diaphragm Pump
Main Application ( electric double diaphragm pump ):
Petrifaction, chemical industry, refinery processes, power plant boiler water treatment and so on.
Main Features:
1.Driving end
a. Eccentric mechanism driving, compact structure, small installing space.
b. Unique worm wheel structure or screw structure, promises the stable and successive work of the mechanic driving parts.
c. The roller bearing in the bottom of the screw promises the long time stable heavy-load running.
d. Oil bath lubrication systerm, long service life.
e. The flow is adjustable when running or stopping. The adjustment can be hand, electricity, air driving or frequency conversion.
2. Hydraulic end
a. Hydarulic driving diaphragm promises the long service life of the diaphragm.
b. High precision one-way check valve structure make dosing pumps precisely add.
c. Inner adjustable pressure relief valve can automatically protect the diaphragm and pump head from being damaged.
d. PVC, PVDF, 316SS, alloy 20 or 22, Hastelloy and other materials of pump heads are suitable for various fluids.
e. Optional pressure type double-diaphragm leaking hunting alarm ( on site or long range ).
Electric double diaphragm pump:
Model |
J6-M-620/25 |
Flow |
620 L/hour |
Pressure |
25 Mpa |
Motor |
18.5 kW, 380V, 3 Phases |
Inlet Pipe Connection |
DN32-PN6 RF(Rp) GB/T9119 |
Outlet Pipe Connection |
DN32-PN260 RF(Rp) GB/T9116.1 |
Dimension |
361*361*180 cubic mm |
Weight |
650 kg |

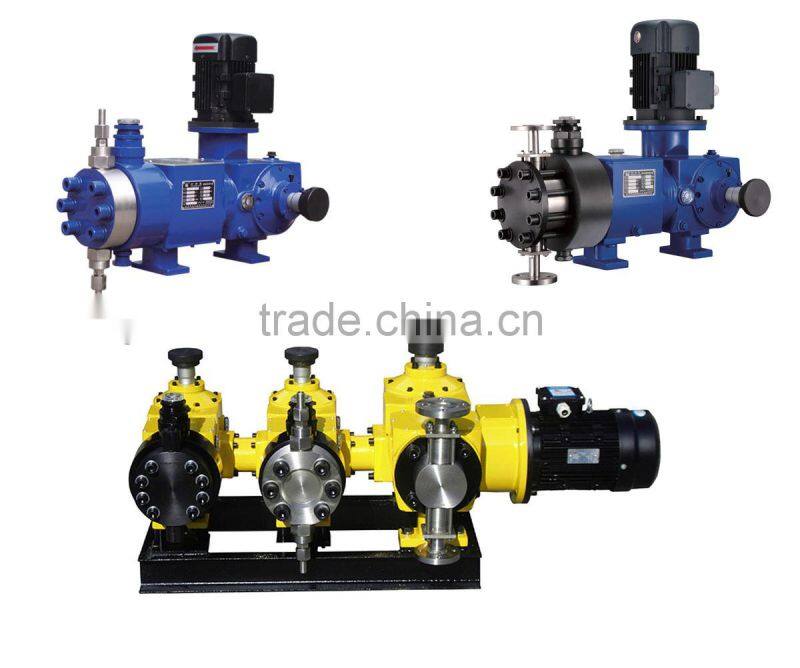

Various dosing pumps from Gaode Equipment Co.,Ltd.
Various components or parts of dosing pumps:
Dosing pump workshop and delivery sites:
Information that frequently needed to choose your suitable pumps
1. The main chemical composition in the delivering liquid?
2. The flow (L/H) ?
3. The systerm back pressure (bar) ?
4. The tempurature ?
5. The viscosity ?
6. The concentration(mPass) ?
7.The controller ways, such as automatic control, external control signal(impulse type or analog type)?
Please feel free to contact us for other types of dosing pump, such as plunger type, hydraulic diaphragm, mechanical diaphragm, pneumatic diaphragm....
