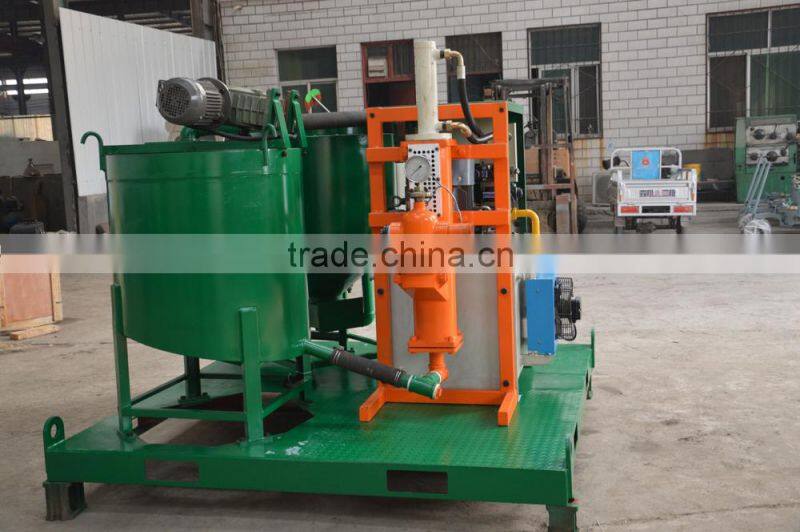

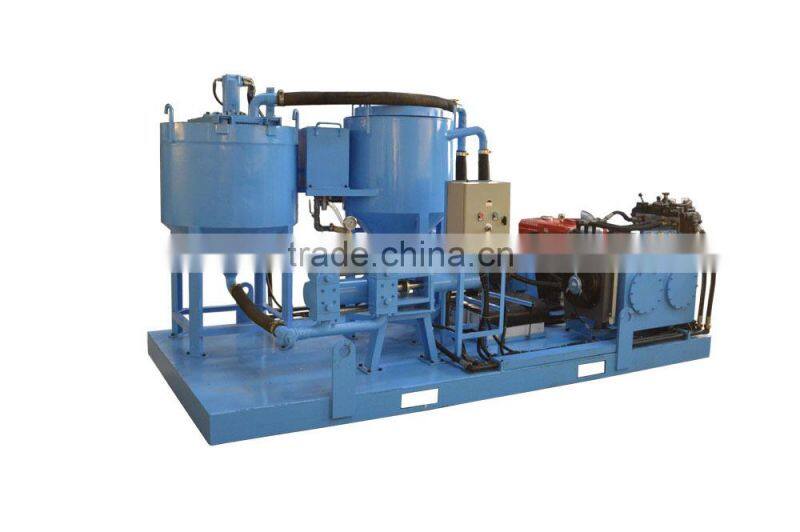

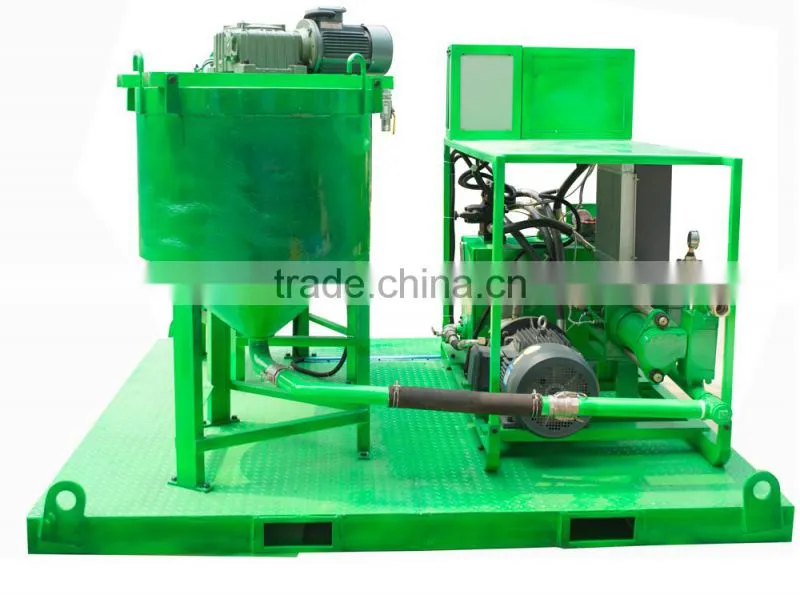

GDH 90 Hydraulic Drive Piston grout pump
GDH90 High Pressure Grout Pump Description
Gaodetec Hydraulic drive grouting pumps are a universal high-pressure grouting pump .
GDH90 High Pressure Grouting Pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
GDH90 High Pressure Grout Pump Features
1.Single piston with double-acting
2.Hydraulic drive
3.Compact structure
4.Ball valve
GDH90 High Pressure Grout Pump Technical Data
Specification: |
|
Item |
GDH90 |
Rated Output |
0-100 L/Min |
Rated Pressure |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
Stroke/Minute |
45 |
Inlet Dia. |
38mm |
Outlet Dia. |
32mm |
Power Unit |
11kW |
Transmission |
Hydraulic drive |
Chassis |
Skid |
Weight |
580Kg |
Overall Dimension |
1505x770x1110mm |
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | |
GDH70 High Pressure Grout Pump Technical Data
Specification: |
|
Item |
GDH70 |
Rated Output |
0-70 L/Min |
Rated Pressure |
10MPa(1450PSI) |
Cylinder Dia. |
110mm |
Stroke/Minute |
31 |
Inlet Dia. |
38mm |
Outlet Dia. |
32mm |
Power Unit |
7.5kW |
Transmission |
Hydraulic drive |
Chassis |
Skid |
Weight |
450Kg |
Overall Dimension |
1505x770x1110mm |
Photoes
Application at site
