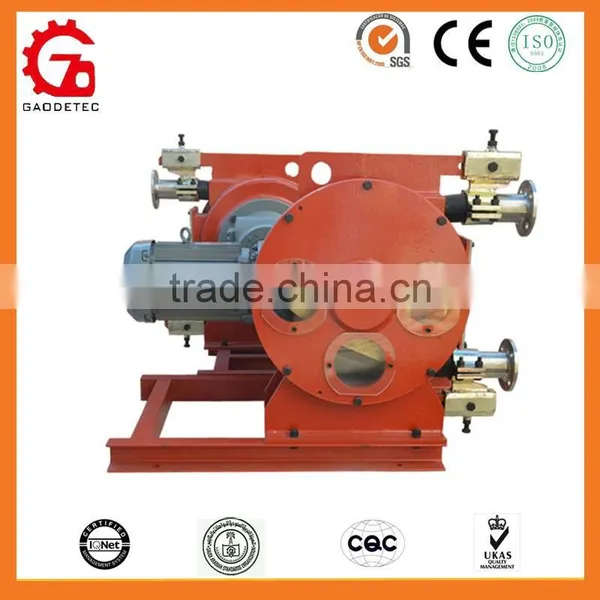

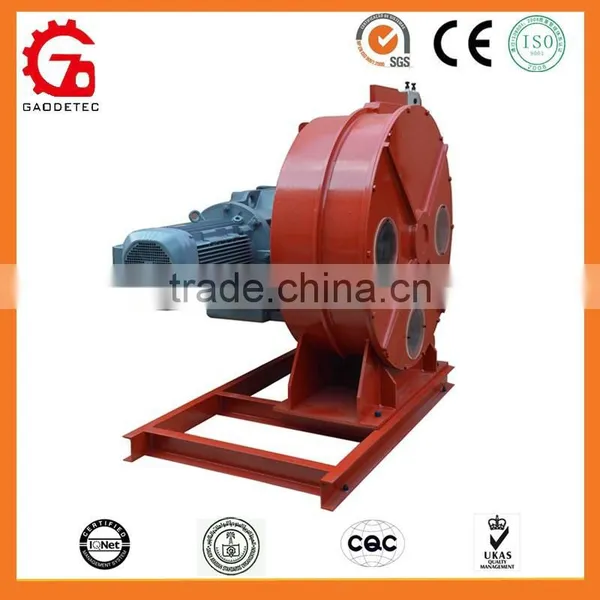

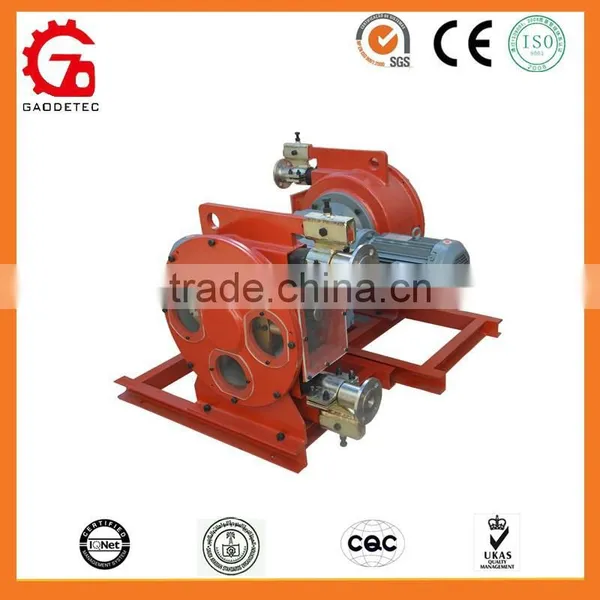

GH series widely choice for output and hose squeeze peristaltic pump head
GH series widely choice for output and hose squeeze peristaltic pump head description:
GH hose squeeze peristaltic pump head is suitable for Handling Aggressive, High Viscosity, High Density Products, Such as Corrosive Acids, Gaseous Liquids, Sand/Cement Mortar, etc. it is used for Dosing Pump With 1% Repeat Precision.
GH series hose squeeze perstaltic pump head include GH10, GH15, GH25, GH32, GH38, GH50, GH65, GH76, GH100. For more information, please contact us freely.
GH series widely choice for output and hose squeeze peristaltic pump head dimension of struture:
GH series widely choice for output and hose squeeze peristaltic pump head squeeze hose options:
GH series widely choice for output and hose squeeze peristaltic pump head working advantages:
No seals
No valves
Self -priming
Only tube to replace
Dry –running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time

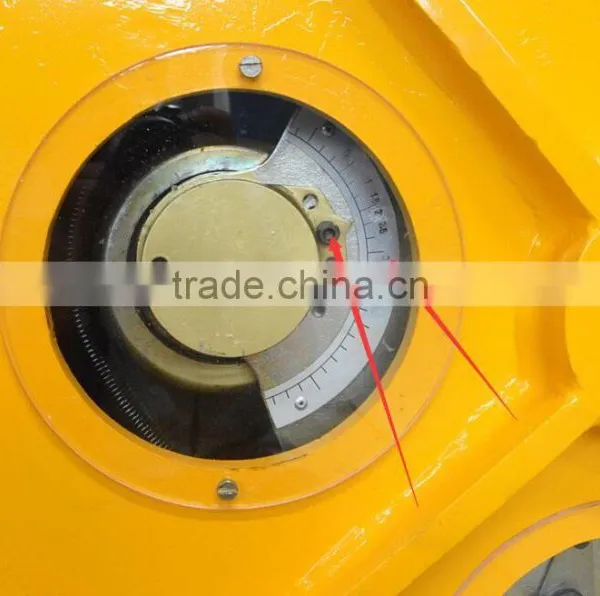

Equipped with adjustable pointer
GH series hose pump is equipped with adjustable point, which is convenient and accurate for user to adjust the hose gap controlling the flow rate. Besides the adjustable point is fixed on the hose pump by bolts, and it doesn't loose in the use.
Perfect Pump for
Corrosive
Abrasives
Shear sensitive fluids
High viscosity fluids
High density fluids
Large solids
Metering(±1%)
High Pressure (3 MPa)
GH series widely choice for output and hose squeeze peristaltic pump head working princple:

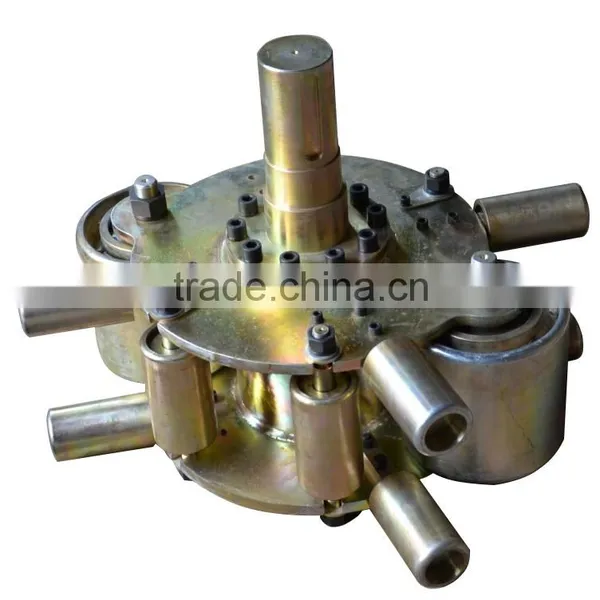

GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
GH series industrial hose pump is mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
GH series widely choice for output and hose squeeze peristaltic pump head package:
GH series hose squeeze peristaltic pump order:
FAQ:
1. Q: Which model should we choose?
A: Before suitable model recommended, please tell us some information: application, material you process, output and pressure you want.
2. Q: Can we have customized pump?
A: You can choose the gearbox type, instalation way, squeeze hose type, drive mode type.
