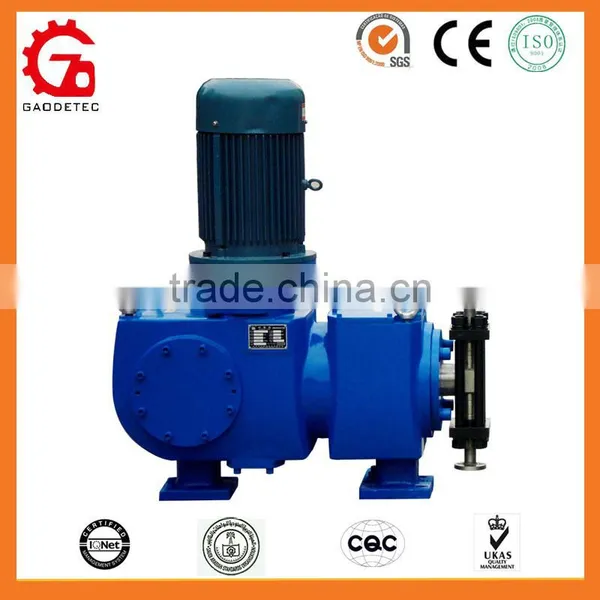

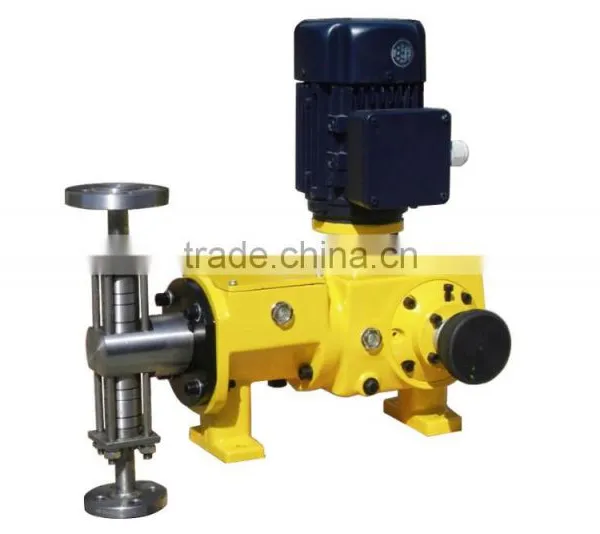

High Pressure Plunger Dosing Pump

JX Series high pressure plunger dosing pump

1. Max flow of single head: 940 L/H

2. Max discharge pressure: 50 Mpa

3. Adjustment ratio: 10:1, stable precision about 1%

4. Suction lifting height up to 2.5 meters of water

5. Medium temperature: -10 to 100  Celsius degree.

6. Environment temperature up to 40 Celsius degree, and highest altitude 1000 m .

Control ways ( plunger dosing pump ):

1. Power supply: 380V / 220V--50Hz / 60Hz, 3 phase or single phase

2. Variable frequency inverter, adjusting the stroke speed, input signal

3. Motor controller, turn on or off the 3 phase motor and adjust the inlet flow.

Wide application ( plunger dosing pump ):

Applied in the fields, such as oil, chemistry industry, electric power, metallurgy, medicine, food and so on, especially for the fields with high precision, high pressure and high temperature.

Material of the main parts on the fluid end ( plunger dosing pump ):

JX Series Plunger Dosing Pump Technical Data ( plunger dosing pump ):

Connectors: NPT screw connector, flange connector, sleeve chuck. Special connectors, please contact us.

Electric motors:

1. 3 phase, 220/380V, 50Hz, 1440 rpm, IP55/F

2. single phase, 220V, 50Hz, 1440 rpm, IP55/F

3. 3 phase anti-explosion, 220/380V, 50Hz, 1440 rpm, IP55/F, d II BT4

4. 3phase anti-explosion, 220/380V, 50Hz, 1440 rpm, IP55/F

5. without the motor, keep the IEC90 connector

6. Ohter motors, please consult us.

Various metering pumps from Gaode Equipment Co.,Ltd.

Components and parts of metering pumps:

Delivery Sites:

More information is needed in order to correctly choose plunger dosing pump ?

1. The main chemical composition in the delivering liquid?
2. The flow (L/H) ?
3. The systerm back pressure (bar) ?
4. The tempurature ?
5. The viscosity ?
6. The concentration(mPass) ?
7.The controller ways, such as automatic control, external control signal(impulse type or analog type) ?

Please feel free to contact us for other types of dosing pumps, such as plunger dosing pump, hydraulic diaphragm dosing pump, mechanical diaphragm dosing pump, pneumatic diaphragm dosing pump....
