GH series different hose choices chemical small peristaltic pump
GH series different hose choices chemical small peristaltic pump
GH hose squeeze chemical small peristaltic pump is Suitablefor Handling Aggressive, High Viscosity, High Density Products, Such as Corrosive Acids, Gaseous Liquids, Sand/Cement Mortar, etc. it Is Used for Dosing Pump With 1% Repeat Precision.

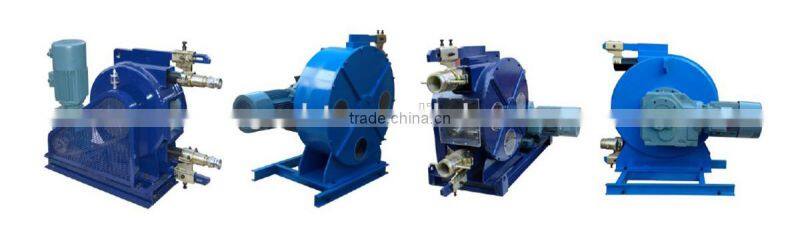

GH series chemical small peristaltic pump include GH10, GH15, GH25, GH32, GH38, GH50, GH65, GH76, GH100. For more information, please contact us.
GH series different hose choices chemical small peristaltic pump working advantages:
No seals
No valves
Self -priming
Only tube to replace
Dry –running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
GH series different hose choices chemical small peristaltic pump dimension of struture:

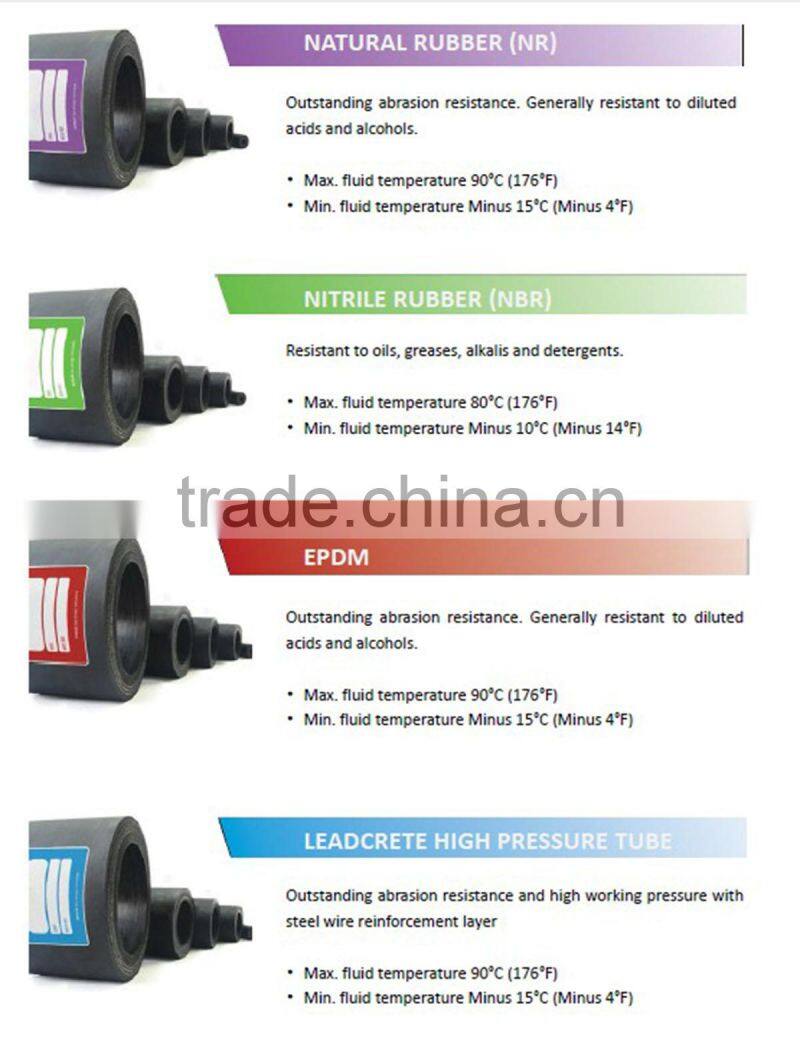

GH series different hose choices chemical small peristaltic pump squeeze hose options:
GH series different hose choices chemical small peristaltic pump working princple:
GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
GH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
GH series different hose choices chemical small peristaltic pump package:
GH series peristaltic pump order:
FAQ:
1. Q: Which model should we choose?
A: Before suitable model recommended, please tell us some information: application, material you process, output and pressure you want.
2. Q: Can we have customized pump?
A: You can choose the gearbox type, instalation way, squeeze hose type, drive mode type.
