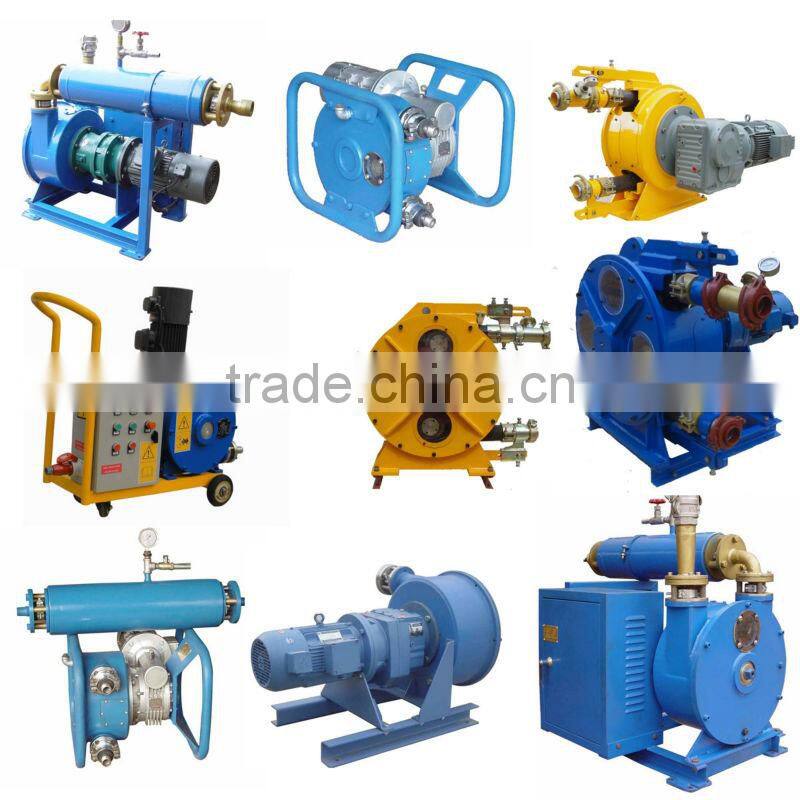

OEM supplier customized squeeze peristaltic mini peristaltic pump
OEM supplier customized squeeze peristaltic mini peristaltic pump description:
GH Series Heavy-Duty Industries Hose Pump is a kind of peristaltic pump, which is suitable for handling aggressive, high viscosity, high density products, such as abrasive slurries, corrosive acids, gaseous liquids, sand/cement mortar, liquid accelerator, etc. And also is used for dosing pump with 1% repeat precision.
OEM supplier customized squeeze peristaltic mini peristaltic pump features:
1.Reversibility
2.Sealessness and valveless
3.Abrasion resistance
4.Self priming with high suction
5.Peristaltic hose is the only consumption part
OEM supplier customized squeeze peristaltic mini peristaltic pump structure:
1,Nature rubber outer layer
2,Nylon reinforcement layer
3,Inner liner material available in various chemically resistant rubber
OEM supplier customized squeeze peristaltic mini peristaltic pump data:
Pump mode |
Output 1/h |
Pressure MPa |
Rev. r/mm |
Max. Particle Dia mm |
Max. Suct. Left m |
Motor Power kw |
GH10 |
60 |
0.6 |
45 |
2 |
2 |
0.37 |
GH10B |
100 |
0.6 |
80 |
2 |
2 |
0.37 |
GH15 |
210 |
0.6 |
45 |
2 |
2 |
0.55 |
GH15B |
300 |
0.6 |
75 |
2 |
2 |
0.55 |
GH25 |
800 |
1.5 |
50 |
3 |
3 |
1.1 |
GH25B |
1300 |
1.5 |
80 |
3 |
3 |
1.5 |
GH32 |
1300 |
1.5 |
50 |
3 |
4 |
2.2 |
GH32B |
1800 |
1.5 |
75 |
3 |
4 |
2.2 |
GH38 |
2000 |
1.5 |
40 |
5 |
4 |
2.2 |
GH38B |
2700 |
1.5 |
55 |
5 |
4 |
3.0 |
GH38C |
3500 |
1.5 |
70 |
5 |
4 |
4.0 |
GH50-558 |
4200 |
1.5 |
35 |
6 |
5 |
4.0 |
GH50-558B |
5400 |
1.5 |
45 |
6 |
5 |
5.5 |
GH50-680 |
6300 |
1.5 |
35 |
6 |
5 |
7.5 |
GH50-680B |
8000 |
1.5 |
45 |
6 |
5 |
7.5 |
GH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
GH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Package:
Workshop:
Certificate:
