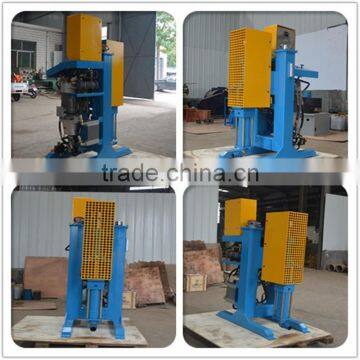

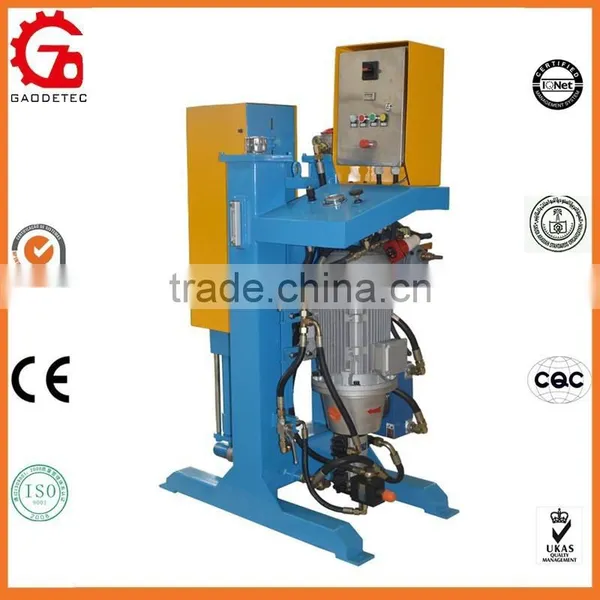

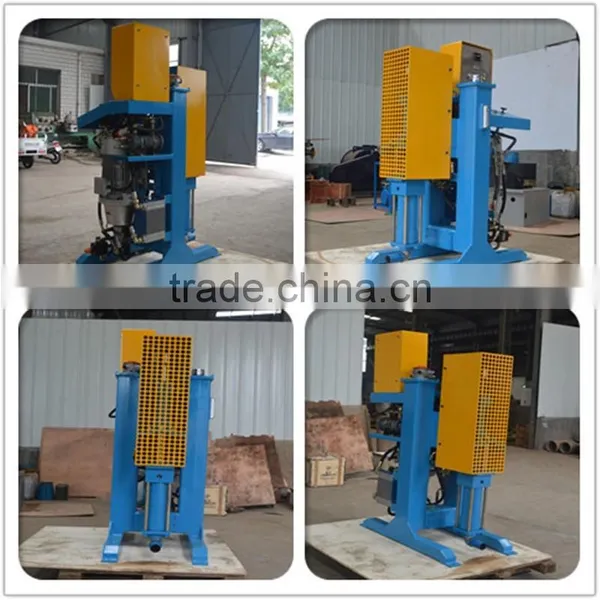

2016 new high pressure vertical cement compaction grouting pump
Description:
The GDH 75/100 high pressure vertical grout pump is designed and made for permeation grouting,
compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Specification |
|
Item |
GDH75/100 PI-E grout pump |
Piston diameter |
100mm |
Piston stroke |
150mm |
Adjustable pressure ( low pressure) |
0-50Bar/725psi |
Adjustable flow rate (low pressure) |
0-75L/min |
Adjustable pressure ( high pressure) |
0-100Bar/1450psi |
Adjustable flow rate ( high pressure) |
0-40L/min |
Discharge pipe size |
M27x2 |
Inlet pipe size |
G2’’ |
Power Unit |
7.5kw |
Chassis |
Skid |
Weight |
390Kg |
Overall Dimension |
1040x550x1650mm |
|
Note: Chassis: Skid or Tyre We also could according to your demands to customize | |
Apllications of GDH75/100PI-E grout pump:
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
2.Structural- building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
3. Construction - pavement under sealing, slab jacking and slab raising
4. Marine- underwater foundations, piers, breakers, shoreline foundations
5. Mining - tunnel lining, contact grouting, shaft waterproofing
6. Utilities - encasements, waterproofing, slope line grouting
7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment
Features of GDH75/100PI-E grout pump
1. Compact structure, light weight, easy operate, low maintenance cost;
2. With digital display counter: it can display at any time, and can accumulate work times;
3. Flow and pressure can be adjusted step-less;
4. Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5. In low pressure, it will be flow converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output.
6. With full-hydraulic shaft device, stable and reliable operation;
7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
Gaode Equipment Co., Ltd.(short:GEC) is a leading and well-know supplier of Grout pumps and grout mixer/agitator in China.
We are an expert grout pump suppler with large product line, including Piston-Mechanical Grout Pump, Piston-Hydraulic Grout Pump, Hose pump Grout Pump, Rotor/Stator Grout pump, Pneumatic Grout pumps and Manual Grout Pump, etc. as well as the mixer&agitator for grouting.
As per customers requirements, we have been providing the customized grout products as well.
Our grout pumps have already authorized the ISO9001:2008,CE,SGS,SASO certificate.
With Premium Grade product quality and competitive price, GEC grout pumps have been exported to the USA, Canada, India, Malaysia, Pakistan, Korea, Bahrain and Nepal,etc.
In GEC,quality control is the highest priority. Highly skilled and educated employees manufacture our products in a modern facility, incorporating C.A.D. (Computer Aided Design). Such techniques assure high quality, at a reasonable cost, with the timely delivery that our clients require. All GEC employees are also accountable for the quality of their output. Each one has the responsibility to continually search out better ways of performing their job and the authority to reject items not complying with required quality standards.
Certification of our company:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD55000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
GDM130/20 Grout Pump: output 130L/min, pressure: 20Bar
GDM60/40 Grout Pump: Output: 60L/min, pressure: 40Bar
GDH90 High Pressure Grout Pump: Output: 90L/min, pressure:100Bar
GMA400-700E Grout Mixer and Agitator: Mixer volume: 400L, Agitator volume: 700L

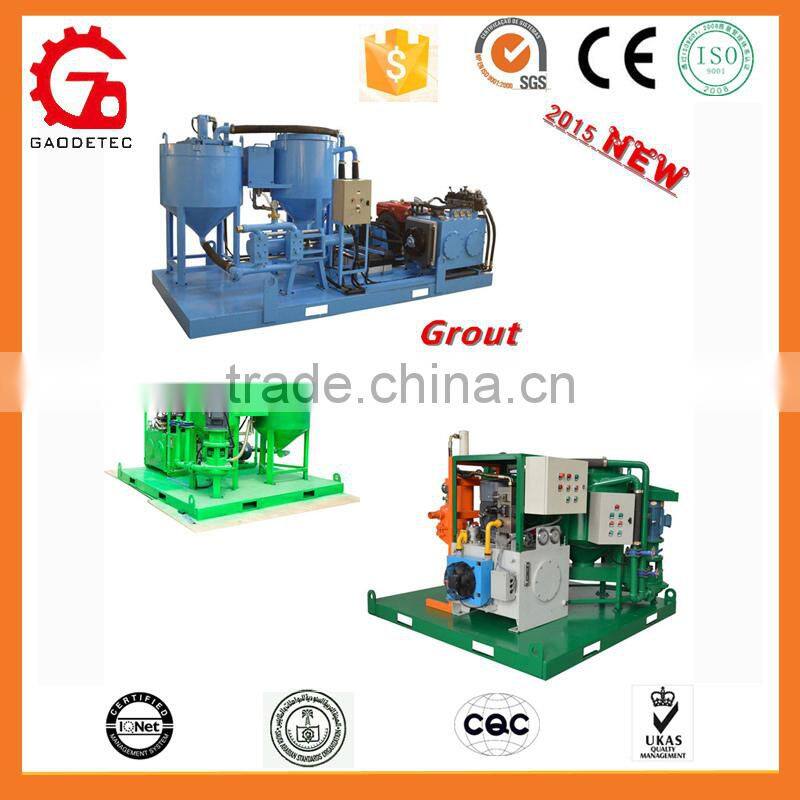

Electric and Diesel Grout Station For Option:
1. Q: What project will you use the grout pump do?
A: for permeation grouting, compaction grouting, backfilling grouting, curtain grouting,
high pressure split grouting or other ?
2. Q: What's the output and pressure do you required?
A: if need, we also ca according your demands to redesign the pump.
3. Q: Why can customized according customer's demands?
A: Of course. But we need to make clear the following points: what's project will use the pump do? What's the output and pressure do you need?
4. Q: Whether can only offer pump head?
A: Of course. we cpould only offer pump head and also can make OEM for you.
5. Q: Payment item?
A: TT, 100%;
TT, 30% deposit ,70% before shipment.;
L/C at sight (high bank charge, not suggest , but acceptable ).
Contact:
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype: lena.liu8
Whatsapp&viber: 86-15903613994
