Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant

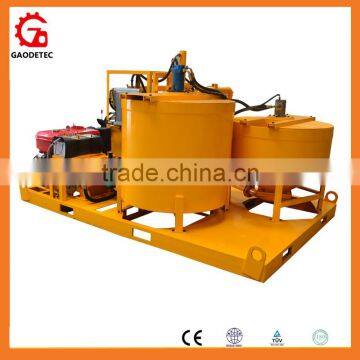

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant thumbnail-3

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant thumbnail-4

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant thumbnail-5

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant thumbnail-6

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant photo-1

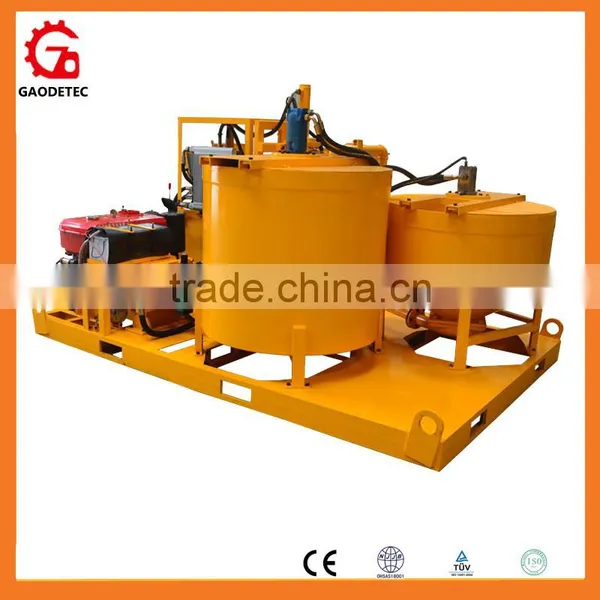

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant photo-2

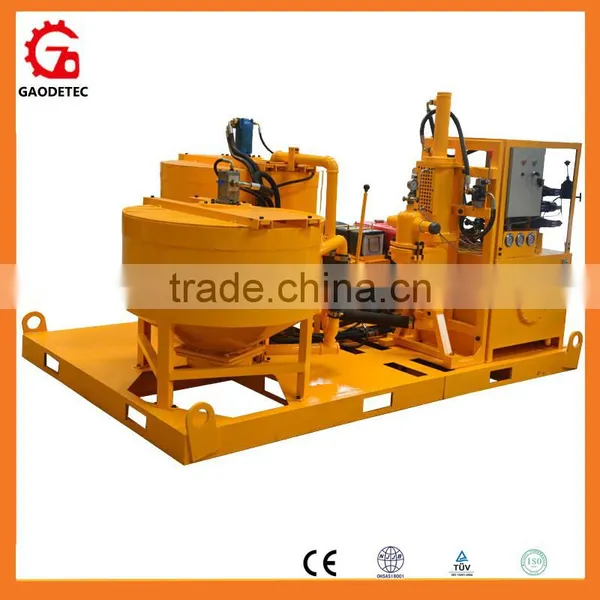

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant photo-3

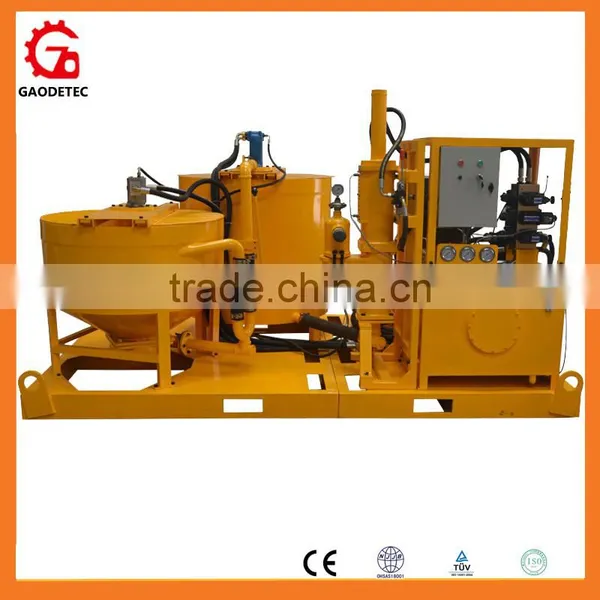

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant photo-4

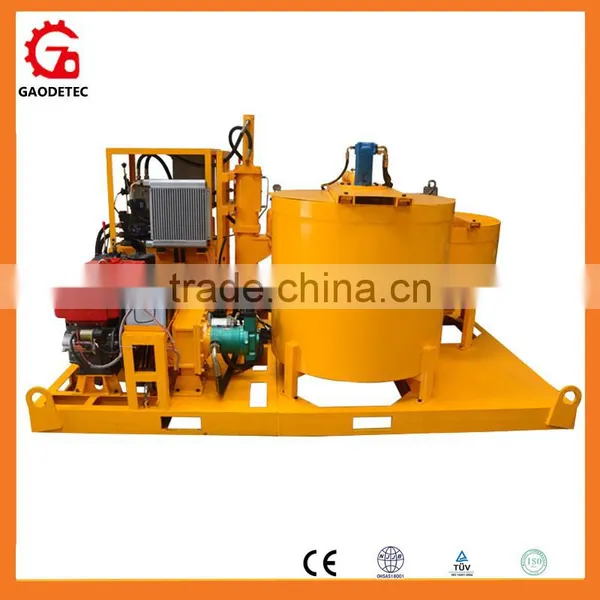

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant photo-5

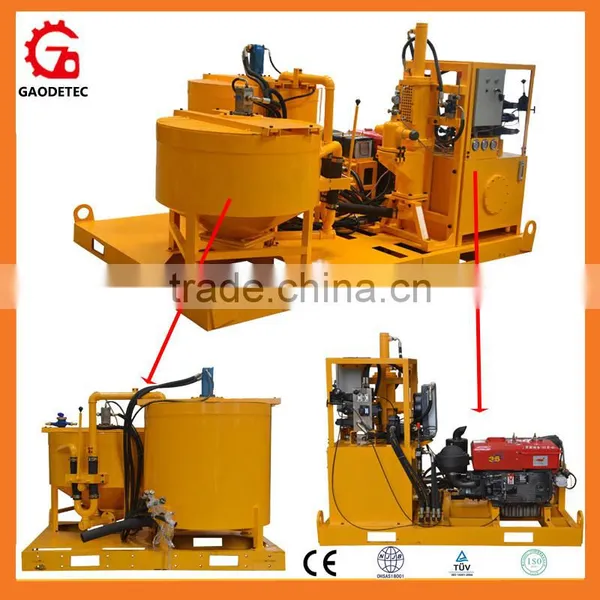

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant photo-6

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

GEC

Model Number:

GGP400/700/100

Contact Supplier Request Quote Chat Now

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name GEC

Model Number GGP400/700/100

After-sales Service Provided Engineers available to service machinery overseas

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant

Product Description

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant Description:

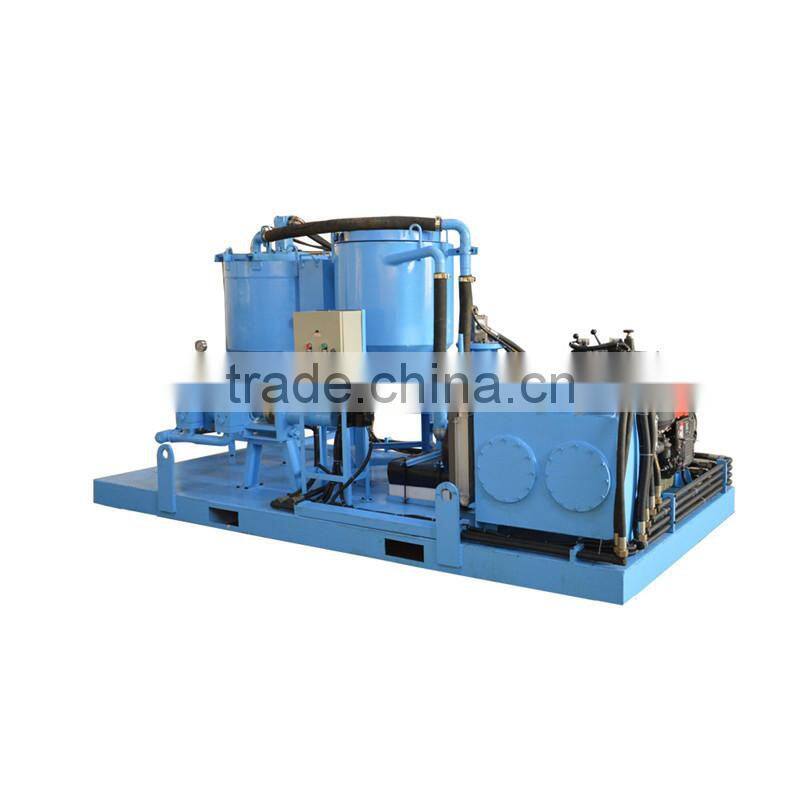

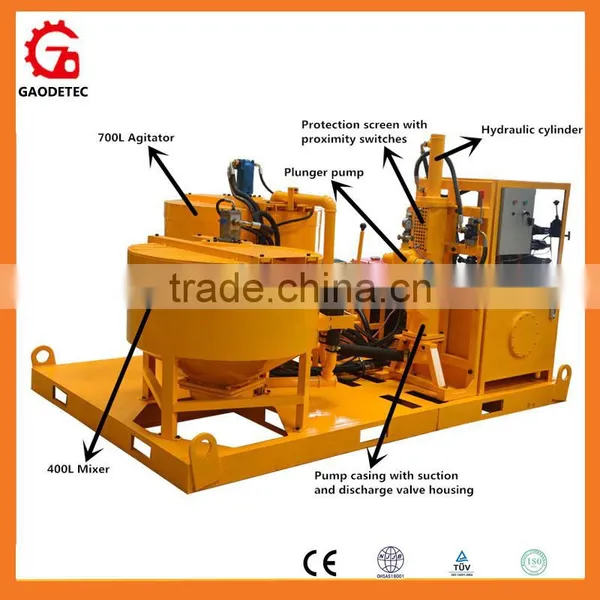

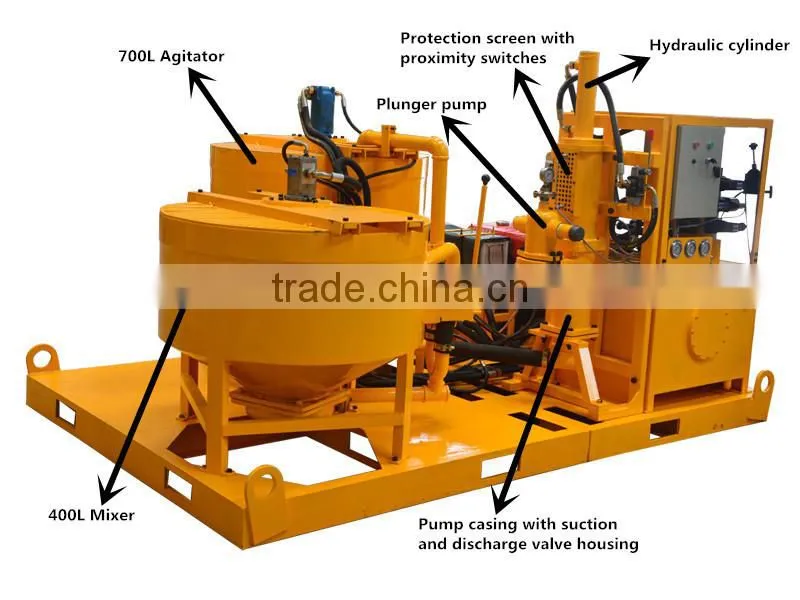

The GGP400/700/100 grout station is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Mainly suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant
Feasures:

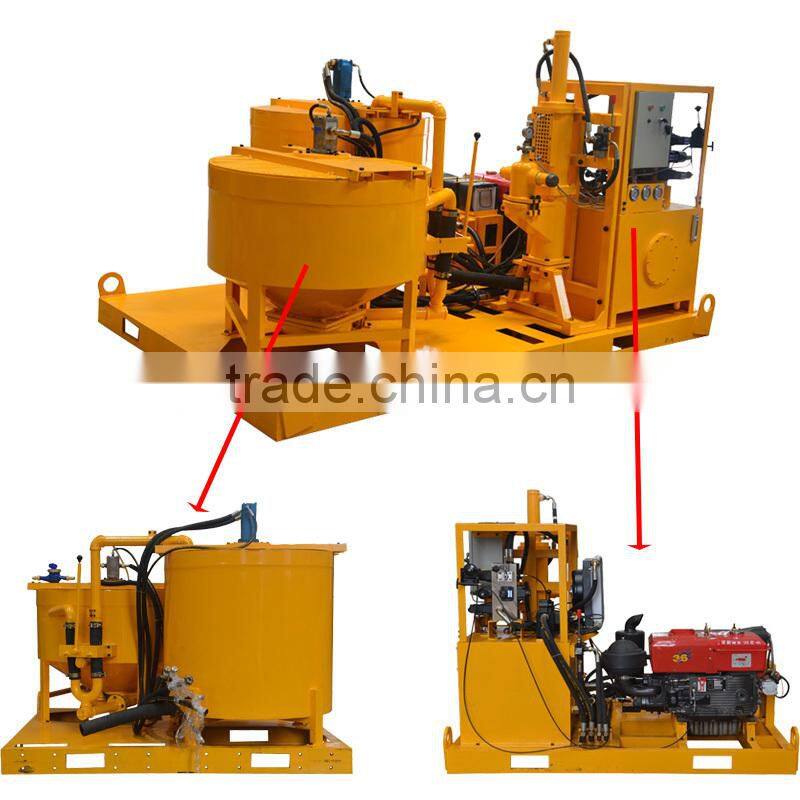

1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;

2. Have low pressure and high pressure, stepless speed regulation;

3. Yuken relief valve and directional valve for hydraulic system of grout pump;

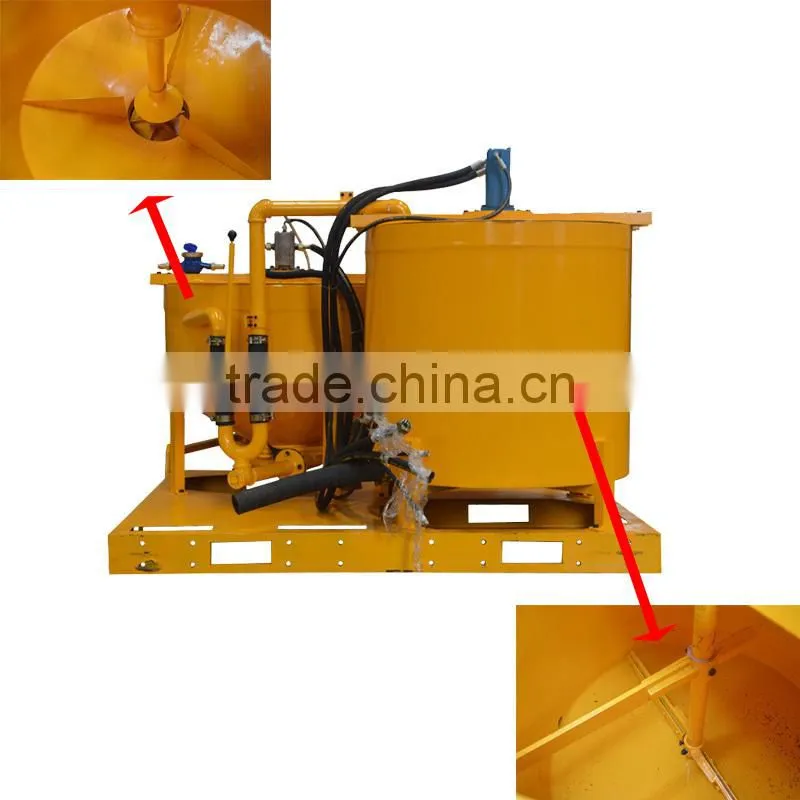

4. Butterfly valve of mixer and agitator;

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

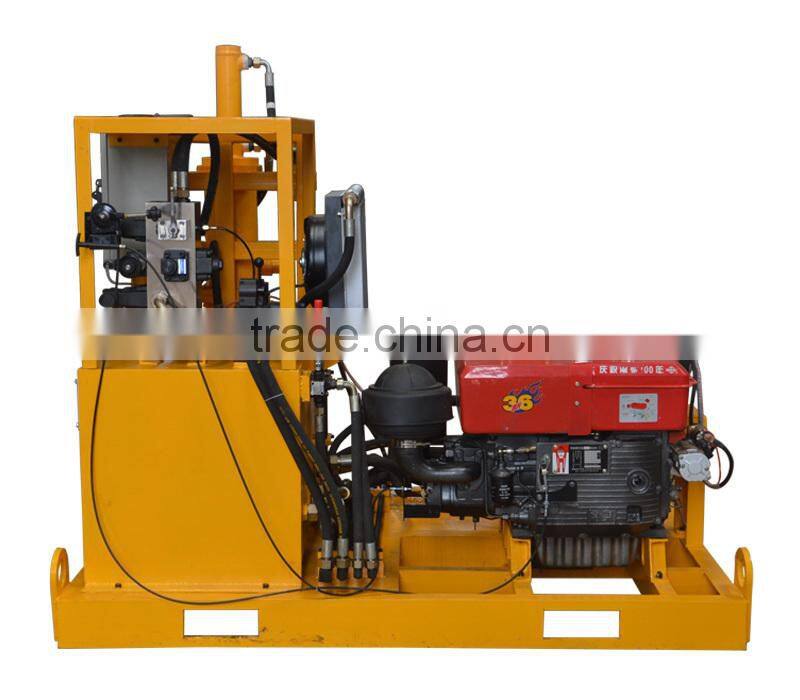

6. Full hydraulic drive, diesel engine.

7. Operation and maintenance are simple;

8. With ISO, CE certificate.

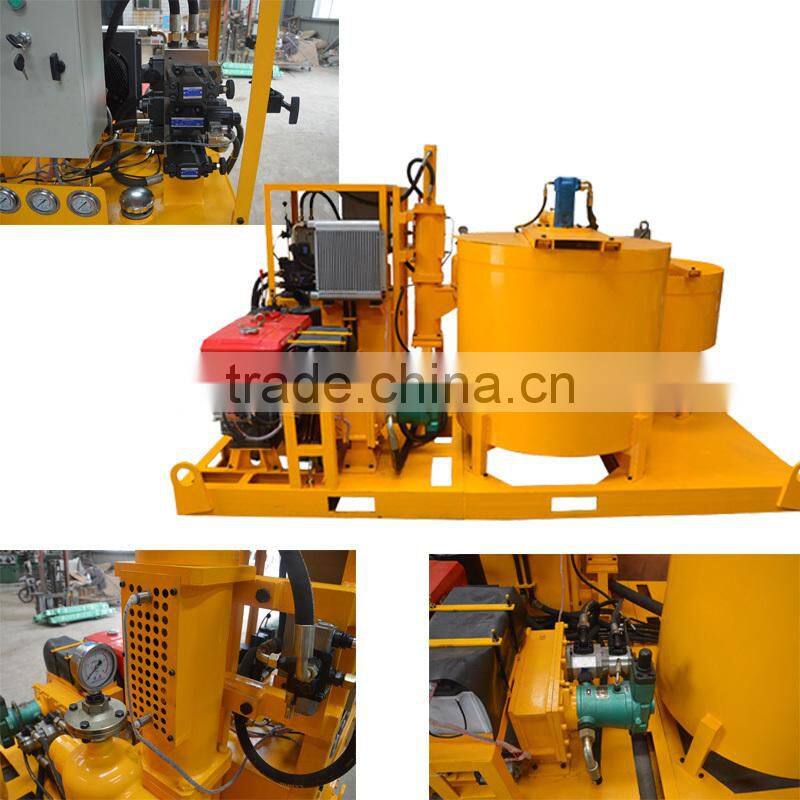

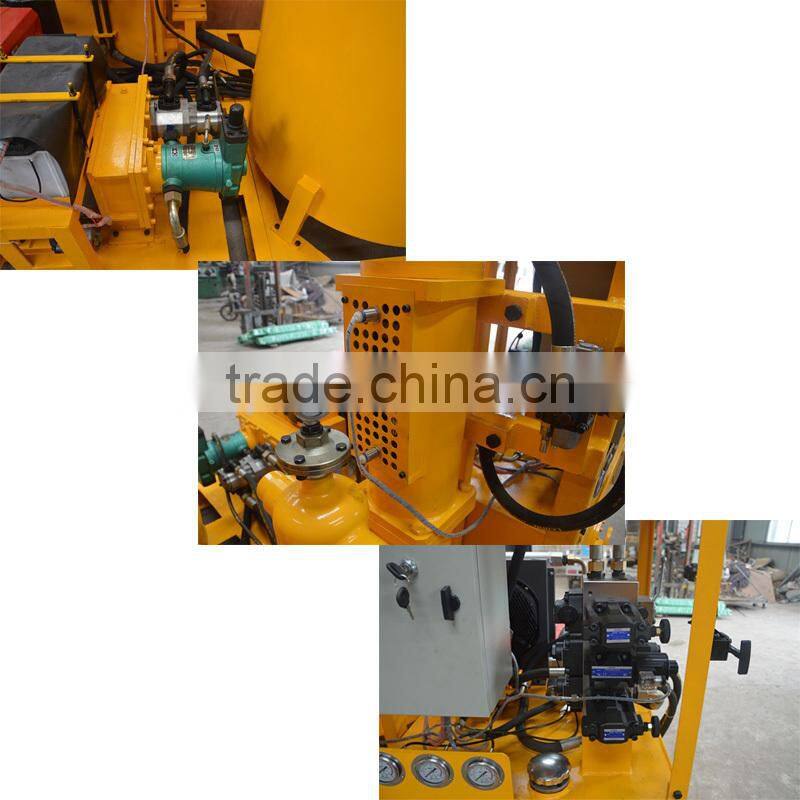

Detailed Images

Technical Data

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant
Technical Data:

Type	GGP400/700/100 Grout Station
Diesel engine	25kw/36HP
Rotating speed of engine	2200r/min
Dimensions	290019001750mm
Weight	1900kg

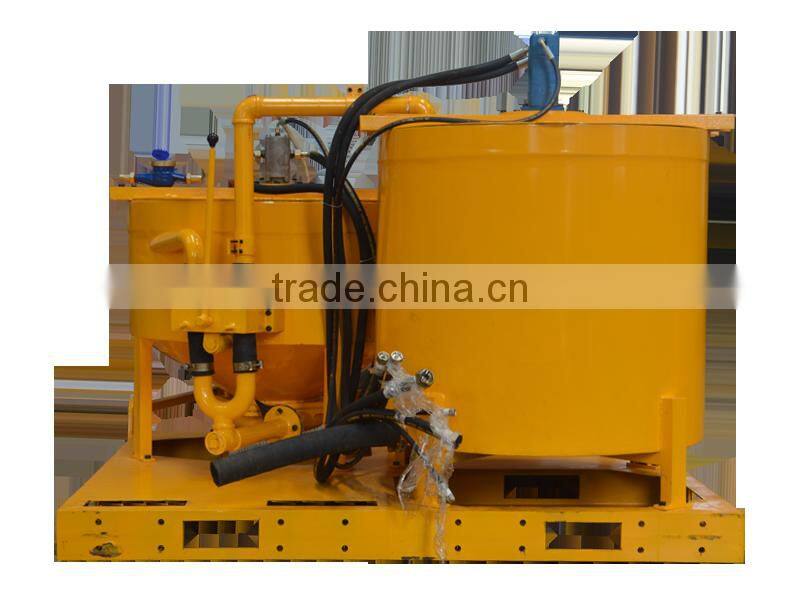

Mixer
Capacity	400L
W/C ratio	0.5-1
Rated Rev.	1500rpm
Agitator
Volume	700L
Rated Rev.	36rpm
Pump
Type	Hydraulic Plunger pump
Pressure and Output	25 Bar (low pressure) 100L/min
Pressure and Output	50 Bar (high pressure) 40L/min

GGP400/700/100 Full Hydraulic Drive Dam Foundations Bentonite Grout Plant
Applications:

1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts

2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting

3. Construction - pavement under sealing, slab jacking and slab raising

4. Marine - underwater foundations, piers, breakers, shoreline foundations

5. Mining - tunnel lining, contact grouting, shaft waterproofing

6. Utilities - encasements, waterproofing, slope line grouting

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment
