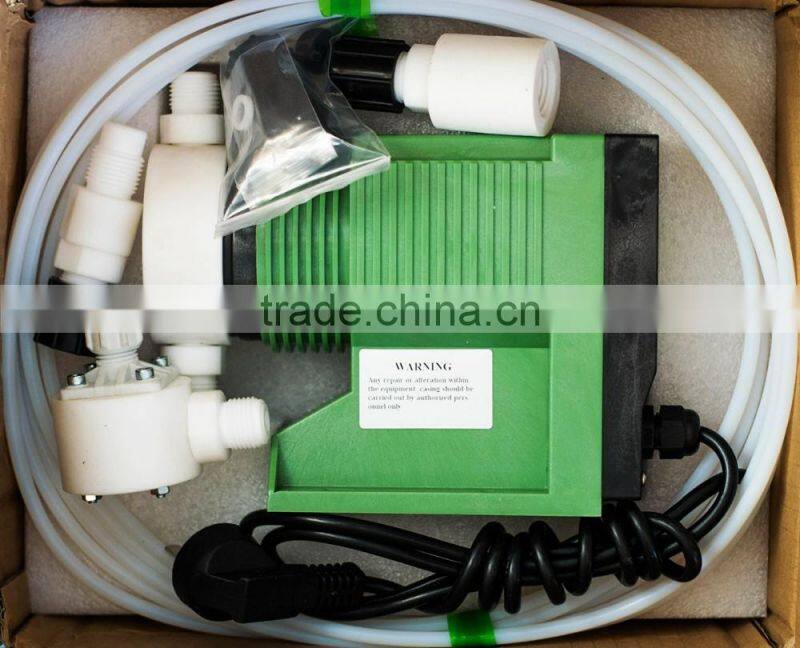

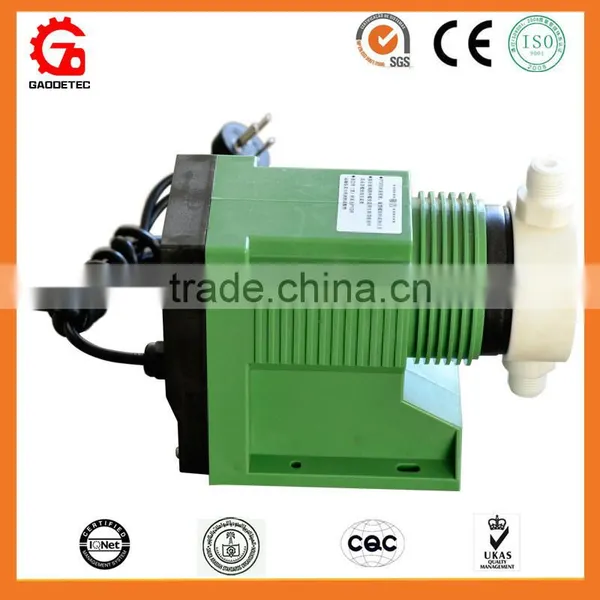

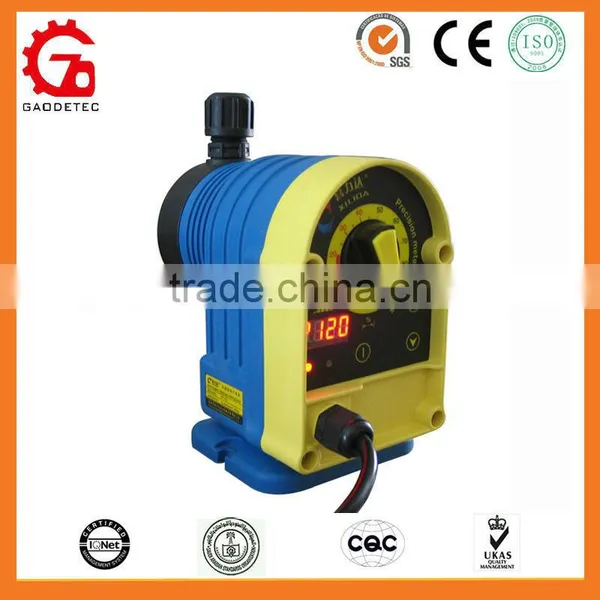

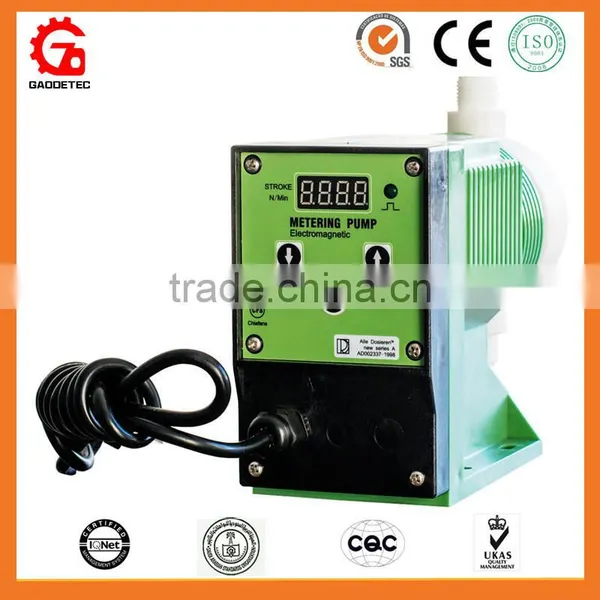

Dosing Pump Supplier Small Solenoid Diaphragm Metering Pump
Product Application (meteing pumps):
Presice osig of PAC, polyacrylamide(PAM), bleach chemicals / additives in Sewage treatment works, power plant water treatment, electroplating, circuit boards, paper, swim pool and other industry.
Product Features (meteing pumps):
1. New design, reasonable structure, beautiful appearance, strudy and durable.
2. Enclosure protection class IP65, the use of more security.

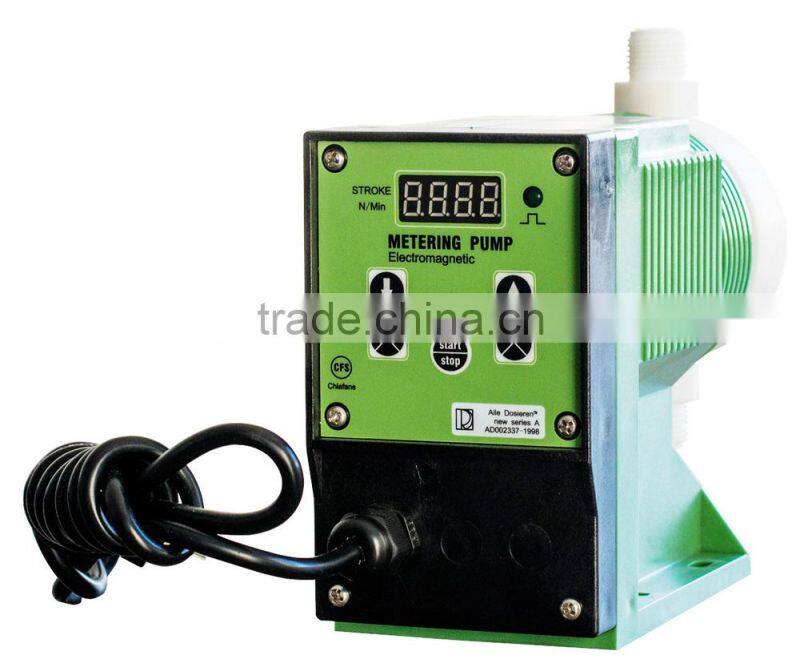

3. Programmable high-precision micropocessor control with digital display and four touch keys, intuitie operation, clear and more convenient.
4. Stoke frequency range(1-200 times/minute) can be adjusted, coopeating with standard stokes range(20%-100%), which make the potion dosing more precise.
5. Standard duble ball one-way valve design, higher work efficiency and accuracy.
6. Switch button conveniently and cooperation more conveniently.
7. Reliable hose interface is very simple and strong.
8. External interface is industrial electrical connectors IP68.
9. HT-Z automatic type receive the pulse signal to control the flow rate of the pump outside automatically by externail control joint ( 5 core ).
10. HT-Z automatic type ay receive 4-20 Mpa,20-4 mA analogue signals to cntrol 0-100% or 100%-0 the flow rate of the pump outside automatically by external control joint(5 core).
11. It will alarm and stop working when optional control function of the swithch connected to the level switches interface(2 core), liquid level is too low.
Solenoid Diaphragm Metering Pumps Parameters:
HT manual type: stroke length and frequency is adjustable between 0 and 100%, liquid level switch function is availale.
HT-Z automatic type: except the function of manual type, it can be external controlled by receiving 4-20 ma analogue or pulse signals.

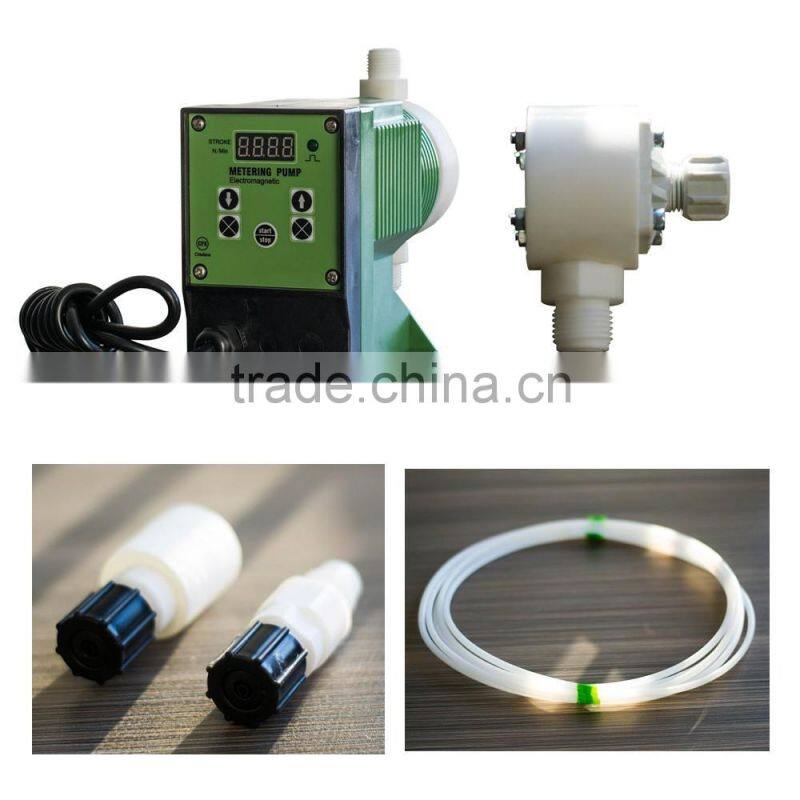

small metering pumps material form:

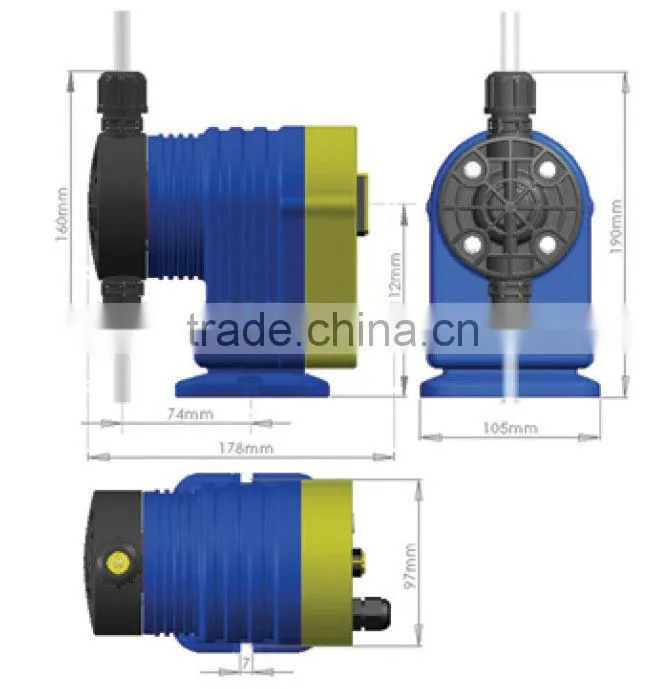

HT Series solenoid Diaphragm small metering pumps dimensions:
Solenoid Diaphragm small Metering pumps model selection:
1. the transmission medium or liquid name ( water, drug name and so on)
2. the flow (L/H)
3. the systerm pressure (Mpa)
4. the medium temperature
5. the vicosity of the transmission medium(CP)
6. connectors ( screw or flange )
Please tell me the details about the medium and the solenoid diaphragm small metering pump you need. Thanks!
For more questions, please feel free to contact me!
