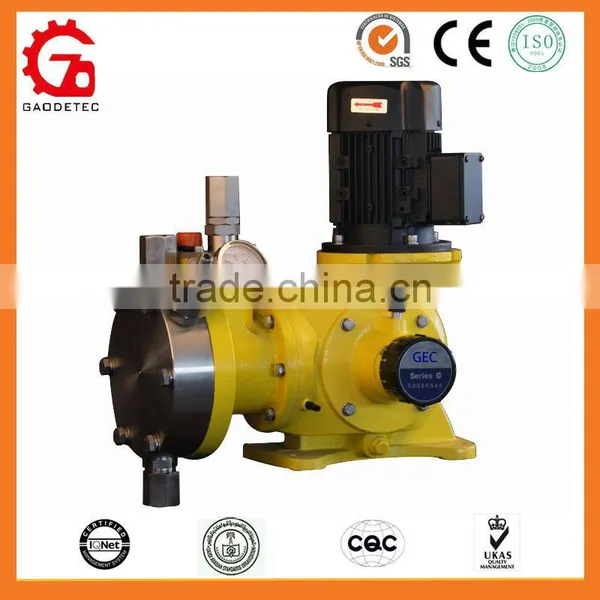

aquarium dosing pump
1. Max flow of single head: 940 L/H
2. Max discharge pressure: 50 Mpa
3. Adjustment ratio: 10:1, stable precision about 1%
4. Suction lifting height up to 2.5 meters of water
5. Medium temperature: -10 to 100 Celsius degree.
6. Environment temperature up to 40 Celsius degree, and highest altitude 1000 m .
Control ways:
1. Power supply: 380V / 220V--50Hz / 60Hz, 3 phase or single phase
2. Variable frequency inverter, adjusting the stroke speed, input signal
3. Motor controller, turn on or off the 3 phase motor and adjust the inlet flow.
Wide application:
Applied in the fields, such as oil, chemistry industry, electric power, metallurgy, medicine, food and so on, especially for the fields with high precision, high pressure and high temperature.
Material of the main parts on the fluid end:
| fluid end | pump head | valve body or seat | valve balls | plunger | packing | sealing ring |
| 304SS | 304SS | 304SS | 316SS/ceramic | 316 & ceramic | fluororubber | flurorubber |
| 316SS | 316SS | 316SS | 316SS/ceramic |
316 & ceramic | fluororubber | fluororubber |
JX Series Plunge aquarium dosing pump Technical Data:
Connectors: NPT screw connector, flange connector, sleeve chuck. Special connectors, please contact us.
Electric motors:
1. 3 phase, 220/380V, 50Hz, 1440 rpm, IP55/F
2. single phase, 220V, 50Hz, 1440 rpm, IP55/F
3. 3 phase anti-explosion, 220/380V, 50Hz, 1440 rpm, IP55/F, d II BT4
4. 3phase anti-explosion, 220/380V, 50Hz, 1440 rpm, IP55/F
5. without the motor, keep the IEC90 connector
6. Ohter motors, please consult us.

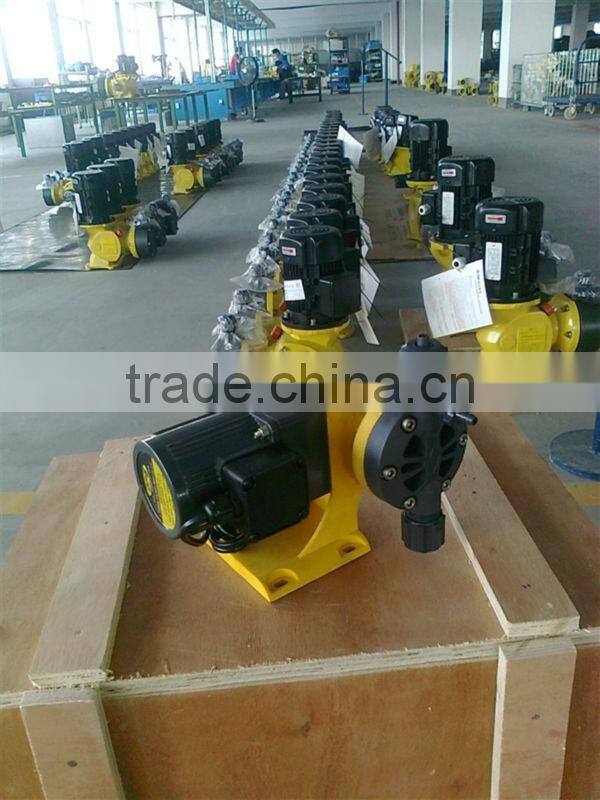

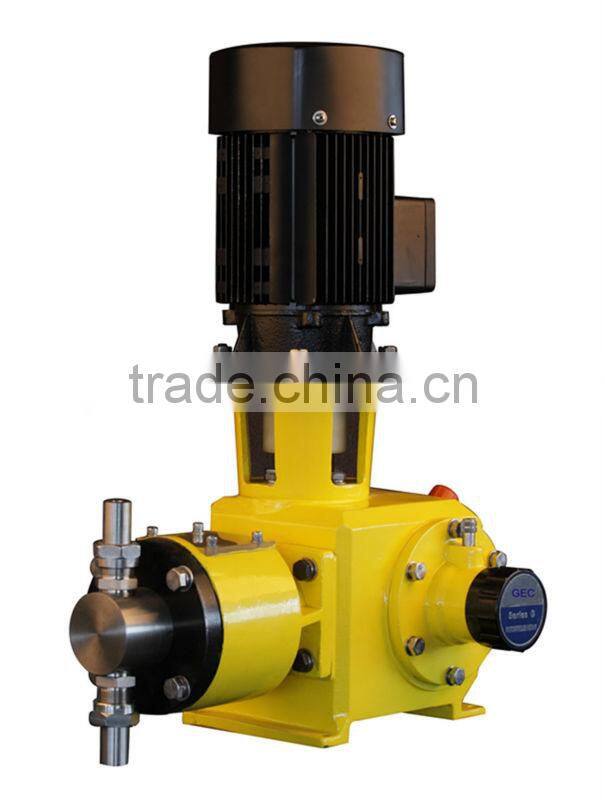

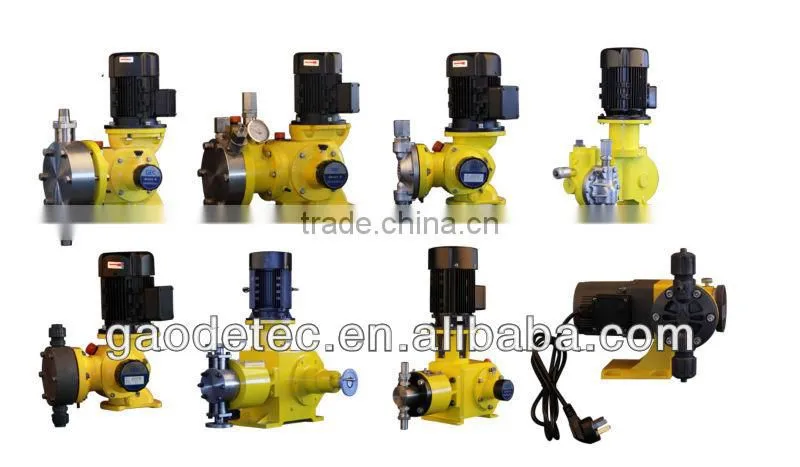

Various dosing pumps from Gaode Equipment Co.,Ltd.

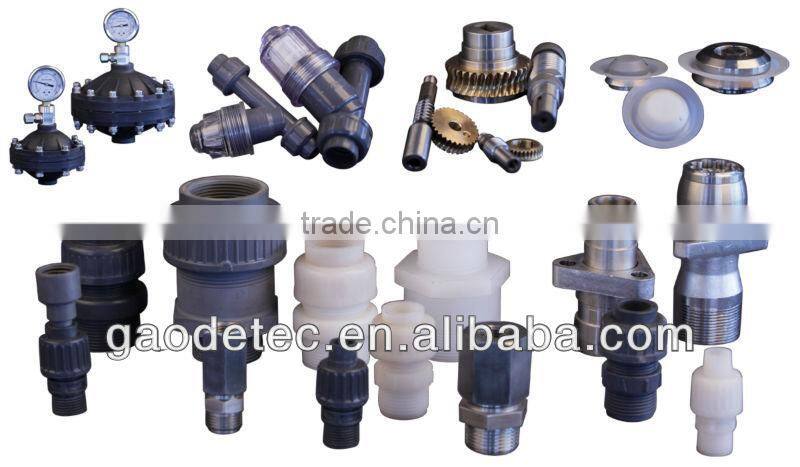

Components and parts of dosing pumps:

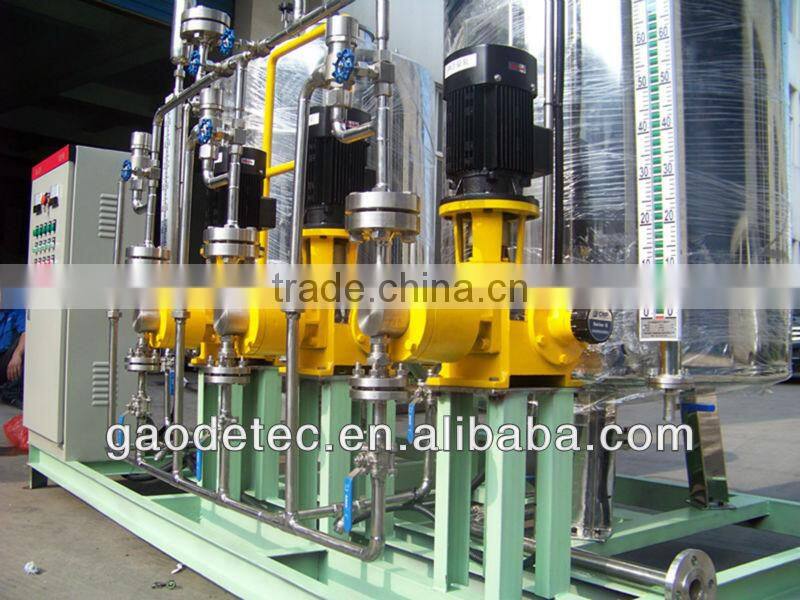

dosing pump Delivery Sites:
More information is needed in order to correctly choose dosing pump ?
1. The main chemical composition in the delivering liquid?
2. The flow (L/H) ?
3. The systerm back pressure (bar) ?
4. The tempurature ?
5. The viscosity ?
6. The concentration(mPass) ?
7.The controller ways, such as automatic control, external control signal(impulse type or analog type)?
Or other special request, please tell us. Thanks!
Please feel free to contact us for other types of dosing pump, such as plunger type, hydraulic diaphragm, mechanical diaphragm, pneumatic diaphragm....
