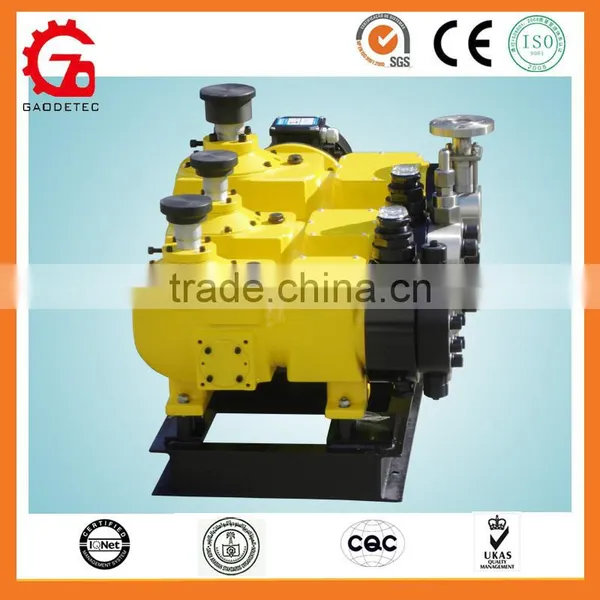

High Pressure Hydraulic Diaphragm Dosing Pump

Petrifaction, chemical industry, refinery processes, power plant boiler water treatment and so on.

Main Features:

1.Driving end

a. Eccentric mechanism driving, compact structure, small installing space.

b. Unique worm wheel structure or screw structure, promises the stable and  successive work of the mechanic driving parts.

c. The roller bearing in the bottom of the screw promises the long time stable heavy-load running.

d. Oil bath lubrication systerm, long service life.

e. The flow is adjustable when running or stopping. The adjustment can be hand, electricity, air driving or frequency conversion.

2. Fluid Contact end

a. Hydarulic driving diaphragm promises the long service life of the diaphragm.

b. High precision one-way check valve structure make dosing pumps precisely add.

c. Inner adjustable pressure relief valve can automatically protect the diaphragm and pump head from being damaged.

d. PVC, PVDF, 316SS, alloy 20 or 22, Hastelloy and other materials of pump heads are suitable for various fluids.

e. Optional pressure type double-diaphragm leaking hunting alarm ( on site or long range ).

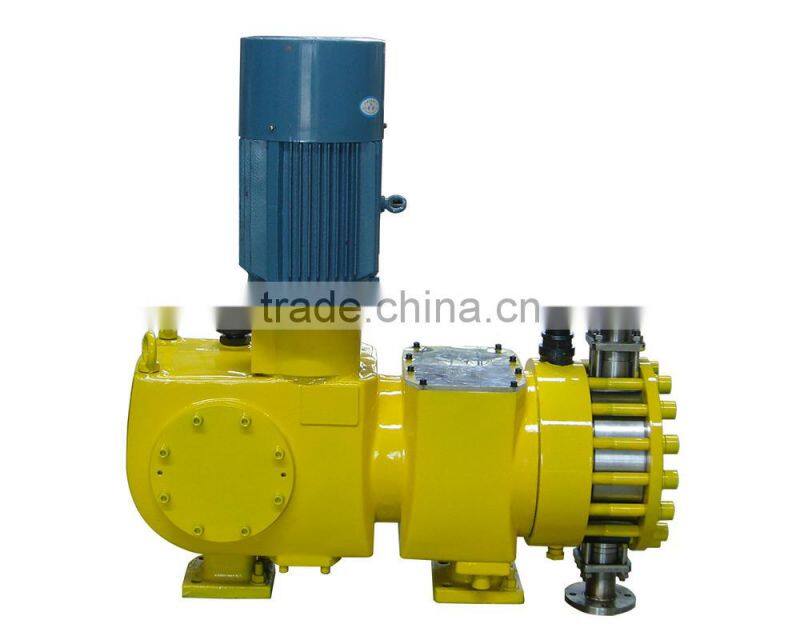

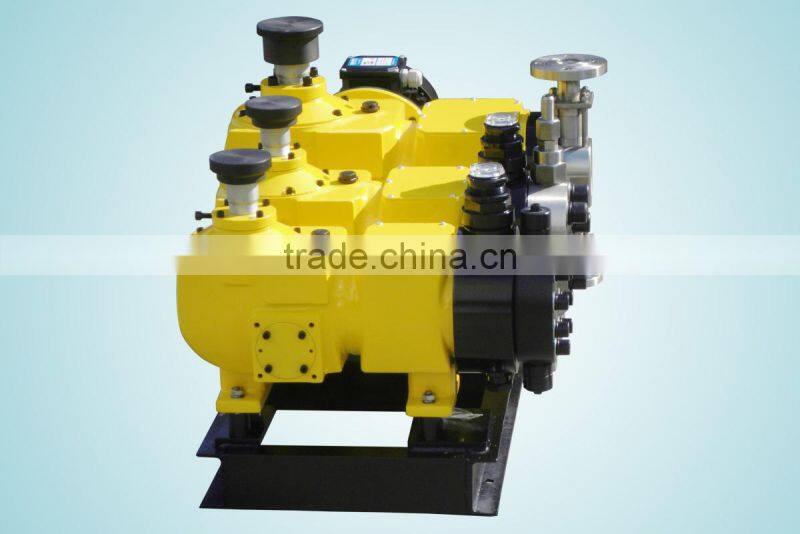

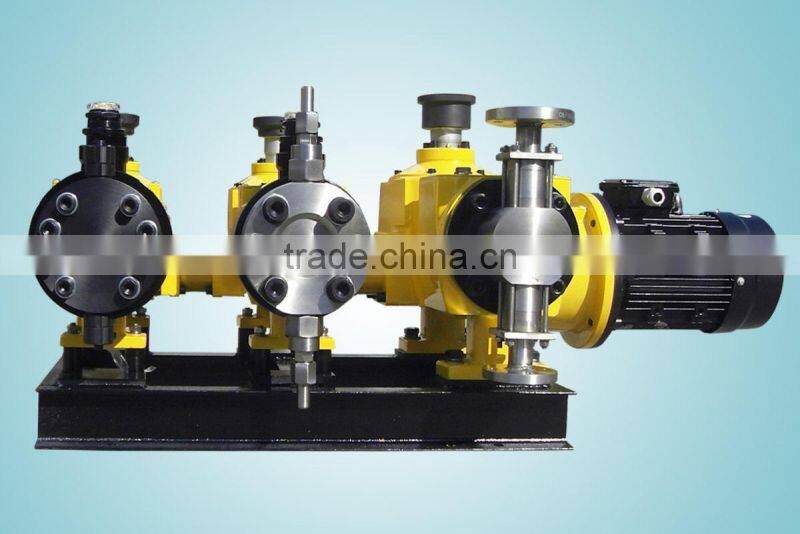

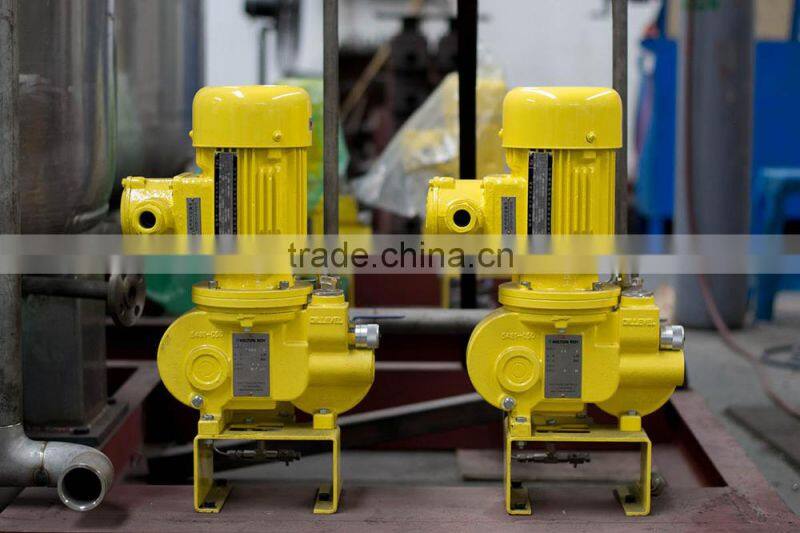

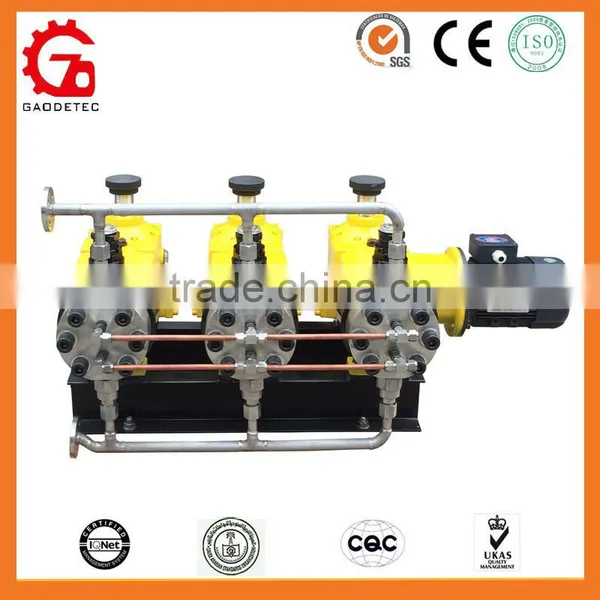

 Various metering pumps from Gaode Equipment Co.,Ltd.

Various components or parts of hydraulically actuated diaphragm pump :

 More information is needed in order to correctly choose hydraulically actuated diaphragm pump

1. The main chemical composition in the delivering liquid?
2. The flow (L/H) ?
3. The systerm back pressure (bar) ?
4. The tempurature ?
5. The viscosity ?
6. The concentration(mPass) ?
7.The controller ways, such as automatic control, external control signal(impulse type or analog type)?

Please feel free to contact us for other types of metering pumps, such as plunger type, hydraulic diaphragm, mechanical diaphragm, pneumatic diaphragm....
