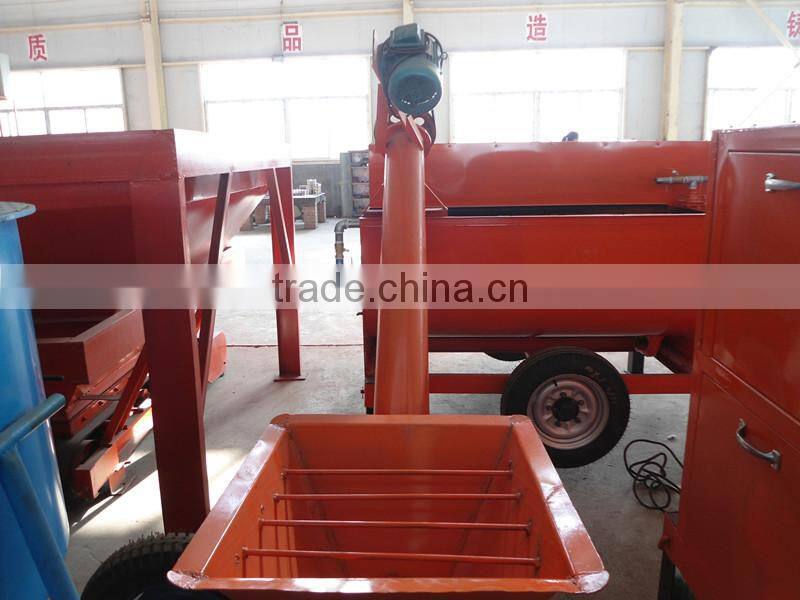

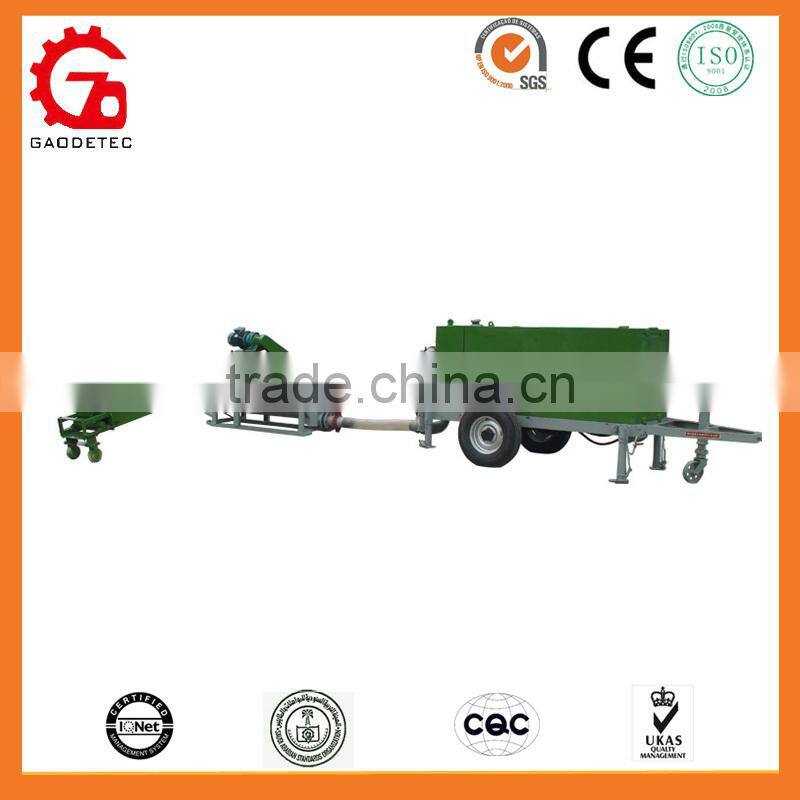

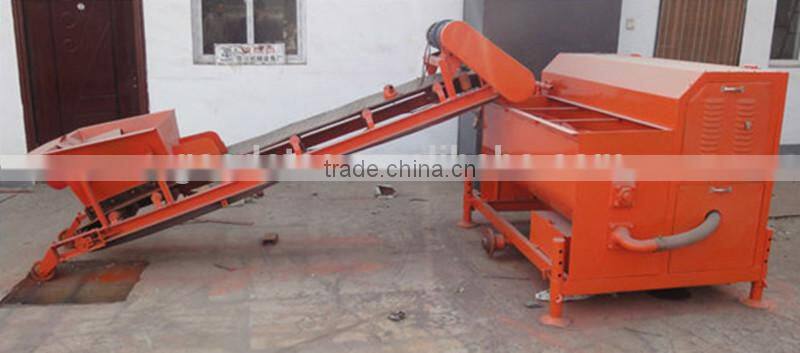

OEM supplier small cellular lightweight concrete mixing machine
Model:GF15
Introduction:
•GF15 Foam concrete making machine contains feeding machine, mixing machine, and conveying pump. It is an integrated equipment with feeding, foam blowing, mixing and high pressure conveying. Its pump adopts double cylinder full hydraulic pumping, high pressure in the exist, could meet the requirement of the high-rise buildings. Transport height in vertical 70m, transport length in horizontal 200m.
•GF15 Foam concrete making machine equipped with travelling wheels, universal wheels and flexible support, easy for move and take its place.
•GF15 Foam concrete making machine is an ideal equipment for roofing insulation and slope, ground insulation bedding course, and foundation pit filling.
Features:
1. The machine is one integrated equipment, built in with the feeding system, mixing system, foaming system, water system and pumping system;
2. With moderate produce capacity and pumping height;
3. Simple structure, light weight, easy move, low cost
4. Mainly used for roof insulation, floor heating etc. projects
5. High cost-performance.
Technical data:
Model |
GF15 |
Max.Output |
15m3/h |
Max.Conveying Pressure |
3 MPa |
Max.Horizontal Transporting Range |
200 m |
Max. Vertical Transporting Height |
70 m |
Acceptable Max. Aggregates size |
2mm |
Power |
1.5kw+3kw+5.5kw+5.5kw+0.75kw |
Dimension |
1900x1400x1500mm |
Weight |
1000kg |
A complete set of GF15 foam concrete machine:
No. |
Description |
Quantity |
Unit |
Remarks |
1 |
Main Machine |
1 |
set |
|
2 |
Mixer |
1 |
set |
|
3 |
Feeder |
1 |
set |
|
4 |
compressor |
1 |
set |
|
5 |
foam generator |
1 |
set |
|
6 |
Conveying Hose, ID50mm, Length 60m |
1 |
piece |
|
7 |
Water pump |
1 |
set |
|
8 |
Water pump hose |
1 |
piece |
1. Applied for insulating layer in floor heating constructions:the surface will flow smooth naturally and is an essential advanced equipment for floor heating construction.
2. Applied for roof insulation constructions: the foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer.
3. Can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material.
4. Can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section.
5. Applied in freezing prevention and temperature maintenance of pipeline

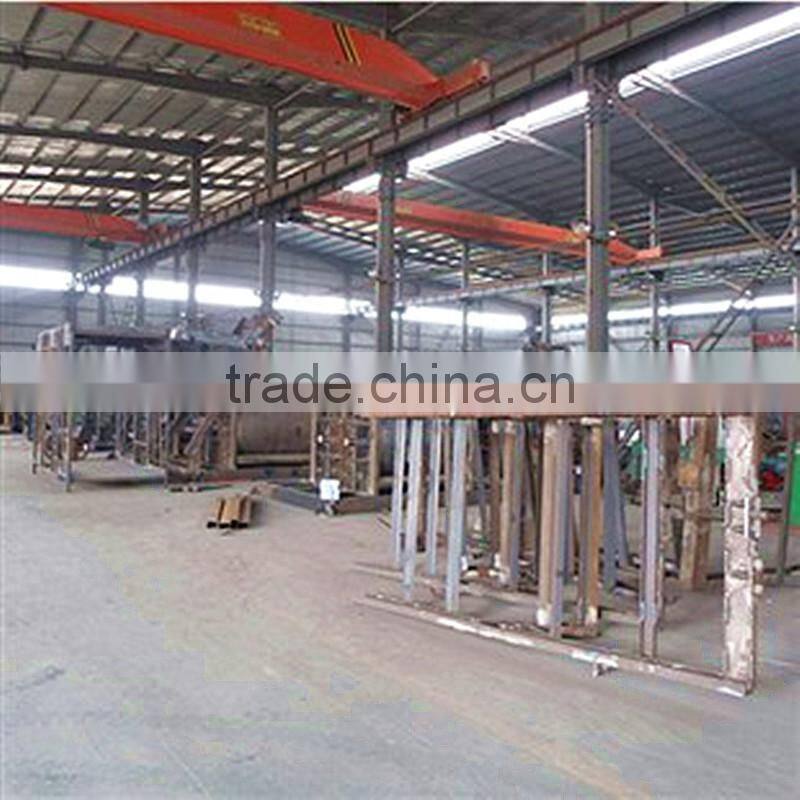

Factory:

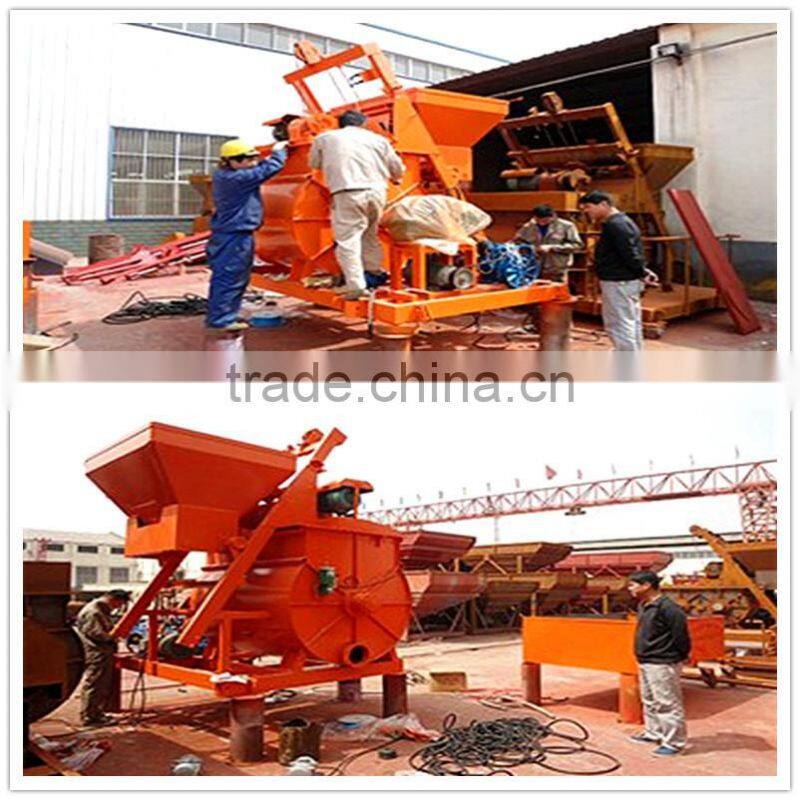

Workshop:
To provide a world best quality of product and service with 100% customer focused. We strive always for honesty and best quality of products and devote ourself to become a foremost seller in foam concrete products, as well as to provide customer focused Products on time with integrity.
GF20:
GF30:
GF10:
GF25:
GF35:
