25 to 30 m3/h light weight concrete foam brick machine for sale
New building material foam concrete block features:
*Low Cost *Light Weight
*Heat Preservation *Sound Insulation
*Fireproofing *Aseismatic
*High Construction Speed *Environmental Protection
GAODE concrete foam brick machine include:
1,Foam Concrete Mixer
2,Foam Concrete Pump
3,Foam Concrete Block Mould
4,Foam Concrete Block Cutting Machine
5,Foaming Machine
6,Foaming Agent
7,Foam Concrete Hardener

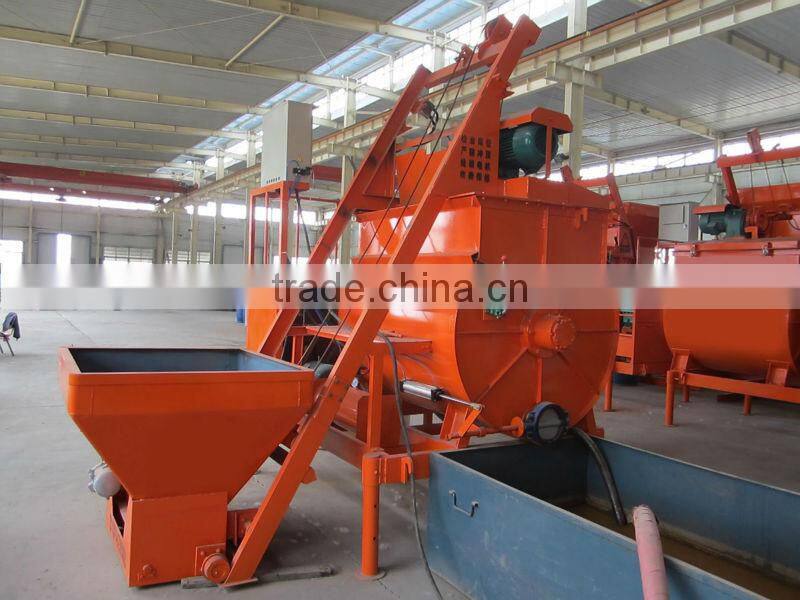

GM2000 concrete foam brick machine (mixer):
Features:
1. The foam blending fast, blowing foam uniformly.
2. Without suspended matter, without the declining, it’s good for steady pouring.
3. Little loss ratio of foam maintain the foam proportion in the foam concrete to make the products with stability
density.
4. No dead angle design, mixing the material toughly, storage in its bottom is less than 10mm, no material left
on the four walls internal the mixing drum.
5. It could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc.
6. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high,
it saves energy.
Technology data:
| Model | GM2000 |
| Production Capacity | 15-20 m3/h |
| Output Volume | 1500 L |
| Material Input Volume | 2000 L |
| Main Shaft Revolution | 32 r/min |
| Hopper Lifting speed | 22 m/min |
| Mixing Motor | 11 kW |
| Winding Motor | 5.5 kW |
| Water Pump Motor | 1.1 kW |
| Vibrating Motor | 0.55 kW |
| Foaming System | 5.5 kW |
| Max. Moving Speed | 15 km/h |
| Total Weight | 3200 kg |
| Overall Dimension | 2600x2250x3000 mm |
GP30 foam concrete pump:
Technology data:
| Model | GP30 |
| Max.Output | 30 m^3/h |
| Max.Conveying Pressure | 8Mpa |
| Max.Horizontal Transporting Range | 600m |
| Max.Vertical Transporting Height | 200m |
| Max.Partice Size of Aggregates | 8mm |
| Cylinder Bore | 80mm |
| Delivery Cylinder Bore | 140mm |
| Max.Pressure of Hydraulic System | 24Mpa |
| Oil Pressure Box Volume | 200L |
| Motor Power | 30kw |
| Total Weight | 2200kg |
| Overall Dimension | 3100*920*1300mm |
| Dimension(mm) | 3900*1350*1450 |
| Overall weight(kg) | 1950 |
GW30B wire cutting machine:
We also can produce the large capacity foam concrete block production line:
working follows :
foaming effect :
Our PVC Formwork :

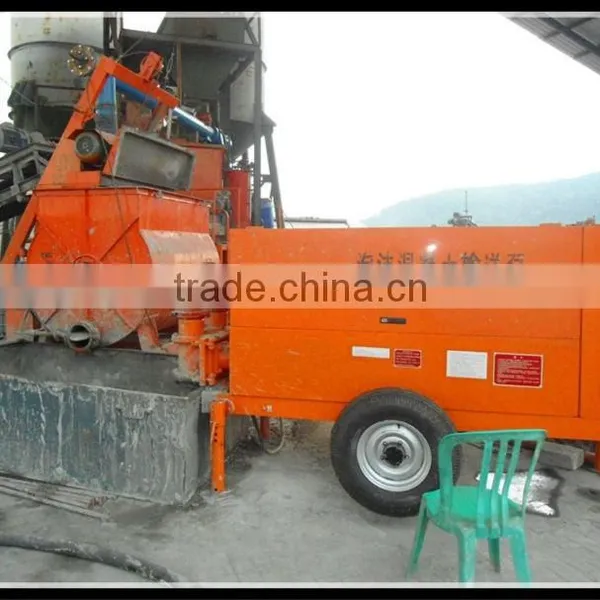

concrete foam brick machine contains a concrete mixer (2600*2250*3000mm ,Net weight 3200kg) and a concrete pump (3900*1350*1450mm ,Net weight 1950kg) .It usually shipped by a 40'' container .
Gaode Equipment Co., Ltd, short name Gaodetec (GEC), is a manufacturing, technical service and trading company in cellular lightweight concrete field. We have worked in this field nearly 20 years, our machines mainly used for CLC blocks, wall cast in-situ, roof insulation etc. project. In past years, GEC CLC has been used produce over hundred thousand houses, apartments schools, hospitals, industrial and commercial buildings.
For years of experience of Gaode Equipment Co., Ltd. has developed its own R&D and technical teams, which supports further development and customized service for client.
We control quality of foam concrete equipment throughout the whole process strictly, and certified by ISO 9001:2008 and CE and SGS.
Gaodetec products have been exported to the India, Malaysia, Pakistan, Philippines, Nepal, Iraq, Iran, UAE, and other countries.

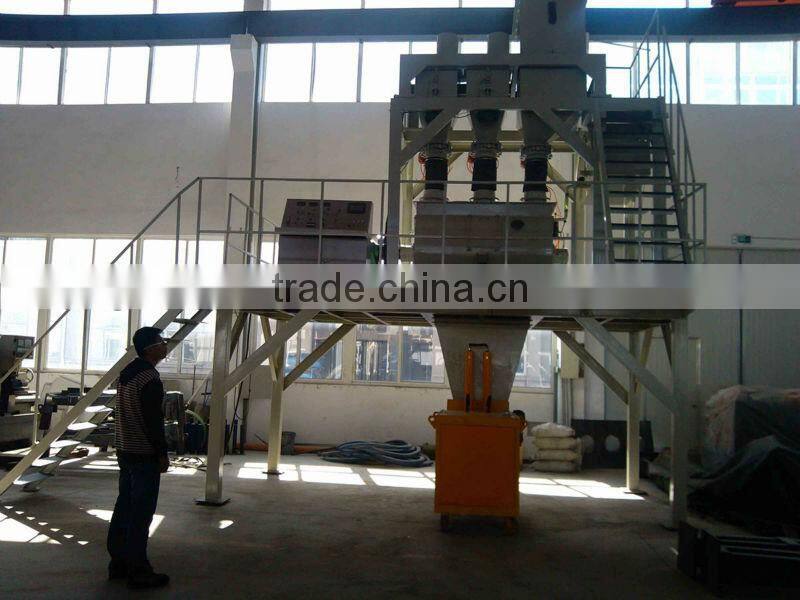

concrete foam brick machines worksite :
The brick made by our concrete foam brick machines :
Our certification of concrete foam brick machines :
Why Choose GEC Foam concrete machine ?
- Duplex full-hydraulic driven system to ensure high output pressure for high-rise construction
- Automatically control the proportion of the various components, density of foaming cement easy to be adjusted
- High-quality wear resistant components for long service-life and also provide after-sales service security ·installed with walk round, can move on the ground or mounted on the truck .
