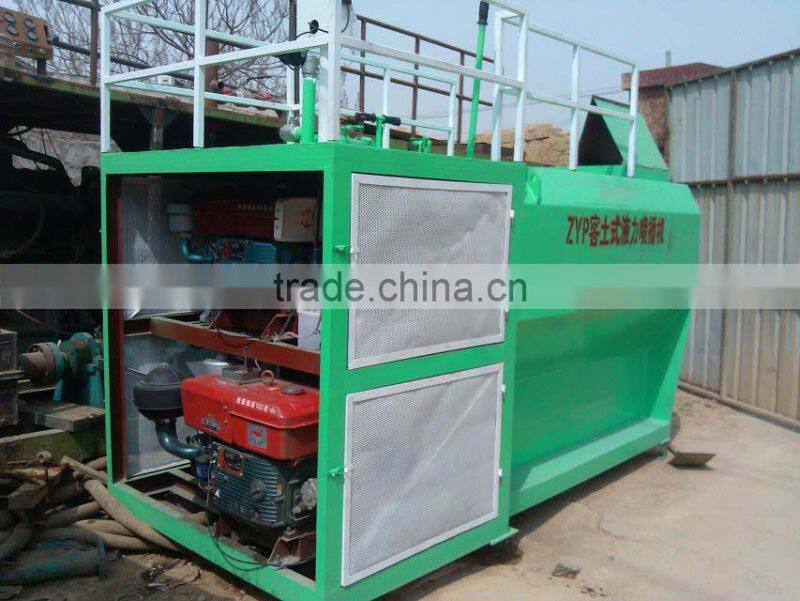

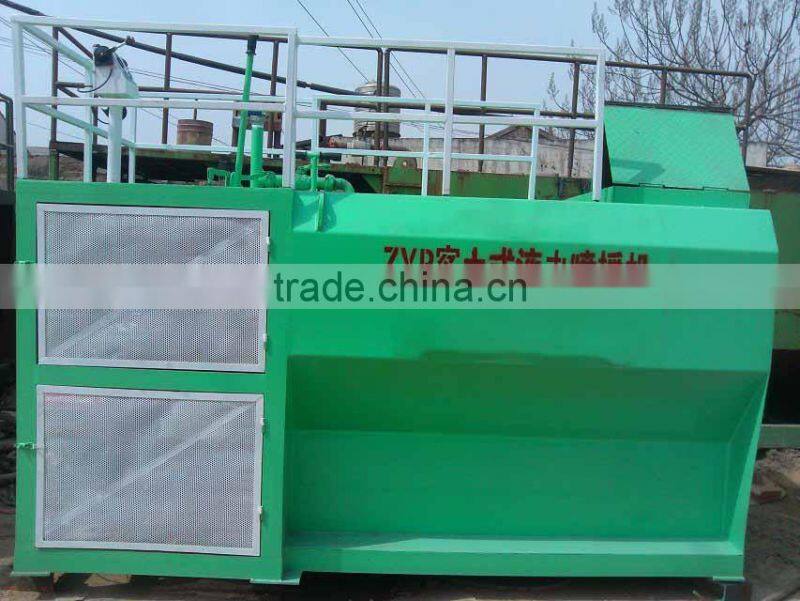

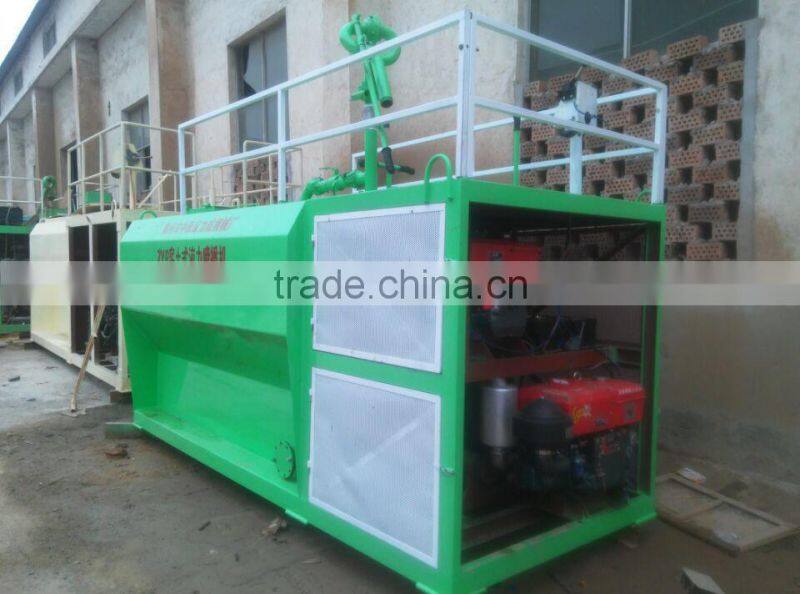

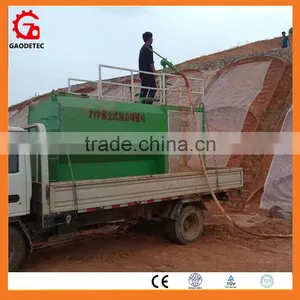

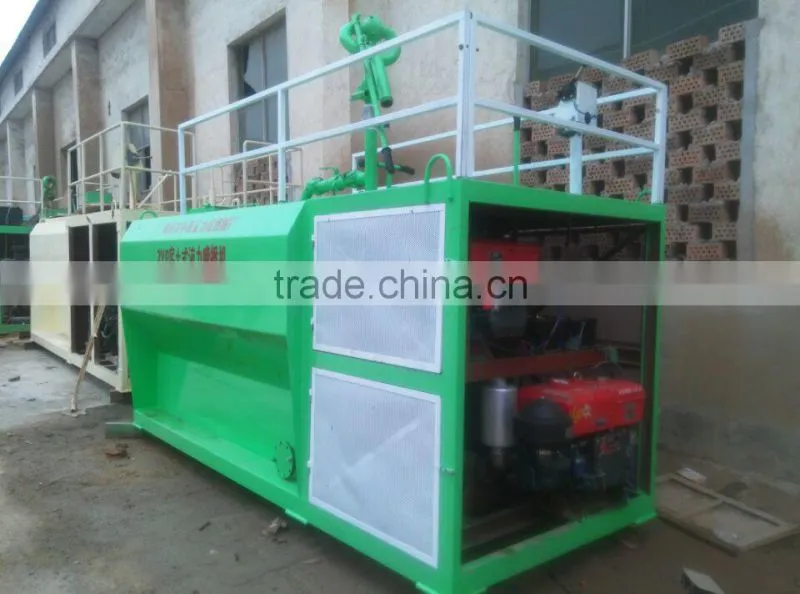

China 2000L mobile and small hydroseeder manufacturer
Feature of China small hydroseeder:
1. The hydroseeder is suitable for mixture which include grass seeds, soil, grass fiber.

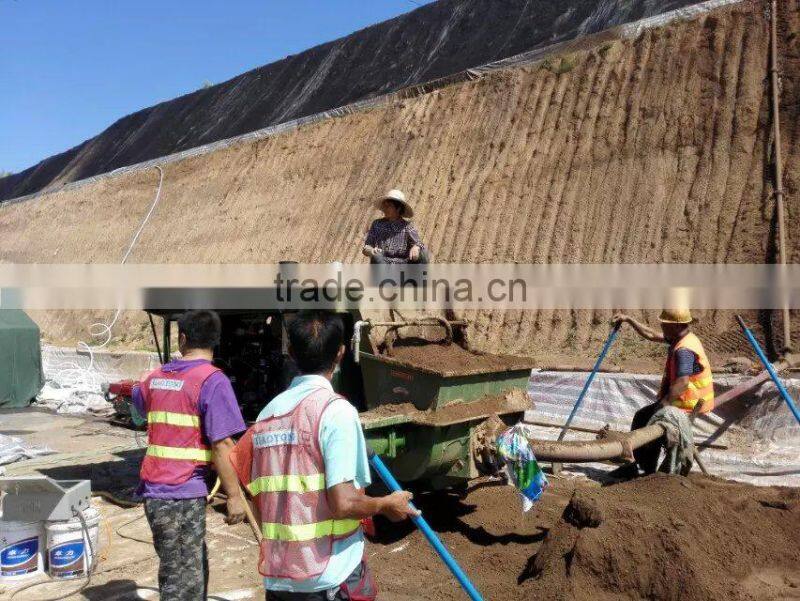

2. ZYP series hydroseeder is small size, convenient to move, it is suitable for low slope green project. It is widely used in riverbank, highway, railway low slope and wasteland, lawn, fruity garden, farmland,etc. where need to spray grass seeds.

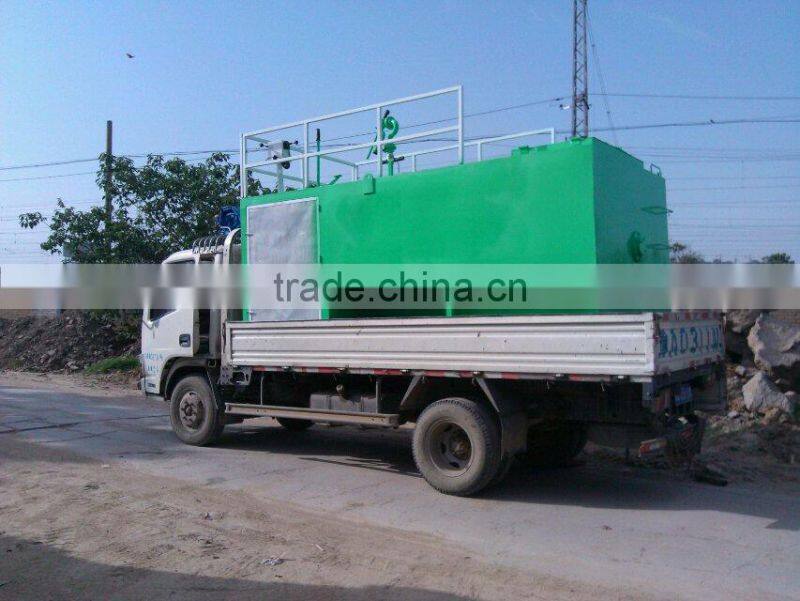

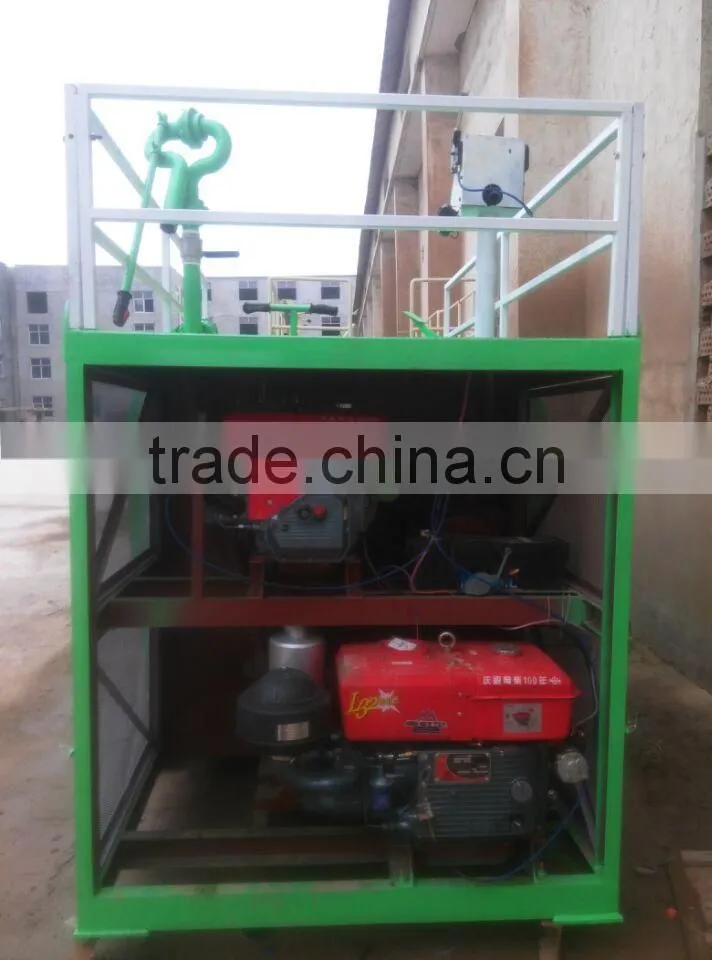

3. According to the actual construction of the diesel power replaced the motor power, and installation of the wheels, either reduce the cost of the machine and easy machine in unsuitable vehicles moving in and out of place, but also easy handling gantry crane installation according to customer requirements.
4. The hydroseeder install a horizontal spiral conveying and mixing system, can make mixture uniformity to improve the seeds germination rate and growth rate.
Model | ZYP-1 | ZYP-2 |
Diesel engine | 13kw | 20kw(28HP) |
Tank capacity | 1 m3 | 2m3 |
Spraying areas per tank | 80-240m² | 200-500m² |
Direct spraying distance | horizontal10-25m | Horizontal20-30m |
Vertical5-20m | vertical10-20m | |
Spraying distance with hose | horizontal20-50m | horizontal20-60m |
vertical20-30m | vertical20-30m | |
Weight | 600kg | 1000kg |
Dimension | 1500×1300×1300mm | 2500×1500×1400mm |
Model | L28 |
Type | Single cylinder water cooling four stroke |
Cylinder diameter | 125mm |
Stroke | 120mm |
Displacement | 1.473L |
Power/r/min | 28Hp/2200rpm |
Max.torque | ≥97.2N.m |
Rotating speed of Max.torque | ≤1760rpm |
Fuel consumption on calibration point | ≤244.8g/kw.h |
Idel speed | ≤800r/min |
Start mode | Electric start |
Weight | 208kg |
Dimension | 916*475*709mm |
Notice: the diesel engine could be change as per your requirement.
Model | ZYP-4 | ZYP-6 | ZYP-8 |
Mixing power | 8kw | 8kw | 8kw |
Output power | 20kw | 23kw | 27kw |
Volume | 4m3 | 6m3 | 8m3 |
Spraying space/tank | 500-1500m² | 700-2000m² | 1000-2500m² |
Direct range | Horizontal 20-35m | Horizontal 20-35m | Horizontal 24-40m |
Vertical 10-25m | Vertical 10-25m | Vertical 15-30m | |
Lead hose lift | Horizontal 20-60m | Horizontal 20-70m | Horizontal 30-80m |
Vertical 30-40m | Vertical 30-40m | Vertical 30-50m | |
weight | 1300kg | 1600kg | 1900kg |
Dimension | 3250×1500×2400mm | 3600×1800×2400mm | 4200×1800×2400mm |
1. Adhesive
the adhesive of agro-forestry is mainly used for slope green or other soil structuer improvement, to make soil into granular structure. Meanwhile it can make high permeability of soil, improve the pnetration of soil.
this adhesive is a kind of water-soluble soil conditioner, it can lubricate mud in the mixture, prevent the fiber to clot. After spraying, it can make fiber and soil are bonded well, also can prevent mud and soil gone.

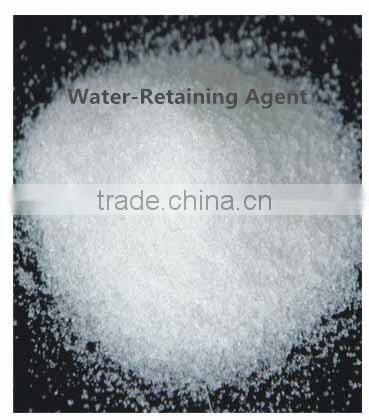

2. Water-retaining agent
Water-retaining agent is a kind of functional polymer materials which has much strong water absorbing capacity. its main function is below:
a. water retaining b. fertilizer retaining c. keeping warm d. improve soil structure.
3. 3-D Net
3-D Net is soft, the soil,sand and grass root can grow up through the 3-D Net. The grass root can go deep 30-50cm on the ground to make grass grow uniform on the slope. It can protect grass without wind and rain.
4. Non-woven fabrics
After spaying it usually need to cover the non-woven fabrics to prevent the water gone. It also can keep warm to creat a good condition for grass grow up.

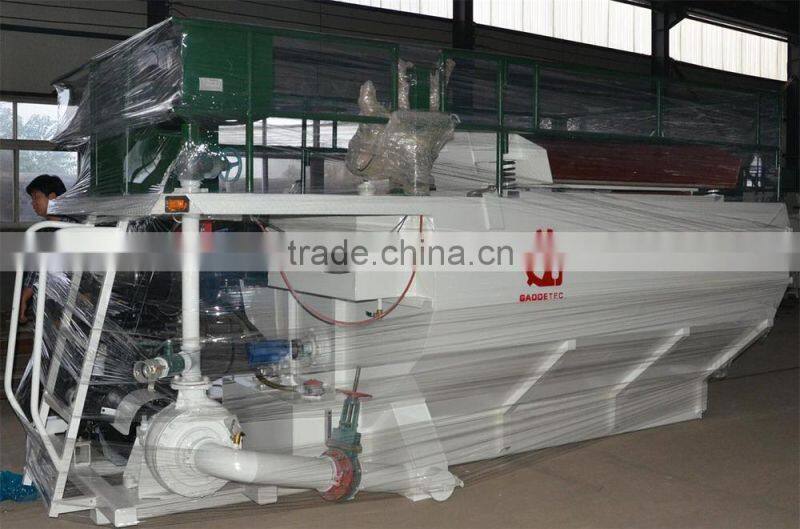

PB series Large hydro seeder
KP series much thicker soil spraying slope green machine
We are a professional manufacturer of hydroseeding equipment, in order to recommend you more suitable models, please help us clear about your requirements:
1. what project will you do with hydroseeding equipment? for slope greening projects, lawn or playground?
2. what is max. vertical and horizontal conveying distance?
3. what is soil content ratio in the mixture?
4. which engine do you prefer? Chinese diesel engine Dongfanghong or Huafeng? Cummins or Deutz diesel?
5. do you need soil screening equipments which is usually used with hydroseeding equipments?
