Hot Sale Slope Green Project Thicker Hydro Seeder Wet Soil Spraying Machine

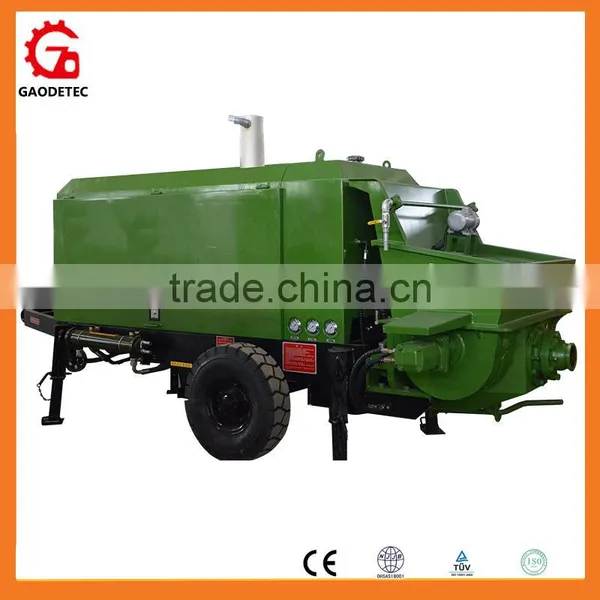

Hot Sale Slope Green Project Thicker Hydro Seeder Wet Soil Spraying Machine photo-1
US$ 21,500 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Spraying Grass Seed
Production Capacity:
15m3 One Hour
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Spraying Grass Seed
Production Capacity 15m3 One Hour
Place of Origin Henan, China
Brand Name GEC
Model Number KP-15SR
Voltage Diesel Engine
Power(W) 50.6kw
Dimension(L*W*H) 4550*1680*1950mm
Weight 2800KG
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Hot sale Slope Green project thicker hydro seeder wet soil spraying machine

Product Description

 our KP series thicker hydro seeder is widely used in green soil conveying and spraying of different entironment construction; and the plain concrete, fiber concrete conveying and spraying.



Feature of thicker hydro seeder :
    1.  High efficiency : using hydraulic pumping method, high reliability, stable conveying ability;
    2.  long conveying distance , up to 650 m horizontally,160 m vertically;
    3.  injection quantity is continuously adjustable with variable piston pump , jet speed can be adjusted freely ;
    4. machine parts consumption is very low , the machine wearing parts life is not less than 2000 cubic meters jetting ability;
    5. combined with automatic centralized lubrication system, realizing effective control for the amount of grease filling and filling time, extending  life of wear parts;
    6. humanized product design, more convenient operation, more simple maintenance, reliability has been effectively guaranteed.
    7. Advanced technology, it even works for mud materials which have poor mobility, no blocking, and no stopping, well adaptation of various materials, big output pressure.
    8.  blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the mixture of raw materials at one time.
    9. This machine has wide usage, not only can be applied in spraying planting for soil improvement work. This machine can  emit slurry materials with big proportion, high and super concentration.
    10. Our slope soil spraying machine can also be used in plain concrete and fiber reinforced concrete conveying in various construction sites.

Technical data

 Technical Data of soil wet spraying machine for slope protection green :

  Unit KP-15SR KP-25SR
Max. Injection capacity(theory) m³/h 15 25
Max. pumping pressure Mpa 10 14
Max. vertical conveying distance (theory)  m 120 160
Max. horizontal conveying distance(theory) m 500 650
Distributing valve form    S valve S valve
largest size of Aggregate particle  mm 30 30
Slump  cm 12~23 12~23
Rebound Rate % less than 15 less than 15
working dust density (machine)  mg/m³ less than 10 less than 10
Transporting cylinder diameter * stroke mm 140*1000 140*1000
diesel engine model   R4105D2 R4105ZD7
diesel engine power kw 50.6 61.6
rated rotating speed rpm 1800 1500
The hydraulic oil tank volume  L 350 350
The fuel tank volume  L 60 60
Feeding height mm 1200 1200
overall dimension mm 4550*1680*1950
weight kg 2850 3000

Detailed Images



Hot sale Slope Green project thicker hydro seeder wet soil spraying machine

Hot sale Slope Green project thicker hydro seeder wet soil spraying machineHot sale Slope Green project thicker hydro seeder wet soil spraying machineHot sale Slope Green project thicker hydro seeder wet soil spraying machineHot sale Slope Green project thicker hydro seeder wet soil spraying machineHot sale Slope Green project thicker hydro seeder wet soil spraying machineHot sale Slope Green project thicker hydro seeder wet soil spraying machine

Hot sale Slope Green project thicker hydro seeder wet soil spraying machine

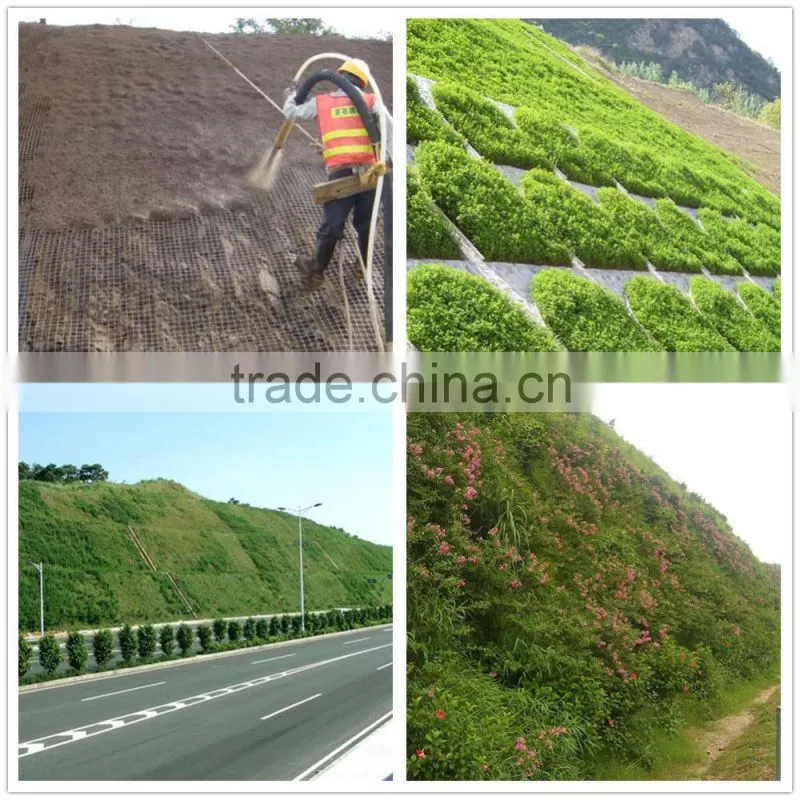

Application

Hot sale Slope Green project thicker hydro seeder wet soil spraying machine Hot sale Slope Green project thicker hydro seeder wet soil spraying machine

Packaging & Shipping

 Hot sale Slope Green project thicker hydro seeder wet soil spraying machine



Related Products

 Hot sale Slope Green project thicker hydro seeder wet soil spraying machine

Hot sale Slope Green project thicker hydro seeder wet soil spraying machine



Hot sale Slope Green project thicker hydro seeder wet soil spraying machine

Hot sale Slope Green project thicker hydro seeder wet soil spraying machine



FAQ of hydroseeder

We are a professional manufacturer of hydroseeding equipment, in order to recommend you more suitable models, please help us clear about your requirements:

1. what project will you do with hydroseeding equipment? for slope greening projects, lawn or playground?

2. what is max. vertical and horizontal conveying distance?

3. what is soil content in the mixture?

4. which engine do you prefer? Chinese diesel engine Dongfanghong or Huafeng? Cummins or Deutz diesel?

5. do you need soil screening equipments which is usually used with hydroseeding equipments?
