China Highway Slope Green Soil Spraying Machine Price
US$ 21,500 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Slope Greening
Production Capacity:
15m3/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Slope Green Project Thicker Hydro Seeder Wet Soil Spraying MachineUS$ 21,500 - 30,000MOQ: 1 Set -
Slope Greening Dedicated Soil Sieving MachineNegotiableMOQ: 1 Set
-
High Efficiency Drum Screeing Soil MachineNegotiableMOQ: 1 Set
-
ISO Soil Vibrating Sieve Machine Matched With HydroseederNegotiableMOQ: 1 Set
-
ISO CE High Efficiency Soil Screener MachineNegotiableMOQ: 1 Set
Condition
New
Application
Slope Greening
Production Capacity
15m3/h
Place of Origin
Henan, China
Brand Name
GEC
Model Number
KP-15SR series slope soil spraying machine
Voltage
customized
Power(W)
50.6kw
Dimension(L*W*H)
4550*1680*1950mm
Weight
2850kg
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
China highway slope green soil spraying machine price
Product Description
spray seeding is more and more applied in road greening. The application of seeding spraying technology in vegetation restoration and slope protection project.
soil spraying seeder involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
Soil spraying seeder driven by single diesel, electronic control, easy operation, especially suitable for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones, clay soil and coastal dam.etc
Feature of slope soil spraying machine:
1. High efficiency : using hydraulic pumping method, high reliability, stable conveying ability;
2. long conveying distance , up to 650 m horizontally,160 m vertically;
3. injection quantity is continuously adjustable with variable piston pump , jet speed can be adjusted freely ;
4. machine parts consumption is very low , the machine wearing parts life is not less than 2000 cubic meters jetting ability;
5. combined with automatic centralized lubrication system, realizing effective control for the amount of grease filling and filling time, extending life of wear parts;
6. humanized product design, more convenient operation, more simple maintenance, reliability has been effectively guaranteed.
7. Advanced technology, it even works for mud materials which have poor mobility, no blocking, and no stopping, well adaptation of various materials, big output pressure.

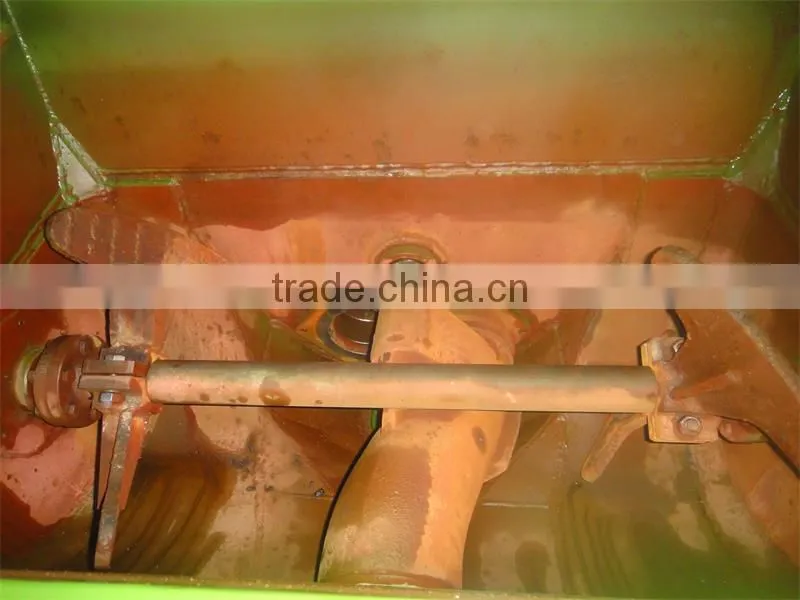

8. blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the mixture of raw materials at one time.
9. This machine has wide usage, not only can be applied in spraying planting for soil improvement work. This machine can emit slurry materials with big proportion, high and super concentration.
10. Our slope soil spraying machine can also be used in plain concrete and fiber reinforced concrete conveying in various construction sites.
Technical data
Technical Data of slope soil spraying machine:
| Unit | KP-15SR | KP-25SR | |
| Max. Injection capacity(theory) | m³/h | 15 | 25 |
| Max. pumping pressure | Mpa | 10 | 14 |
| Max. vertical conveying distance (theory) | m | 120 | 160 |
| Max. horizontal conveying distance(theory) | m | 500 | 650 |
| Distributing valve form | S tube valve | S tube valve | |
| largest size of Aggregate particle | mm | 30 | 30 |
| Slump | cm | 12~23 | 12~23 |
| Rebound Rate | % | less than 15 | less than 15 |
| working dust density (machine) | mg/m³ | less than 10 | less than 10 |
| Transporting cylinder diameter * stroke | mm | 140*1000 | 140*1000 |

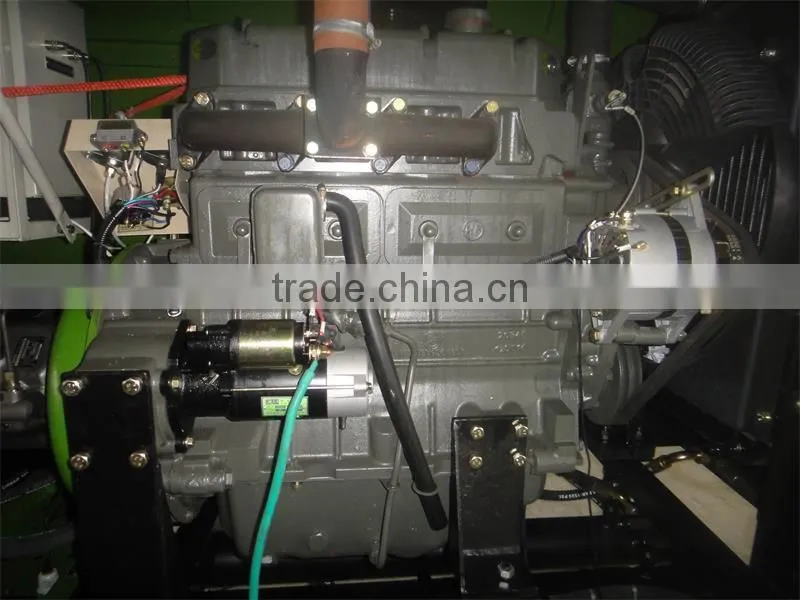

| diesel engine model | R4105D2 | R4105ZD7 | |
| diesel engine power | kw | 50.6 | 61.6 |
| rated rotating speed | rpm | 1800 | 1500 |
| The hydraulic oil tank volume | L | 350 | 350 |
| The fuel tank volume | L | 60 | 60 |
| Feeding height | mm | 1200 | 1200 |
| overall dimension | mm | 4550*1680*1950 | |
| weight | kg | 2850 | 3000 |

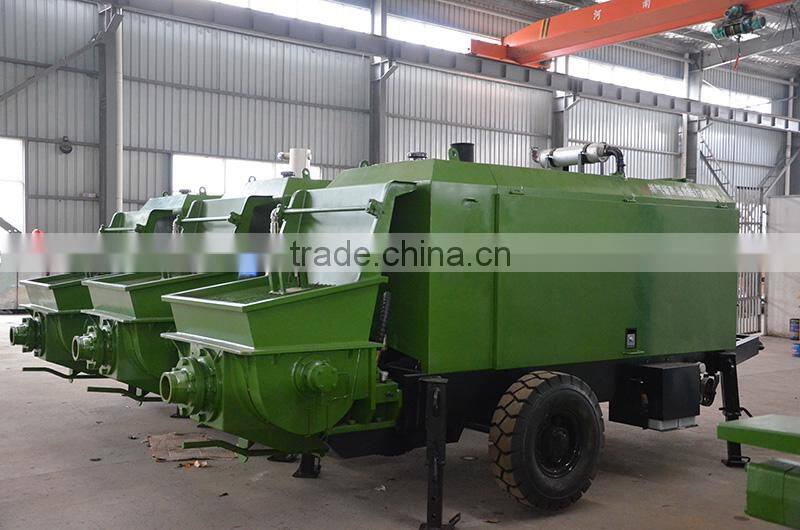

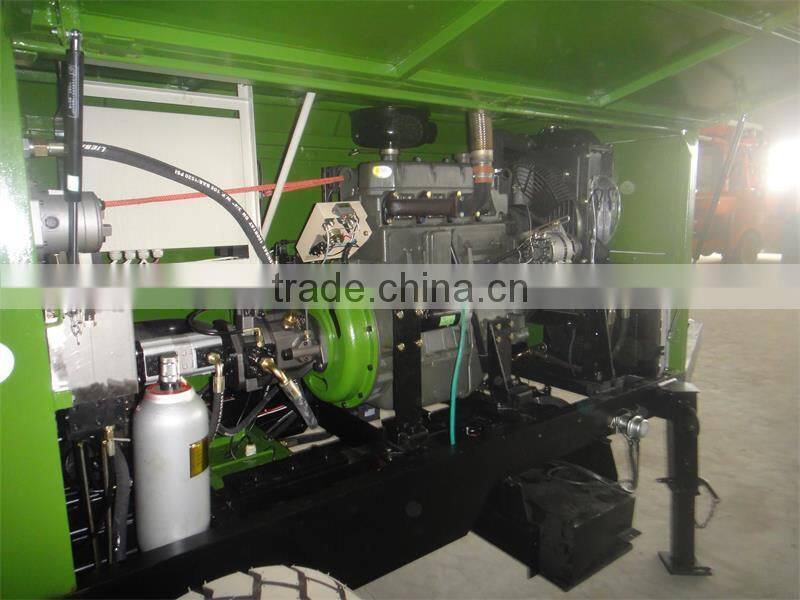

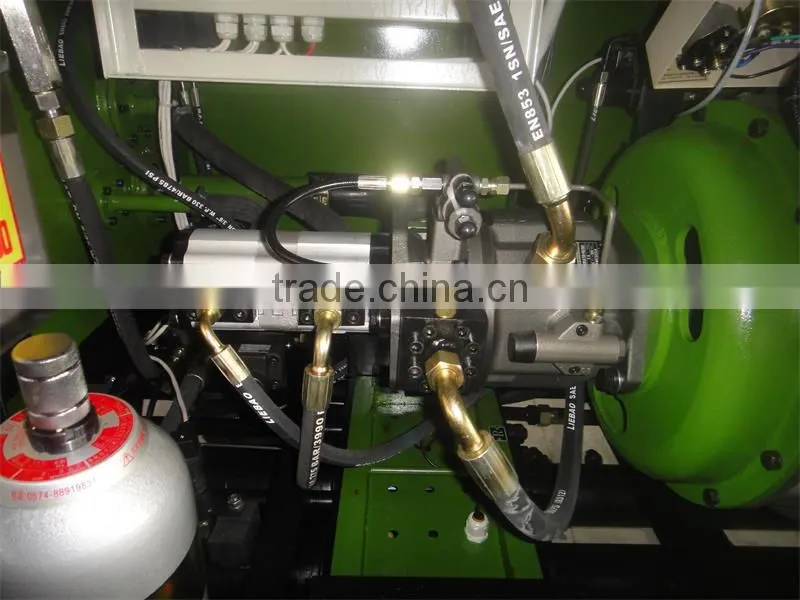

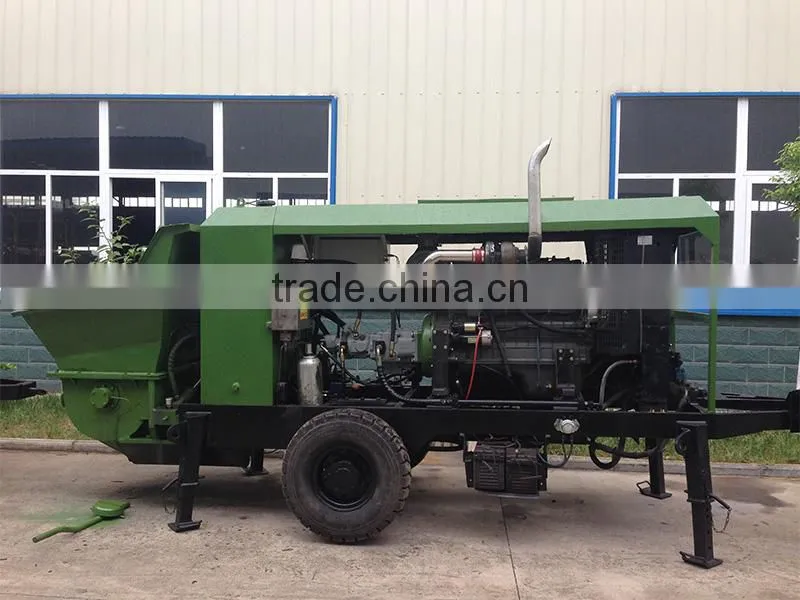

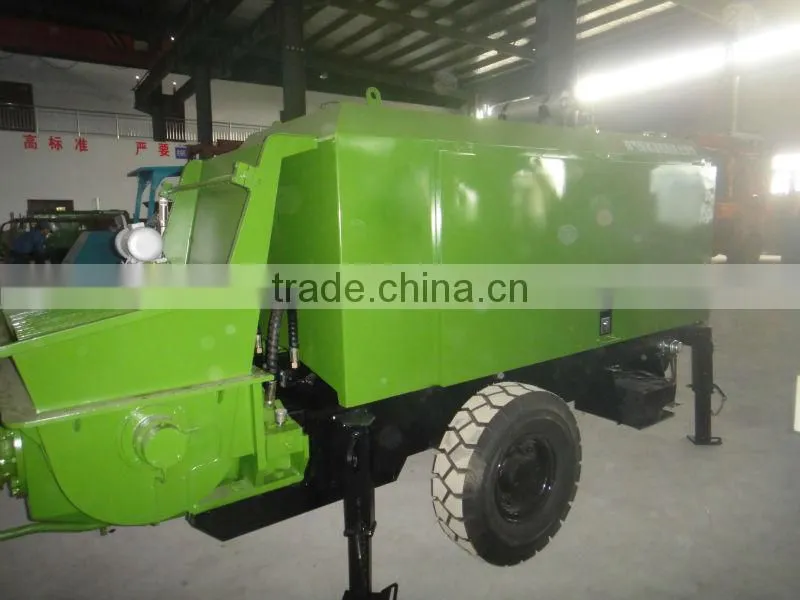

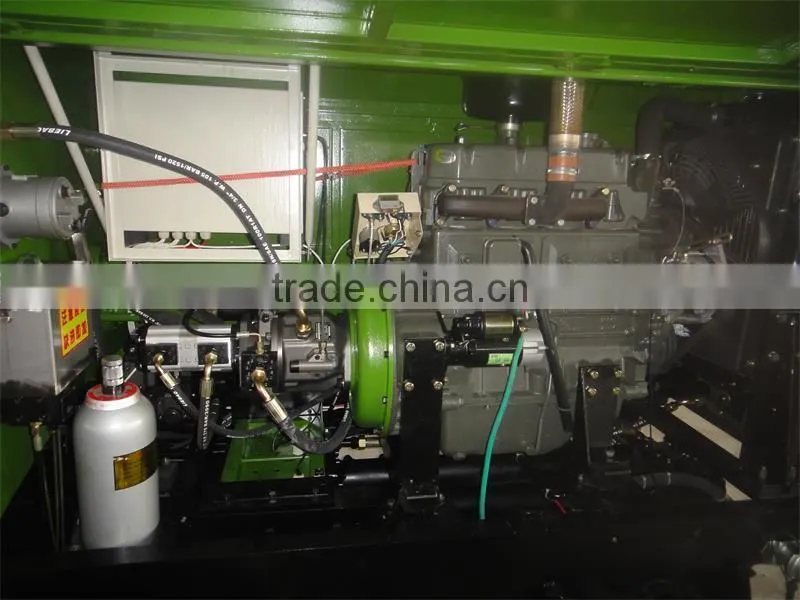

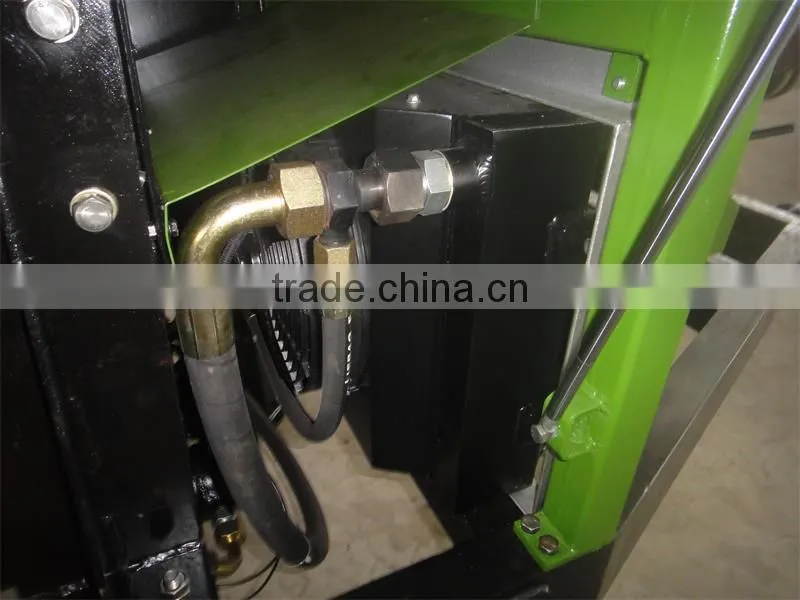

Datailed Images

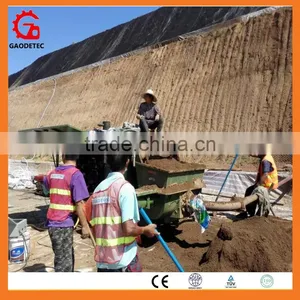

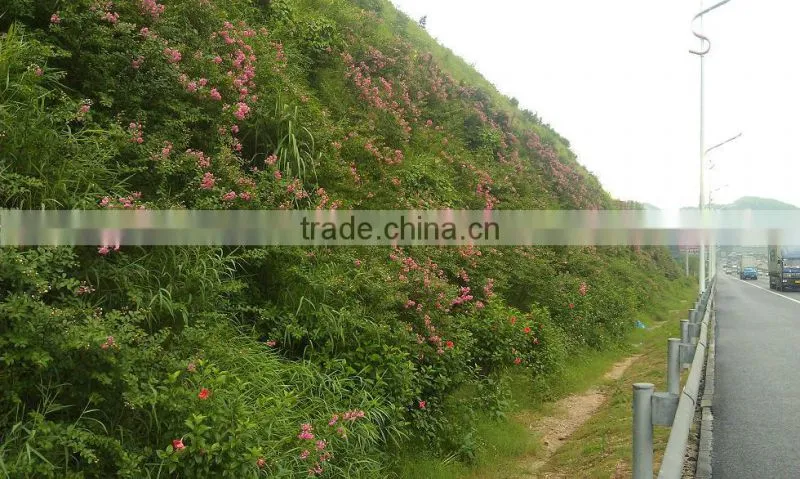

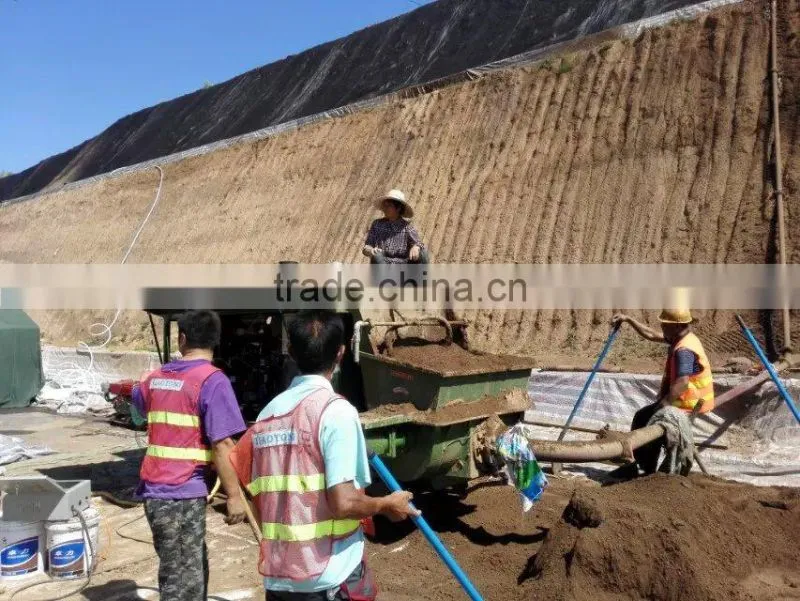

Application
Related Products

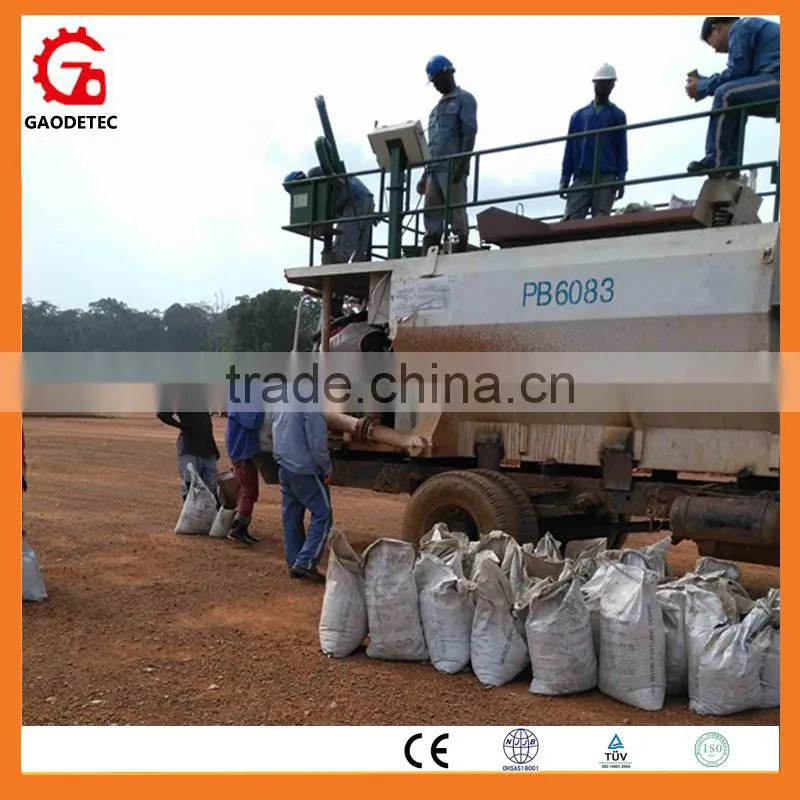

our PB series hydro seeder with 4m3, 6m3 and 8m3 tank

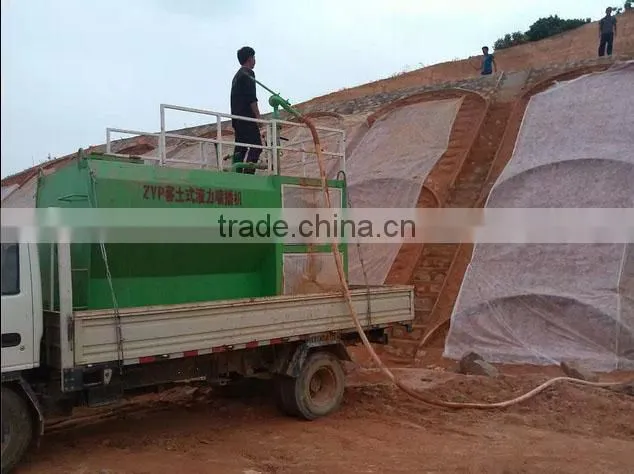

our ZYP series hydro seeder with 1m3 and 2m3 tank

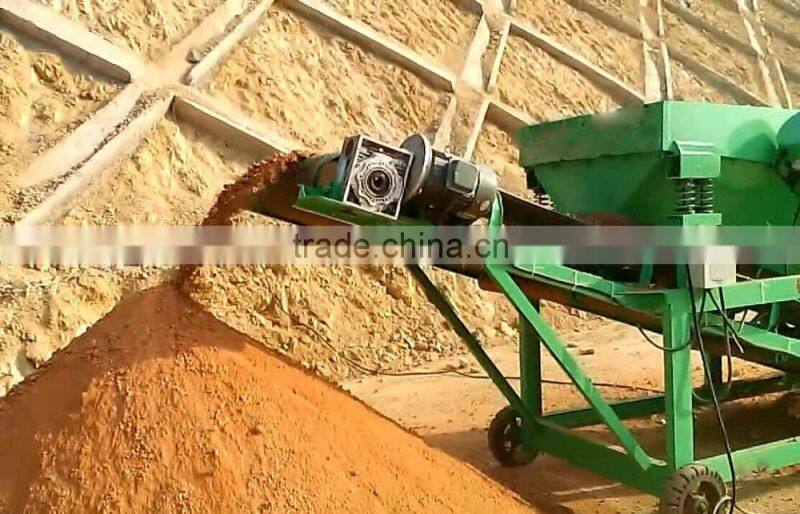

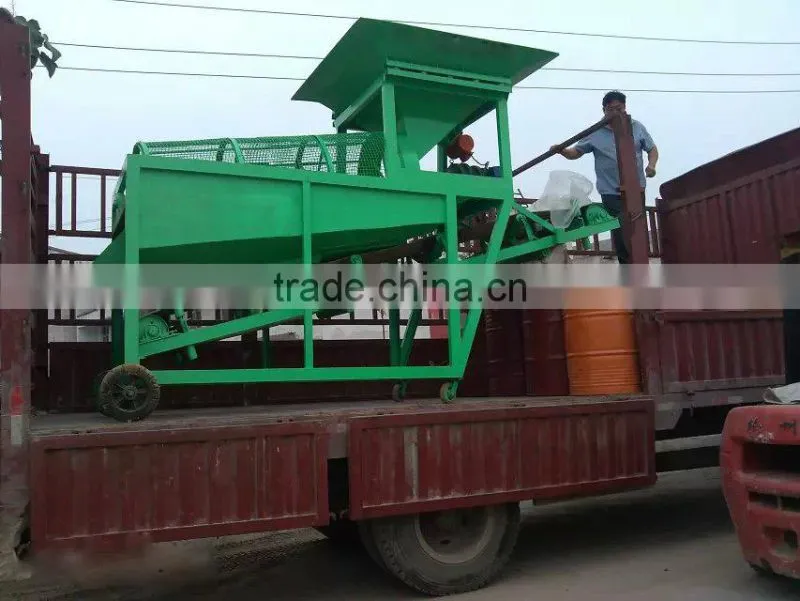

Our Roller soil sieving machine which is used with hydro seeder usually.
Our ZST series soil sieving machine
FAQ of hydroseeder
We are a professional manufacturer of hydroseeding equipment, in order to recommend you more suitable models, please help us clear about your requirements:
1. what project will you do with hydroseeding equipment? for slope greening projects, lawn or playground?
2. what is max. vertical and horizontal conveying distance?
3. what is soil content in the mixture?
4. which engine do you prefer? Chinese diesel engine Dongfanghong or Huafeng? Cummins or Deutz diesel?
5. do you need soil screening equipments which is usually used with hydroseeding equipments?
