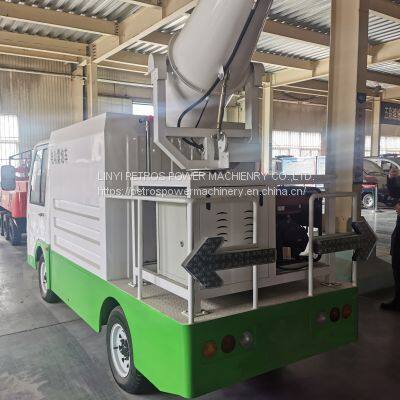

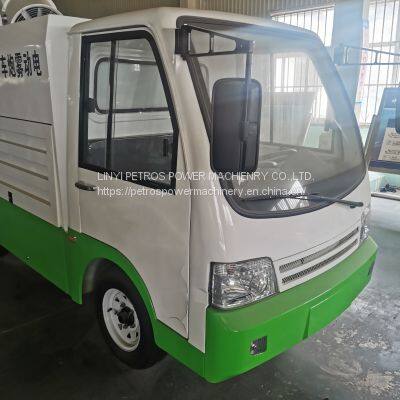

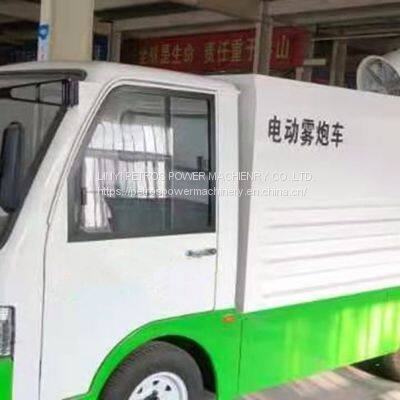

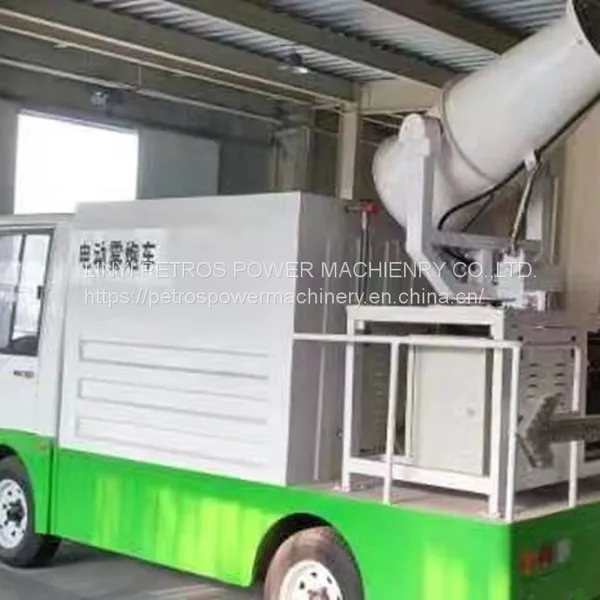

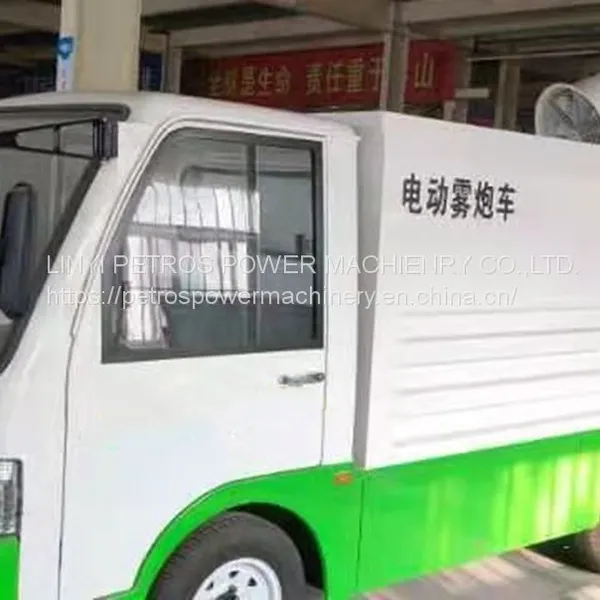

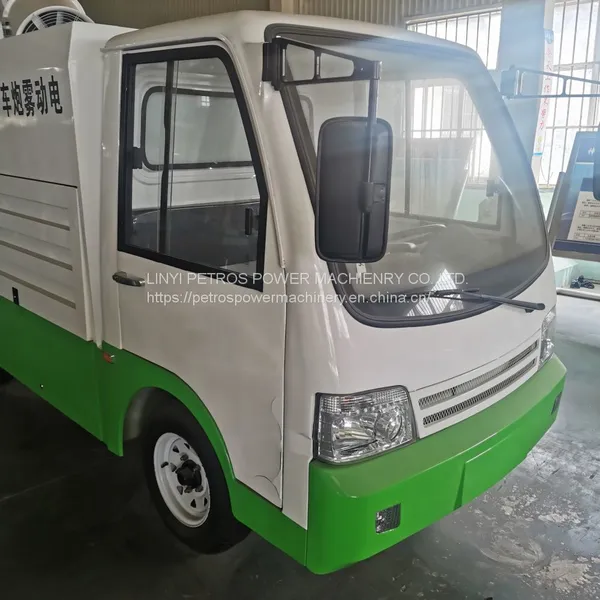

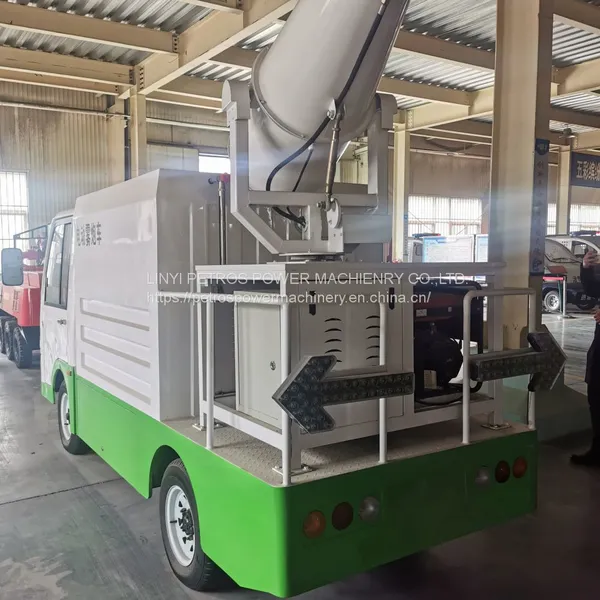

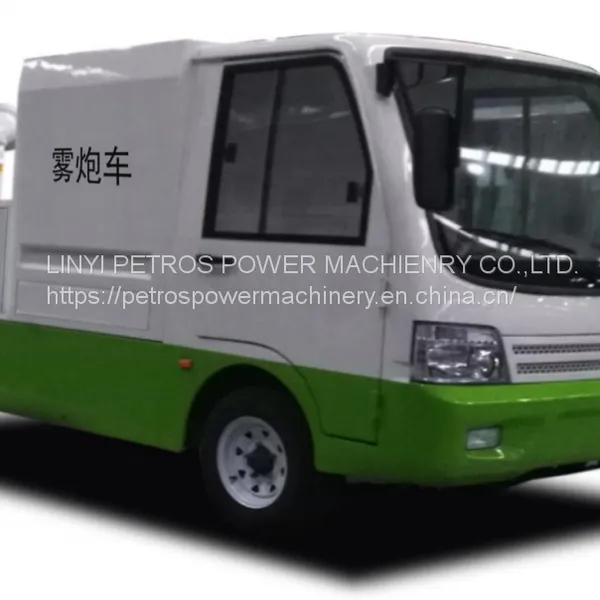

Electric spray truck workshop construction site Dust vehicle

Main dimension

Length×width×height（mm）

4530×1430×1980

Wheelbase（mm)

2280

Wheel Pitch

Front wheel（mm）

1180

Rear wheel（mm）

1180

Minimum ground Clearance(mm)

180

Vehicle Equipment Quality(kg)

1480

Rated load(kg)

2000（Including the weight of the tank）

Maximum speed(km/h)

35

Maximum climbing grade(full load%)

30

Minimum turning radius(m)

5.5

Braking distance(m)

7

Maximum Mileage (constant speed on flat road KM)

≤80

Motor

Rated power(KW)

7.5

Rated voltage(V)

72

Rated rotate speed(r/min)

1600

Rated current(A)

103

Chargers(V/A)

72/30

Controller(V/A)

72/400

spray cannon

Pump flow

25-30L/min

Working pressure

3MPA

Windless horizontal range

25-50M

Other configurations

Fully enclosed cab, top-grade instrument table, combination instrument, MP3/USB port restorer, voice reversing horn, 5 + 1 shift handle, quick change electric device (Optional Change Electric Cart and charge revolving frame) , 15m high-pressure hose reels, high-pressure Lance 1 + 4 kinds of fast-loading nozzles, high-grade paint, etc. .
