Home > Manufacturing & Processing Machinery > Agricultural Machinery > Hydroseeding Machine > Highway Slope Green Grass Seeds Planting Machine
US$ 21,500 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Slope Greening
Production Capacity:
25m3/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Slope Greening Machine Hydroseeder Soil Screening Machine for SaleUS$ 21,500 - 30,000MOQ: 1 Set -
China Large Capacity Grass Seeds Hydro Seeder With SoilUS$ 10,000 - 20,000MOQ: 1 Set
-
Diesel Grass Seeding Machine With China SupplierUS$ 10,000 - 20,000MOQ: 1 Set
-
6000L Tank Size for Golf Course Hydro Mulching EquipmentUS$ 10,000 - 20,000MOQ: 1 Set
-
China PB Series Powerful CE Highway Soil Spraying Seeder for SaleUS$ 10,000 - 20,000MOQ: 1 Set
Condition
New
Application
Slope Greening
Production Capacity
25m3/h
Place of Origin
Henan, China
Brand Name
GEC
Model Number
KP series
Voltage
Diesel Engine
Power(W)
61.6kw
Dimension(L*W*H)
4550*1680*1950mm
Weight
3000kg
Certification
CE ISO
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
highway slope green grass seeds planting machine
Product Description

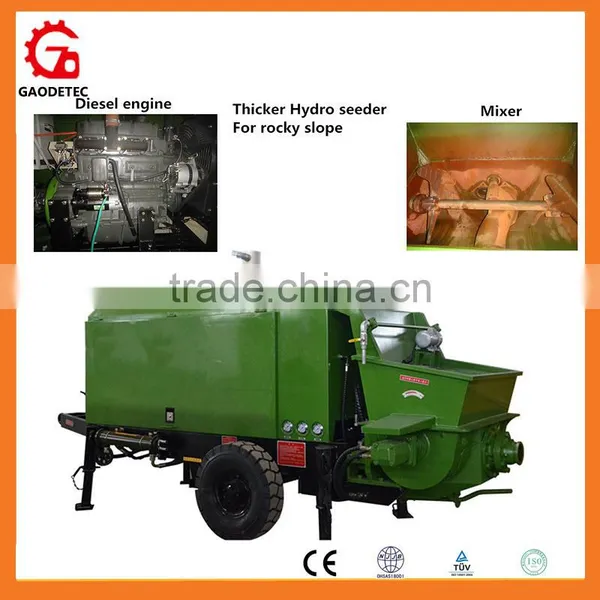

Our KP series thicker hydro seeder is widely used in green soil conveying and spraying of different entironment construction; and the plain concrete, fiber concrete conveying and spraying.
Feature of grass seeds planting machine for highway green
1. High efficiency : using hydraulic pumping method, high reliability, stable conveying ability;
2. long conveying distance , up to 650 m horizontally,160 m vertically;

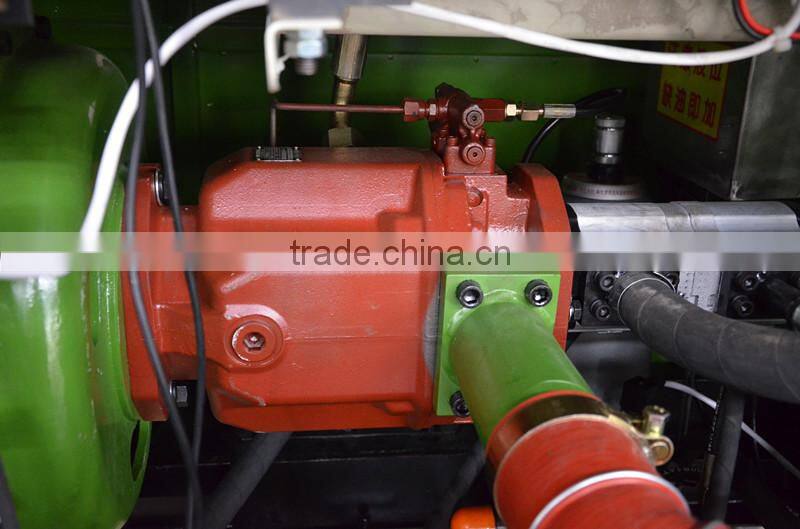

3. injection quantity is continuously adjustable with variable piston pump , jet speed can be adjusted freely ;
4. machine parts consumption is very low , the machine wearing parts life is not less than 2000 cubic meters jetting ability;
5. combined with automatic centralized lubrication system, realizing effective control for the amount of grease filling and filling time, extending life of wear parts;
6. humanized product design, more convenient operation, more simple maintenance, reliability has been effectively guaranteed.
7. Advanced technology, it even works for mud materials which have poor mobility, no blocking, and no stopping, well adaptation of various materials, big output pressure.

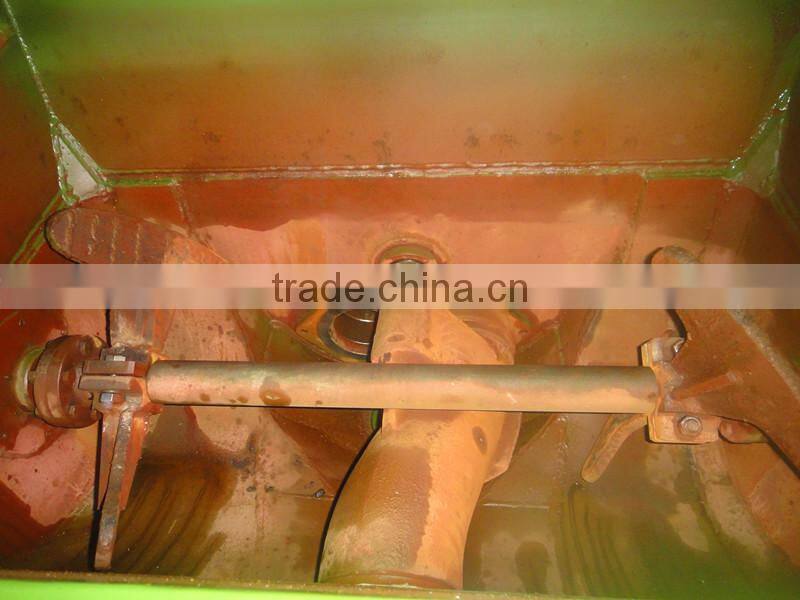

8. blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the mixture of raw materials at one time.
9. This machine has wide usage, not only can be applied in spraying planting for soil improvement work. This machine can emit slurry materials with big proportion, high and super concentration.
10. Our slope soil spraying machine can also be used in plain concrete and fiber reinforced concrete conveying in various construction sites.
Technical data
Technical Data of slope green grass seeds planting machine
| Unit | KP-15SR | KP-25SR | |
| Max. Injection capacity(theory) | m³/h | 15 | 25 |
| Max. pumping pressure | Mpa | 10 | 14 |
| Max. vertical conveying distance (theory) | m | 120 | 160 |
| Max. horizontal conveying distance(theory) | m | 500 | 650 |
| Distributing valve form | S tube valve | S tube valve | |
| largest size of Aggregate particle | mm | 30 | 30 |
| Slump | cm | 12~23 | 12~23 |
| Rebound Rate | % | less than 15 | less than 15 |
| working dust density (machine) | mg/m³ | less than 10 | less than 10 |
| Transporting cylinder diameter * stroke | mm | 140*1000 | 140*1000 |

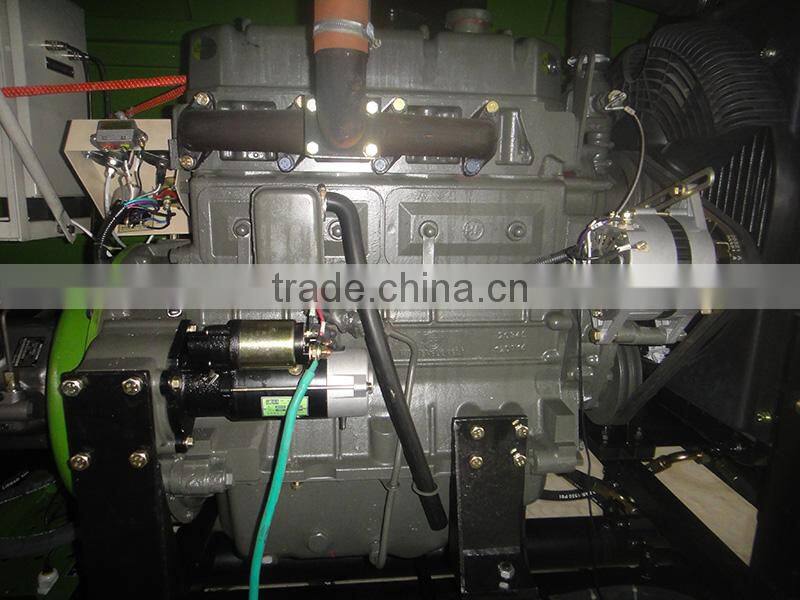

| diesel engine model | R4105D2 | R4105ZD7 | |
| diesel engine power | kw | 50.6 | 61.6 |
| rated rotating speed | rpm | 1800 | 1500 |
| The hydraulic oil tank volume | L | 350 | 350 |
| The fuel tank volume | L | 60 | 60 |
| Feeding height | mm | 1200 | 1200 |
| overall dimension | mm | 4550*1680*1950 | |
| weight | kg | 2850 | 3000 |

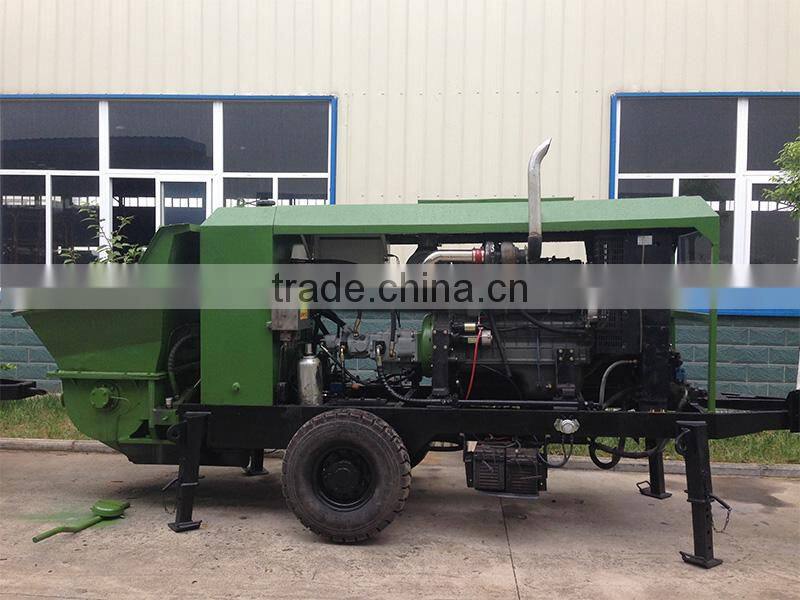

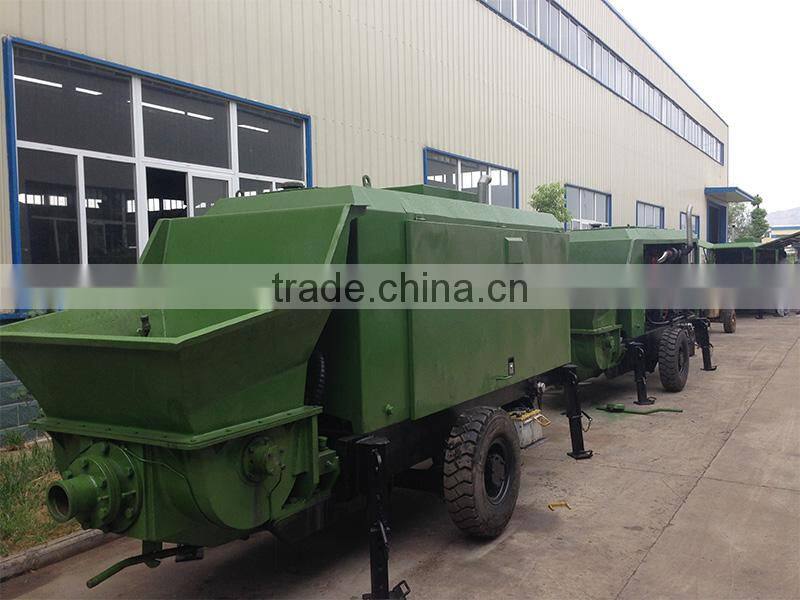

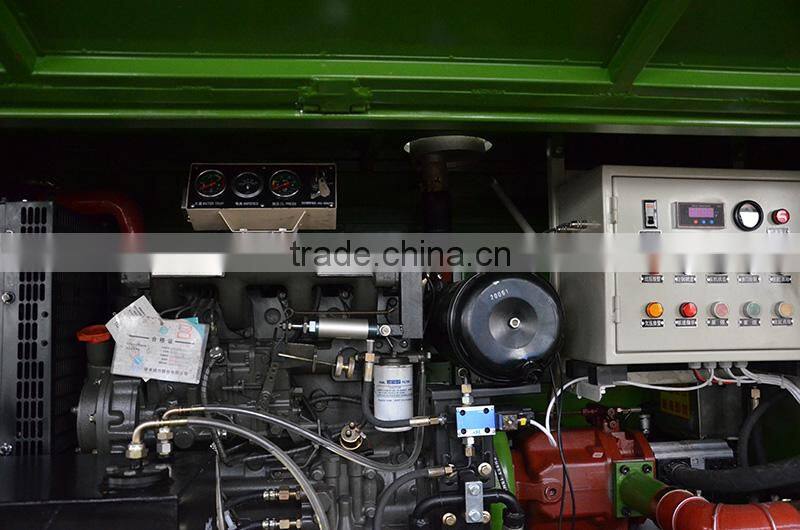

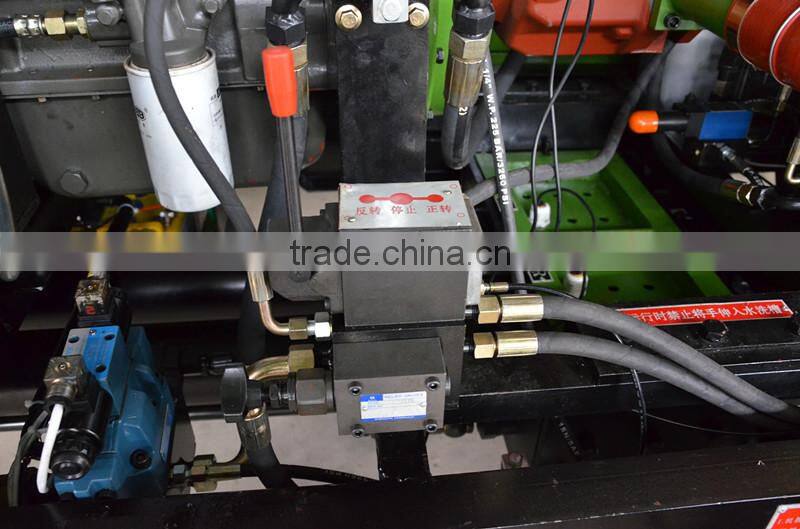

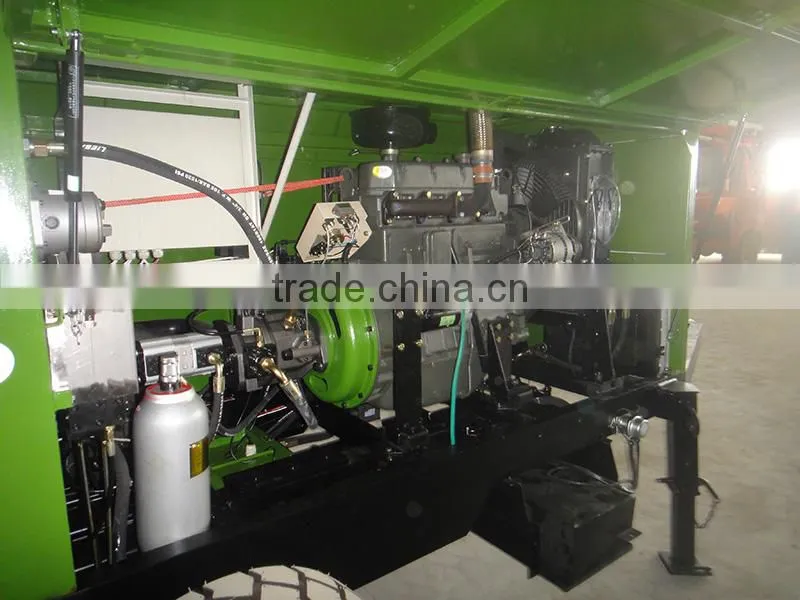

Detailed Images

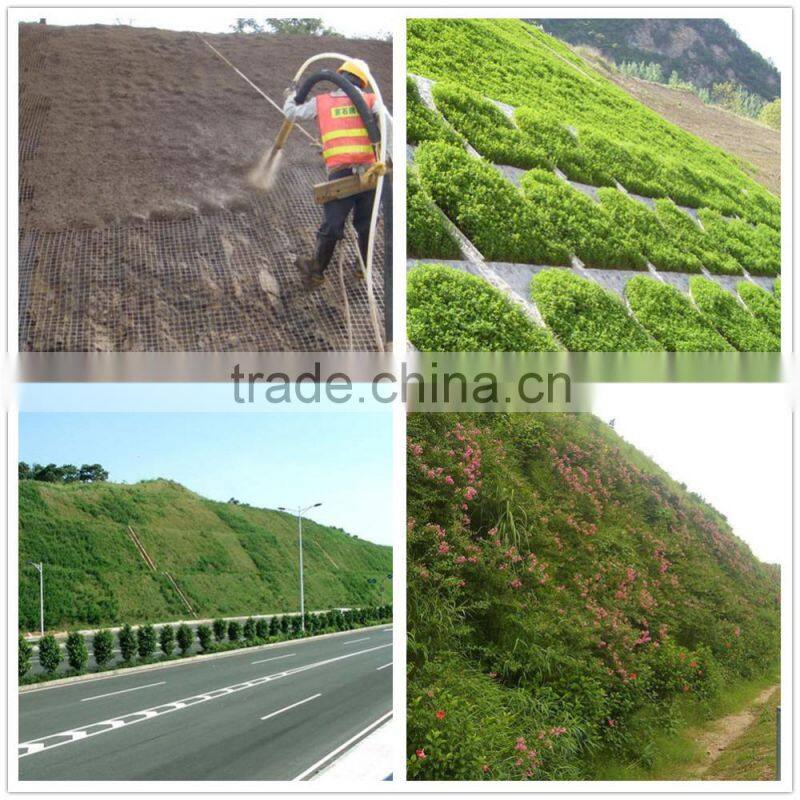

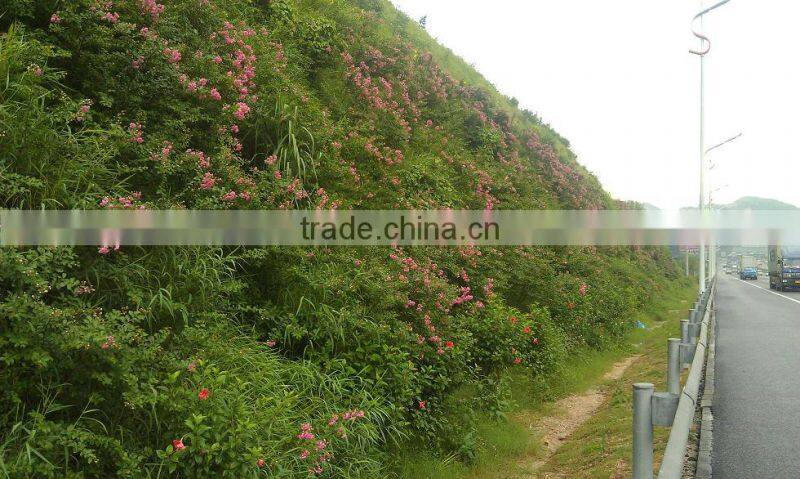

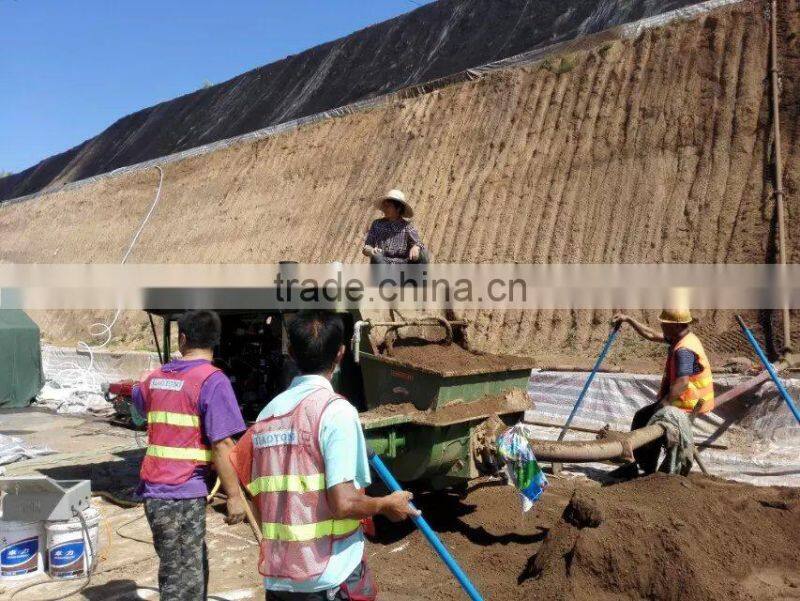

Application
Related Products

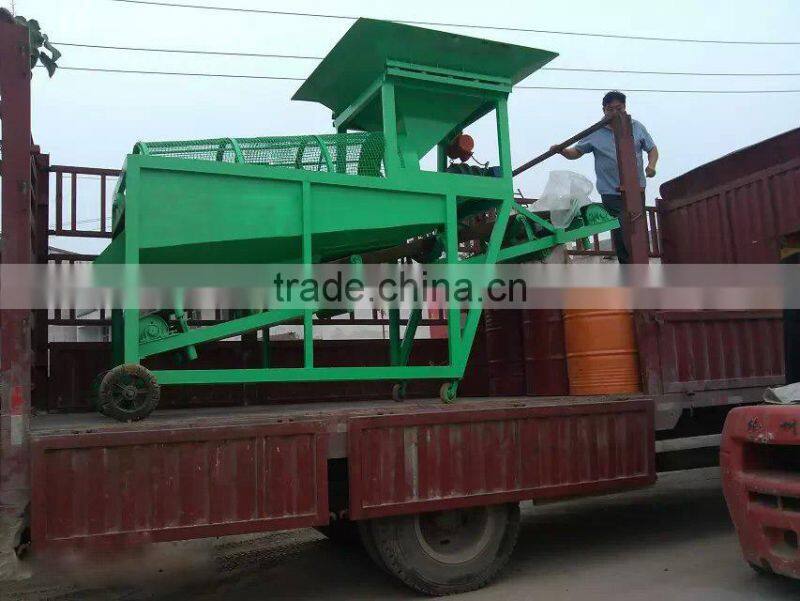

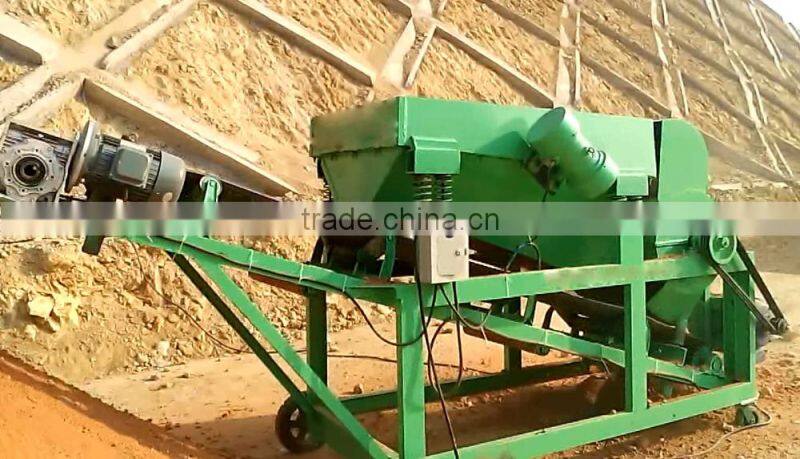

Soil Sieving Machine
Roller soil sieving machine

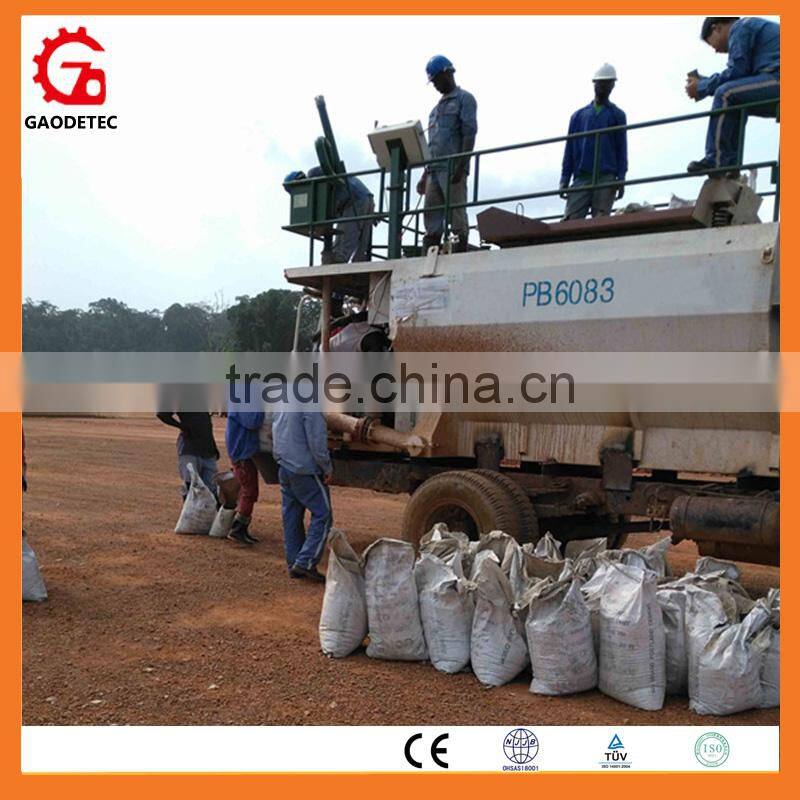

PB series hydro seeder

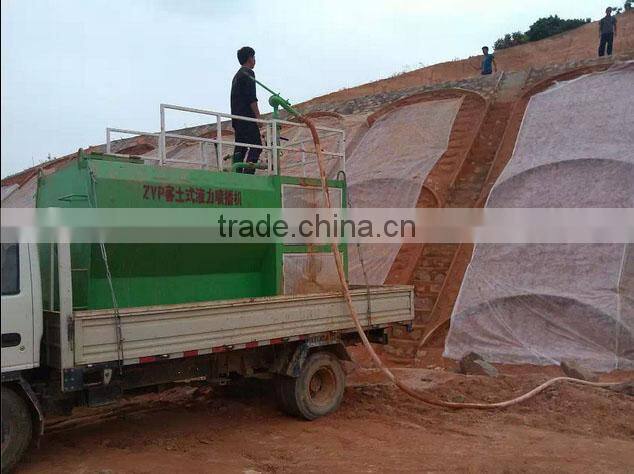

ZYP series small hydro seeder
