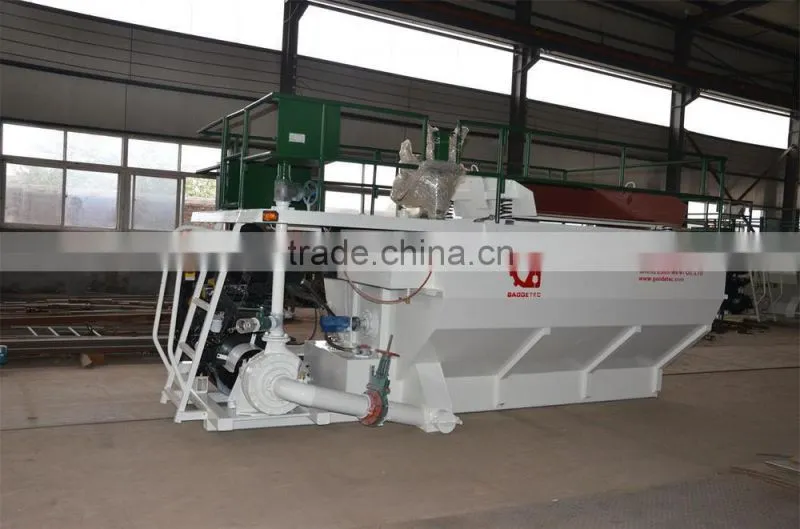

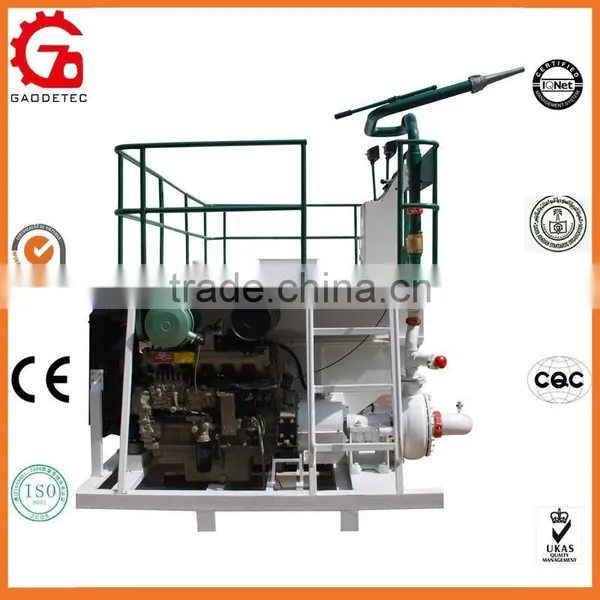

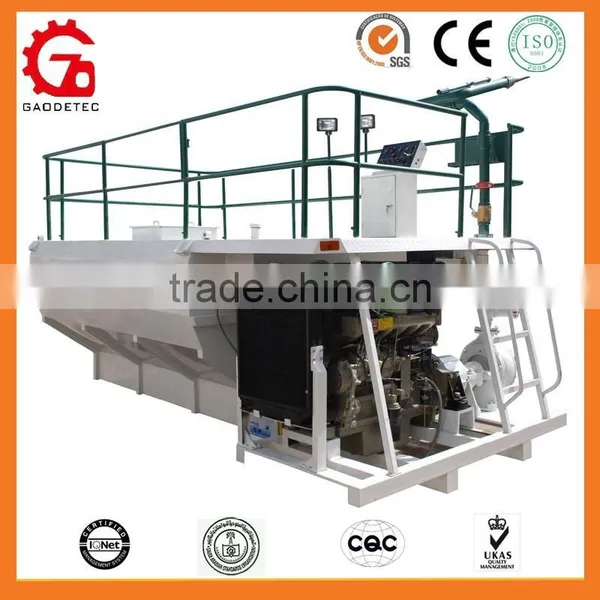

6000L tank size for Golf course hydro mulching equipment
hydro mulching equipment is more and more applied in road greening. The application of seeding spraying technology in vegetation restoration and slope protection project.
Technical Data of hydro mulching equipment:
Model | PB4083 | PB6083 | PB8083 |
Diese engine | LRC4108T | LR4A3Z | LR4A3Z |
Power | 63kw | 83kw | 83kw |
Tank capacity | 4m3 | 6m3 | 8m3 |
Output | 1350L/min | ||
Output pressure | 8kgf/cm2 | ||
Max.Solid Content | Volume ratio 30%, weight ratio 60% | ||
Max.aggregate | 20mm | ||
Mixing mode | Hydraulic infinitely variable, blades mixing and circular jet mixing | ||
Rotating speed of mixer shaft | 0-110rpm | ||
Max. horizontal conveying distance | 38-45m with gun 100-120m with hose | ||
Max. vertical conveying distance | 40m with gun 80m with hose | ||
Spraying guns type | Fixed standing gun and pipe gun | ||
Height of fence | 800mm | ||
Net weight | 2650kg | 3200kg | |
Dimension | 4600*2200*2400mm | 5500*2200*2500mm | |
Date sheet of our diesel engine:
Model | LR4A3Z |
Type of diesel engine | Turbo diesel engine, water-cool |
Cylinder No. | 4 pieces |
Cylinder dia.×Piston stroke(mm) | 105×125 |
Capacity(L) | 4.33 |
Rated power/rotating speed(kw/r/min) | 83/2400 |
Max. torque point rotating speed(r/min) | 1600-1800 |
Torque reserve | 22-25% |
Fuel consumption rate of Declared working condition(g/kw·h) | ≤245 |
Fuel consumption rate of Max.torque working condition(g/kw·h) | ≤242 |
Oil consumption rate of Declared working condition (g/kw·h) | ≤1.63 |
Idle speed(r/min) | 1000±30 |
Cold starting performance | -10°Ccan start easily(without any assist) |
High altitude(m) | ≤2200 |
Ambient temperature of diesel engine working | -10°C~40°C |
Direction of turning of diesel engine | Anticlockwise(facing power output side) |
Net weight(kg) | 430 |
Test Machine:
The photo is from our South Africa customer.

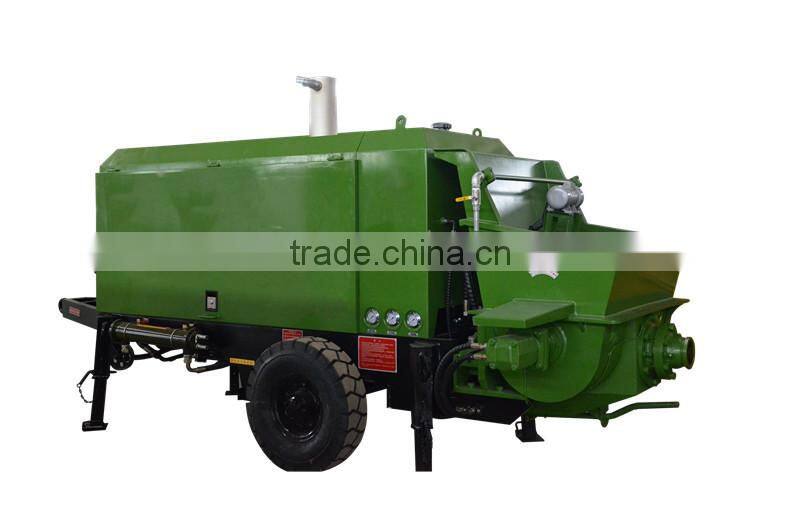

Thicker soil and more steep slope soil spraying machine

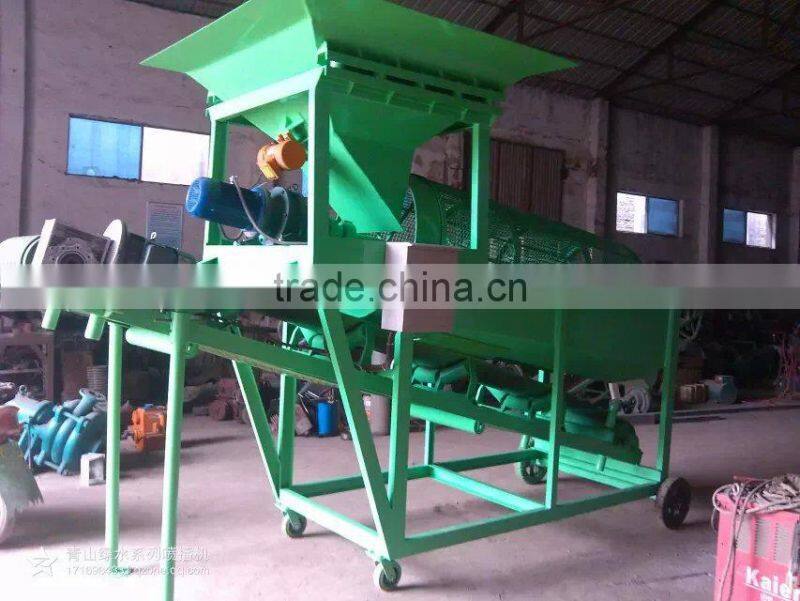

Roller soil sieving machine
Soil sieving machine
We are a professional manufacturer of hydroseeding equipment, in order to recommend you more suitable models, please help us clear about your requirements:
1. what project will you do with hydroseeding equipment? for slope greening projects, lawn or playground?
2. what is max. vertical and horizontal conveying distance?
3. what is soil content ratio in the mixture?
4. which engine do you prefer? Chinese diesel engine Dongfanghong or Huafeng? Cummins or Deutz diesel?
5. do you need soil screening equipments which is usually used with hydroseeding equipments?
