Power Head Type China Trailer Used Drilling Rig With Normal-reverse Circulation
- Shanghai Tianjin Qingdao or as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 Economical Hydraulic Trailer Bore Drilling Machine for Sale
-
China Manufacturer New Design Homemade Water Well Drilling Rig
-
Widely Used Durable DTH Truck Mounted Geotechnical Drilling Rig
-
High Quality Truck-mounted Water Well Drilling Rig/drilling Machine
-
GSD-III Energy Saving Water Well Drilling Rig With Good Quality
-
High Efficiency and Energy Saving Motor Driven DTH Air Leg Rock Drill Rig
Product Details
| Condition | New | Type | Other, power head driven drill rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | GEC | Model Number | GSD-II Drilling rig | |
| Usage | Water Well | Voltage | Diesel Engine Driven | |
| Power(W) | Diesel Engine | Dimension(L*W*H) | 5300*2000*7200(mm) | |
| Weight | 3800kgs | Certification | ISO,CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Power head type china trailer used drilling rig with normal-reverse circulation
Feature
1. Drill head style with large torque and lifting force;
2. Multiple purposes and multiple functions drilling;
3. Large drill head inside diameter available for many robs;
4. It can drill with mud drilling and air drilling method;
5. Special designed rod structure makes it easy to connect and disconnect;
6. Easy operation and maintenance, high reliability and long service life;
7. Modular design appropriate rods and pumps provided for clients.
Application:
1. Drilling water wells for urban and rural life.
2. Drilling water wells for agriculture irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling construction engineering holes.
5. Drilling geothermal pump wells.
Technical Data:
Model |
| GSD-Ⅱ | ||
Drill hole diameter (mm) |
| 90-1200 | ||
Hole depth (m) |
| 200 | ||
Drill rod length (m) |
| 3 | ||
Drill rod diameter (mm) |
| Φ60,φ73,φ89,φ95,φ133 | ||
Inside diameter of power head(mm) |
| Φ35,φ60,φ80,φ120 | ||
Dimension(mm) |
| working:4910*2020*6650 | ||
(L×W×H) |
| transporting:6700*2020*2750 | ||
Weight (kg) |
| 3400 | ||
Drilling method | Normal and Reverse circulation for both Mud&Air drilling | |||
Power head lifting speed (m/s) |
| 0.25, 0.15 | ||
P3ower head lifting force(kN) |
| 55.40,94.55 | ||
Main winch single rope tension(kN) |
| 20 | ||
Feed thrust (kN) |
| 2 | ||
Power head rotating speed (r/min) | A(Normal:13-22-48)( reverse:10-17-36) | |||
B(Normal:48-84-184)( reverse:37-65-142) | ||||
Mud pumps |
| LBN20 | ||
Flow (m3/h) |
| 80 | ||
Power |
| Diesel engine | ||
Rated power (kW) |
| 40 | ||
Supporting form |
| Mechanical Screw | ||
Mask up-down |
| Mechanical Unit | ||
Chassis |
| Trailer-type with two wheels | ||
Various Drilling Tools of diesel engine water well drill rig for water well :
Mud Drilling Method

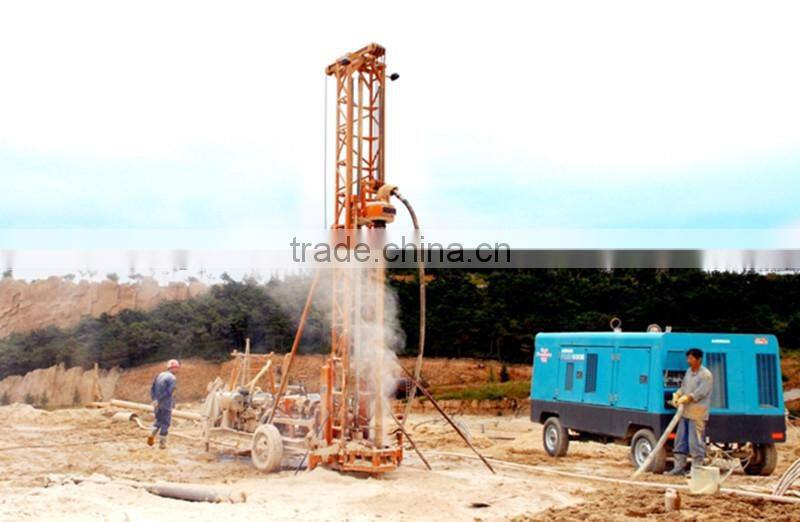

Air Drilling Method

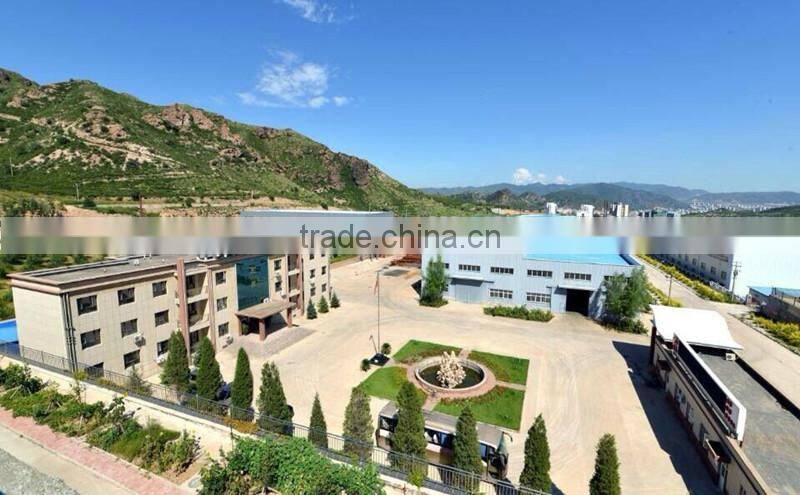

Factory:

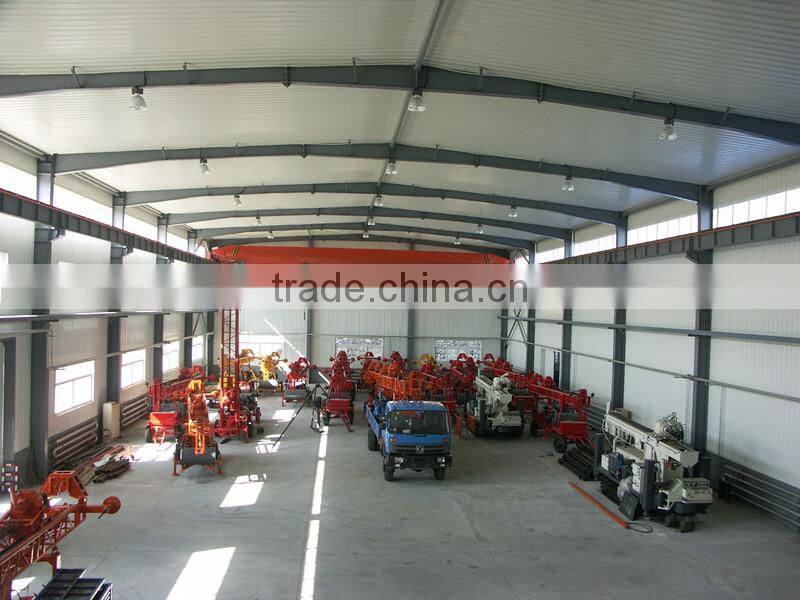

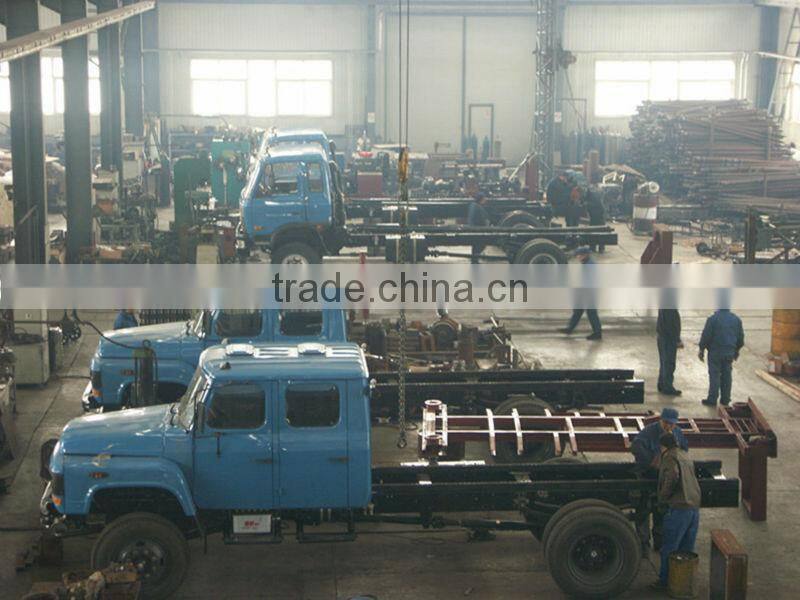

Workshops:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD46000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We also have crawler type and truck mounted drill for option.

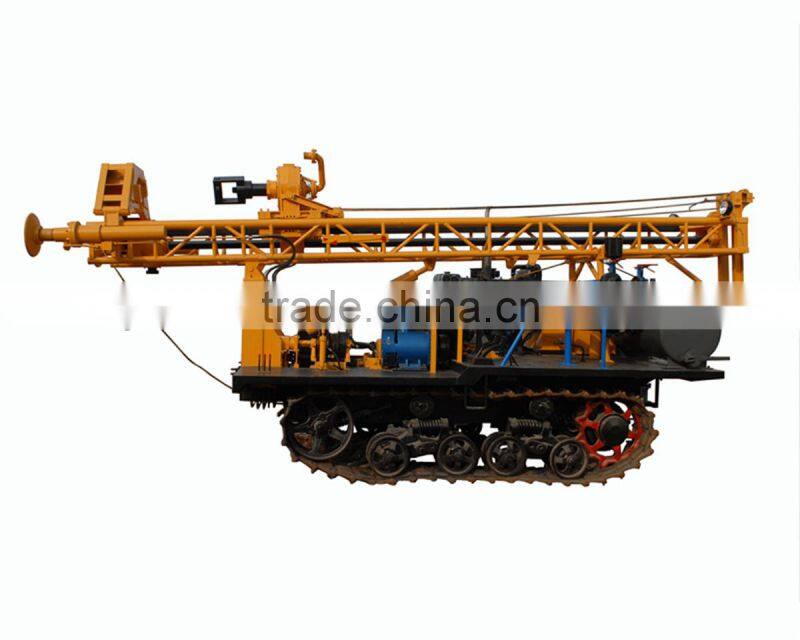

GSD-II crawler drill

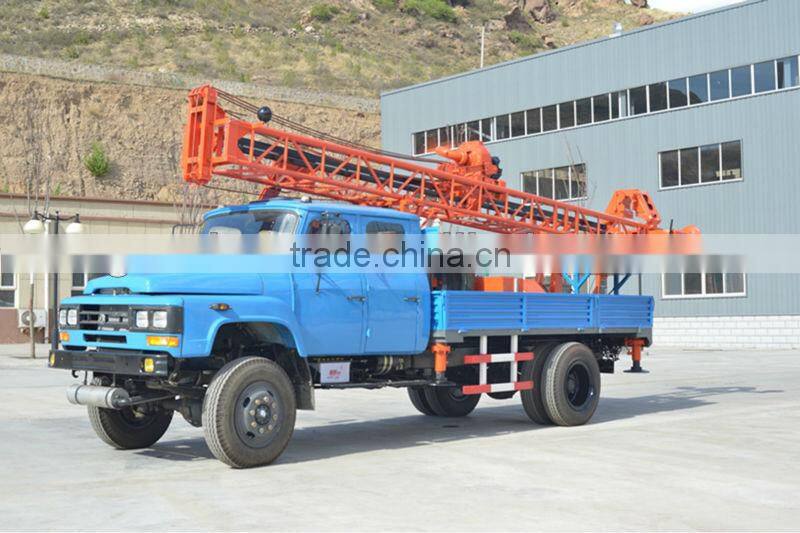

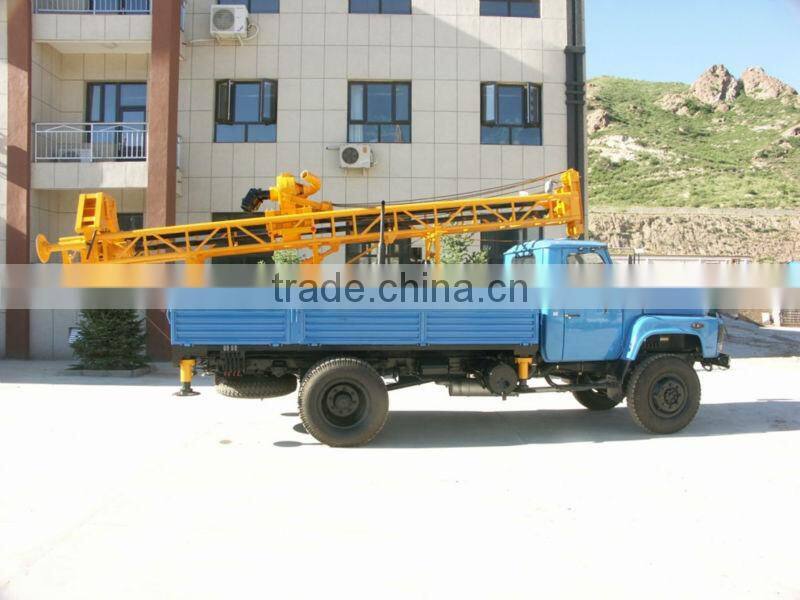

GSD-II truck mounted drill

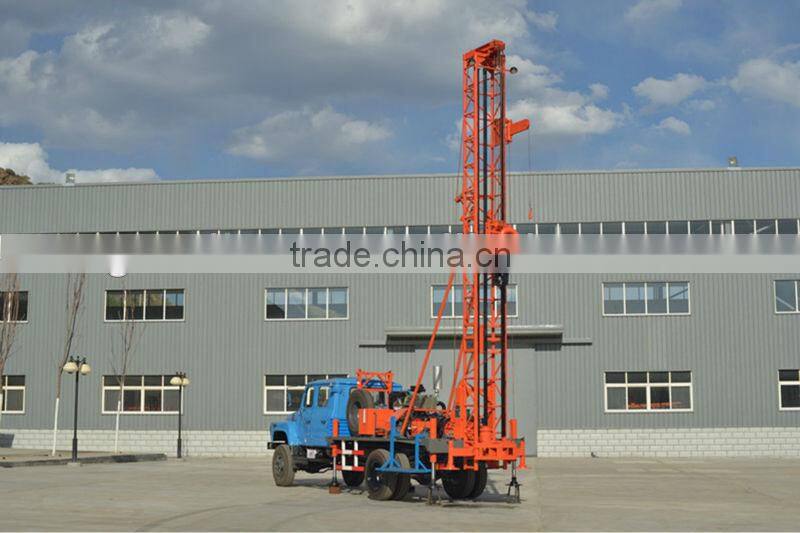

GSD-IIA truck mounted drill
