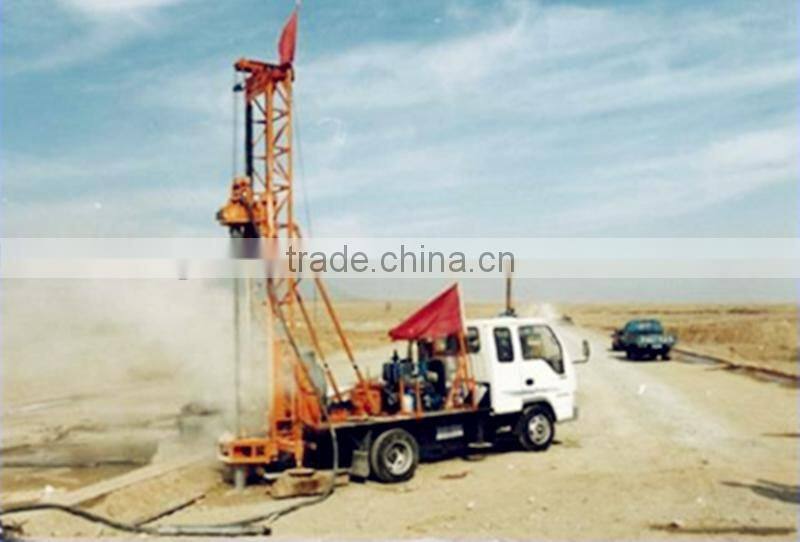

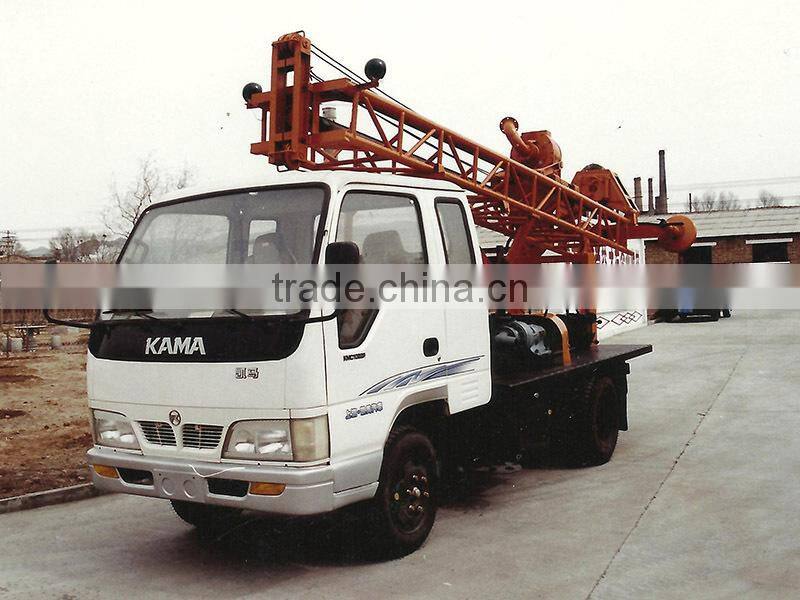

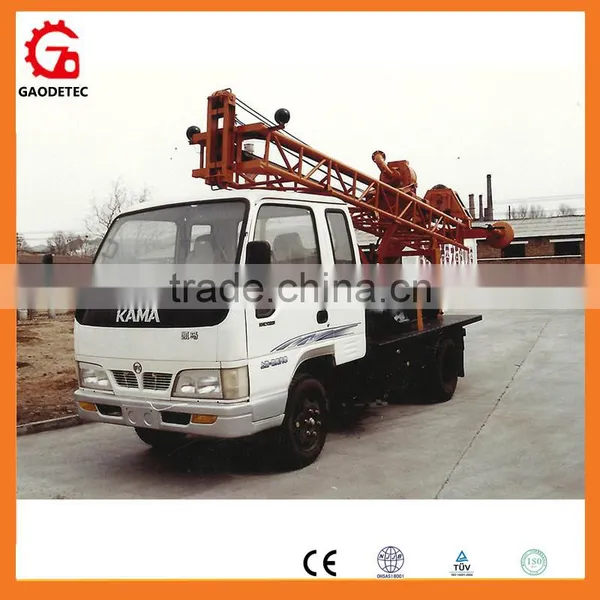

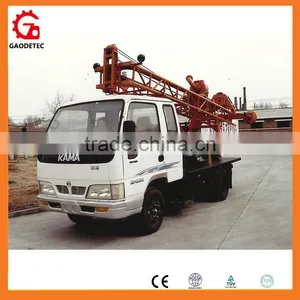

China manufacturer new design homemade water well drilling rig
- 50 Set / Sets per Month
- Shanghai Tianjin Qingdao or as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Widely used durable DTH truck mounted geotechnical drilling rig
-
High quality truck-mounted water well drilling rig/drilling machine
-
GSD-III energy saving water well drilling rig with good quality
-
high efficiency and energy saving motor driven DTH air leg rock drill rig
-
Different rods available high quality portable water well drilling rigs for sale
-
Good quality used bore hole vertical well drilling machine
Product Details
| Condition | New | Type | Other, power head driven drill rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | GEC | Model Number | GSD-I Trailer Mounted Drilling rig | |
| Usage | Water Well | Voltage | Diesel Engine Driven | |
| Power(W) | Diesel Engine | Dimension(L*W*H) | 4785*2020*5650(mm) | |
| Weight | 2500Kg | Certification | ISO,CE | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China manufacturer new design homemade water well drilling rig
Feature
1. Mast up-down: manual
2. Feed thrust mode: Mechanical
3. It can drill with casing pipe
4. It can drill with mud drilling and air drilling method
Application:
1. Drilling water wells for urban and rural life.
2. Drilling water wells for agriculture irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling construction engineering holes.
5. Drilling geothermal pump wells.
Technical Data:
Model | GSD-I |
Drill hole diameter (mm) | 90-1000 |
Drill depth (m) | 120 |
Drill rod length (m) | 3 |
Drill rod diameter (mm) | Φ60,φ73,φ89,φ95 |
Through hole diameter of power head(mm) | Φ35,φ60,φ80 |
Dimension(mm) | working:4785*2020*5650 |
(L×W×H) | transporting:6000*2020*2880 |
Weight (kg) | 2500 |
Drilling method | Normal and Reverse circulation for Air drilling, Normal circulation for mud drilling. |
Power head lifting speed (m/s) | 0.25, 0.15 |
Power head lifting force(kN) | 55.40,94.55 |
Main winch single rope tension(kN) | 18.54 |
Feed thrust (kN) | 0-15 |
Power head rotating speed (r/min) | A(Normal:17,30,66)( reverse:13,23,50) |
B(Normal:47,81,178)( reverse:36,62,137) | |
Mud pump | FSB-50 pump |
Discharge (m3/h) | 50 |
Power | Diesel engine |
Rated power (kW) | 22 |
Mast up to down | Mechanical |
Chassis | Trailer-type |
Feed thrust mode | Mechanical |
Various Drilling Tools of diesel engine water well drill rig for water well :
Mud Drilling Method
Air Drilling Method
Factory:
Workshops:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD46000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We also have crawler type and truck mounted drill for option.
GSD-II crawler drill
GSD-II truck mounted drill
GSD-IIA truck mounted drill
