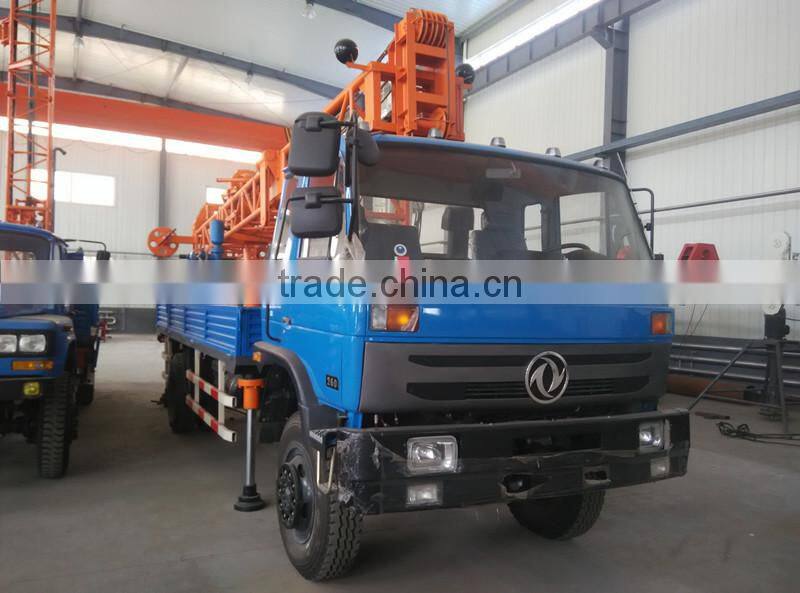

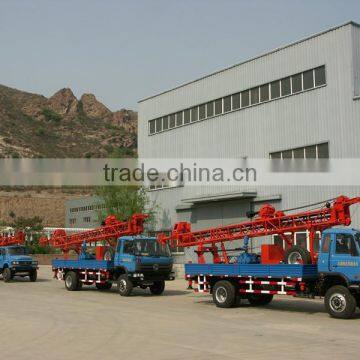

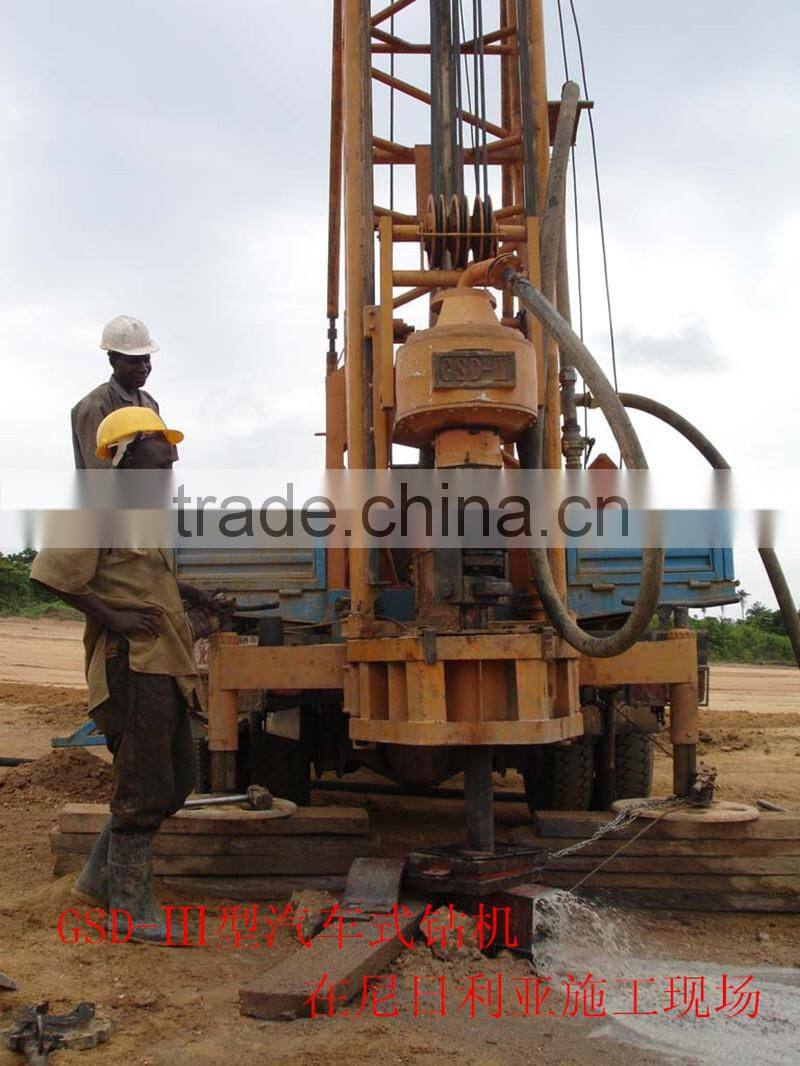

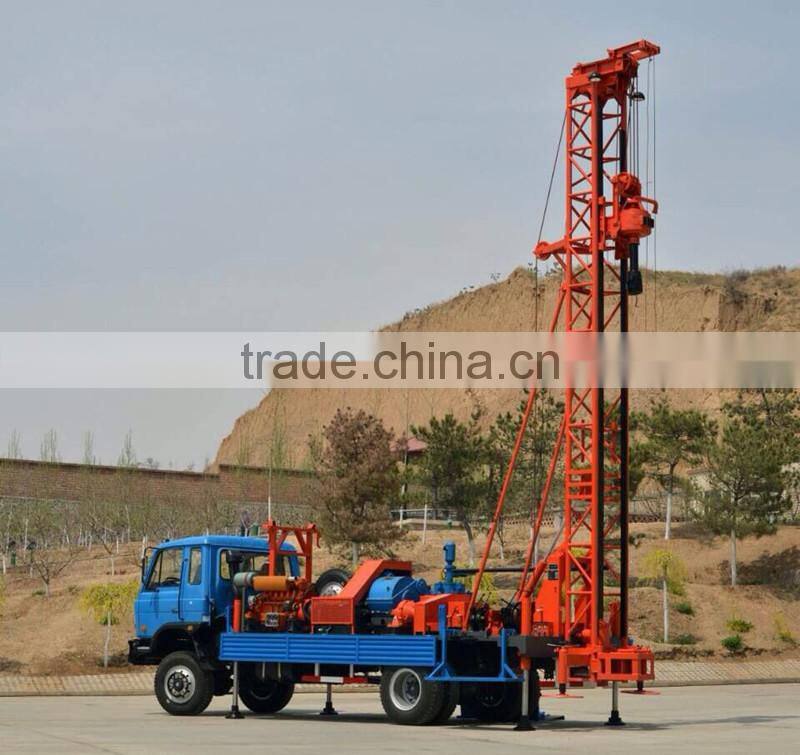

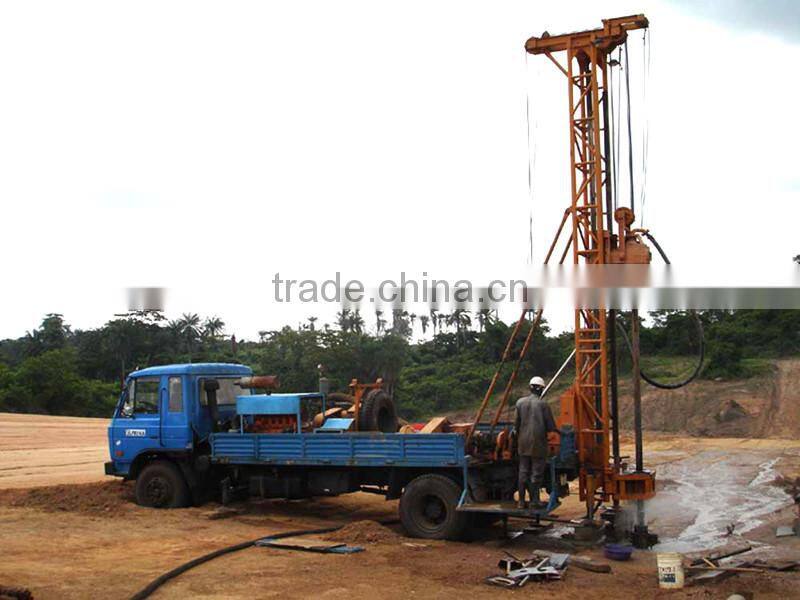

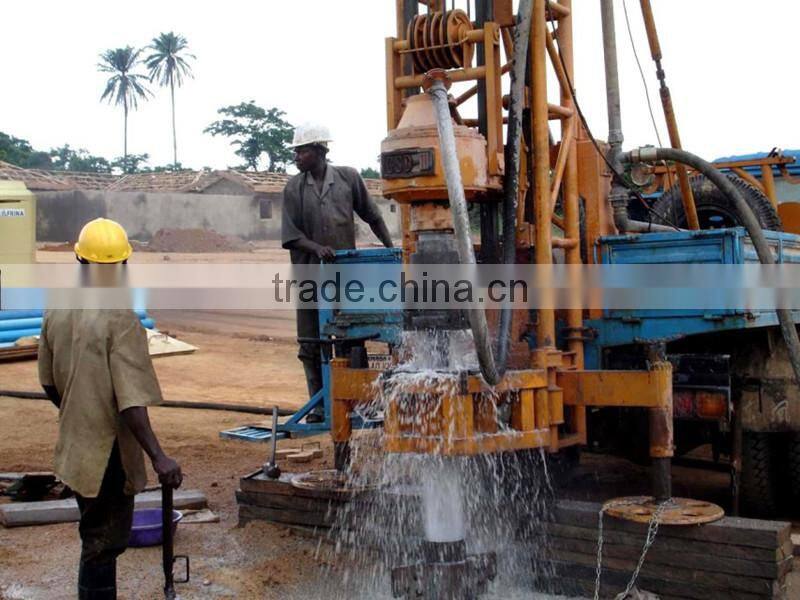

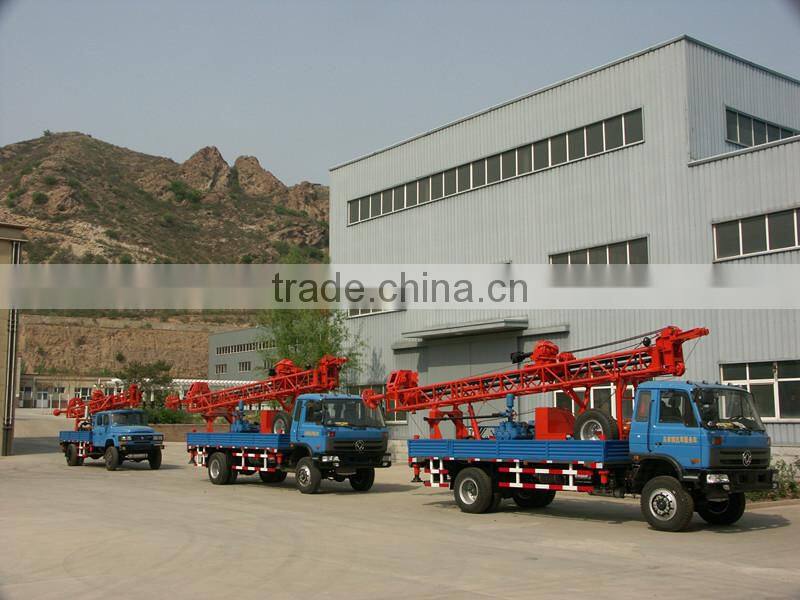

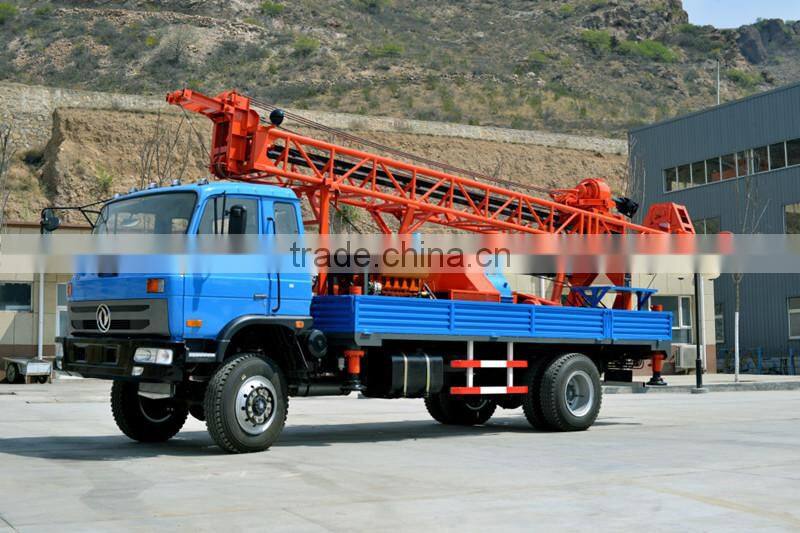

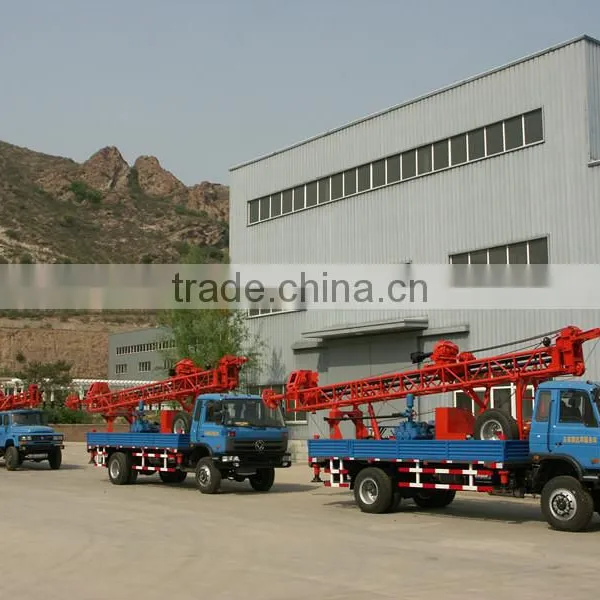

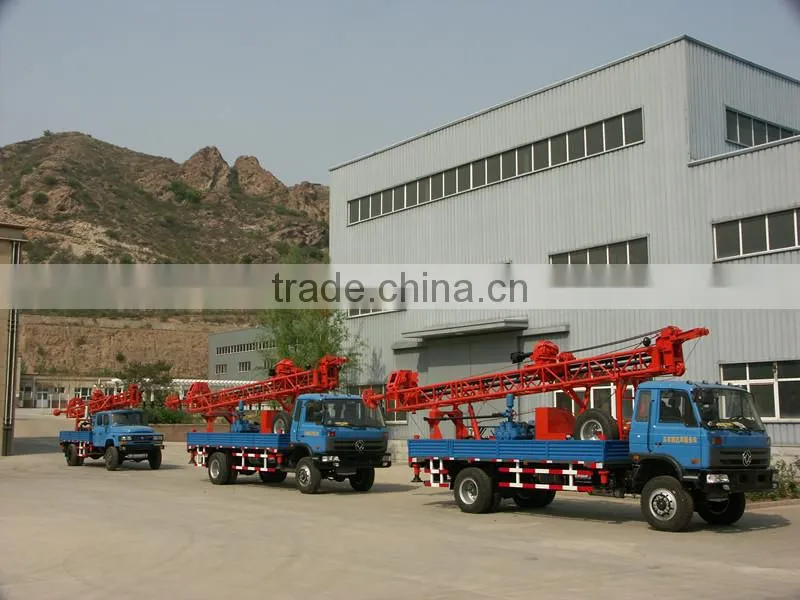

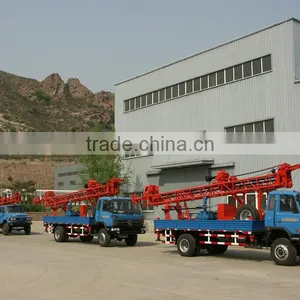

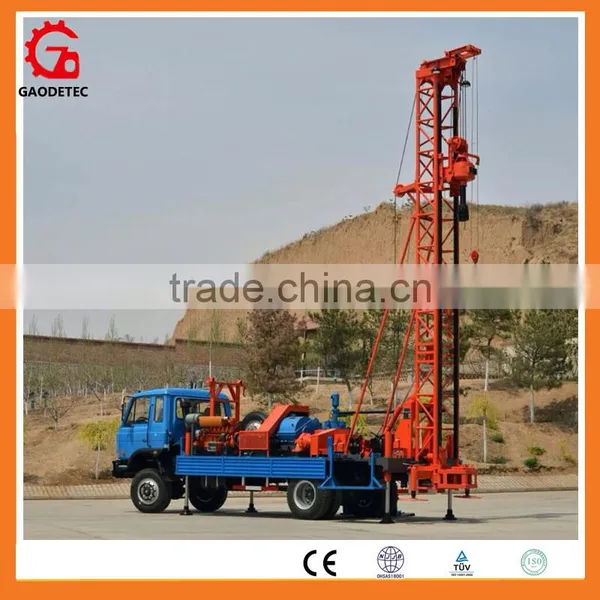

GSD-III energy saving water well drilling rig with good quality
Feature
1. Drill head style with large torque and lifting force;
2. Multiple purposes and multiple functions drilling;
3. Large drill head inside diameter available for many robs;
4. It can drill with mud drilling and air drilling method;
5. Special designed rod structure makes it easy to connect and disconnect;
6. Easy operation and maintenance, high reliability and long service life;
7. Modular design appropriate rods and pumps provided for clients.
Application:
1. Drilling water wells for urban and rural life.
2. Drilling water wells for agriculture irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling construction engineering holes.
5. Drilling geothermal pump wells.
Technical Data:
Specification | GSD-III |
Drill hole diameter(mm) | 120-1500 |
Drill hole depth (m) | 350 |
Drill rod length (m) | 3,4 |
Drill rod diameter (mm) | 73,89,95,133 |
Power head through hole diameter (mm) | 80,120 |
Dimension (mm) (L×W×H) | Working condition:9600*2950*7900 |
Transporting condition:10200*2470*3300 | |
Rig weight (kg) | 12500 |
Drilling method | Normal and Reverse Circulation for both mud and air |
Impactor | Middle-High-Pressure air |
|
|
Power head lifting force (kN) | 130 |
Main winch lifting force (kN) | 25 |
Auxiliary winch lifting force (kN) | 8 |
Power head rotation speed (r/min) | A(Normal:20,33,73)(Reverse:13,23,47) |
B(Normal:41,66,146)(Reverse:26,43,94) | |
Pump group flow(m3/h) | Pump group:80 |
LBN20 | |
Pump model | BW600/30 Mud pump |
Power | Diesel engine |
Rated power(kW) | 84 |
Up-down mast mode | Hydraulic |
Chassis | Dong feng EQ1141(four-wheel drive) |
Driving mode | 4×4 off road |
Supporting mode of chassis | Hydraulic |
| |
Various Drilling Tools of diesel engine water well drill rig for water well :
Factory:
Workshops:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD46000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We also have crawler type and truck mounted drill for option.
GSD-II crawler drill

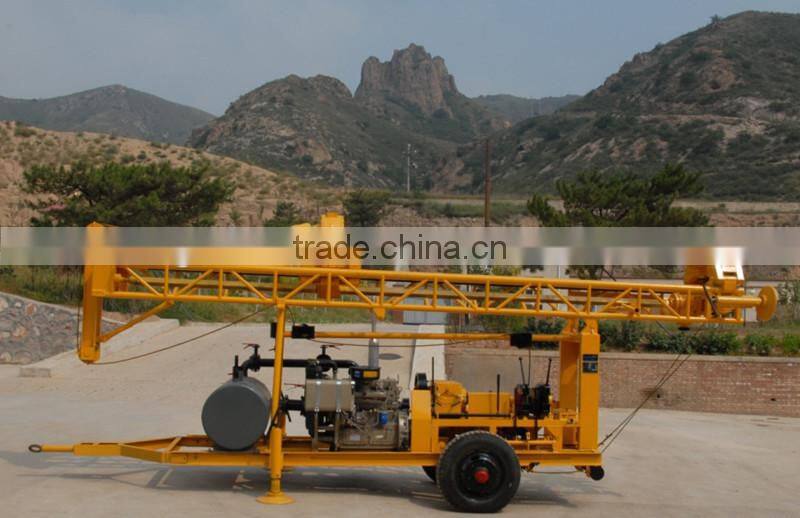

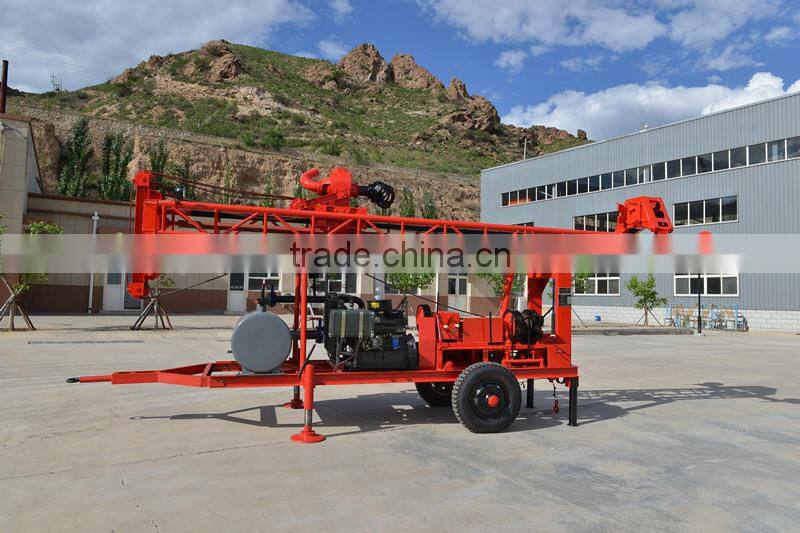

GSD-II trailer mounted drilling machine
GSD-IIA truck mounted drill
