GD90 for drill hard rocks small portable Air and Hydraulic Driven Down The Hole hammer Drill
- 10000 Set / Sets per Month
- Shanghai or other
- T/T L/C D/P D/A Credit Card PayPal
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | GEC | Model Number: | GD90 portable drilling rig |
Usage: | Ore | Voltage: | Hydraulic&pneumatic | Weight: | 700kg |
Certification: | ISO CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

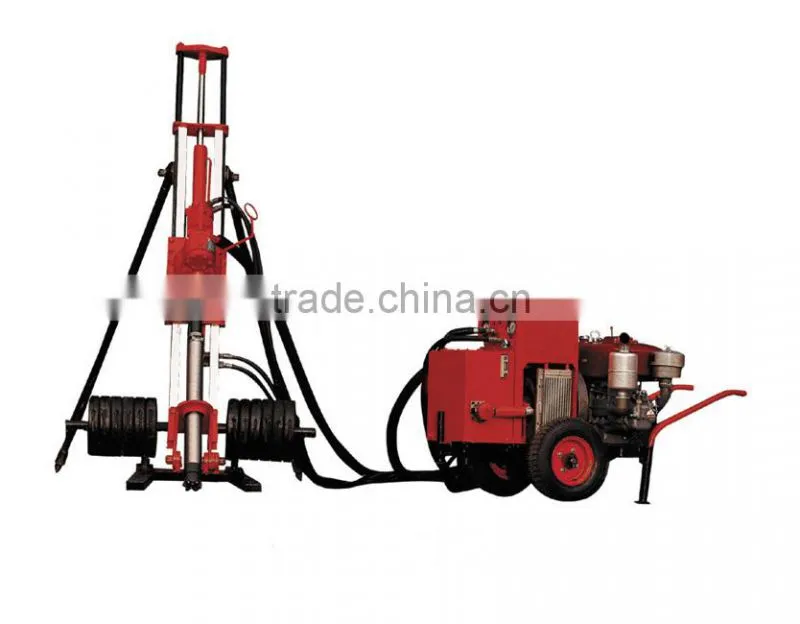

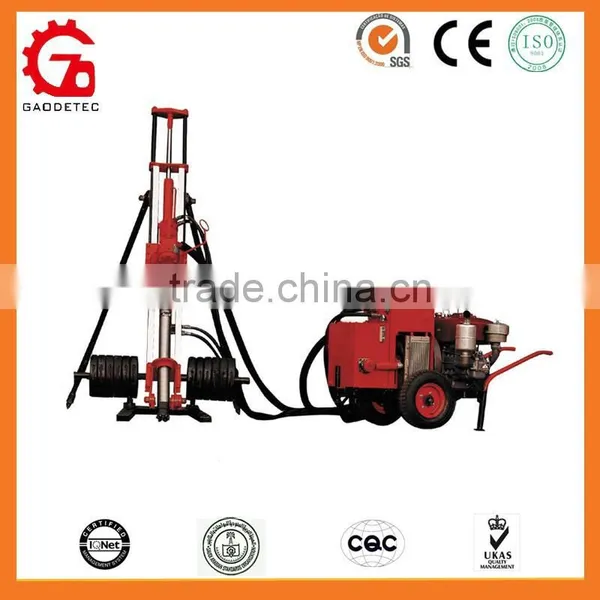

GD90 for drill hard rocks small portable Air and Hydraulic Driven Down The Hole hammer Drill
Feature:
GD90 best seller quarry blasting small portable borehole drilling machines is a convenient compact electric down-the-hole(DTH) drill, it has many advantages,such as high efficiency,flexible movement, easy operation, low initial investment, and good economic benefits and so on.
Application:
GD90 best seller quarry blasting small portable borehole drilling machines is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized mine, earth and rock engineering and so on.
We also have portable pneumatic DTH drilling rig and pneumatic&hydraulic DTH drilling rig.
Technical Parameter:
Model | GD90 |
Hole diameter (mm) | 80-100mm |
Hole depth (m) | ≥20m |
Rock hardness | f=6-20 |
Pressure (mpa) | 0.5-0.7MPa |
Air consumption (m³/min) | ≥6m3/min |
Rotating speed (r/min) | 0-75r/m |
Hammer | QCZ90 |
Max. lifting force (KN) | 15KN |
Power | hydraulic&pneumatic |
Bit | Φ90(60-130) |
Rod | Φ60mm*1000mm |
Drilling components | Standard(option) |
Advantages:
1. Propulsion, rotary and impact all powered by compressed air, the structure is simple, a single, convenient to move.
2.Have single, double top, top, bearing type selection of three kinds of supporting structure, can adapt to any geological .
3.Operator focus, convenient and quick operation.
4.Unique dual mufflers, good silencing effect, reduce the pollution of the environment drilling rig is suitable for harsh work environment and place that traffic is not convenient. It is a wisdom choice for drilling in hard rock of small and medium-sized
We also have portable pneumatic DTH drilling rig and pneumatic&hydraulic DTH drilling rig.
The power :1 Pneummactic ; 2 Electric&pneumatic ; 3 Hydraulic & pneumatic three type for your choose.
Model | hole diameter (mm) | Hole depth (m) | rotating speed (rpm) | working pressure ( MPa ) | Rod φ (mm) | Air consumption (m3) | Lift Power (KN) | power (KW) |
GD70 | 60-80 | ≥15 | 0-125 | 0.5~0.7 | 40x1000 | ≥3.5 | 4 | 3 |
GD100 | 80-100 | ≥20 | 0-62 | 0.5~0.7 | 60x1000 | ≥7 | 9.6 | 4 |
GD100B | 80-100 | ≥20 | 0-84 | 0.5~0.7 | 60x1000 | ≥7 | 9.6 | 4 |
GD120 | 80-100 | ≥20 | 0-62 | 0.5~0.7 | 60x1000 | ≥9 | 9.6 | 5.5 |
GD120B | 80-120 | ≥20 | 0-78 | 0.7~1.0 | 60x1000 | ≥9 | 9.6 | 5.5 |
GD145B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1000 | ≥12 | 12 | 7.5 |
GD150B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥12 | 12 | 7.5 |
GD155B | 90-130 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥12 | 12 | 7.5 |
GD165B | 90-150 | ≥50 | 0-60 | 0.7~1.4 | 76x1500 | ≥15 | 12 | 11 |
GD165Z | 90-160 | 80 | 0-60 | 0.7~1.4 | 89×1.5 | 220-280L/S | 12 | 8.8 |
GD90 | 80-130 | ≥20 | 0-75 | 0.5~0.7 | 60x1000 | ≥ 6 | 15 | Hydraulic&pneumatic |
GEC100 | 80-130 | ≥20 | 0-93 | 0.5~0.7 | 60x1000 | ≥12 | 9.6 | Pneumactic |
Drill parts:
Working site:
We have special service team which will offers you professional guidance:
1.Low maintenance cost, high efficiency.Minimizing downtime of the equipment.
2.Planned maintenance budget.Maintenance plans are designed according to the customers' different requirements.Providing dedicated and experienced maintenance technicians.
3.Our sales team will response for your question within 24 hours(holidays excluded) 4.Technical support will be available in any time. Providing dedicated and experienced maintenance technicians.
5.Quality Control: 1)We have our own experienced QC 2)There will be strict inspection and testing for every order before shipping out. 6.After-sale Service: 1)Quality Guarantee:12 months from delivery date(quick-wear part except) 2)For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)

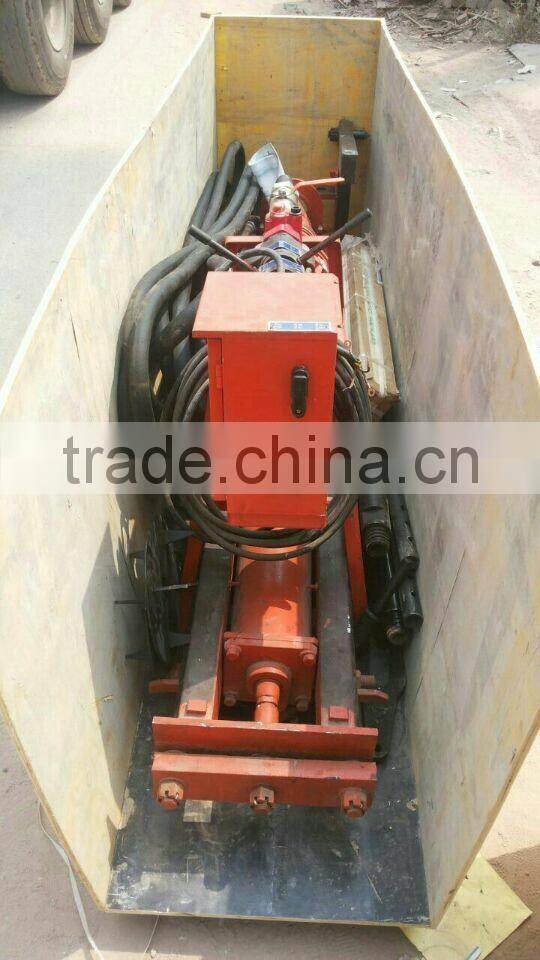

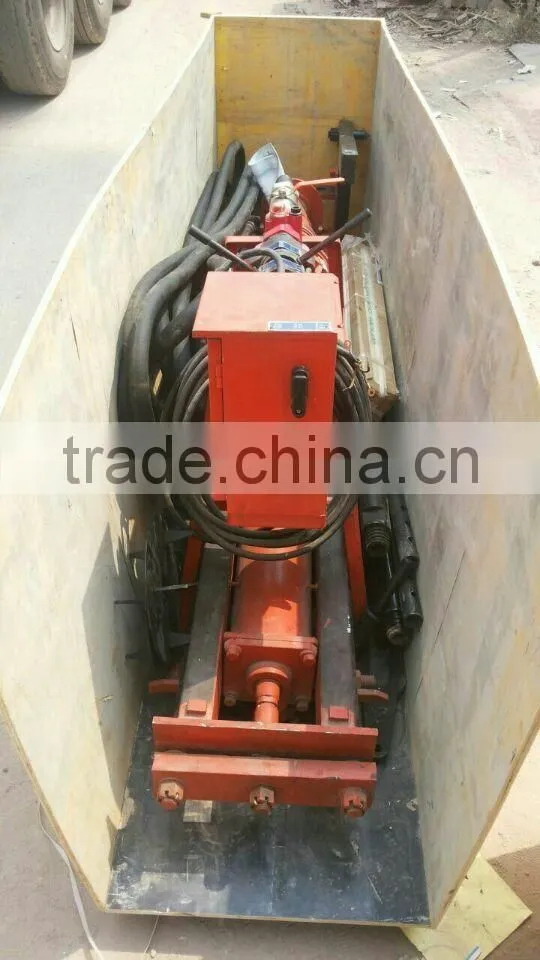

Packaging &shipping:
The information you may like to know before order:
1.Payment terms:
T/T 50% in advance ,the balance should be paid within 5days against the B/L date
2.Delivery time:
Within 20 days after receiving your advanced payment
3.Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4.Packaging:
1)Outside package:Standard export wooden cases
2)Inner package:Stretch film
5. HS CODE:
Air compressor:8414809090
Drill rig:8430310000
Contact:
Gaode Equipment Co.,Ltd.
Tel:+86-371-55951210 Fax:+86-371-63526676
Skype:kevin66229
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD60000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
