Good performance underground water drilling machine for construction engineering
Feature
1. Mast up-down: Hydraulic
2. Feed thrust mode: Hydraulic
3. It can drill with casing pipe;
4. It can drill with mud drilling and air drilling method.
Application:
1. Drilling water wells for urban and rural life.
2. Drilling water wells for agriculture irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling construction engineering holes.
5. Drilling geothermal pump wells.
Technical Data:
Model | GSD-IIA |
Drill hole diameter (mm) | 90-1200 |
Drill depth (m) | 300 |
Drill rod length (m) | 3,4 |
Drill rod diameter (mm) | φ73,φ89,φ95, Φ133 |
Through hole diameter of power head(mm) | φ60,φ80, Φ120 |
Dimension(mm) | working:7900*2370*7200 |
(L×W×H) | transporting:8450*2370*3400 |
Weight (kg) | 3800 |
Drilling method | Normal and Reverse circulation for both Air& Mud drilling. |
Power head lifting speed (m/s) | 0.37, 0.16 |
Power head lifting force(kN) | 45.40,105 |
Main winch single rope tension(kN) | 27 |
Feed thrust (kN) | 0-15 |
Power head rotating speed (r/min) | A(Normal:14,23,52,84)( reverse:8,13,29,47) |
B(Normal:32,52,116,188)( reverse:18,29,65,106) | |
Mud pump | LBN-20 pump |
Discharge (m3/h) | 80 |
Power | Diesel engine |
Rated power (kW) | 49 |
Mast up to down | Hydraulic |
Chassis | Truck-type |
Feed thrust mode | Mechanical |
Various Drilling Tools of diesel engine water well drill rig for water well :
Mud Drilling Method
Air Drilling Method
Factory:
Workshops:
Trade assurance advantages:
1. Quickly lock trusted seller, saving time and energy;
2. Reduce the risk of online purchasing;
3. If there is a trade disputes, you can complain to Alibaba and get benefits compensation.
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD78000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
We also have crawler type and truck mounted drill for option.
GSD-II crawler drill
GSD-II truck mounted drill

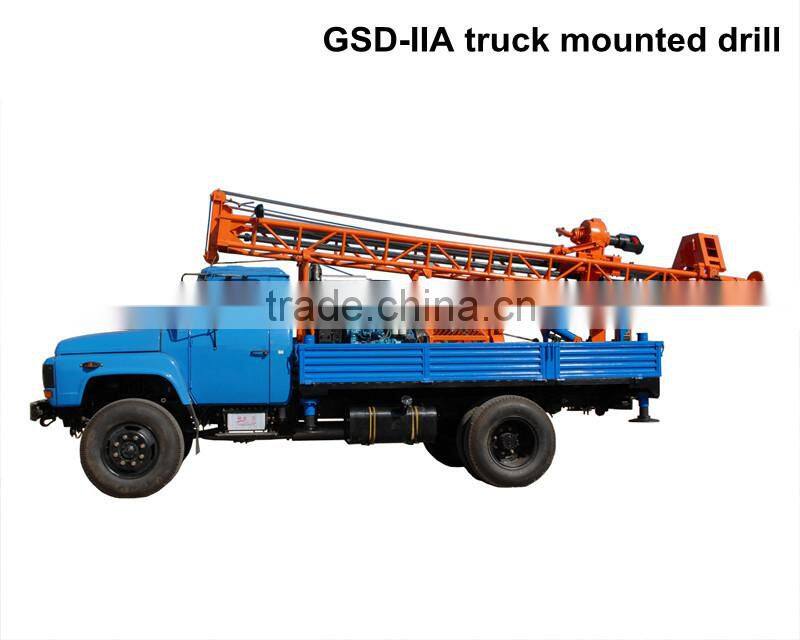

GSD-IIA truck mounted drill
