Engineering Foundation Hydraulic Crawler Drilling Machine for jet grouting
Features
- Powerful
- Top-drive head driven by hydraulic, stepless speed regulation, high efficiency and low labor intensity
- Variable hydraulic system with load feedback, low energy consumoment
- First use special valve fixed position by friction, satiable for jet grouting technic
- Top-drive head has wide range of rotary speed, meet varying layer and drilling technology
- With track chassis, easy and speedy to move
- With rotary support
- Longer stroke of top-drive head, reduce auxiliary operation time
- Compact structure, centralized operation, easy and safety
- With display unit for verticality of derrick, rotaring of top-drive head and lift speed
| Model | XL-50 Track Type Rotating-Jet Drilling Rig | |
Drilling depth | 50m | |
| Rod dia. | Φ42 mm;Φ50 mm | |
| Max torque | 2000N.m | |
| Moving speed | 1.5km/h | |
| Climbing capacity | 20° | |
| Rotation speed of top-drive head | (high)0-240r/min; (low)0-80r/min | |
| Stroke of top-drive head | 3500mm | |
| Rated pull force of top-drive head | 30KN | |
| Rated thrust force of top-drive head | 12KN | |
| Fast lifting and thrust speed of top-drive head(jetting) | 0.06-0.9/1.8m/min | |
| Lifting and dropping speed of top-drive head | 0-22/0-28m/min | |
| Main pump pressure | 20MPa | |
| Auxiliary pump pressure | 20MPa | |
| Power unit | 22KW | |
| Overall dimensions(L*W*H,mm) | Working | 2600x1800x4600 |
| Moving | 4600x1800x1780 | |
| Weight | 2500kg |
Drilling equipment of various kinds:
faucet, alloy drilling core, pipe fittings, hopper, funnel, casings, filling catheter, hammerhead, core drill pipe, joint locks,
single, double , three tube high pressure jet rods, etc.
Engineering Hydraulic Crawler Drilling Machine for jet grouting mainly can be applied on ground treatment and stabilization of railway, highway, bridge, dam, industrial and civil buildings, also used in shallow core drilling and engineering geological drilling, etc.
- Construction project
- hydropower project

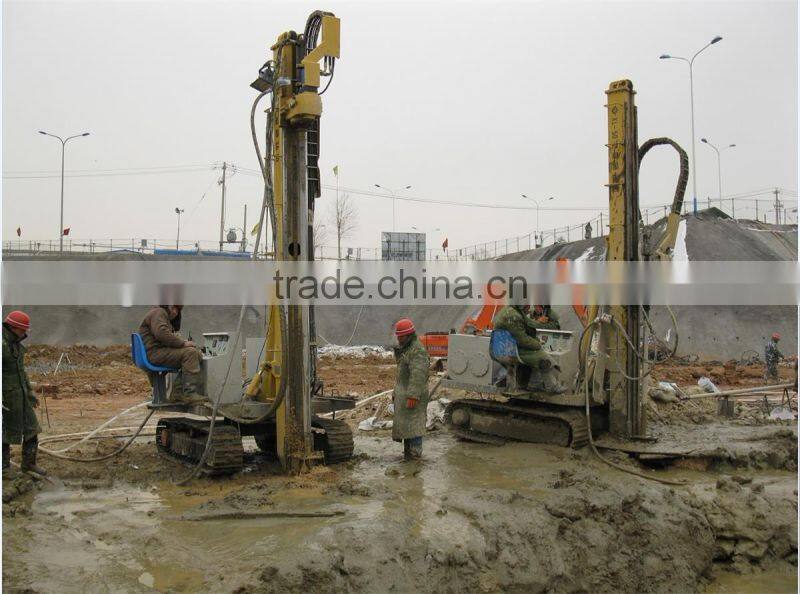

- Jet grouting construction site
Hydraulic Crawler Drilling Machine for jet grouting
Packaging Detail: Standard export packaging; or as your requirements
Shipping Detail: in stock; out of stock(20 working days); customized(30 working days)
Engineering Foundation Hydraulic Crawler Drilling Machine for jet grouting is mainly applied in ground treatment and stabilization of railway,
highway, bridge, dam, industrial and civil buildings, and also used in shallow core drilling and engineering geological drilling project, etc.
1: How long does it take to drill 50m hard rock layer?
That all depends. It is decided by the hardness of rock and your operating experience. As for the efficiency, it may need more
time to drill 50m rock layer compared with those big drilling machines with air compressor.
2: Can it be used for railway, street, bridge, dam foundation or building drilling?
Of course, XL-50 is specially designed for railway, street, bridge, dam foundation oand building drilling and engineering drilling. if you buy it for that, it will be your best choice. It can be
used for mine exploration, too.
3: How about the engine, diesel or electric?
It can be powered by 22HP diesel engine or electric motor. It is all by your option.
4: Could you train our workers?
XL-50 is easy to be operated. After you buy our product, detailed operation instructions with video will be offered. We
will be responsible all the time. Also we can talk about sending engineers to help you.
More details, please feel free to contact us! Thanks.
Hydraulic Crawler Drilling Machine for jet grouting
We provide high quality drilling rigs, and overseas after sale services.
We manufacture various kinds of drilling rigs, mud mixer, injectting pump machines as follows:
- GL-6000 Full Hydraulic Crawler Engineering Drilling Rig
- GL-4000 Track Type Full Hydraulic Drilling Rig
- BP-55 High Pressure Grouting Pump With Frequency-Conversion
- NJ Mud Mixer
