High Quality GSZ3000 Wet Mix Concrete Shotcrete Machine for sale
GSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix.The machine is suitable either for manual spraying or by means of a robotic arm. GSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.
Basic: Electric drive can be combined with type chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
Main Technical Data:
Electric Motor Drive:
Rated Output | 5m3 /h |
Max. Horizontal Conveying Distance | 35m(wet) 200m(dry) |
Max. Aggregate Size | 15mm |
Concrete Slump | 8 -15cm |
Conveying Hose Inner Diameter | 51/ 64mm |
Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
Air Consumption | 10~ 12m3 /min(357-430CFM) |
Main Motor Power | 7.5kW(10hp) |
Dosing Pump: | BRJ15 |
Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
Dosing Pump Output | 17.5 -88L /h |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.17m |
Rotor Speed | 11r/min |
Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
Net Weight | 1200kg |
Air Motor Drive:
Due to its full pneumatic driven unit, for the required anti-explosion applications, such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
Rated output | 5m3/h |
Max. horizontal conveying distance | 35m(wet) 200m(dry) |
Max. aggregate size | Dia.15mm |
Concrete slump | 8~15cm |
Conveying hose | Dia.50/65mm |
Operating air pressure | 0.2~0.6MPa |
Air consumption | 22m3/min (12+10) |
Loading height | 1.17m |
Rotor Rev. | 11r/min |
Rebound | ≤10 % |
Air motor power | 8kW |
Dosing pump model | BHA530 Dosing pump |
Dosing pump rated pressure | 0.5MPa |
Dosing pump output | 0~100L/h |
Overall dimension(L×W×H) | 1950×1050×1360mm1950×1050×1360mm |
Weight | 1200Kg |

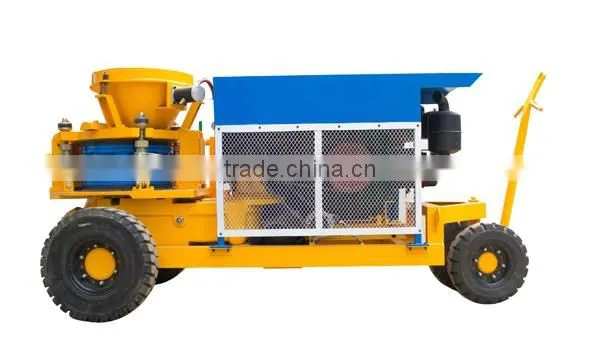

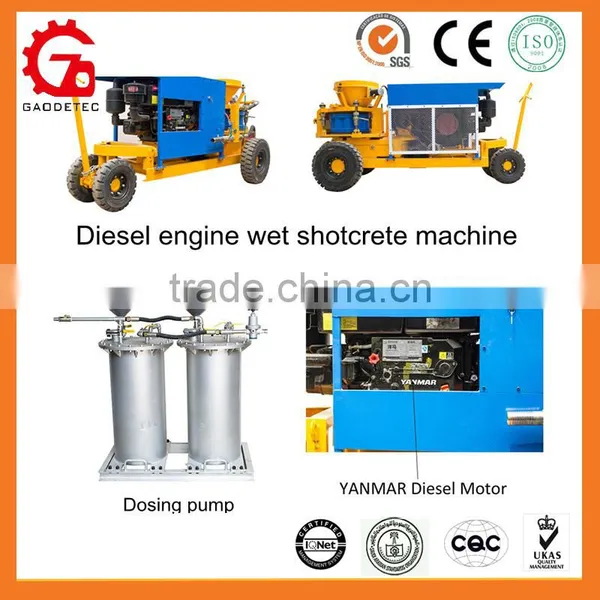

Diesel Engine:
Output Capacity | 3-5m3 /h |
Max. Horizontal Conveying Distance | 35m(wet) 200m(dry) |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | 15 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |
Diesel Engine | 20hp,2200rpm, Yanmar diesel |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.55×1.05×1.25m |
Dosing pump model | BHA530 Dosing tank |
Net Weight | 1300kg |

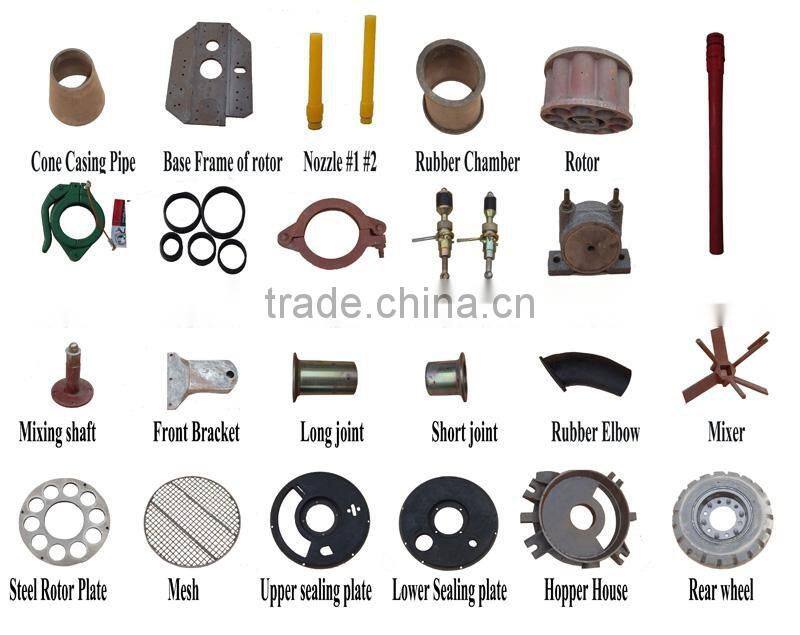

A complete set of GSZ3000 shotcrete machine:
No. | Description | Quantity | Unit | Remarks |
1 | Main Machine | 1 | set |
|
2 | Nozzle Assy. | 1 | set |
|
3 | Conveying Hose, ID64mm, 50ft.Length | 1 | piece |
|
4 | Rubber Hose Joint | 3 | piece | Fitting |
5 | Quick Coupling | 3 | piece |
|
6 | Upper Sealing Plate | 1 | piece |
|
7 | Lower Sealing Plate | 1 | piece |
|
8 | Dosing pump tube | 1 | piece |

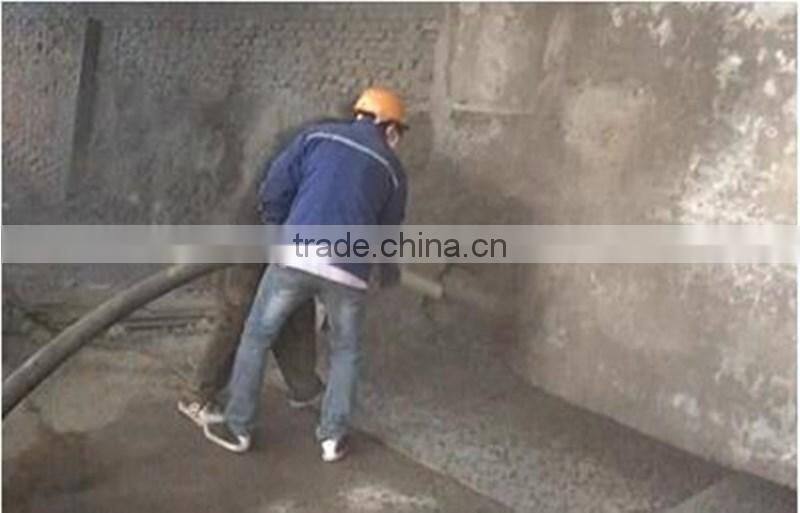

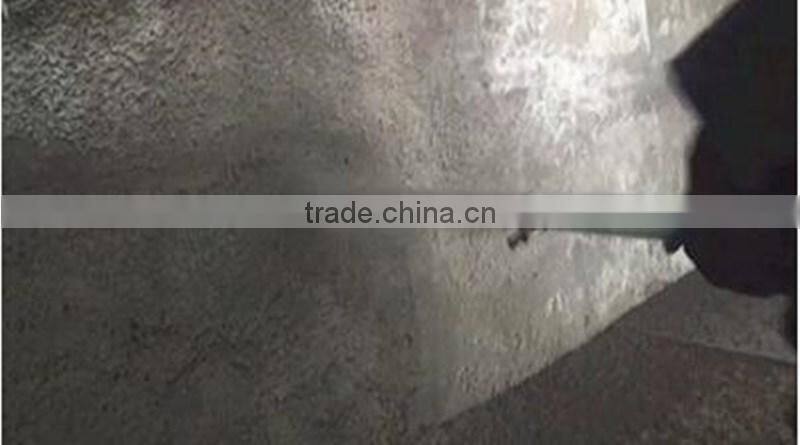

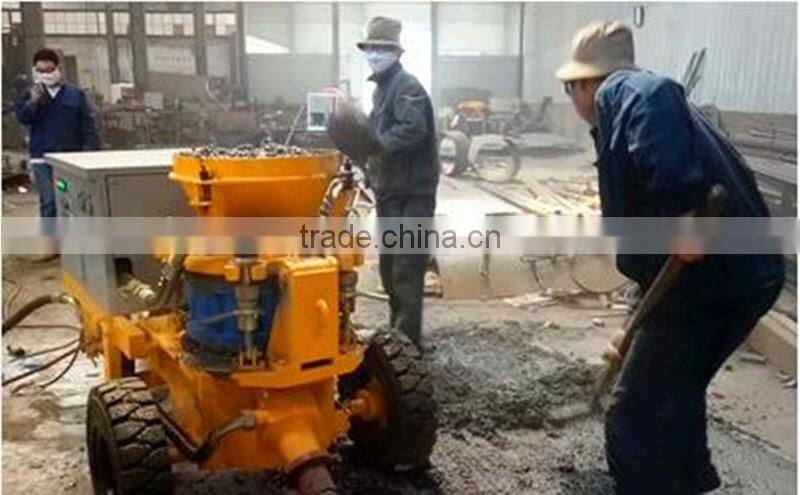

Work place

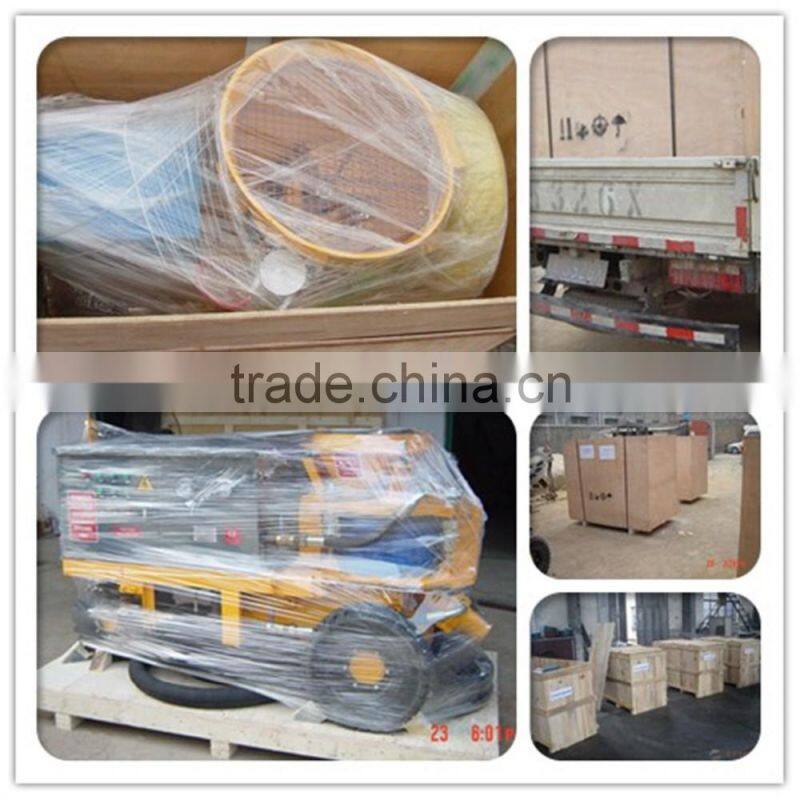

Packaging & Shipping
