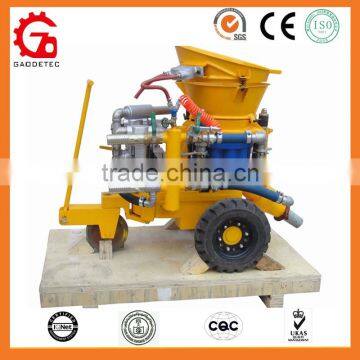

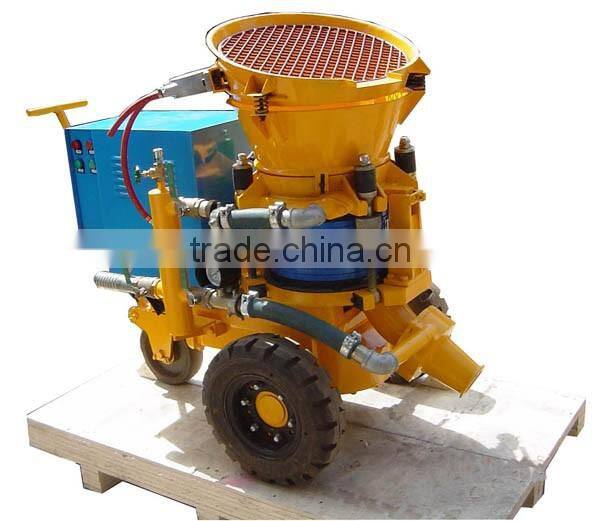

GZ-3 3m3/h dry mix concrete gunite shotcrete spraying machine for swimming pool pond
GZ-3 shotcrete machine is a compact concrete spraying machine for dry-shotcrete,With a conveying capacity from 0.4 to 4.0 m3/h, the GZ-3 shotcrete machine is suitable for each specific job.The machine also has the high quality steel on steel sealing system. Experience has shown up to 10 times less wear on the steel plates, depending on material, output capacity, hose diameter and compressed air supply. This again leads to less standstill time and wear cost and therefore to more economical spraying operation.
GZ-3 world wide brand motor electric dry mix concrete spraying machine features:

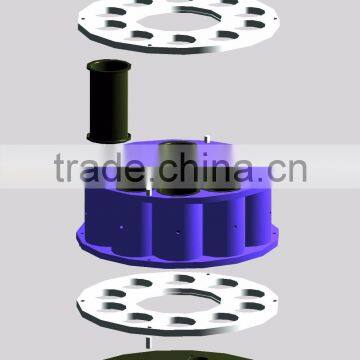

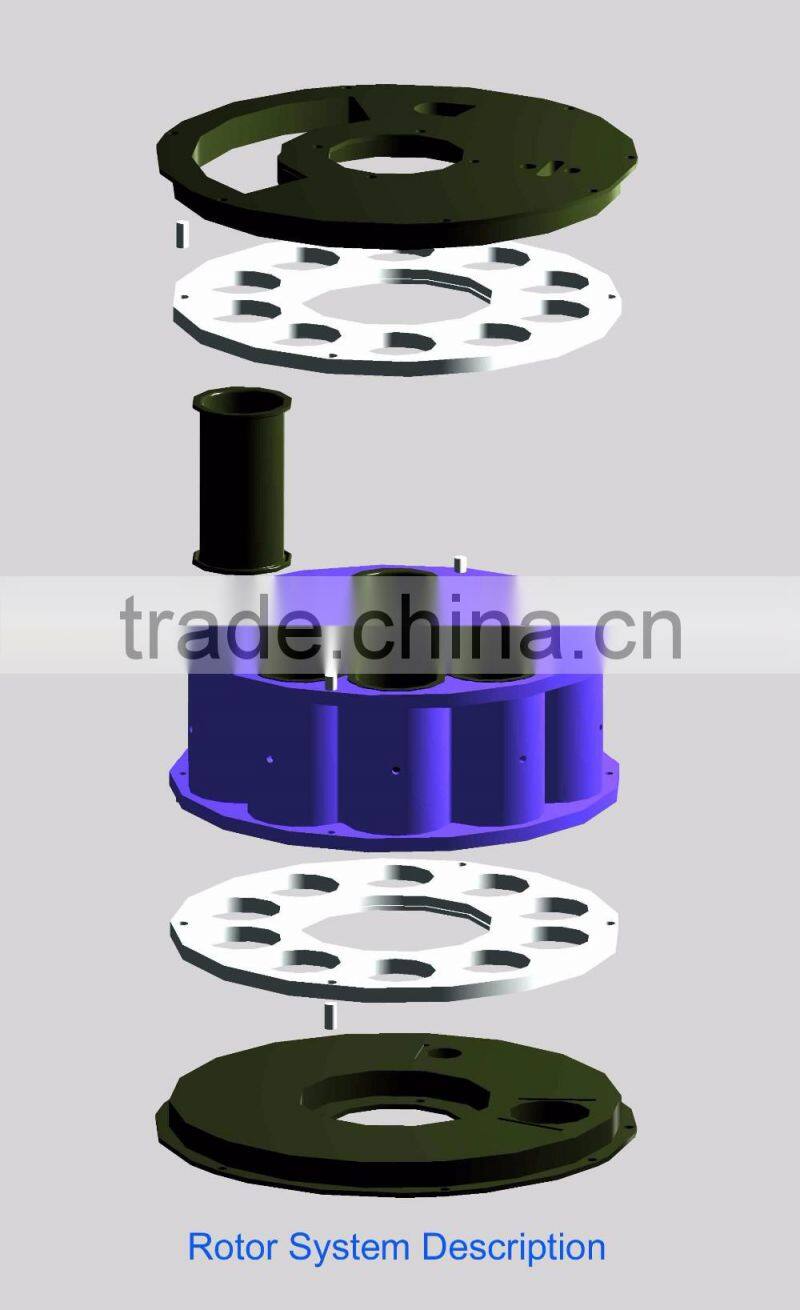

Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the pressure between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

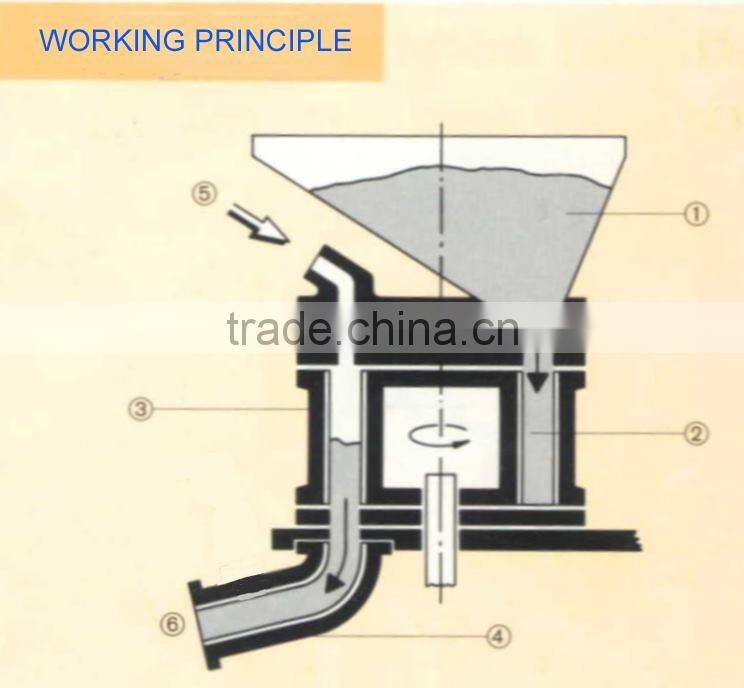

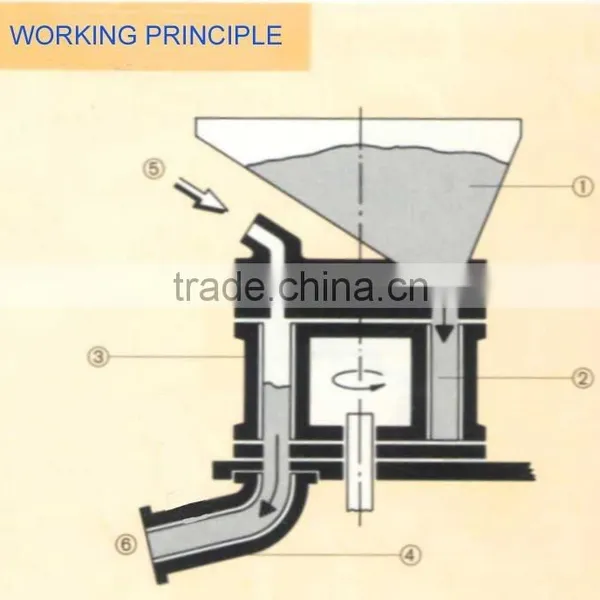

Principle of GZ-3 Concrete Shotcrete Machine
Application of GZ-3 shotcrete machine
1). Dry shotcret; 2). Concrete repair; 3). Joint filling; 4).Concrete reinforcements;
5). Swimming pools; 6). Slope stabilization; 7). Mine and tunnel building.
Technical data:
Electric Motor Driven:
Output Capacity | 3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ38/Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Motor Power | 3kW(4hp),IP55 |
Available Voltage | 220V,380V, 440V,660V 50Hz/60Hz |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg |
Air Motor Driven:
Output Capacity | 1.5-3m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ10 mm |
Conveying Hose Inner Diameter | Φ50mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption for conveying material | 5~6m3/min(180-215CFM) |
Air Motor Air Pressure | 0.5MPa(71PSI) |
Material Charging Height | 0.9m |
Rotor Speed | 14r/min |
Air Motor Type | TMH3.2 |
Air Motor Air Consumption | 4.8m3/min(171CFM) |
Overall Dimension(length×width×height) | 1.13×0.54×1.02m |
Net Weight | 430kg(947lbs) |

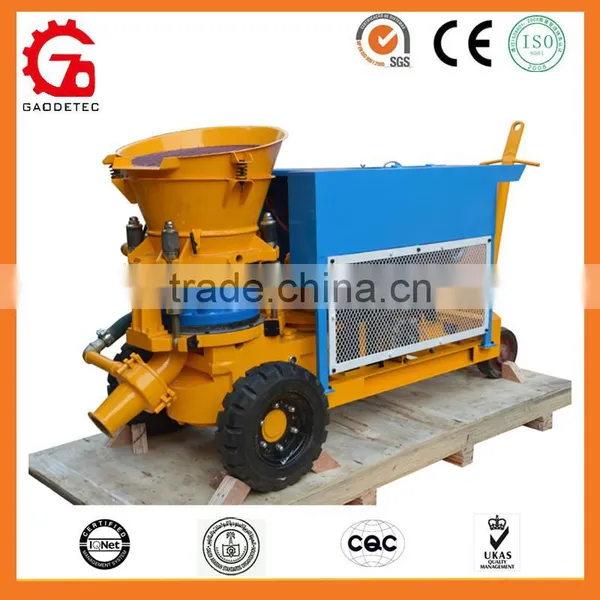

Diesel driven:
Rated Output | 2-3m 3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1: 3~5 |
Max. Aggregate Size | Φ 10 mm |
Conveying Hose Inner Diameter | 38/51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 5~6m 3 /min(180-215CFM |
Diesel Engine | 10hp,2200rpm |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Material Charging Height | 0.9m |
Rotor Speed | 9-13r/min |
Overall Dimension(L× W× H) | 1.8× 0.8× 1.2m |
Net Weight | 480kg |
GZ-5 dry-mix shotcrete machine
Wet shotcrete machine
Gunite machine
Package:
Application:
Work place:
Customers:
Certificate:
CE AND ISO9001
