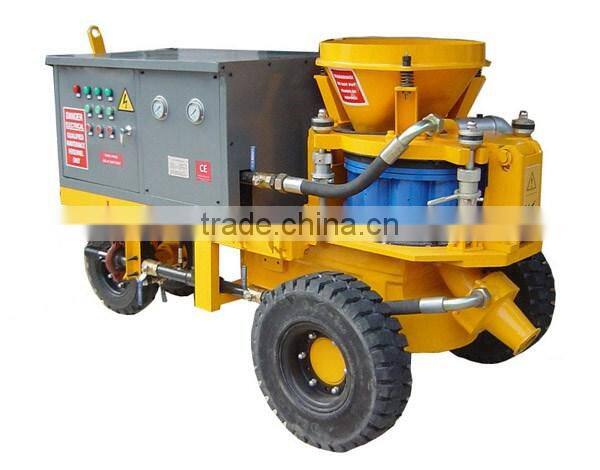

GSZ3000 wet mix construction shotcrete spray gunite machine suppliers
GSZ3000 shotcrete machine description:
GSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or dry mix.
The machine is suitable either for manual spraying or by means of a robotic arm.
GSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This machine has been designed especially for fiber spraying. And the dosing unit is combined with this machine.
GSZ3000 shotcrete machine versions:
Basic: Electric drive can be combined with tyre chassis.
Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel

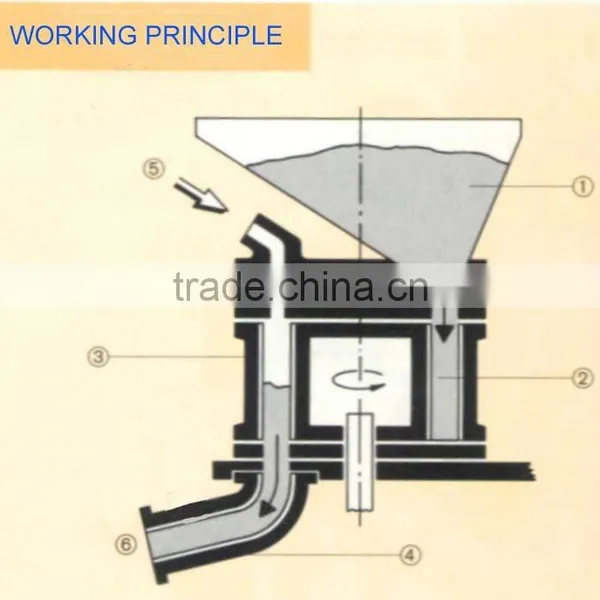

Working principle
GSZ3000 shotcrete machine main technical data
Electric drive:
Rated Output | 5m3/h |
Max. Horizontal Conveying Distance | 35m(wet)/200m(dry) |
Max. Aggregate Size | 15mm |
Concrete Slump | 8 -15cm |
Conveying Hose Inner Diameter | 51/ 64mm |
Operating air Pressure | 0.3-0.6MPa (43-86PSI) |
Air Consumption | 10~ 12m3 /min(357-430CFM) |
Main Motor Power | 7.5kW(10hp) |
Dosing Pump | BRJ15 |
Dosing Pump Rated Pressure | 0.6MPa(86PSI) |
Dosing Pump Output | 17.5 -88L /h |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.17m |
Rotor Speed | 11r/mi |
Overall Dimension(L × W × H) | 2.05× 0.95× 1.18m |
Net Weight | 1200kg |
Air motor drive:
Due to its full pneumatic driven unit, for the required anti explosion applications, such as coal mining, tunnel and underground engineering, GSZ3000A is perfect and specific one.
Rated output | 3-5m3/h |
Max. horizontal conveying distance | 35m(wet)/200m(dry) |
Max. aggregate size | Dia.15mm |
Concrete slump | 8~15cm |
Conveying hose | Dia.50/65mm |
Operating air pressure | 0.2~0.6MPa |
Air consumption | 22m3/min (12+10) |
Loading height | 1.17m |
Rotor Rev. | 11r/min |
Rebound | ≤10 % |
Air motor power | 8kW |
Dosing pump model | BHA530 Dosing pump |
Dosing pump rated pressure | 0.5MPa |
Dosing pump output | 0~100L/h |
Overall dimension(L×W×H) | 1.95×1.05×1.36m1950×1050×1360mm |
Weight | 1200Kg |
Diesel drive:
Output Capacity | 3-5m3 /h |
Max. Horizontal Conveying Distance | 35m(wet)/200m(dry) |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | 15 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |
Diesel Engine | 20hp,2200rpm, Yanmar diesel |
Diesel Engine Starting | Electric start |
Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.55×1.05×1.25m |
Dosing pump model | BHA530 Dosing tank |
Net Weight | 1300kg |

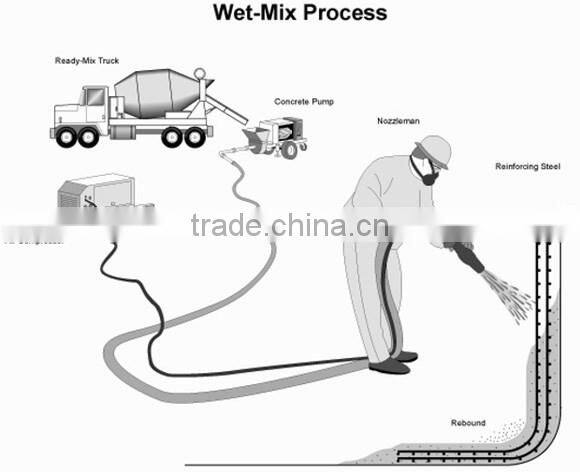

Application
