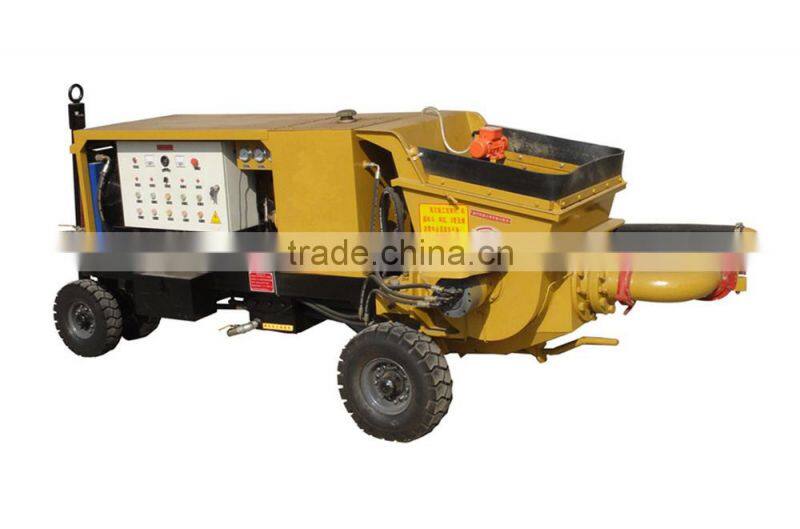

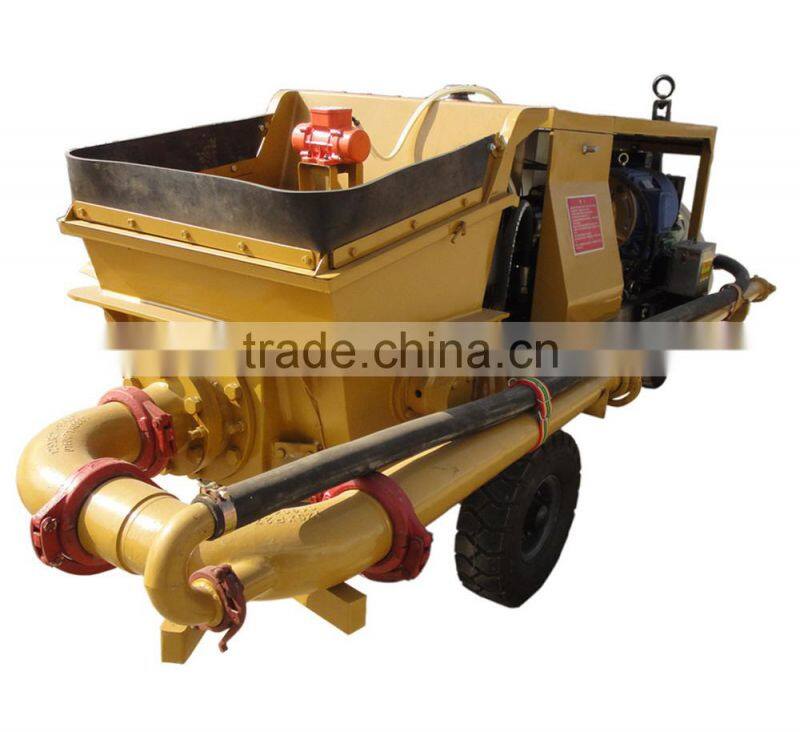

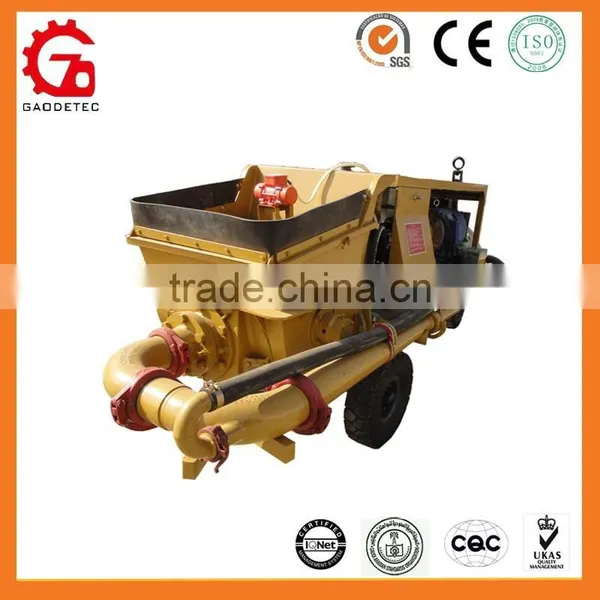

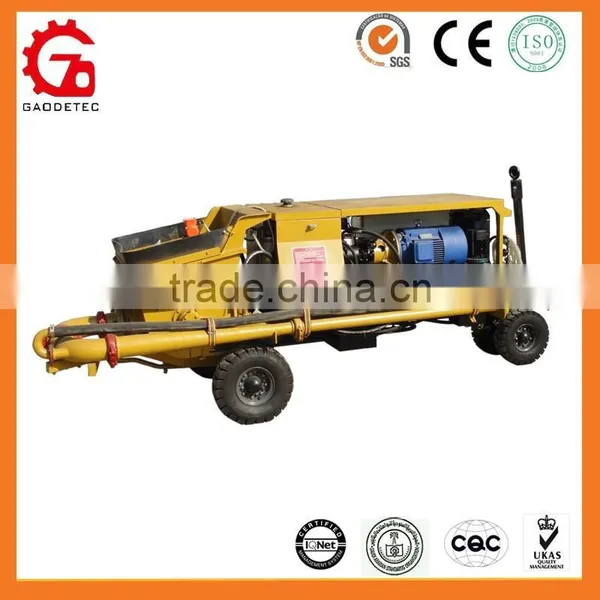

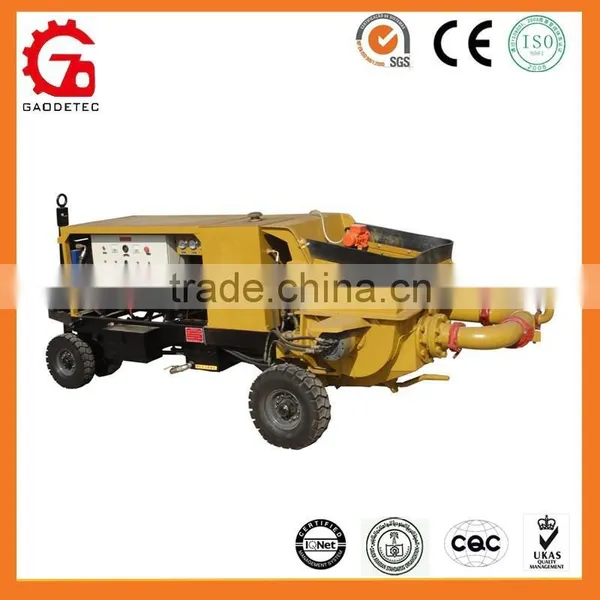

GPS5-15S hydraulic pump wet concrete spray shotcrete machine
GPS5-15S hydraulic pump wet concrete spray shotcrete machine description
It can be used for conveying and spraying of plain concrete, fiber concrete.

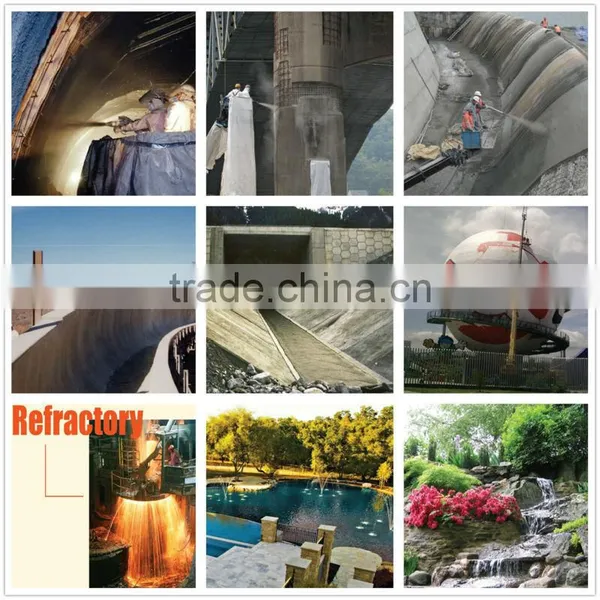

It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Features:
High efficiency: piston pump method for thick flow conveying.
Low cost: big cylinder diameter, long stroke, thus lower reversing times, shorten wearing of spare parts.
Stable: less reversing times, faster reversing speed, thus relieve pulsation phenomenon.
Automatic oil lubrication.
Integration design.
Technical data:
Parameter |
unit |
GPS5-15S |
Rated output |
m³/h |
5-15 |
Rated pressure |
MPa |
4 |
Max. Rated vertical distance |
m |
50 |
Max. Rated horizontal distance |
m |
180 |
Distributing valve |
|
S tube valve |
Max. aggregate |
mm |
25 |
Slump |
cm |
12-23 |
Air consumption |
m³/min |
9-20 |
System air pressure |
MPa |
0.7 |
Working air pressure |
Mpa |
0.4-0.6 |
Rebound rate |
% |
less than 15 |
Dust density (near machine) |
mg/m³ |
less than 10 |
Conveying cylinder ID *stroke |
mm |
dia. 140*700 |
Pump motor power |
kw |
18.5 |
Dosing pump motor power |
kw |
0.55 |
Vibrator motor power |
kw |
0.25 |
Cooling fan motor power |
kw |
0.12 |
Voltage/frequency |
V/Hz |
380/50 |
Oil tank volume |
L |
128 |
Charging height |
mm |
1200 |
Dimension |
mm |
3270*1450*1450 |
Weight |
kg |
1800 |
Wet Shotcreting Machine Certificates:
Our factory and workshops:
