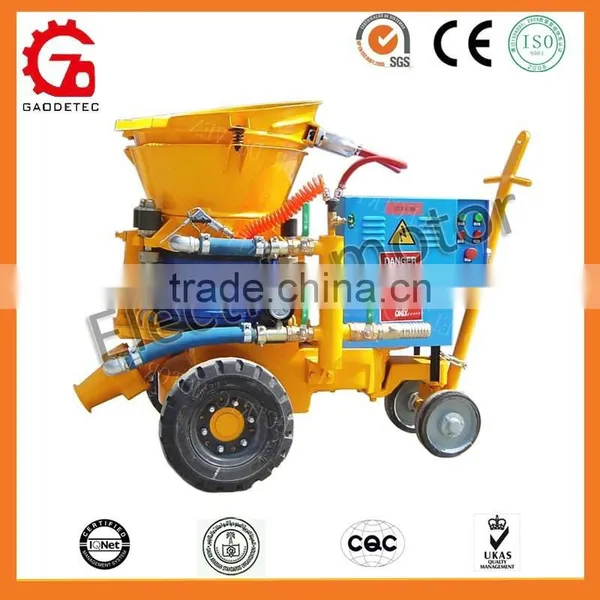

China Manufacturer ISO Supplier GZ-5 GEC Brand Tunnel Shotcrete Machine
GZ-5 series is a series of these series tunnel shotcrete machine in our factory.
It includes wheel type GZ-5A, GZ-5E, GZ-5D, GZ-5V and this customized rack-mounted tunnel shotcrete machine and other expanded shotcrete machine.
The rack tunnel shotcrete machine also have 3 driving ways, pneumatic, electric motor, diesel engine.
We can also customize the other phyletic tunnel shotcrete machines, such as with variable speed and so on.
Welcome consulting!
GZ-5 tunnel shotcrete machine is medium-sized dry tunnel shotcrete machine for the processing of dry mix. And it is widely used by so many contractors.

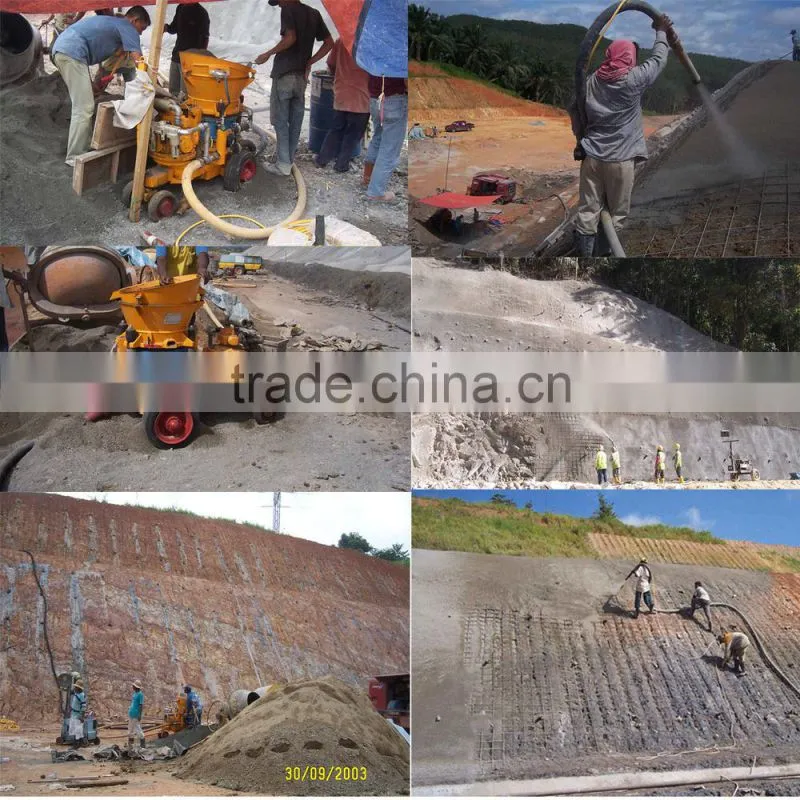

GZ-5 tunnel shotcrete machine for sale can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.

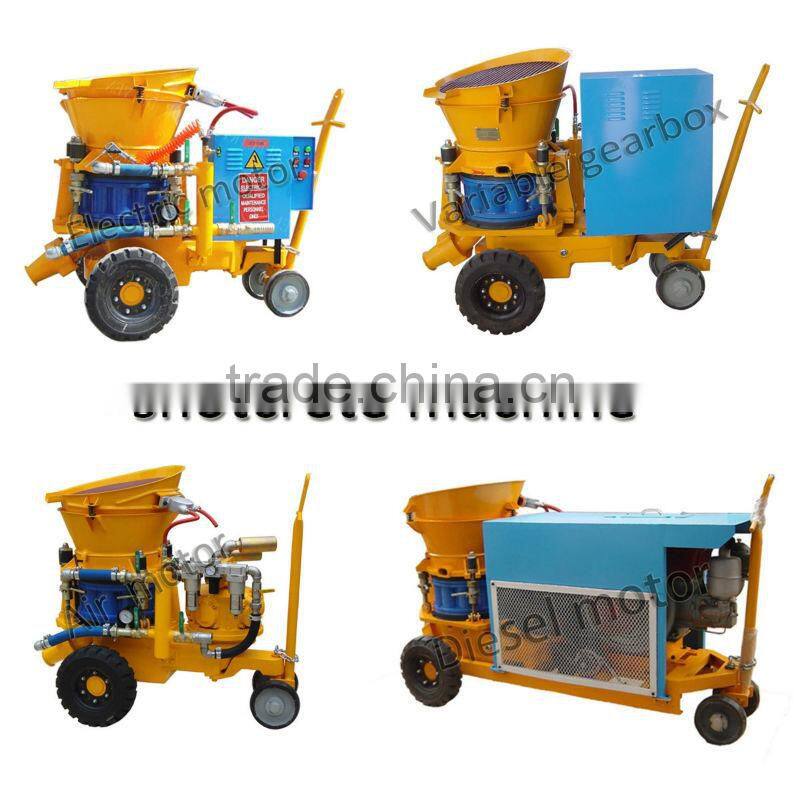

GZ-5 tunnel shotcrete machine for sale is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel.
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.
China manufacturer ISO supplier GZ-5 GEC brand tunnel shotcrete machine features:
1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life

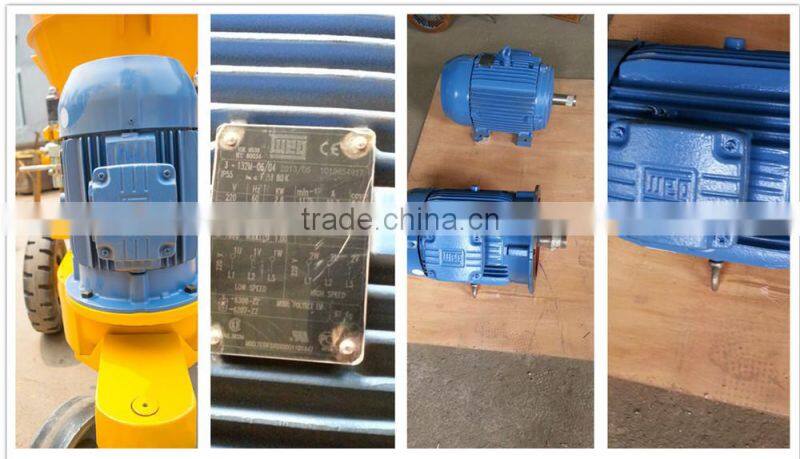

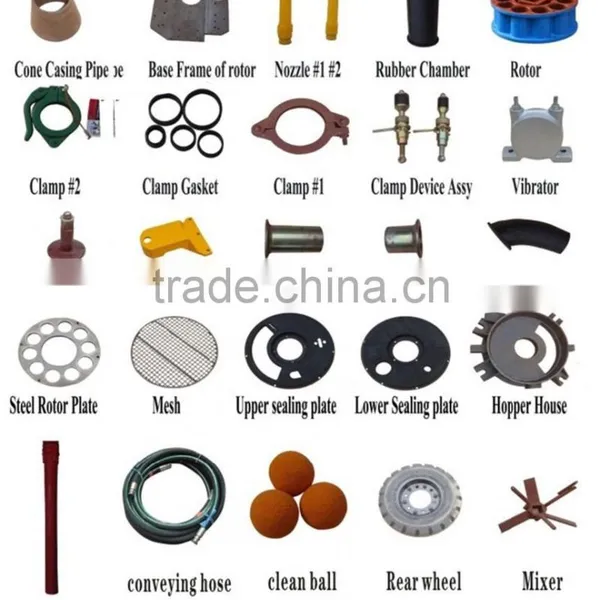

Accessories of Shotcrete Machine :

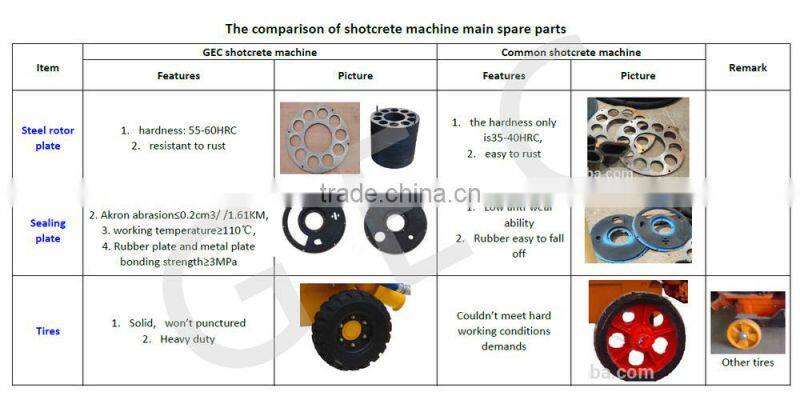

The Comparison of Shotcrete Machine Main Spare Parts:
Technical Data of China manufacturer ISO supplier GZ-5 GEC brand tunnel shotcrete machine
Electric motor drive:
Rated Output | 5 m³/h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤ 1.3~5 |
Water Cement Ratio | < 0.4 |
Max. Aggregate Size | Φ 15 mm |
Conveying Hose Inner Diameter | 51mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 8~9m 3 /min(285-325CFM) |
Motor Power | 5.5kW(7.5hp) |
Voltage | 220V, 380V, 440V, 660V, 50Hz/60Hz |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Overall Dimension(L× W× H) | 1.35× 0.75× 1.2m |
Net Weight | 720kg |
Air motor drive:
Output Capacity | 2.5-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:3~5 |
Max. Aggregate Size | Φ15 mm |
Conveying Hose Inner Diameter | Φ51 mm |
Conveying Pressure | 0.2-0.4MPa |
Air Consumption for conveying material | 7~8m3/min |
Air Motor Air Pressure | 0.5MPa |
Material Charging Height | 1.1m |
Rotor Speed | 11rpm |
Air Motor Type | TMH6A |
Air Motor Air Consumption | 7.5m3/min |
Overall Dimension(length×width×height) | 1.35×0.75×1.2m |
Net Weight | 720kg |
Diesel drive:
Output Capacity | 3-5.5m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Water cement ratio | <0.4 |
Max. Aggregate Size | Dia.15 mm |
Conveying Hose Inner Diameter | Dia.51 mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 9m3/min(325CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 11r/min |
Diesel Type | CF1105M |
Power | 13kw/18hp |
Overall Dimension(L× W× H) | 2.2×0.96×1.2m |
Net Weight | 850kg |

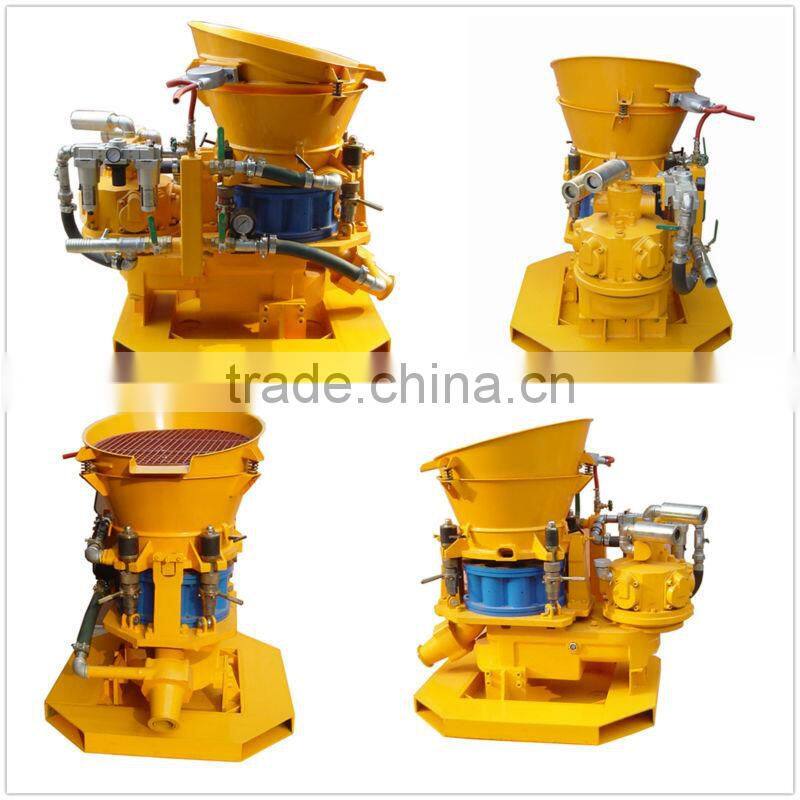

GZ-5 rack-mounted tunnel shotcrete machine:

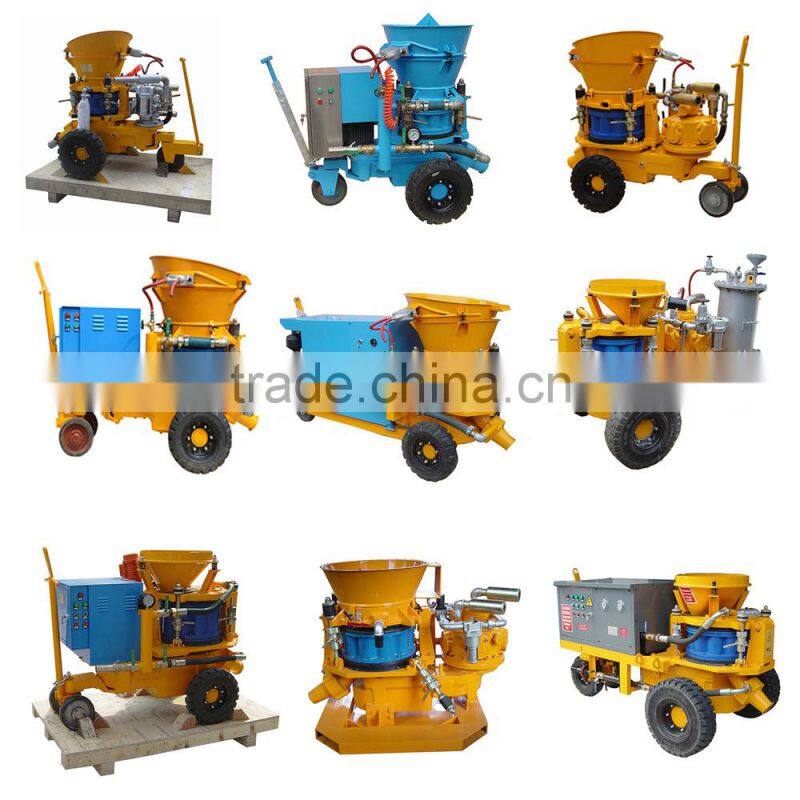

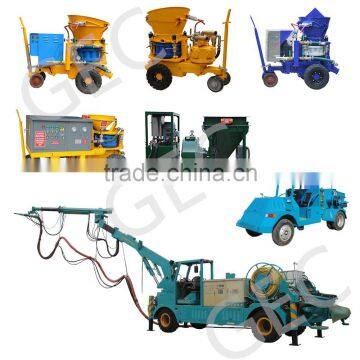

Pictures of various customized tunnel shotcrete machine in our factory:

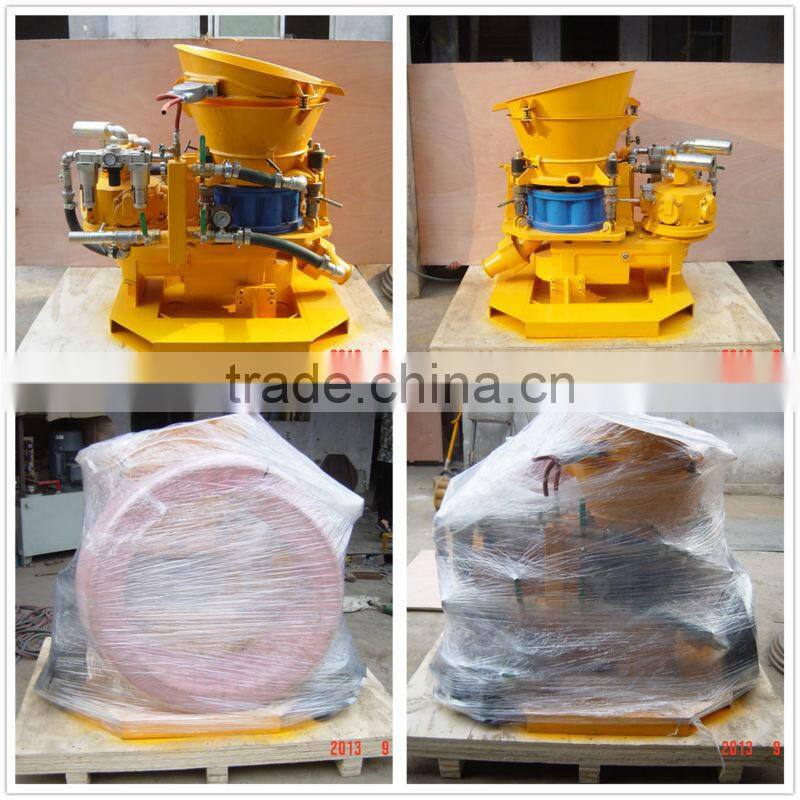

Package of GZ-5 customized rack tunnel shotcrete machine:

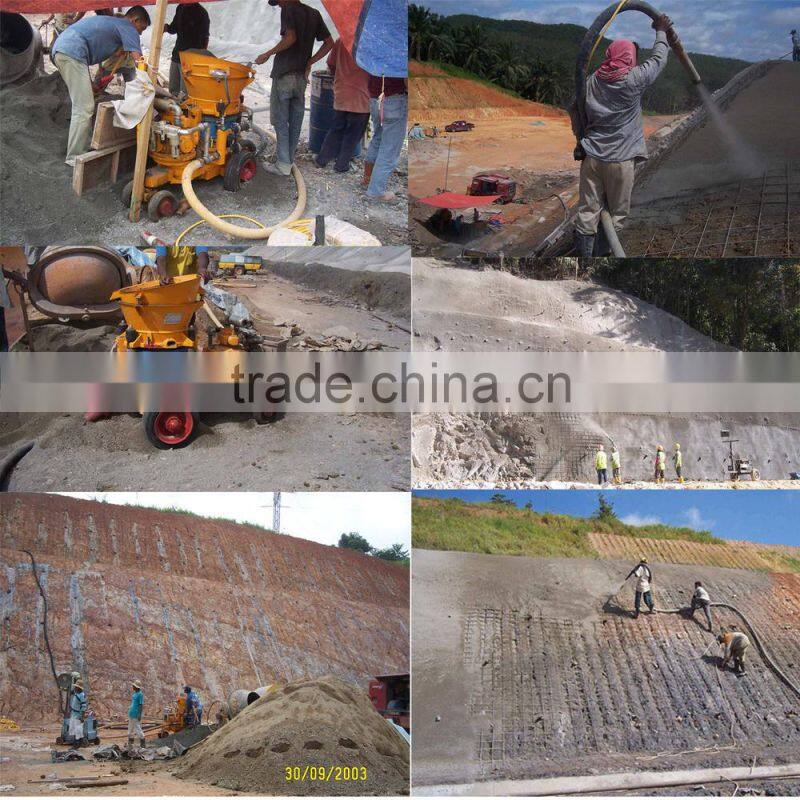

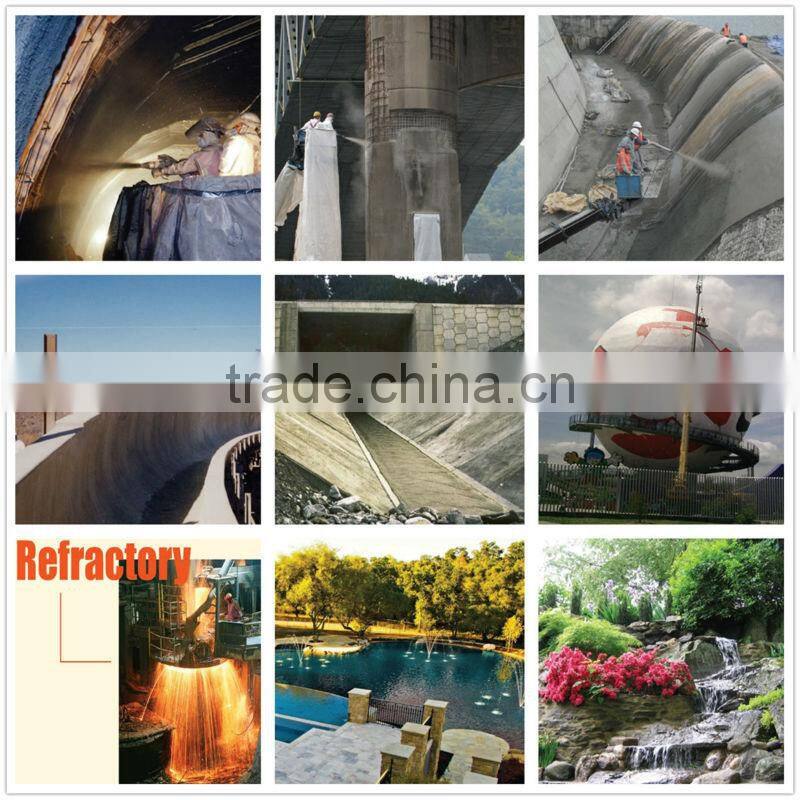

Multipurpose of tunnel shotcrete machine:
More details, please feel free to contact me.
Bauma 2014:
