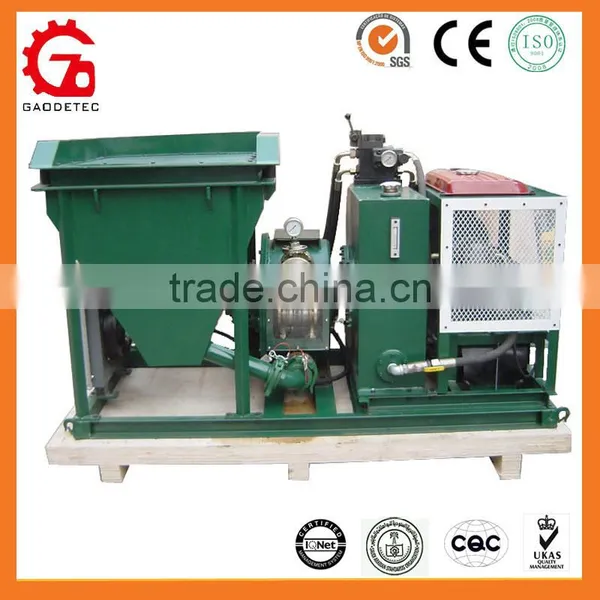

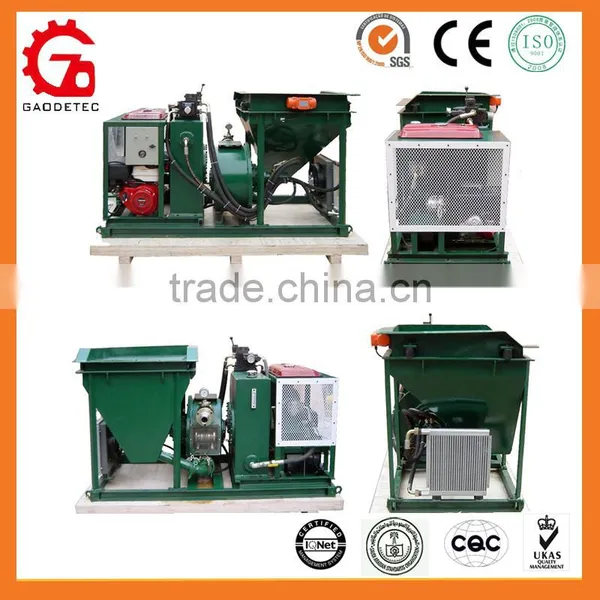

GDS1500G Gasoline Engine Small Concrete Spray Shotcrete Pump
1. GDS1500G ISO Supplier Gasoline Engine Small Concrete Pump Description
The GDS1500G is a gasoline-powered lightweight small shotcrete pump run by a highly-reliable direct drive planetary gearbox;
and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
The GDS1500G Direct Drive uses a Honda GX390 power pack, is skid mounted.
2. GDS1500G ISO Supplier Gasoline Engine Small Concrete Pump Feature
1) highly-reliable direct drive planetary gearbox;
2) infinite speed variation;
3) Easily operating on site work;
4) Standard spare part supply;
5) Skid mounted, transportable on a trailer;
6) Power, compact and reliable;
3. GDS1500G ISO Supplier Gasoline Engine Small Concrete Pump Technical Data Sheet
Item |
Description |
Pressure |
1.5 Mpa |
Output |
1.5-3m3/h |
Max. Aggregate |
8mm |
The Squeeze Hose |
ID 50mm |
Conveying Hose |
ID 38mm |
Squeeze pump |
LH50-455 |
Power |
Honda GX390 Gasoline engine |
Overall Dimension |
1900x850x1250mm |
Hopper volume: |
200 Liter |
Oil tank |
120 Liter |
Weight |
610kg |
Requested air compressor |
3m3/min, 0.5Mpa Pressure |
Note: the Diesel engine or Electric motor is optional.
Application :
1. Building dome, swimming pool etc. 2. Pump and spray normal concrete
3. Pump and spray mortar/ plaster 4. Pump and spray cellular light concrete
Applications Picture:
GDS1500D shotcrete pump:
Squeeze Peristaltic Hose Pump :
Dry and Wex-mix Concrete Spraying Machine / Shotcrete Machine /Gunite Machine:

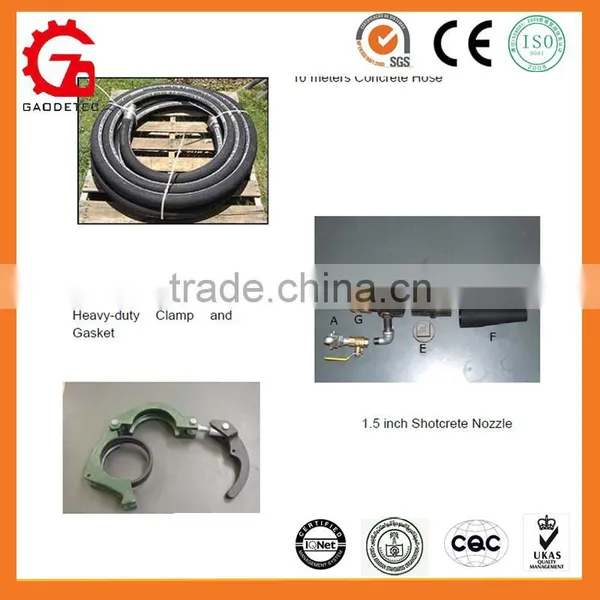

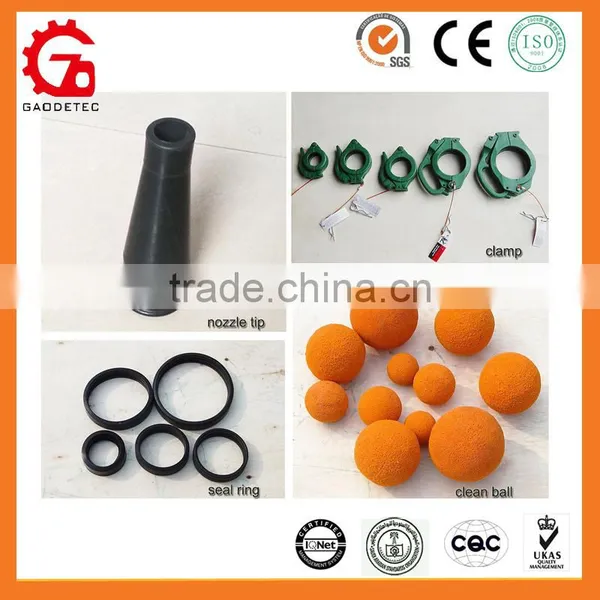

shotcrete pump concrete package:
Workshop:
Customers:
Certificate:
