China Made Hydraulic Concrete Pump With Mixer Machine China Price
- Shanghai Qingdao or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
GDS1500G Gasoline Engine Small Concrete Spray Shotcrete Pump
-
GDS1500Gcompetitive Price Gasoline Engine Small Concrete Spray Shotcrete Pump for Sale
-
China Manufacturer Concrete Kerb Machine
-
Slipforming Curb Machine Manufacturer
-
Diesel Engine Concrete Curb Machine Manufacturer
-
Made In China Diesel Engine Kerb Machine
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | GEC | |
| Model Number | JBT30-P1 | Power(W) | 30kw | |
| Weight | 4500kg | Dimension(L*W*H) | 4960*2100*2500MM | |
| Certification | ISO CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China made hydraulic concrete pump with mixer machine China price
1. Description:
Portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.
2. Application:
Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.

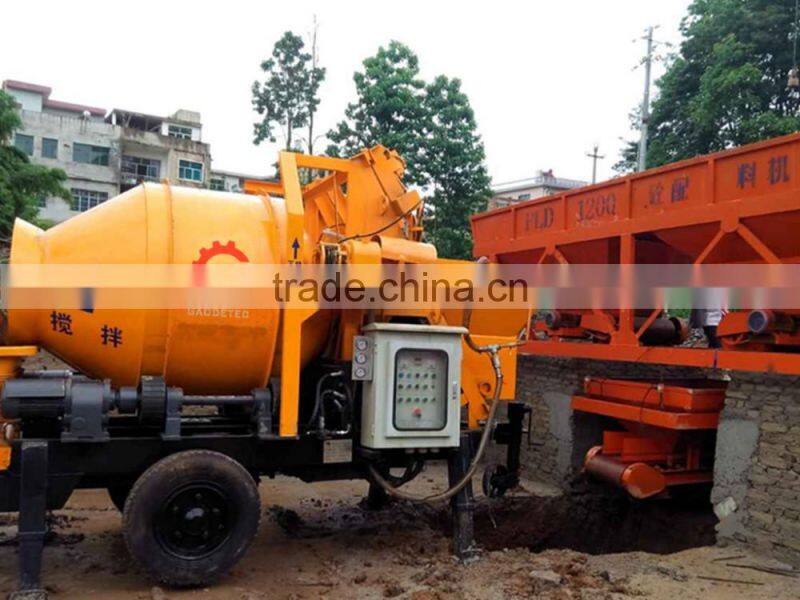

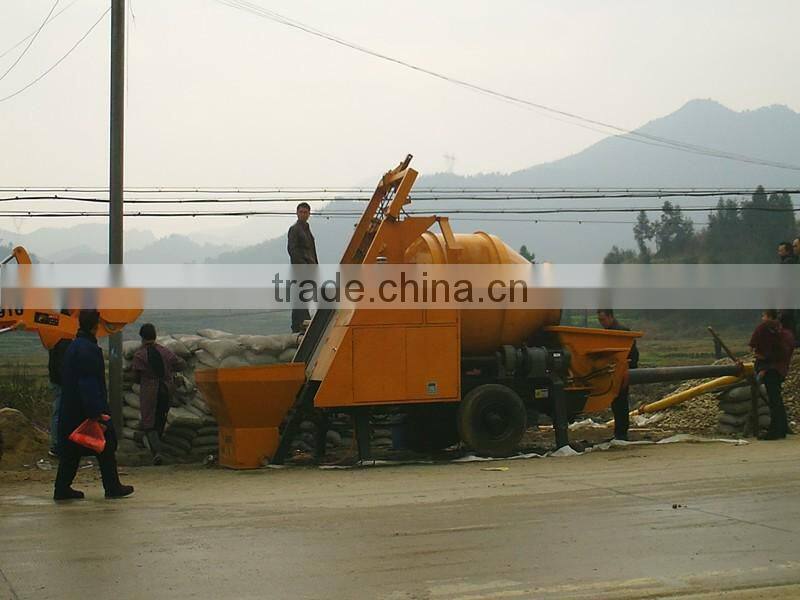

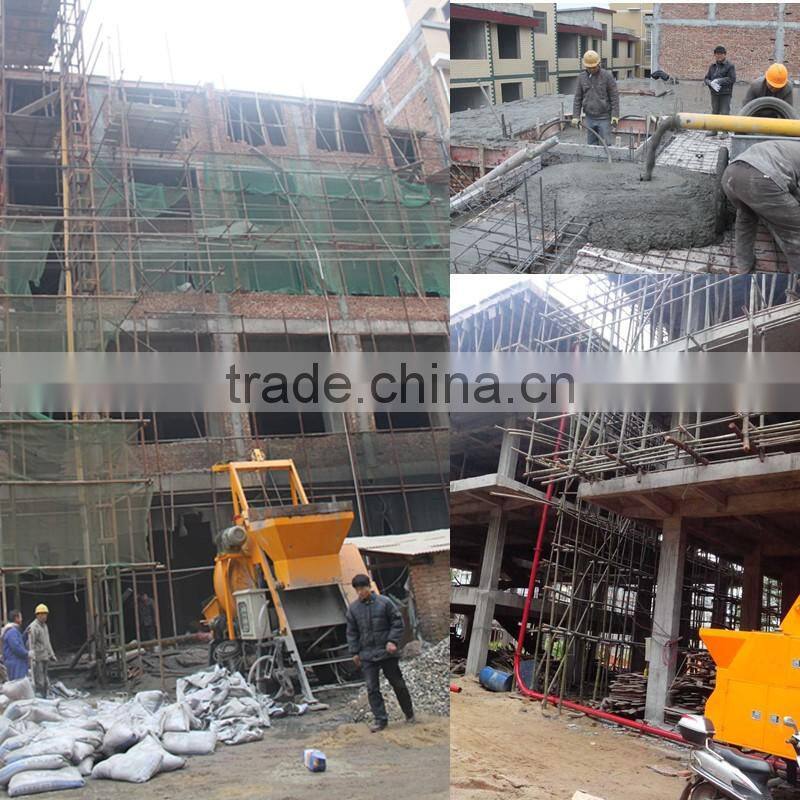

Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

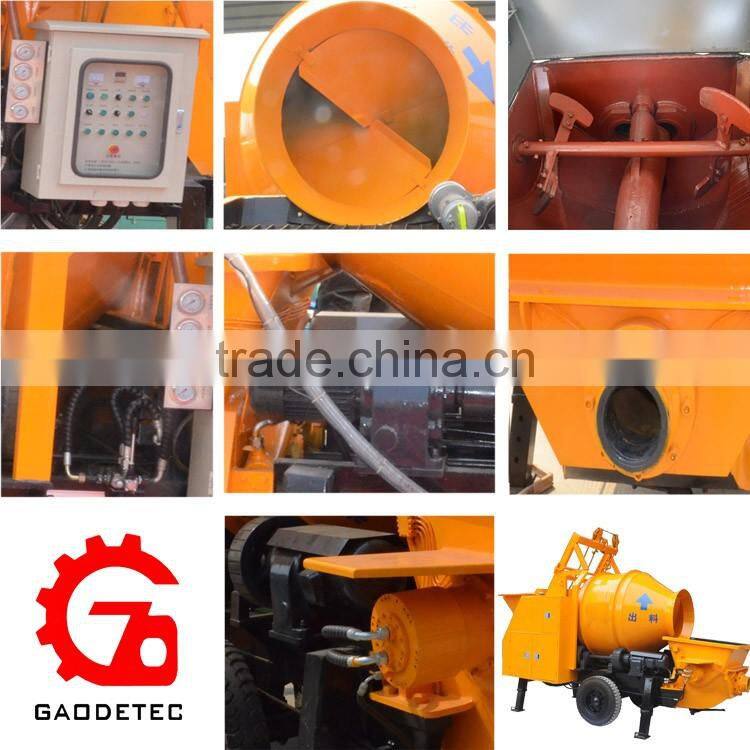

3. Features:
Mixer and pump in one machine.
Transfer concrete through pipeline. It is fast and safe.
It has small size and suitable for more special environment.
Optional part: cement boom, wireless remote control. This is easy to operate.
Technical data of China made hydraulic concrete pump with mixer:
Parameters | JBT30-P1 |
Main oil pump | Domestic / Kawasaki 112 |
Mixer model | JZM350 |
Main Oil Cylinder / Rod* stroke | 100*70*800 |
The maximum theoretical delivery output | 30 m3/h |
The maximum theoretical mix output | 15 m3/h |
Vertical pumping distance | 70m |
Horizontal pumping distance | 300m |
Distribution valve type | S valve |
Main motor | 30kw |
Rated speed | 1480rpm |
Outlet pressure | 6Mpa |
Hydraulic system | Open system |
Oil tank capacity | 200L |
Concrete cylinder * stroke | 200*800mm |
Hopper capacity * feeding height | 600*1050mm |
Motor Rated Voltage | 380V |
Hoist motor | 5.5kw |
Mixing motor | 4*2kw |
Concrete outlet diameter | 180mm |
Electrical components | Domestic |

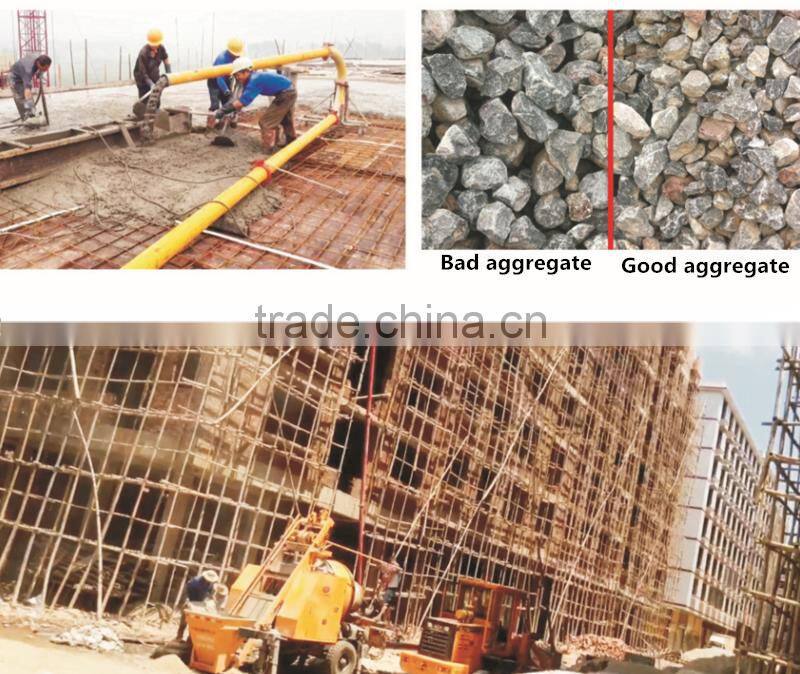

Max. aggregate size | Cobblestone 40mm Gravel 30mm |
Diesel generator | 100kw |
Weight | 4500kg |

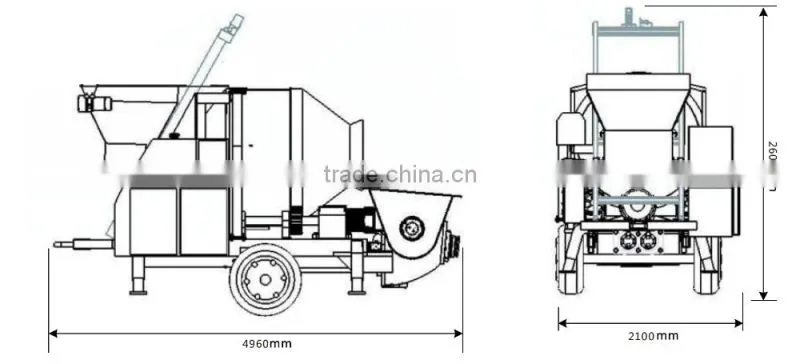

Dimension | 4960*2100*2500 |

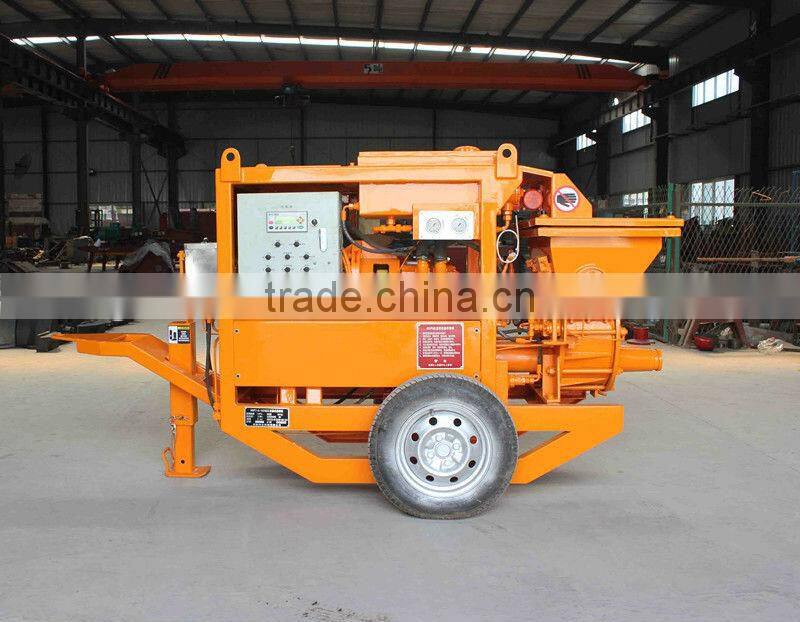

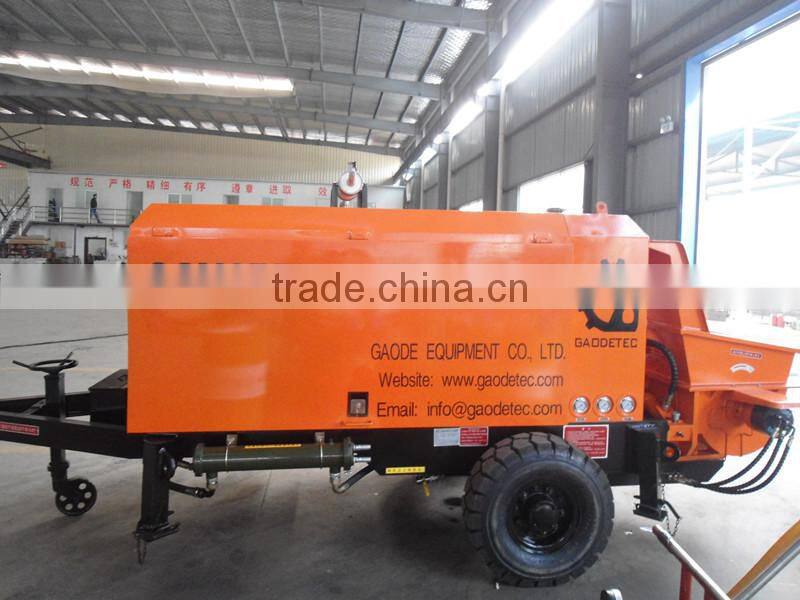

Diesel and electric trailer concrete pump:
Small concrete pump which could pumping concrete and spray concrete.

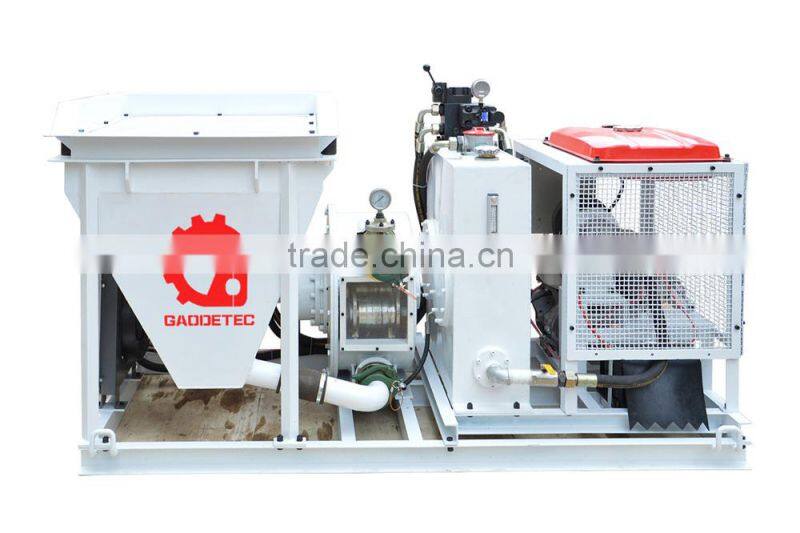

small peristaltic pump for pumping and spraying concrete:

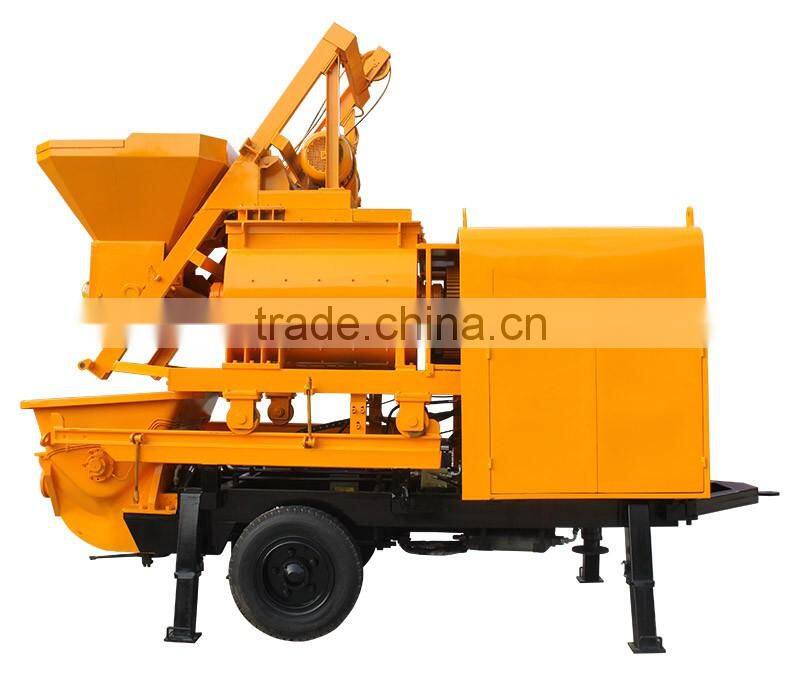

Forced concrete mixer pump:
We are a professional manufacturer of concrete pump machine, in order to supply a more suitable concrete mixer pump for you, please help us clear on your requirements:
1. what project will you do with concrete mixer pump?
2. what is max.aggregate?
3. what is pump capacity and mixer capacity?
4. what is nveying distance(vertical and horizontal)?
