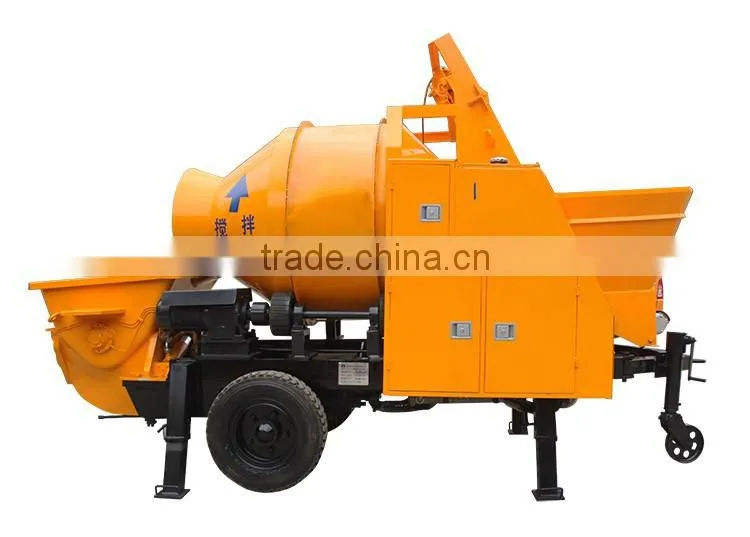

2016 small concrete mixer pump trailer price China
1. Description:
Portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. It achieves full automatic during concrete construction process.
2. Application:
Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.
Most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.
3. Features:
Mixer and pump in one machine.
Transfer concrete through pipeline. It is fast and safe.
It has small size and suitable for more special environment.
Optional part: cement boom, wireless remote control. This is easy to operate.
Technical data of small concrete mixer pump trailer:
Parameters |
JBT40-P1 |
Main oil pump |
Domestic /Kawasaki 112 |
Mixer model |
JZM 450 |
Main Oil Cylinder/Rod * stoke |
100*70*800 |
The maximum theoretical delivery output |
40 m3/h |
The maximum theoretical mix output |
18 m3/h |
Vertical pumping distance |
70m |
Horizontal pumping distance |
300m |
Distribution valve type |
S valve |
Main motor |
37kw |
Outlet pressure |
8Mpa |
Hydraulic system |
Open system |
Oil Cylinder * Rod *Stroke |
100*70*1000 |
Concrete cylinder * stroke |
200*1000mm |
Hopper capacity * feeding height |
800*1000mm |
Motor Rated Voltage |
380V |
Hoist motor |
5.5kw |
Mixing motor |
4*2kw |
Concrete Outlet Diameter |
180 |
Max. aggregate size |
Cobblestone 40mm Gravel 30mm |
Weight |
5300kg |
Dimension |
4960*2100*2500 |
Diesel and electric trailer concrete pump:
Small concrete pump which could pumping concrete and spray concrete.
small peristaltic pump for pumping and spraying concrete:
Forced concrete mixer pump
We are a professional manufacturer of concrete pump machine, in order to supply a more suitable concrete pump for you, please help us clear on your requirements:
1. what is max.aggregate?
2. what is pump output ?
3. what is nveying distance(vertical and horizontal)?
4. do you need concrete mixer which is usually used together with concrete pump?
