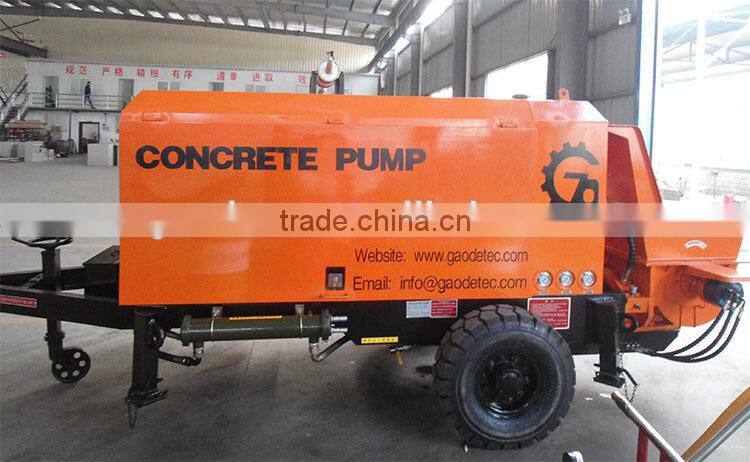

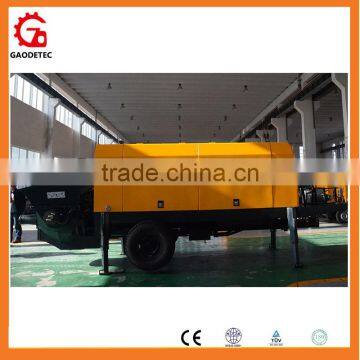

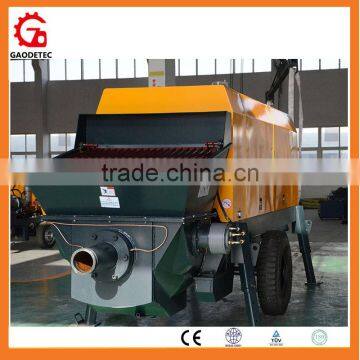

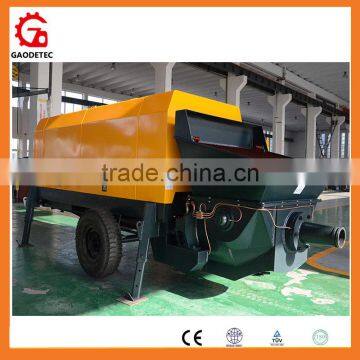

HBT Series Hydraulic Compaction Grouting Pump for sale
Introduction of Diesel Concrete Compaction Grouting Pump:
Concrete pump is used to convey ready concrete through a pipeline. This is widely used in building construction. HBT series small aggregate concrete pumps have successfully widely used in the pumping concrete at small projects.
Features of diesel concrete compaction grouting pump:
Use S valve to switch the direction
High quality wear resistant alloy components
High pressure for high rise and long distance pumping
Air cooling system
With re-pumping function
Automatic lubrication system
PLC system to ensure best control
It has remote controller and easy to operate.
Technical Data of Concrete Conveyer Pump:
Model No./Concrete pump |
HBT15S |
HBT15SA |
HBT20SD |
HBT20SG |
Max. theoretical concrete output(m³/h) |
15 |
15 |
20 |
20 |
Max. theoretical concrete pumping pressure(Mpa) |
6 |
8 |
10 |
11 |
Theoretical vertical conveying height(m) |
80 |
110 |
140 |
160 |
Theoretical level transmission distance(m) |
300 |
400 |
500 |
600 |
Max. Aggregate particles(mm) |
30 |
30 |
30 |
30 |
Slump (cm) |
12-23 |
12-23 |
12-23 |
12-23 |
Concrete tube conveying diameter(mm) |
100A/80A |
100A/80A |
100A/80A |
100A/80A |
Transporting cylinder number (pieces) |
2 |
2 |
2 |
2 |
Concrete cylinder diameter*route |
Φ140×700 |
Φ140×700 |
Φ140×700 |
Φ140×1000 |
Hydraulic oil tank volume(L) |
180 |
180 |
180 |
240 |
Filling height(mm) |
1100 |
1100 |
1100 |
1100 |
Hopper volume(m³) |
0.3 |
0.3 |
0.3 |
0.35 |
Rated electric power(kw) |
30 |
30 |
30 |
37 |
Overall dimension (L×W×H)(mm) |
4000*1350*1550 |
4000*1350*1550 |
4000×1350×1550 |
4650×1500×1650 |
Total weight(kg) |
1950 |
2200 |
2200 |
2800 |
Model No./Concrete pump |
HBT25S |
HBT25SG |
HBT30S |
HBT35S |
Max. theoretical concrete output(m³/h) |
25 |
16/25 |
20/30 |
23/35 |
Max. theoretical concrete pumping pressure(Mpa) |
8 |
14/9 |
11/6.8 |
11/6.8 |
Theoretical vertical conveying height(m) |
110 |
200 |
160 |
160 |
Theoretical level transmission distance(m) |
400 |
750 |
600 |
600 |
Max. Aggregate particles(mm) |
30 |
30 |
30 |
30 |
Slump (cm) |
12-23 |
12-23 |
12-23 |
12-23 |
Concrete tube conveying diameter(mm) |
100A/80A |
100A/80A |
100A/80A |
100A/80A |
Transporting cylinder number (pieces) |
2 |
2 |
2 |
2 |
Concrete cylinder diameter*route |
Φ140×1000 |
Φ140×1000 |
Φ140×1000 |
Φ140×1000 |
Hydraulic oil tank volume(L) |
220 |
240 |
240 |
240 |
Filling height(mm) |
1100 |
1100 |
1100 |
1100 |
Hopper volume(m³) |
0.35 |
0.35 |
0.35 |
0.35 |
Rated electric power(kw) |
37 |
37 |
37 |
45 |
Overall dimension (L×W×H)(mm) |
4650*1500*1650 |
4650*1500*1650 |
4650*1500*1650 |
4650*1500*1650 |
Total weight(kg) |
2500 |
2900 |
2800 |
2880 |

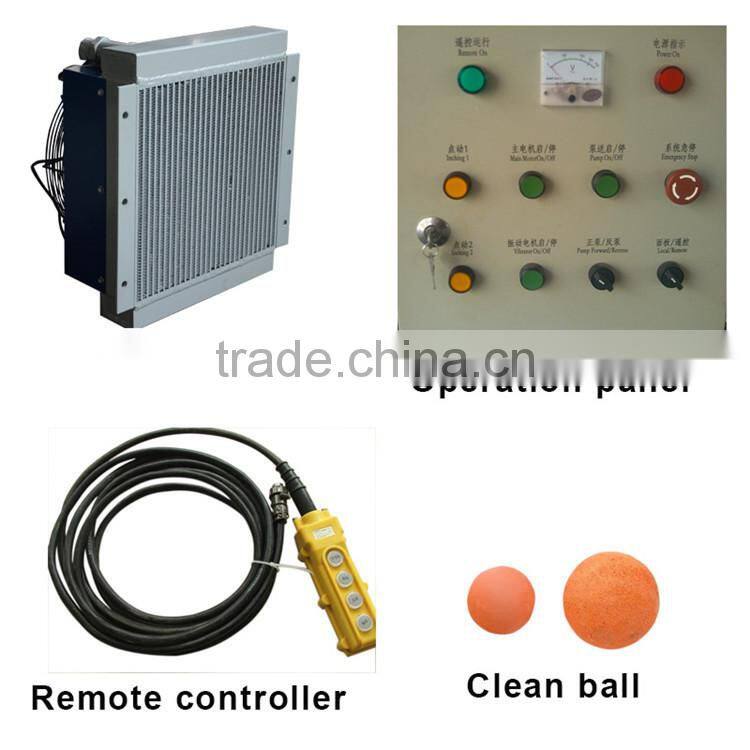

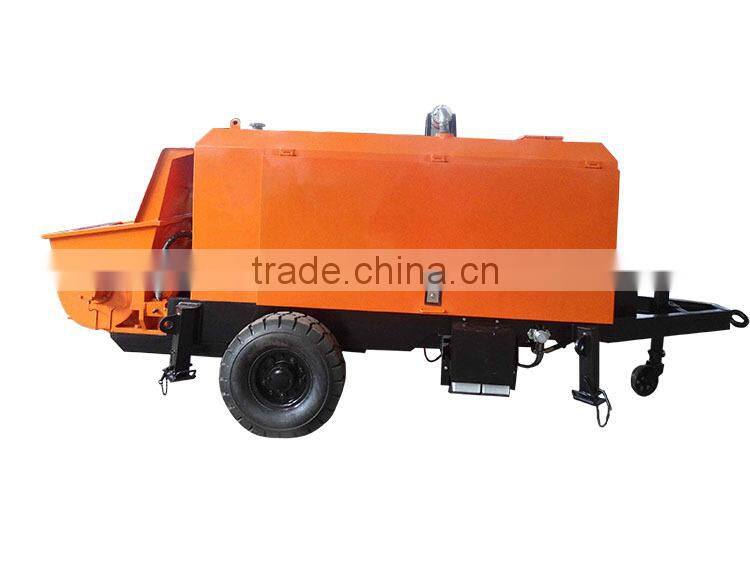

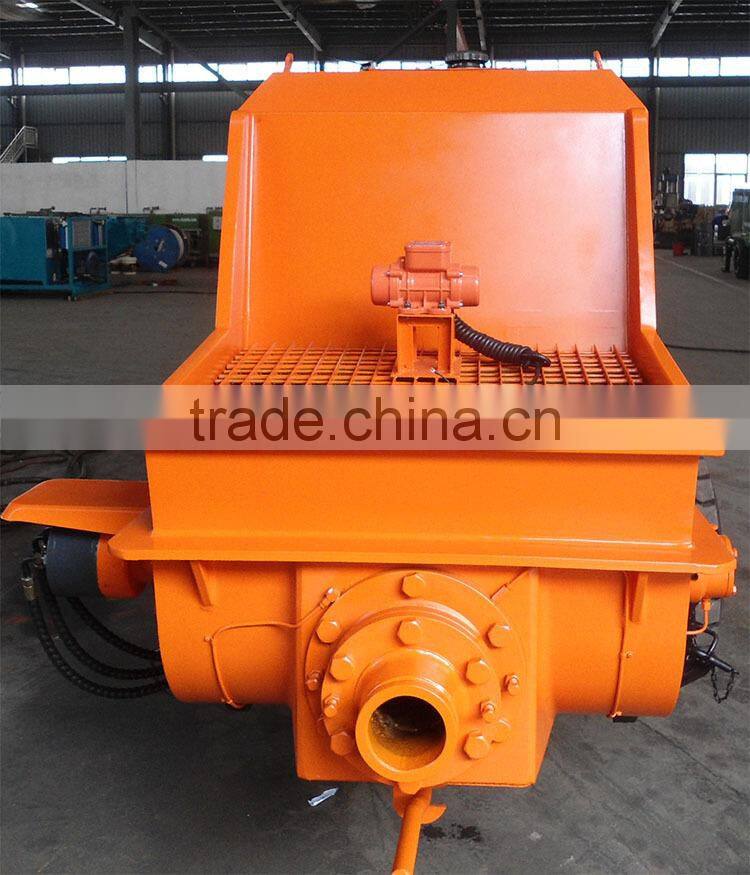

Electric Concrete Pump Some Parts:

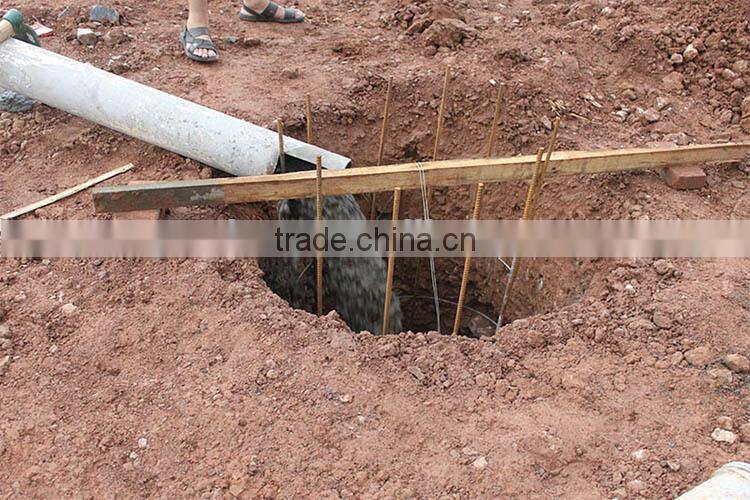

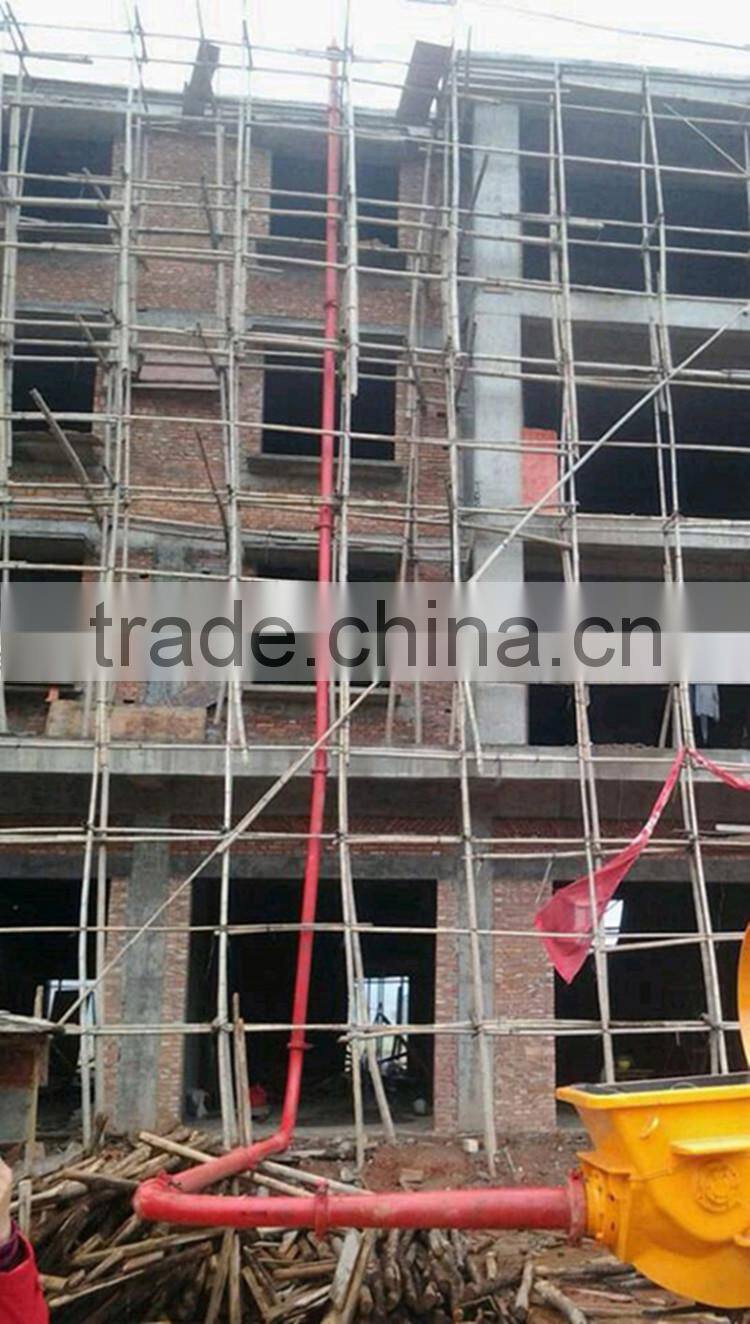

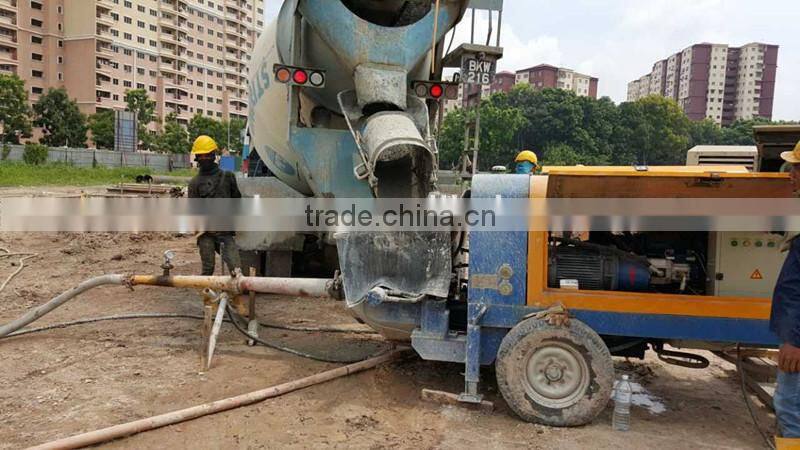

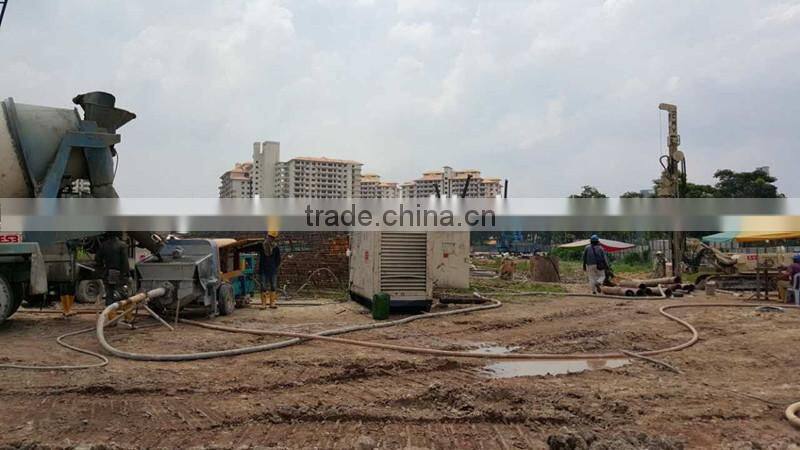

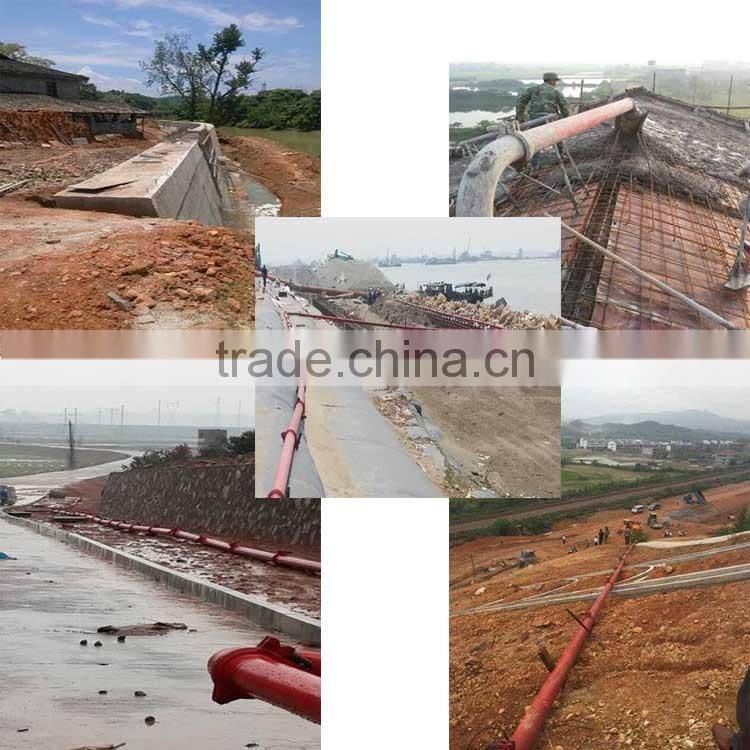

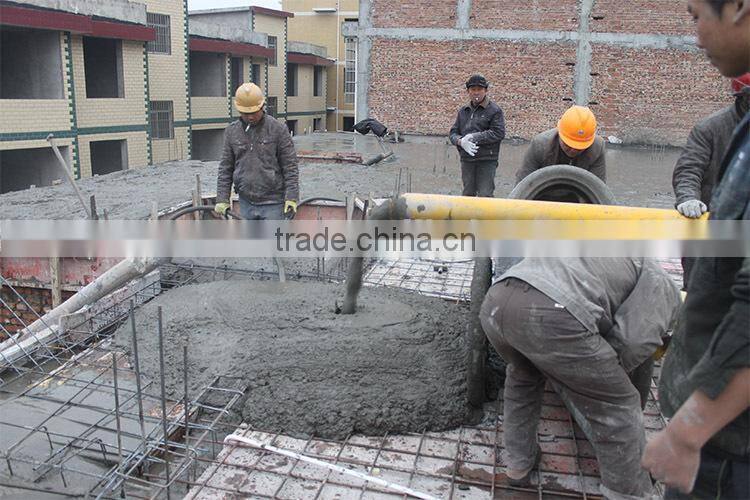

The Construction Sites of Electric Concrete Pump :

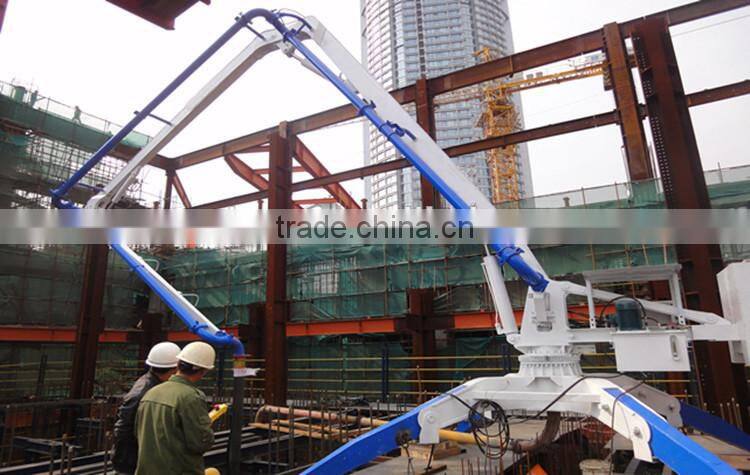

13m ,15m ,17m Hydraulic Concrete Placing Boom:
Thank you for your time and Welcome to visit our factory!!!
