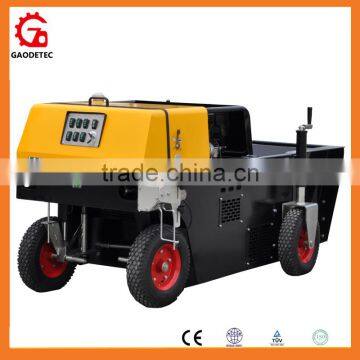

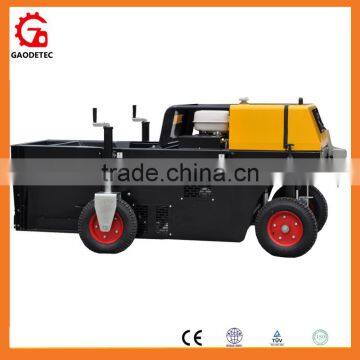

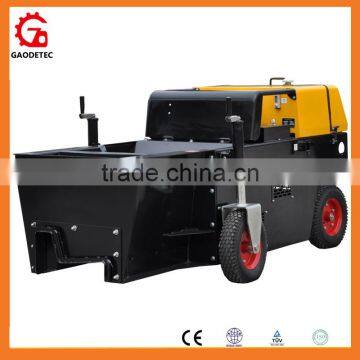

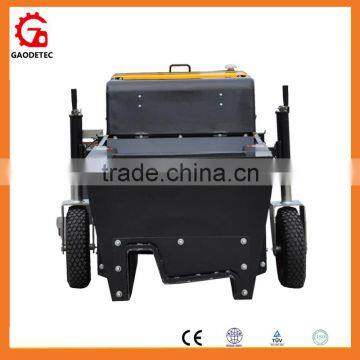

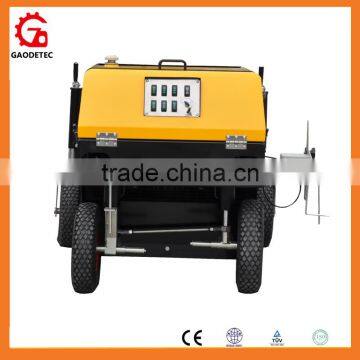

Cement Paving Stone Making Machine
This is a new kind of paving stone making machine, hammer feeding, with manual and automatic
control system. It is a high-tech machinery, integrative technique of electronics-hydraulics, with
advanced sensors, the machine itself can adjust the level and straight, makes the construction
easily. Molds can dismantle and change in order to meet the construction requirements.
Advantages:
1) with domestic and oversea famous diesel or petrol engine.
2) Import high precision hydraulic valve, compact and saving energy.
3) Import automatically walk precision sensor, error is less than 1mm.
4) With a electronic lever sensor, automatically balance from left and right, water lever back-up observing.
5) Import high protective rank control button.
6) We can customize kinds of specification molds.
Cement Paving Stone Making Machine
Cement Paving Stone Making Machine
Model |
GDHM21 |
working | |
Working Type |
Walk-behind Type |
Work Speed |
2-3m/min |
Work Mold |
As per customer’s requirement. |
Engine | |
Gasoline Model |
HONDA GX390 |
Gasoline Type |
Gasoline engine, air cooling, 4 stroke, single cylinder. |
Power |
13Hp/3600rpm |
Fuel Tank Volume |
6.5L |
Lubricant L |
1.12L |
Fuel Consumption |
313g/kWh |
Machine Size |
2170*1180*970mm |
Package Size |
2300*1040*1200mm |
Weight |
690kg |
Cement Paving Stone Making Machine
GDHM21 Modes Drawings of Paving Stone Making Machine (the two is for customer reference, we have many different modes drawings for customer choose.)
Cement Paving Stone Making Machine
GDHM11 Hand push Paving Stone Making Machine
1. Describe:
The paving stone making machine is compact and easy to operate, screw extrudes the concrete
to make curbs, save time and effort, specially the the curb of the gardens. Parks, community and
flower bed.
2. Advantages:
1) With famous brand engine, reliable performance, easy to start-up.
2) With spiral feeding hopper, the counter force drives the machine backward walking.
3) With walking indicator to insure the correct direction.
4) Mold is easy to dismantle, and can be designed as per customer’s requirement.
5) Plastic treated, anti-rust and beautiful.
3. Picture:
4. Technical Parameters:
Model |
GDHM11 |
working | |
Working Type |
Walk-behind Type |
Work Speed |
1-2m/min |
Work Mold |
As per customer’s requirement. |
Engine | |
Gasoline Model |
HONDA GX160 |
Gasoline Type |
Gasoline engine, air cooling, 4 stroke, OHV, single cylinder. |
Power |
5.5Hp/3600rpm |
Fuel Tank Volume |
3.6L |
Lubricant L |
0.6L |
Fuel Consumption |
313g/kWh |
Machine Size |
1500*720*1100mm |
Package Size |
1540*790*910mm |
Weight |
160kg |
