Hot Sale Prestressed Big Flow Easy Operation Small High Pressure Oil Pump
- Shanghai Tianjin Qingdao etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot Prestressing Corrugated Metal Pipe Corrugator Machine
-
Prestressed Anchorage for Bridge Concrete Construction
-
Concrete Anchorage for Post-Tension Engineering
-
YDC Hollow Prestressed Post Tension Center Hole Jack
-
YDC Feed-through Prestressing Concrete Hydraulic Stressing Jack
-
Prestressing Metal Duct Manufacturing Machine
Product Details
| Place of Origin | Henan, China | Brand Name | GEC | |
| Model Number | YB | Theory | Reciprocating Pump | |
| Structure | Piston Pump | Usage | Oil | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | High Pressure | |
| Application | Other, Submersible, Concrete work, Bridge, Railway construction |
Product Description

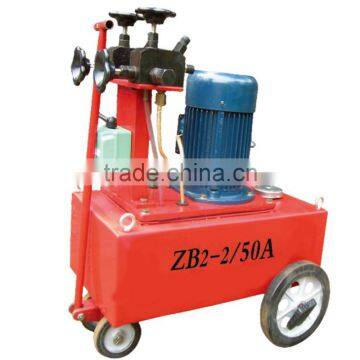

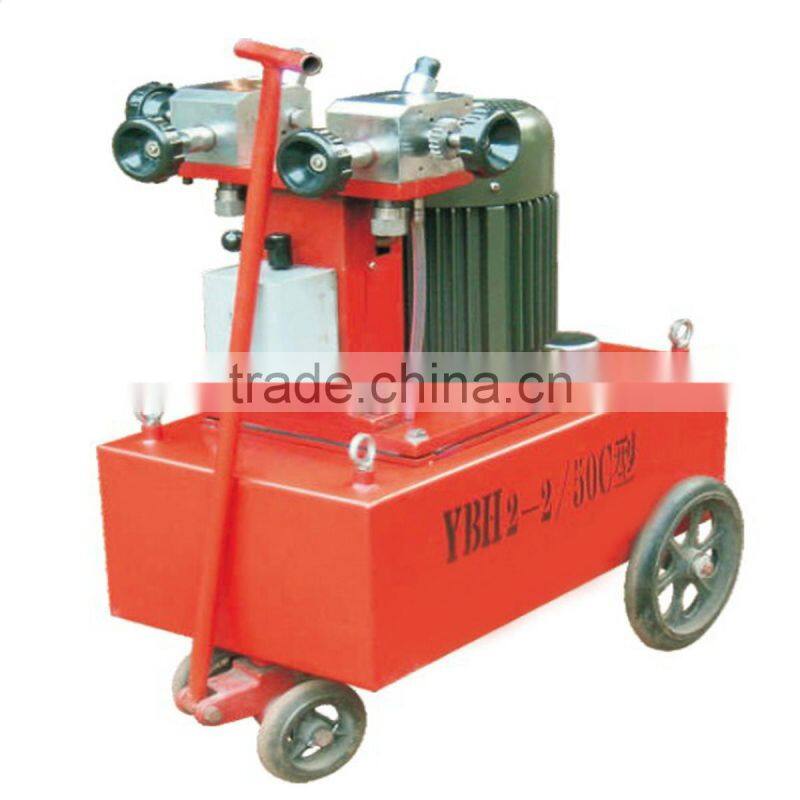

Hot Sale Prestressed Big Flow Easy Operation Small High Pressure Oil Pump
Specification of High Pressure Oil Pump
1. Oil pump is special assort used with various kinds of tonnage jack, stirring and extruding machine, as well as top tensioning machine.
2. Type: YB2×2/50A, YB2×1.5/63, YB4/80.
3. Operation: The oil pump is flexible to operate, convenient to use, safe and reliable.
4. Application: The oil pump is used for prestressing works,and it is used for kinds of anchorages in railway,bridge and building construction.
5. We can manufacture all kinds of achorages and prestressed equipments according to your requiremnts and drawings.
Parameter of High Pressure Oil Pump
| Model | Rated pressure (Mpa) | Rated (L/min) | Net weight (kg) | Power (KW) | Volume (L) | Overall (mm) | Purpose |
| YB2×2/50A | 50 | 2×2 | 120 | 3 | 60 | 740×450×1050 | Used with various jack,extruder,buttonhead with rated pressure less than 50 Mpa. |
| YB2×1.5/63 | 63 | 2×1.5 | 124 | 3 | 60 | 740×490×880 | Used with various jack, extruder, buttonhead with rated pressure less than 63 Mpa. |
| YB4/80 | 80 | 4 | 270 | 4 | 60 | 1090×590×1120 | Have the performance of big flow,high pressure, and can separately feed oil for two jacks. |

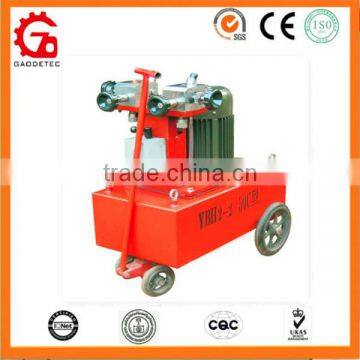

Prestressed Big Flow Easy Operation Small High Pressure Oil Pump
Application of Big Flow Easy Operation Small High Pressure Oil Pump
Big Flow Easy Operation Small High Pressure Oil Pump is used with large tonnage hydaulic jacks, anchorages,
stirring and extruding machine, as well as top tensioning machine in post tensioning and prestressing work in railway,bridge
and building construction.

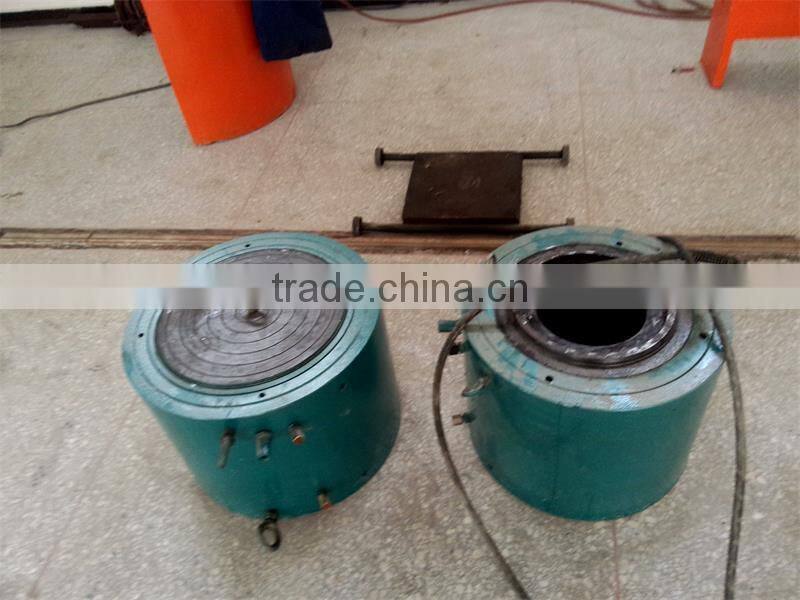

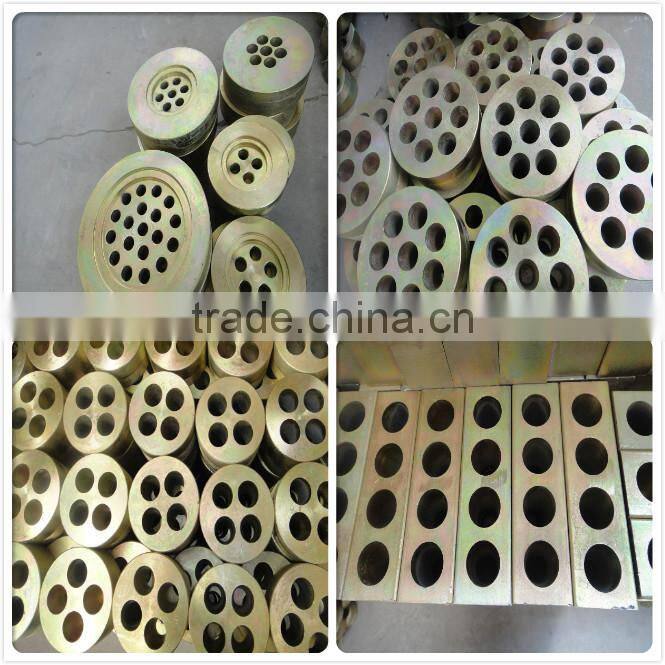

We also manufacture anchorages:

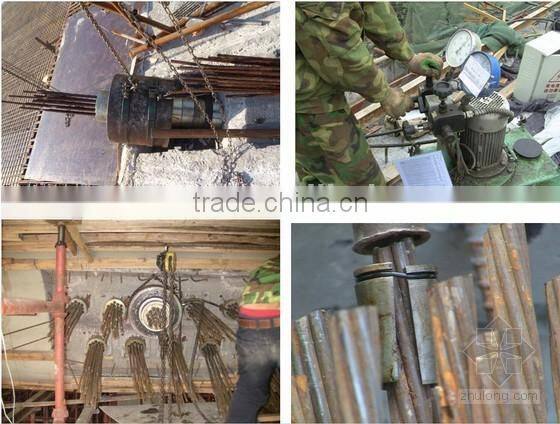

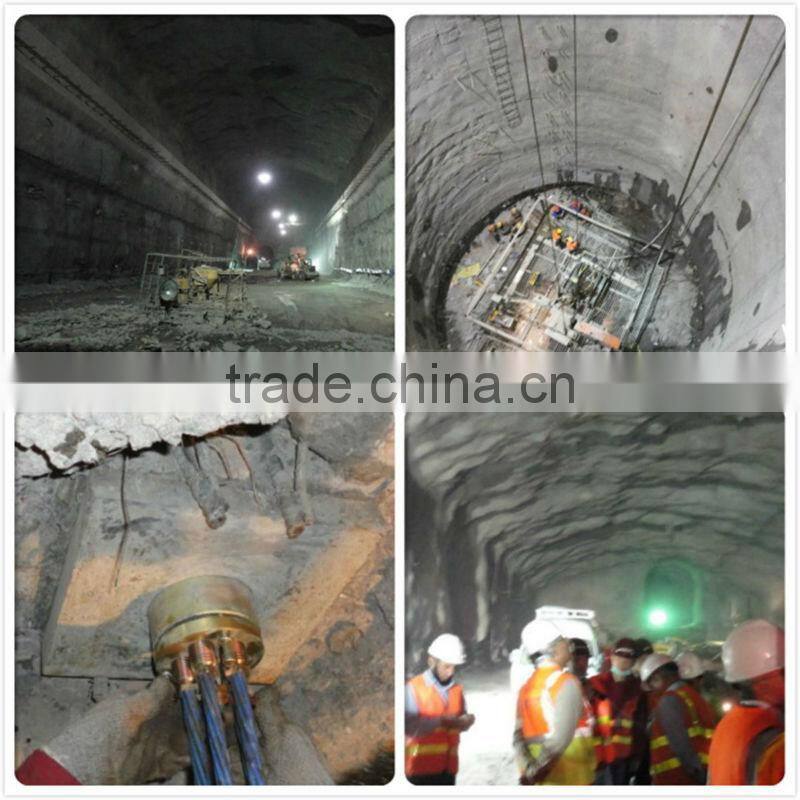

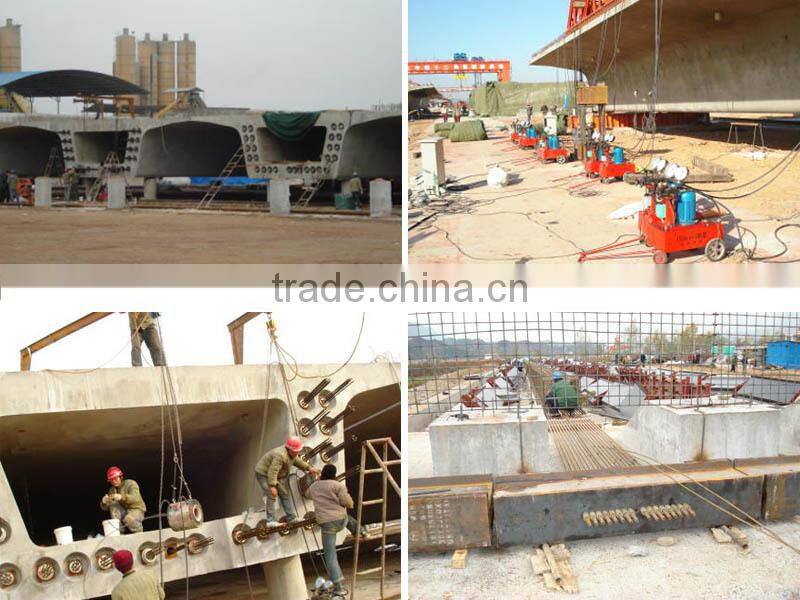

Application of anchorages:
Prestressed Big Flow Easy Operation Small High Pressure Oil Pump

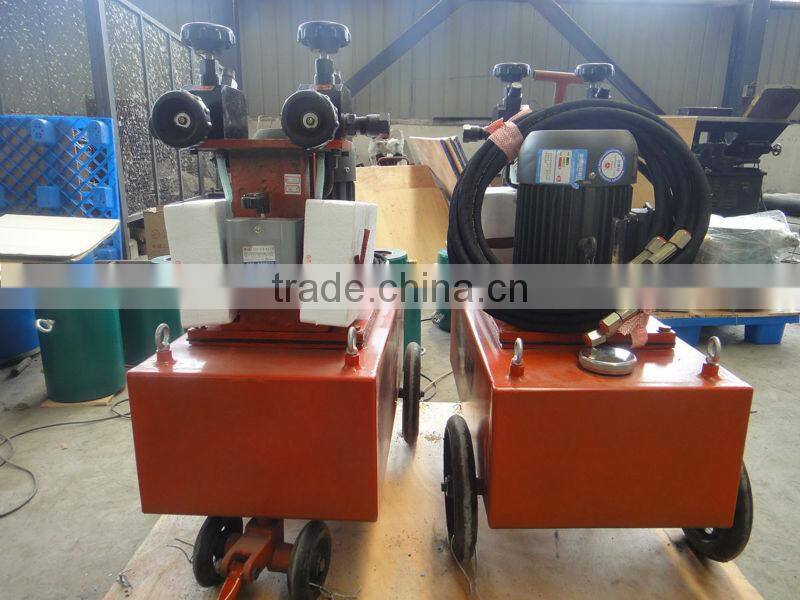

Packaging Detail: standard export packaging; as your requirements
Shipping Detail: in stock; out of stock(5 working days); customized (7 working days)
Prestressed Big Flow Easy Operation Small High Pressure Oil Pump
We provide samples and after sale services. overseas services are available.
Prestressed Big Flow Easy Operation Small High Pressure Oil Pump
1. specification
easy operation, good performance, reliable quality, and compact design
2. application
used with large tonnage hydaulic jacks, anchorages, stirring and extruding machine, as well as top tensioning machine
in post tensioning and prestressing work in railway,bridge and building construction.
Prestressed Big Flow Easy Operation Small High Pressure Oil Pump

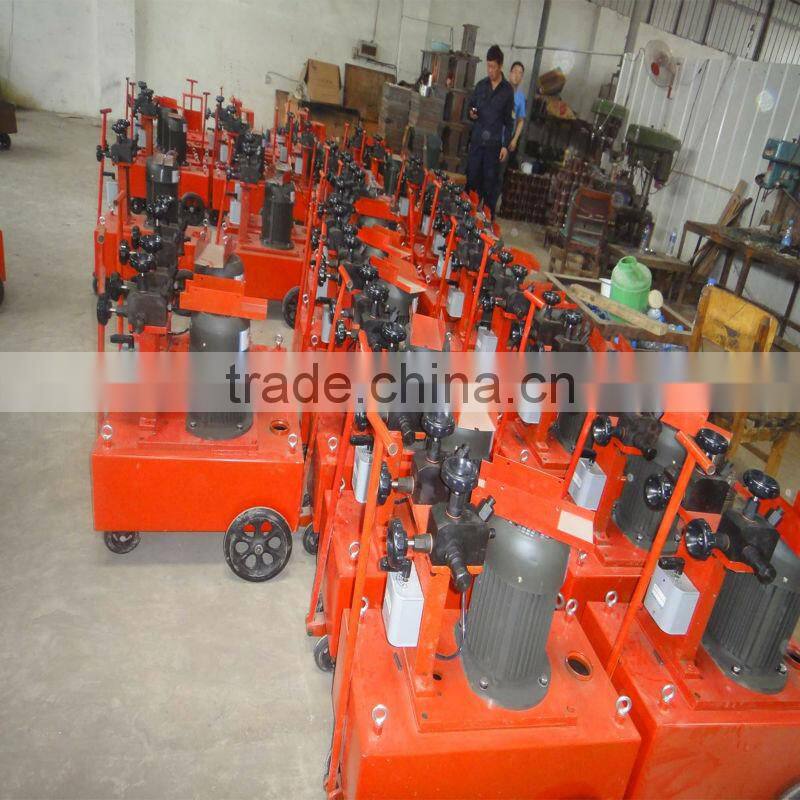

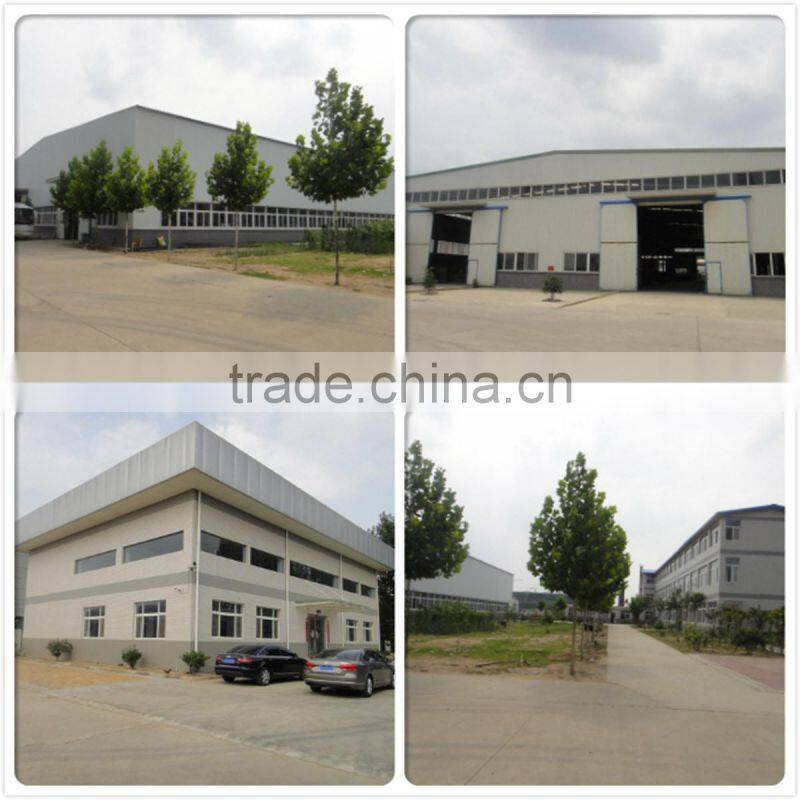

Ware house

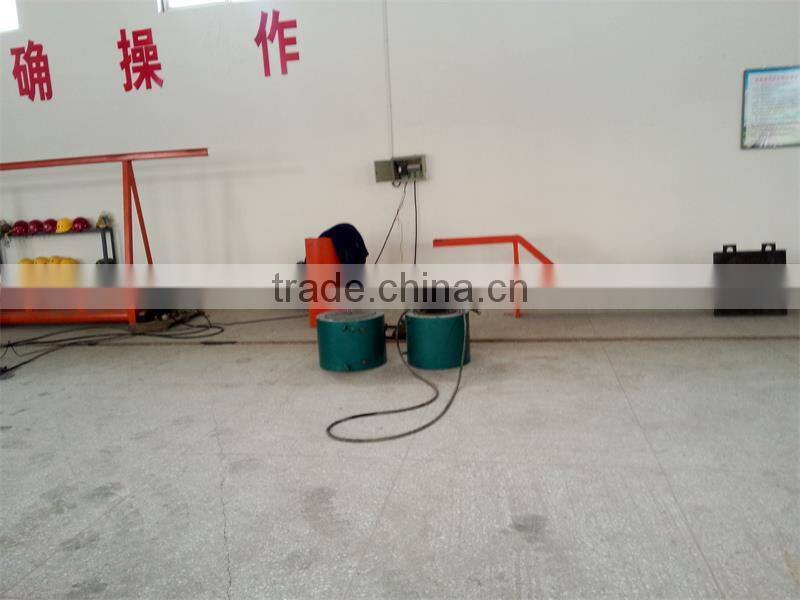

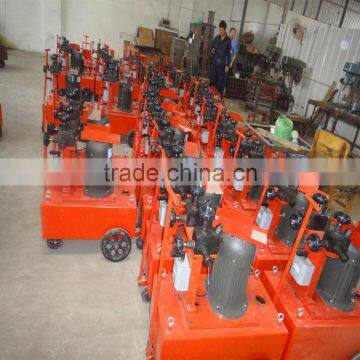

workshop
