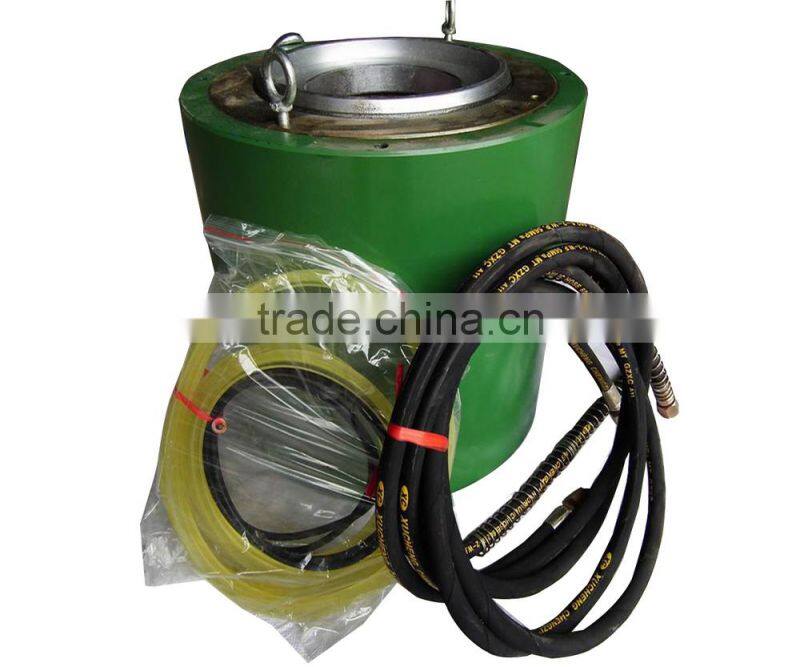

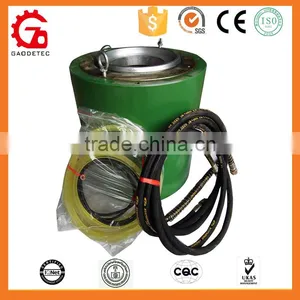

YDC feed-through prestressing concrete hydraulic stressing jack
YDC Feed-through jack for anchorage and steel strand is the new designed product in our company, are the upgrades of the primary jacks.
1. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
3. Easy to operate and used widely.
Notice: according to users' requirement, YDC prestressing jack can be configured
Features:
1. Usage: It is mached with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering .
2. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
3. In some certain circumstance it can be used in the working of pushig, jacking and transforming and so on.
4. Easy to use with reanosable price .
5. Jack is used for prestressing works
6. Using the new seals, to synchronous strengthen the seal-ability under great pressure.
7. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So that the life of seals and sealing performance can be improved about 20%.
8. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback clinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So that enormously reduce the possibility of mechanical damage due to improper operation.
In a word, the YDC series feed-through jacks' performance is improved, and widely used in pre-stressing and poststressing construction.
Notice: according to users' requirement, YDC through jack can be configured.
YDC feed-through prestressing concrete hydraulic stressing jack
| model | pressure @ 700bar ton(KN) | stroke(mm) | oil pressure(Mpa) | effective area (sq. cm) | inner diameter(mm) | tool anchor diameter(mm) | limit board diameter (mm) | out diameter(mm) |
| YDC650 | 650 | 200 | 48 | 137 | 72 | 95 | 99 | 200x300 |
| YDC1000 | 1000 | 200 | 47 | 213 | 80 | 120 | 125 | 236x332 |
| YDC1500 | 1500 | 200 | 52 | 285 | 94 | 150 | 150 | 265x378 |
| YDC2000 | 2000 | 200 | 53 | 377 | 118 | 177 | 177 | 310x340 |
| YDC2500 | 2500 | 200 | 52 | 484 | 128 | 180 | 190 | 340x370 |
| YDC3000 | 3000 | 200 | 54 | 554 | 135 | 185 | 190 | 370x370 |
| YDC3500 | 3500 | 200 | 51 | 678 | 162 | 232 | 232 | 420x360 |
| YDC4000 | 4000 | 200 | 52 | 761 | 175 | 252 | 252 | 440x410 |
| YDC5000 | 5000 | 200 | 52 | 974 | 190 | 260 | 260 | 470x380 |
| YDC6500 | 6500 | 200 | 52 | 1278 | 220 | 275 | 290 | 560x650 |
| YDC8000 | 8000 | 200 | 50 | 1590 | 240 | 640x730 | ||
| YDC10000 | 10000 | 200 | 50 | 2023 | 280 | 720x850 | ||
| YDC12000 | 12000 | 200 | 50 | 2313 | 280 | 720x900 |

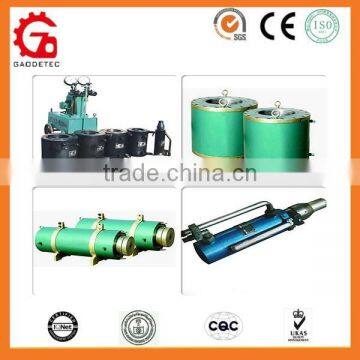

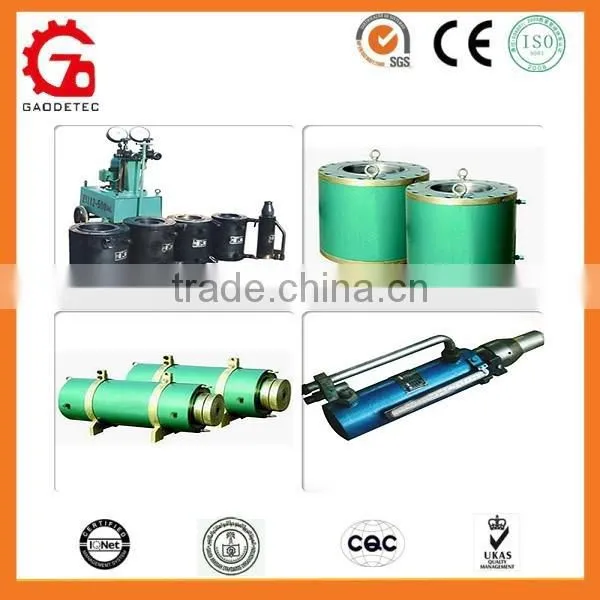

We produce many different types of jack cylinder, anchorages and steel strand as followings:

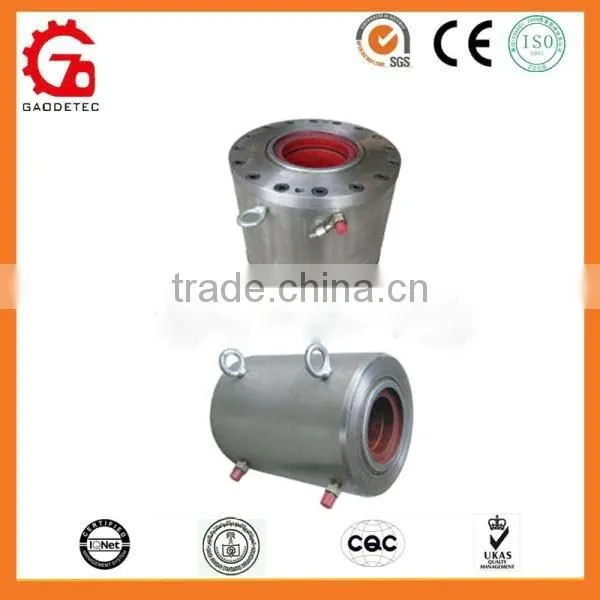

YDC prestressing concrete hydraulic stressing jack

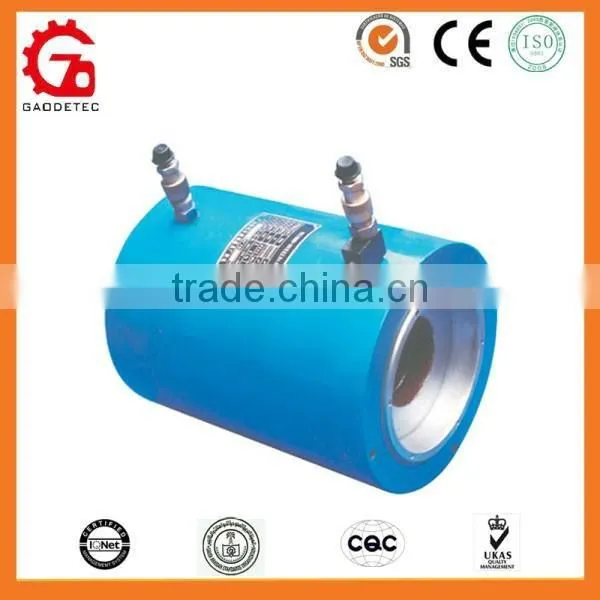

YDC feed-through prestressing concrete hydraulic stressing jack
Packaging Detail: within 7 working days
Shipping Detail: in stock; out of stock(in 5 working days); customized(in 7 working days)

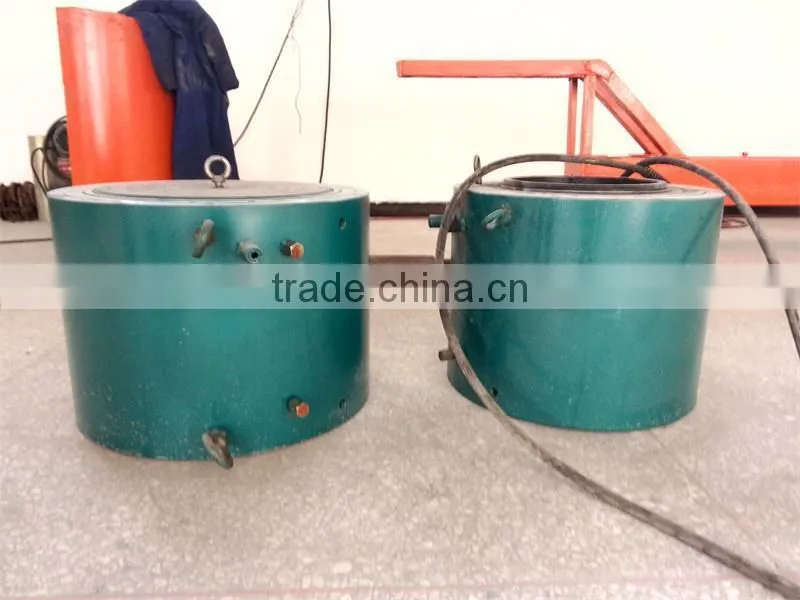

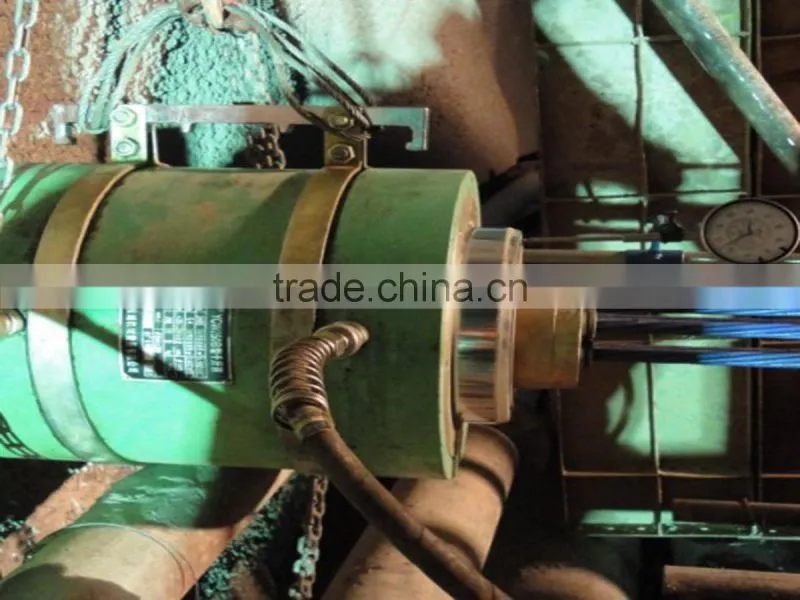

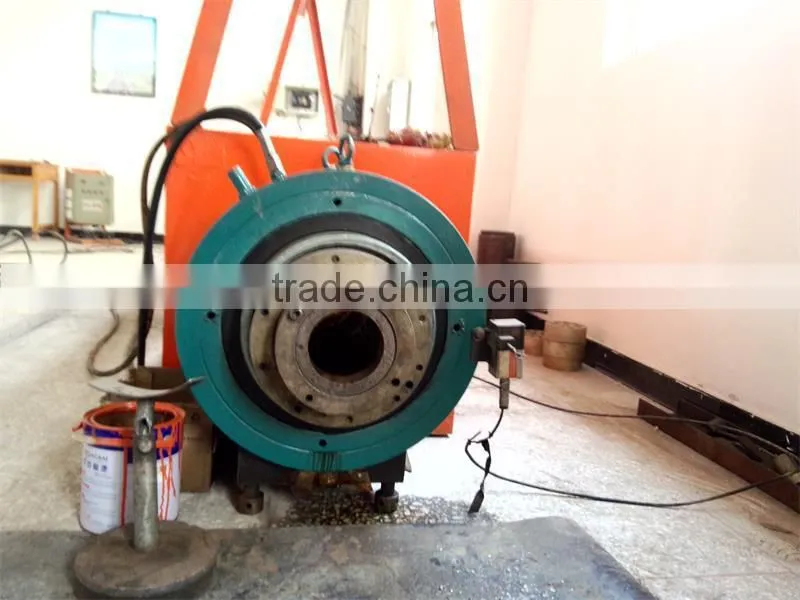

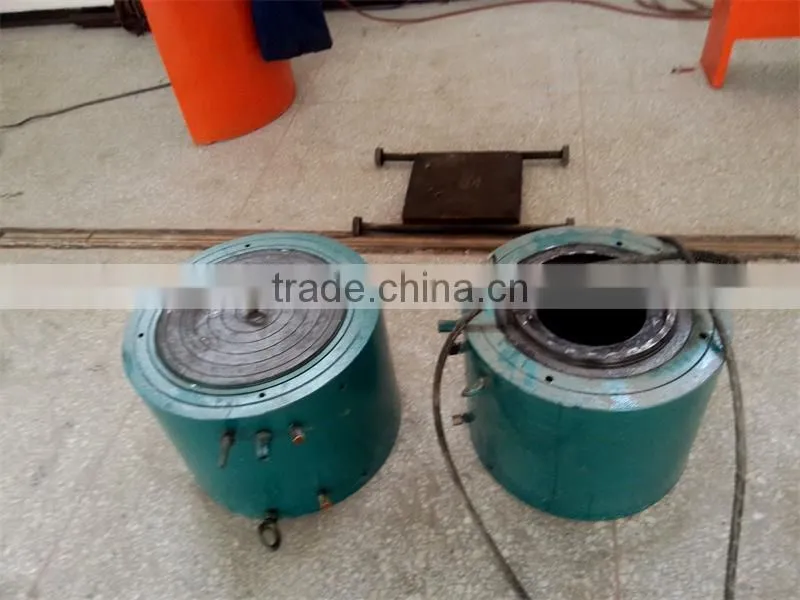

YDC feed-through prestressing concrete hydraulic stressing jack

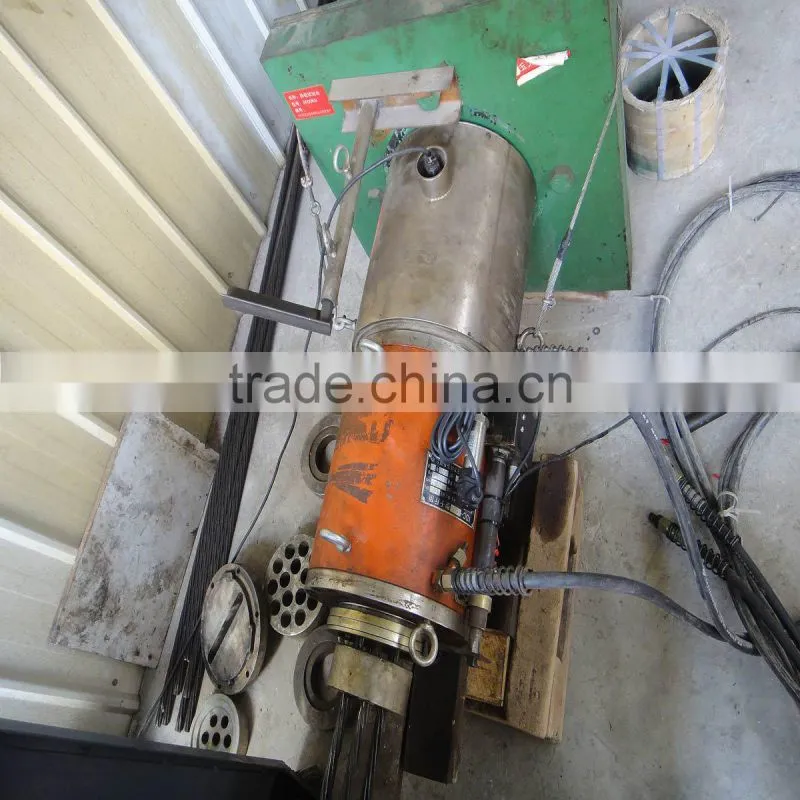

our factory and workshop
