YDC Hollow Prestressed Post Tension Center Hole Jack

US$ 200 - 3,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Type:

Other, Hydraulic Jack, center hole jack

Max Height:

545mm

Min Height:

315mm

Contact Supplier Request Quote Chat Now

Zhengzhou Gaode Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Qingdao etc

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, Hydraulic Jack, center hole jack

Max Height 545mm

Min Height 315mm

Certification ISO CE SGS, ISO CE

Place of Origin Henan, China

Brand Name GEC

Model Number YDC

Warranty 1 Years

Product Description

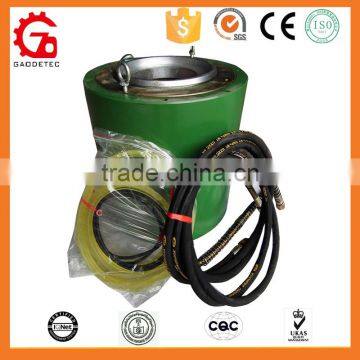

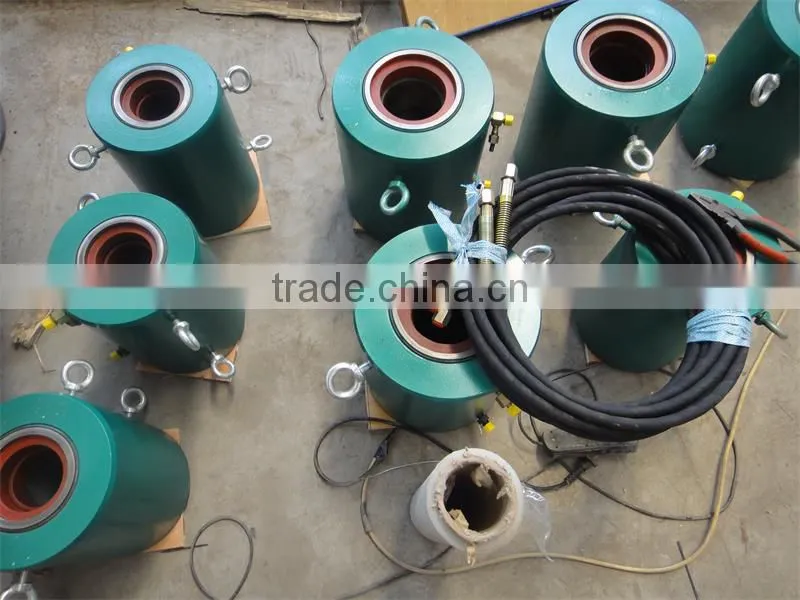

YDC hollow prestressed post tension center hole jack

YDC hollow prestressed post tension center hole jack is the new designed product in our company, are the upgrades of the primary jacks.

Features:

1. Usage: It is mached with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering .

2. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.

3. In some certain circumstance it can be used in the working of pushig, jacking and transforming and so on.

4. Easy to use with reanosable price .

5. Jack is used for prestressing works

6. Using the new seals, to synchronous strengthen the seal-ability under great pressure.

7. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So that the life of seals and sealing performance can be improved about 20%.

8. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback clinder, so we added the overpressure valve on the jacks to pressure production. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So that enormously reduce the possibility of mechanical damage due to improper operation.

In the word, the YDC series feed-through jacks' performance is improved, and widely used in pre-stressing and poststressing construction.

Notice: according to users' requirement, YDC through jack can be configured.

Technical data

YDC hollow prestressed post tension center hole jack

model	pressure @ 700bar ton(KN)	stroke(mm)	oil pressure(Mpa)	effective area (sq. cm)	inner diameter(mm)	tool anchor diameter(mm)	limit board diameter (mm)	out diameter(mm)
YDC650	650	200	48	137	72	95	99	200x300
YDC1000	1000	200	47	213	80	120	125	236x332
YDC1500	1500	200	52	285	94	150	150	265x378
YDC2000	2000	200	53	377	118	177	177	310x340
YDC2500	2500	200	52	484	128	180	190	340x370
YDC3000	3000	200	54	554	135	185	190	370x370
YDC3500	3500	200	51	678	162	232	232	420x360
YDC4000	4000	200	52	761	175	252	252	440x410
YDC5000	5000	200	52	974	190	260	260	470x380
YDC6500	6500	200	52	1278	220	275	290	560x650
YDC8000	8000	200	50	1590	240			640x730
YDC10000	10000	200	50	2023	280			720x850
YDC12000	12000	200	50	2313	280			720x900

We produce many different types of jack cylinder, anchorages and steel strand, embossing machine, extruding machine, duct bellows making machine as followings:
