Post Tension Prestressed Wedge Anchor For Pc Strand
Product Description
Anchor system assembly:
GYM System is consist of stress-end anchor, fixed-end anchor,anchor coupler and corrugated pipe. It can be divided into GYM13,GYM15,GYM18 series of round anchors and GBM13,GBM15 series of flat anchors, we also have high-strength steel wire GYM5,GYM7 series anchor. Our anchor system has below features:
1. Wide range application, it can anchor with standard strength of 1570Mpa-2000Mpa, with the diameter of 8mm,9mm,11mm,12.7mm,15.2mm,18mm pc strand and the high-strength steel wire with standard strength of 1570Mpa-1670Mpa, with the diameter of 5mm,7mm.
2. Wide range of choice, GYM series anchor system is suitable for the number of pc strand from 1-55 tendons, and can be produced as per customer requirement.
3. With good stressing self-anchored function, Easy operation.
4. With high anchoring efficiency and reliable anchor.
5. The anchor structure size is reasonable, which can satisfy anchorage efficiency coefficient but also achieve anchorage of strand of short distance.
Product parts

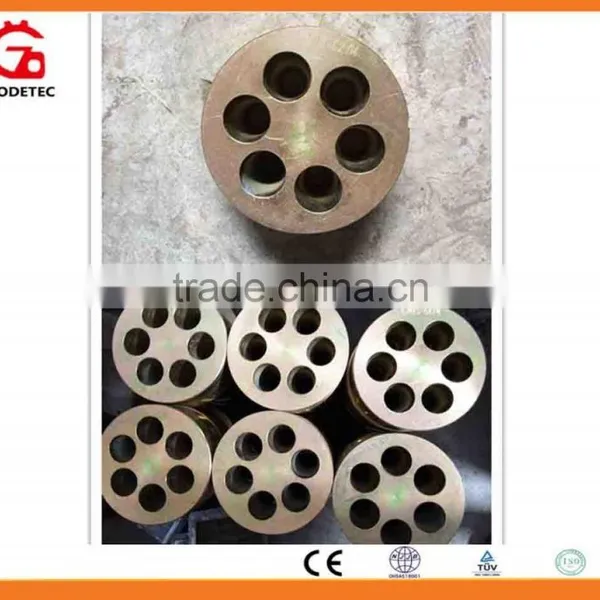

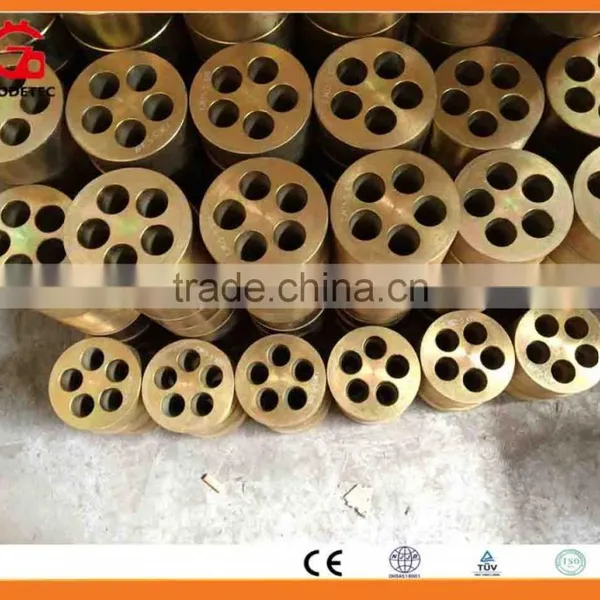

Complete set: anchor ring +wedge + anchor base plate + spiral spring ring.
Three set: anchor ring +wedge + anchor base plate.
Two set: for mono strand: anchor ring +wedge.
Technical data
GYM15(13)-6,7 | 127(108) | 50 (55) | 190 (165) | 160 (150) | 70(60) | 200(190) | 50(50) | 14 (14) | 4(5) | YDC2000 (YDC1500) |
GYM15-8 | 137 | 60 | 230 | 180 | 80 | 240 | 60 | 16 | 5 | YDC2000 |
GYM15(13)-9 | 154 (128) | 60 (60) | 240 (180) | 190 (160) | 80(60) | 240(220) | 60(50) | 16 (16) | 5(5) | YDC2500 (YDC1500) |
GYM15(13)-10 | 167 | 60 | 250 | 210 | 80 | 270 | 60 | 16 | 6 | YDC2500 |
GYM15(13)-11/12 | 167 (148) | 60 (60) | 260 (215) | 210 (190) | 90(80) | 270(240) | 60(60) | 16 (16) | 6(5) | YDC3000 (YDC2000) |
GYM15-14/15 | 187 | 65 | 270 | 220 | 90 | 310 | 60 | 18 | 6 | YDC3500 |
GYM15-16 | 207 | 65 | 290 | 250 | 90 | 330 | 60 | 18 | 6 | YDC4000 |
GYM15(13)-19 | 207 (178) | 70 (65) | 310 (270) | 265 (260) | 100(90) | 350(310) | 60(60) | 18 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-22 | 227 (188) | 70 (65) | 380 (290) | 265 (260) | 120(100) | 380(330) | 60(60) | 20 (18) | 7(6) | YDC5000 (YDC3000) |
GYM15(13)-24 | 237 (208) | 75 (75) | 380 (300) | 380 (270) | 120(100) | 380(340) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-25,27 | 247 (208) | 90 (80) | 380 (320) | 300 (280) | 120(100) | 400(360) | 60(60) | 20 (18) | 7(6) | YDC6500 (YDC4600) |
GYM15(13)-31 | 277 (238) | 90 (90) | 390 (340) | 355 (320) | 130(105) | 450(380) | 70(60) | 22 (20) | 8(6) | YDC6500 (YDC4600) |
GYM15(13)-37 | 287 (238) | 100 (100) | 430 (370) | 435 (370) | 140(120) | 500(430) | 70(70) | 22 (22) | 8(6) | YDC8000 (YDC6500) |
GYM15(13)-42 | 268 | 100 | 395 | 380 | 130 | 450 | 70 | 22 | 7 | YDC10000 |
GYM15(13)-44 | 327 | 110 | 460 | 465 | 160 | 550 | 70 | 22 | 8 | YDC10000 |
GYM15(13)-55 | 360 (298) | 120 (110) | 530 (460) | 515 (460) | 160(140) | 630(510) | 70(70) | 25 (22) | 9(7) | YDC12000 (YDC10000) |
Product show
Related products
Hydraulic jacks
Applications:
It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, etc.
|
