Specification of Hydraulic Pump
1. Parameter: 2-stage pump with heat exchange, 380V, 50 Hz, three paase
2. The maximum operating pressure: 70 Mpa
3. Flow: Low pressure 10 L/m, high pressure 4L/m
4. Operation: Suitable for single and multi-operation (2 pair ports)
5. Two stage with heat exchange
parameter of Hydraulic Pump
| model | operation pressure (Mpa) | flow(L/Min) | tank capacity(L) | motor power(KW) | voltage(V) | dimension(LxWxH)(mm) | ||
| high | low | high | low | |||||
| ER-75 | 70 | 0.8 | 12 | 0.75 | 380 | 400x260x440 | ||
| EPR-150 | 70 | 0.8 | 12 | 1.5 | 220 | 400x260x440 | ||
| EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500x350x600 |
| EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500x350x600 |
| EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610x450x860 |
| EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750x540x880 |

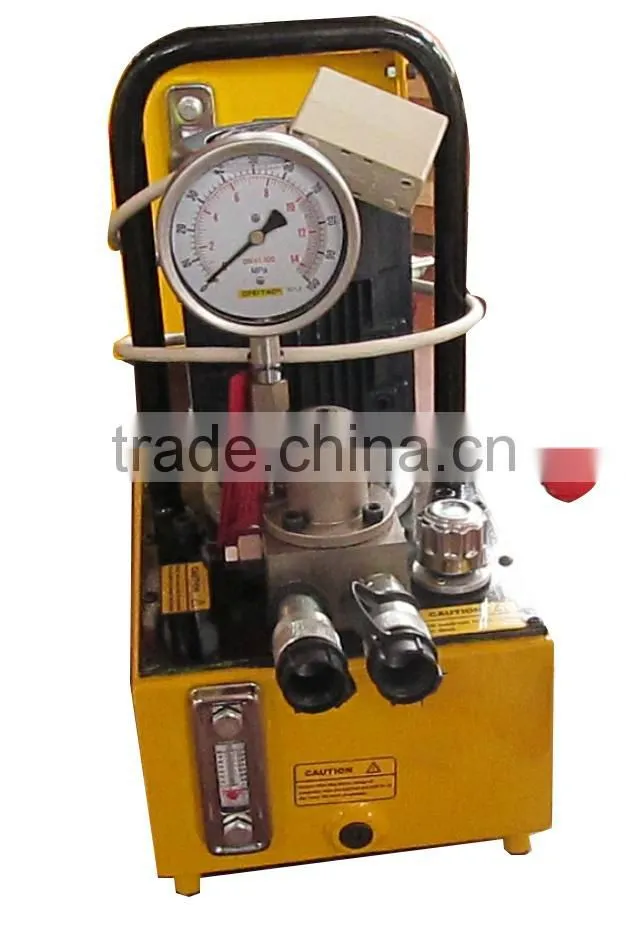

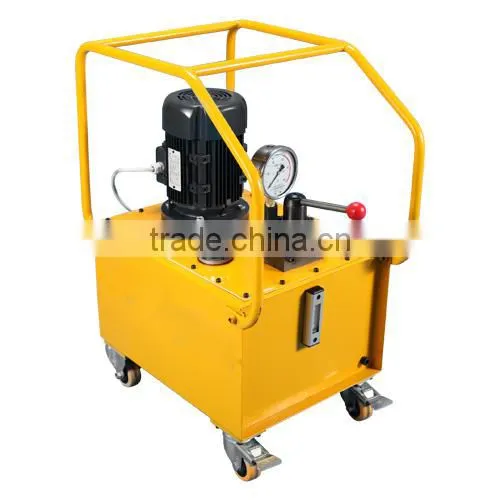

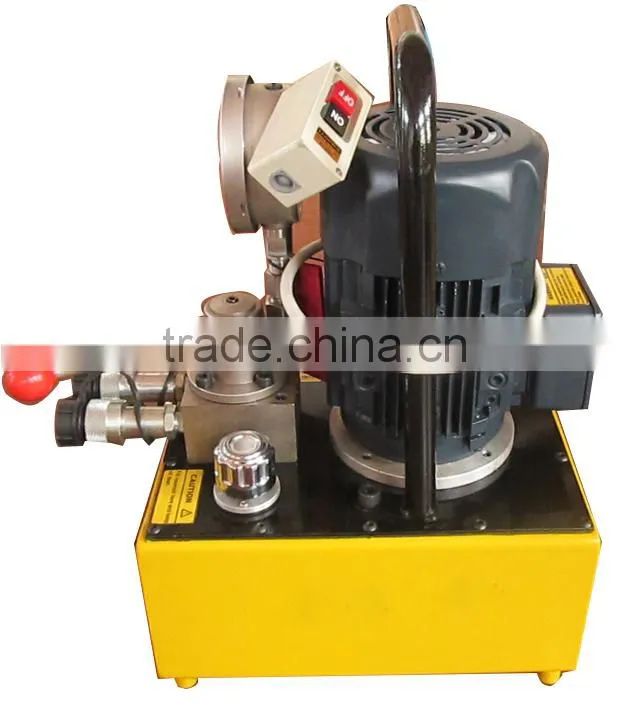

EP Series Hydraulic Pump

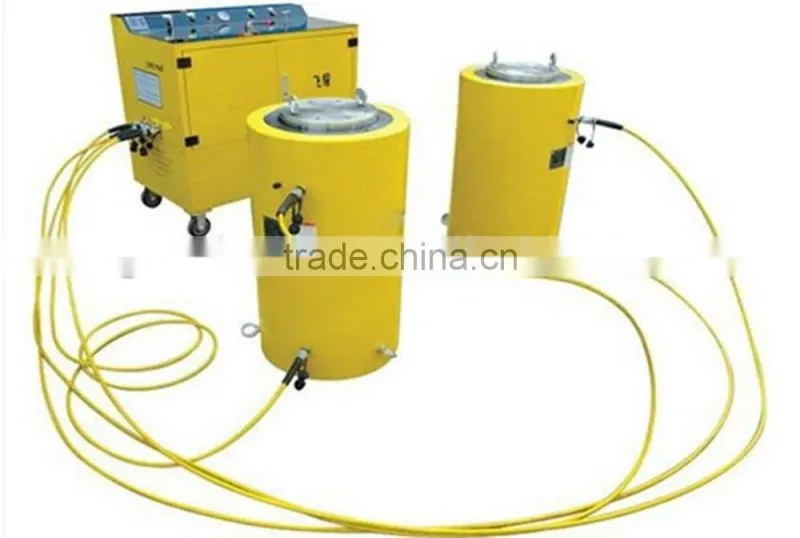

Application of hydraulic pump
used with hydraulic cylinders
we also manufacture hydraulic cylinders:
application of cylinders
EP Series Easy Operation Hydraulic Pump
Packaging Detail: standard export packaging; as your requirements
Shipping Detail: in stock; out of stock(5 working days); customized (7 working days)
EP Series Easy Operation Hydraulic Pump
we provide samples and after sale services. overseas services are available.
EP Series Easy Operation Hydraulic Pump
1. specification
easy operation, good performance, reliable quality, and compact design
2. application
used with single acting or double acting cylinders, PLC system is available.
EP Series Easy Operation Hydraulic Pumpp
workshop
certificate
