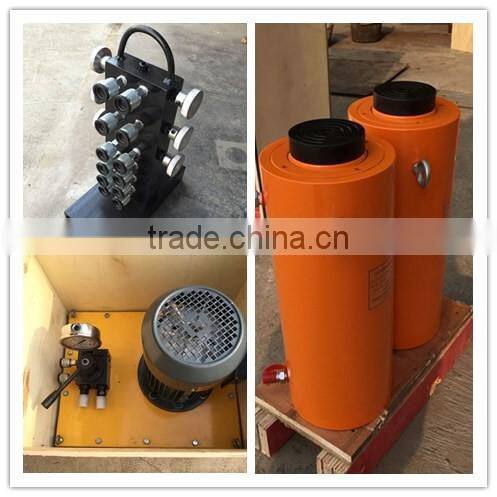

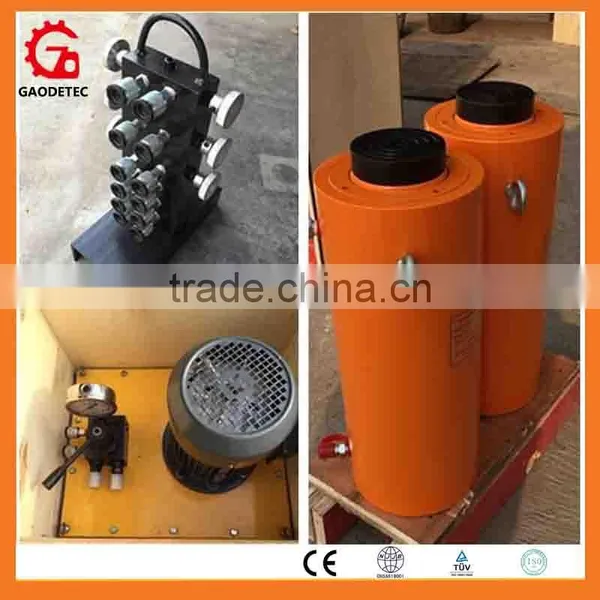

100ton Hydraulic Cylinders with Pump

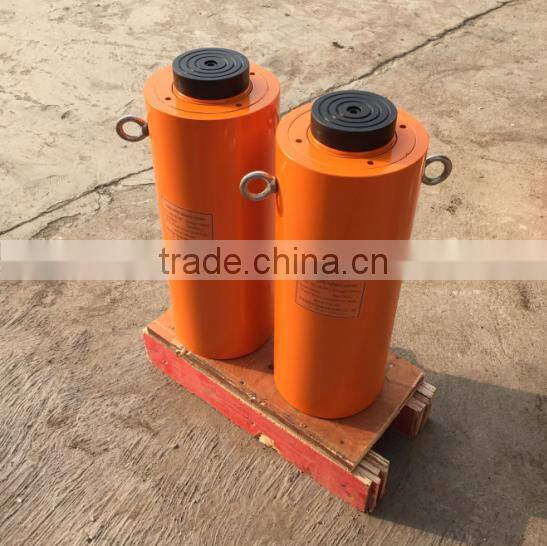

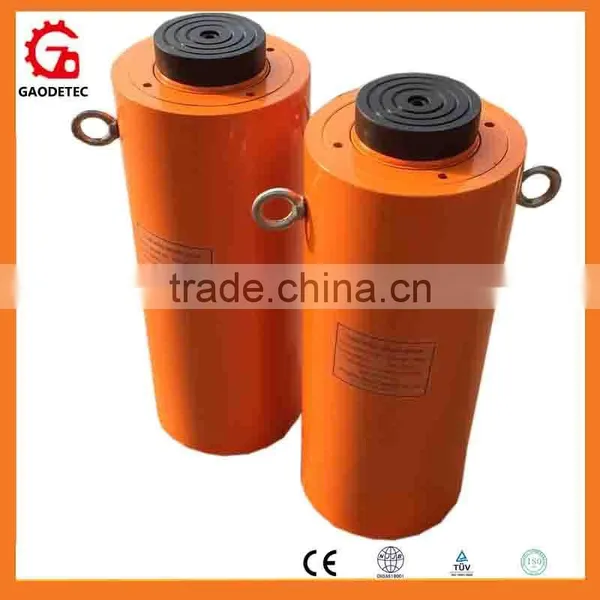

CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
CE Amerian Standard High Tonnage 100ton Single Acting Cylinders have large top lifting power, light weight,and they are designed specially for heavy lifting and maintenance working.
They are able to make the damaging risk of side compressing much less if this kind of single acting cylinders are comined with our tilt saddles.
CE Amerian Standard High Tonnage 100ton Single Acting Cylinders is applied in heavy lifting and maintenance working.
Features of CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
- Single acting, for push and pull
- Integral stop ring provides piston blow-out protection
- Supervision corrosion protection
- Interchangeable, hardened grooved saddles are standard
- Base mounting holes are standard on all models
- Plunger wiper reduces contamination, extending cylinder life
Parameter information of CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
| Model | Capacity @700bar ton (KN) | Stroke(mm) | Effective Area(sq. cm) | Oil Capacity (cubic cm) | Collapsed Height (mm) | Outside Diameter (mm) | Weight (kg) |
| CLSG-1002 | 100(929) | 50 | 132.7 | 664 | 182 | 165 | 19 |
| CLSG-1004 | 100(929) | 100 | 132.7 | 1327 | 232 | 165 | 29 |
| CLSG-1006 | 100(929) | 150 | 132.7 | 1991 | 282 | 165 | 40 |
| CLSG-1008 | 100(929) | 200 | 132.7 | 2655 | 332 | 165 | 50 |
| CLSG-10010 | 100(929) | 250 | 132.7 | 3318 | 382 | 165 | 61 |
| CLSG-10012 | 100(929) | 300 | 132.7 | 3982 | 432 | 165 | 71 |
We manufacture various kinds of cylinders and pumps as follows
Application of cylinders
CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
Packaging Detail : Standard wooden cases or plywood
Shipping Detail : in stock; out of stock (5 working days); customized (7 working days)
CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
1. tonage
50-1000ton
2. stroke
50-300mm
More details, pls feel free to contact us!
CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
we will provide samples if you need.
we also provide high quality products and perfect services.
CE Amerian Standard High Tonnage 100ton Single Acting Cylinders
Warehouse
Certificate
