Made in China with ISO CE air vane motor used for packing machine
- 1000 Set / Sets per Month
- Shanghai Qingdao or Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- Industrial 2/2.5/3 inches High Pressure Coanda Aluminum Alloy Air Knife
- Factory Customize Adjustable Drying Air Knife For Turbo Blower
- Drying And Cleaning System Aluminum Alloy Air Knife Outlet Width Adjustable Air Nozzle
- Aluminium alloy air compressed air knife for drying and blowing
- Aluminum Alloy Nozzle Compressed Air Drying Windjet Air Knife
- Aluminium alloy Low flow air knife for use with compressed air
Product Details
Place of Origin: | Henan, China | Brand Name: | GEC | Model Number: | AM |
Product Description

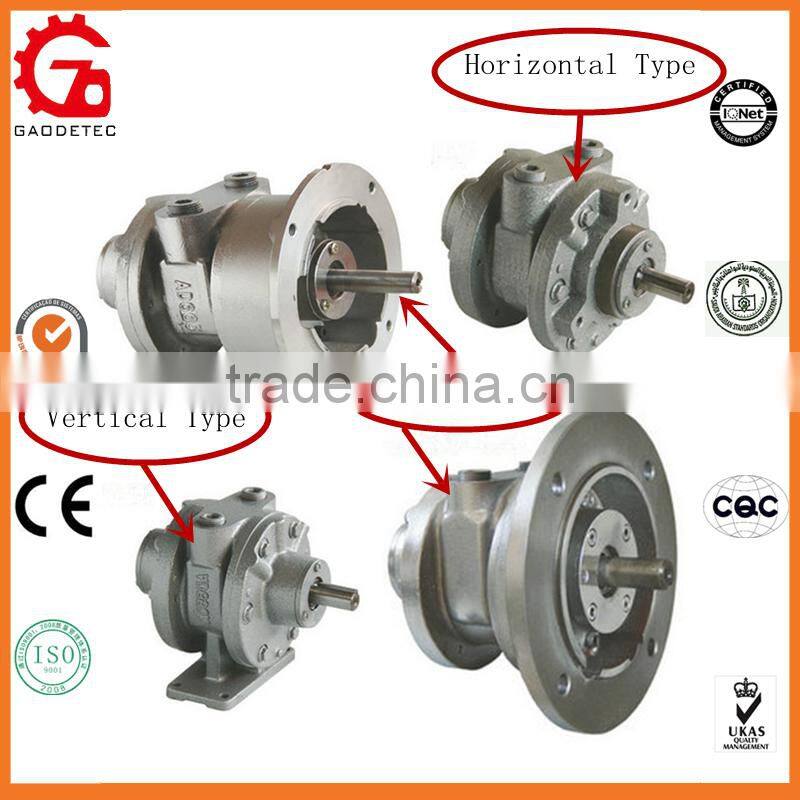

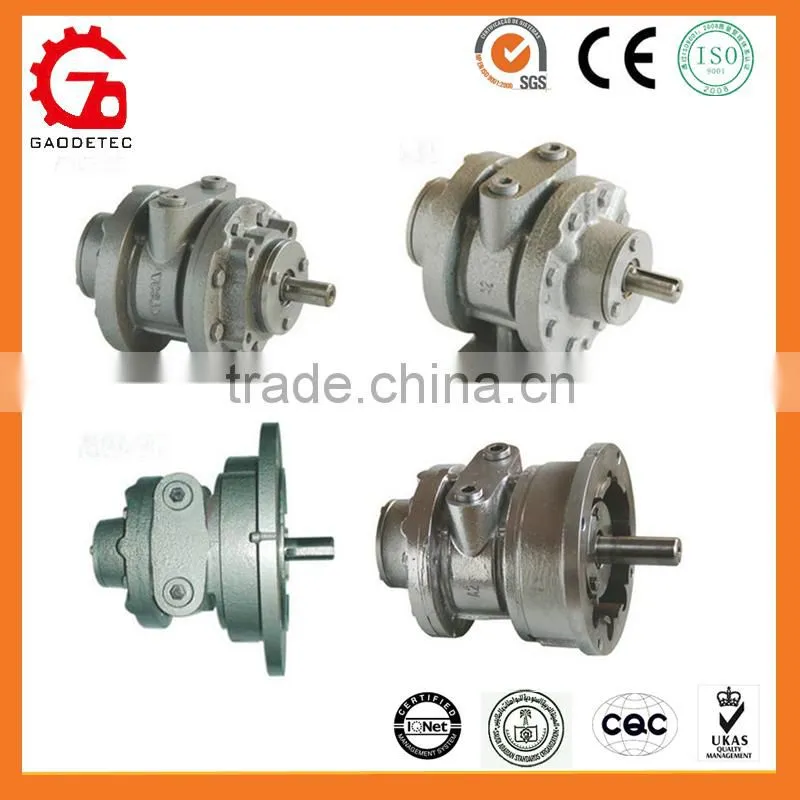

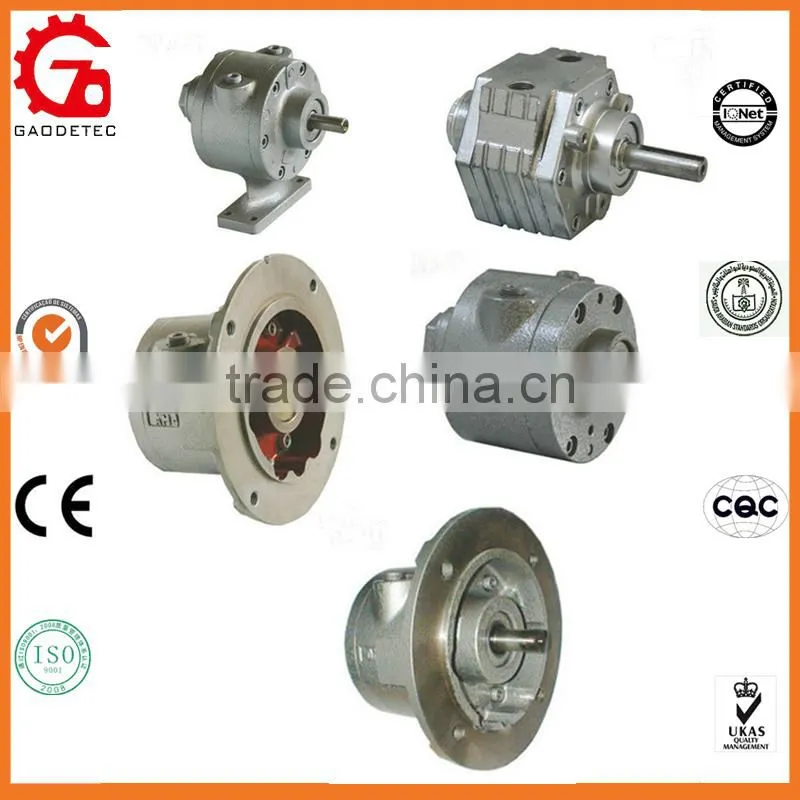

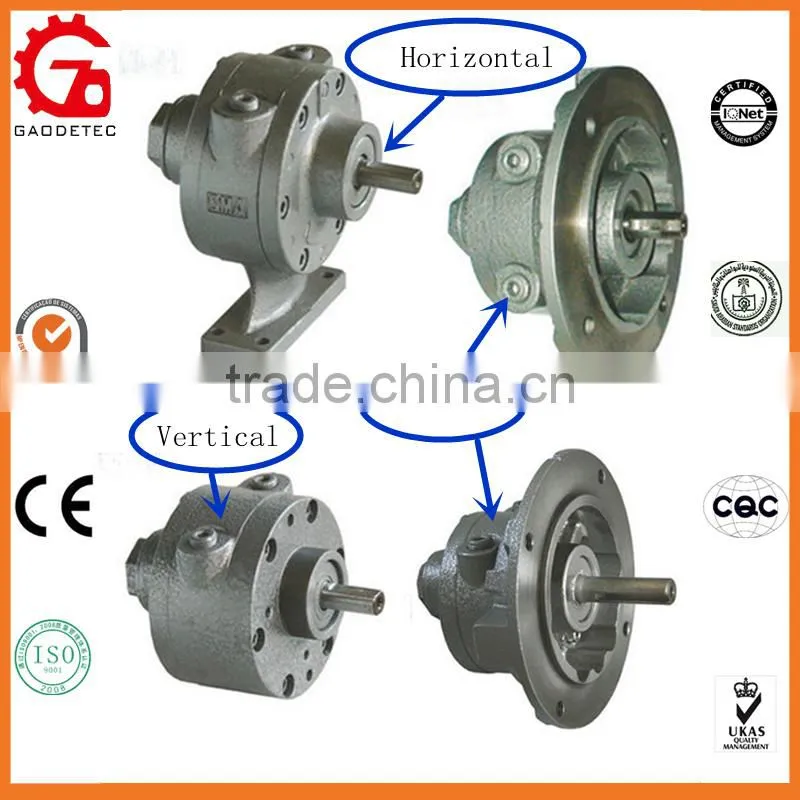

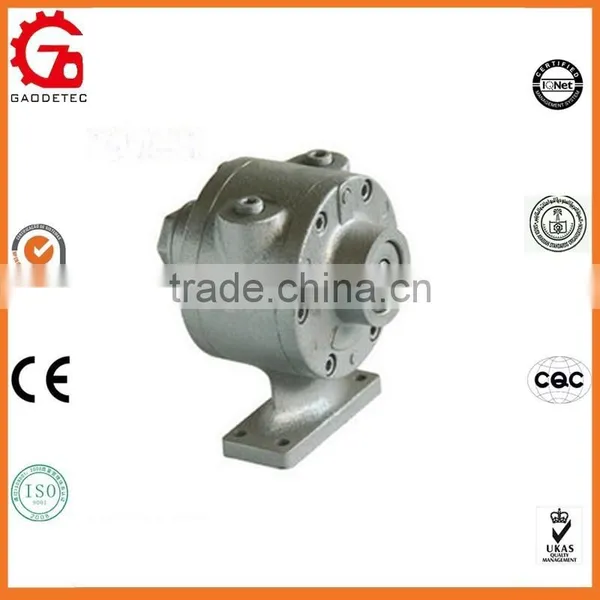

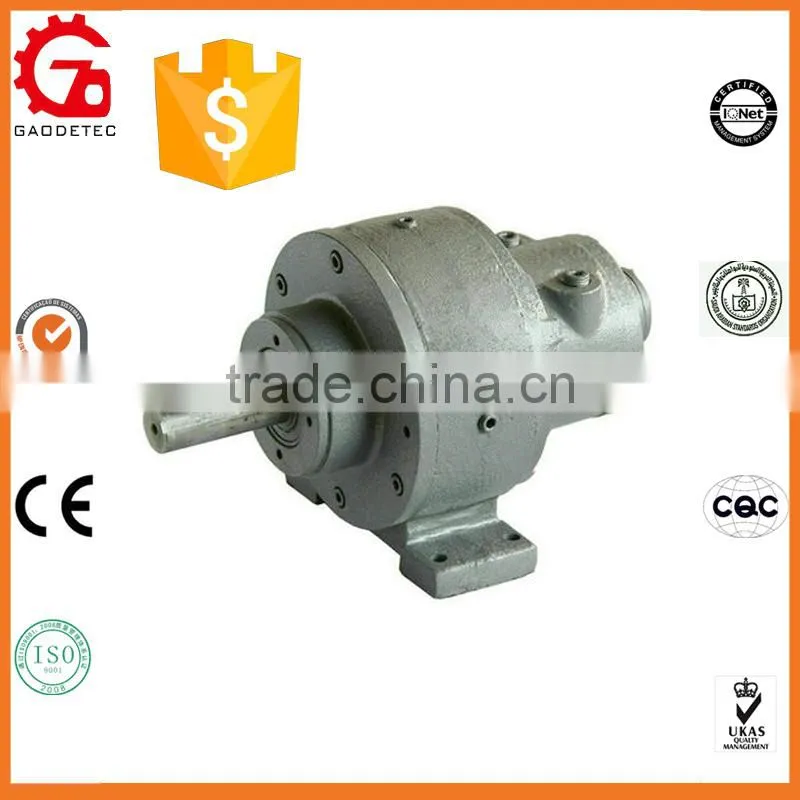

Made in China with ISO CE air vane motor used for packing machine
Working principle: With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy.
Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion.
Application: It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
Features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
1AM:
1UP:
2AM:
4AM:
6AM:
8AM:
16AM:
Made in China with ISO CE air vane motor used for packing machine
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |

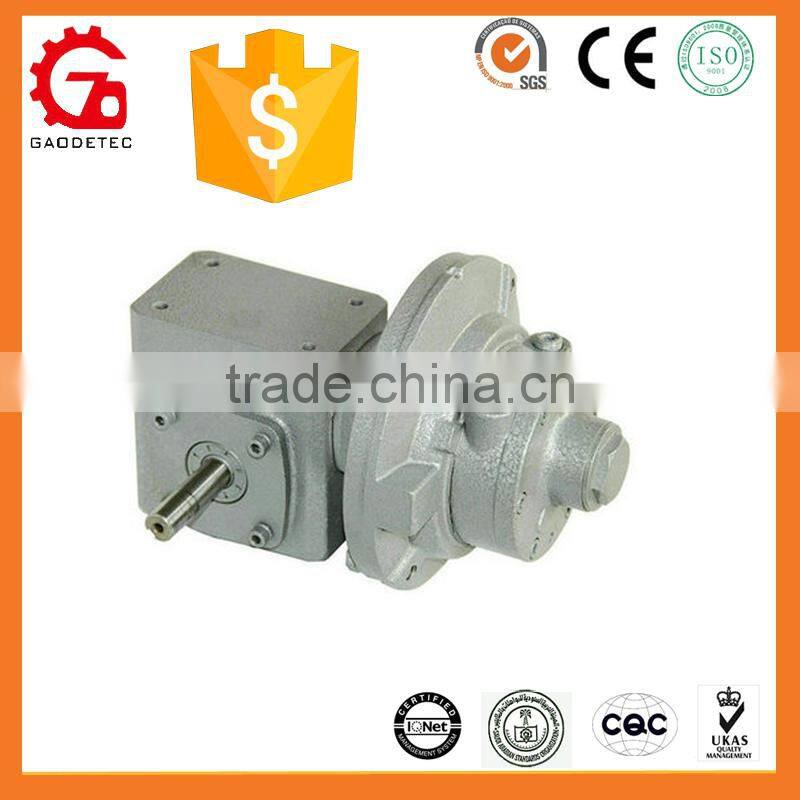

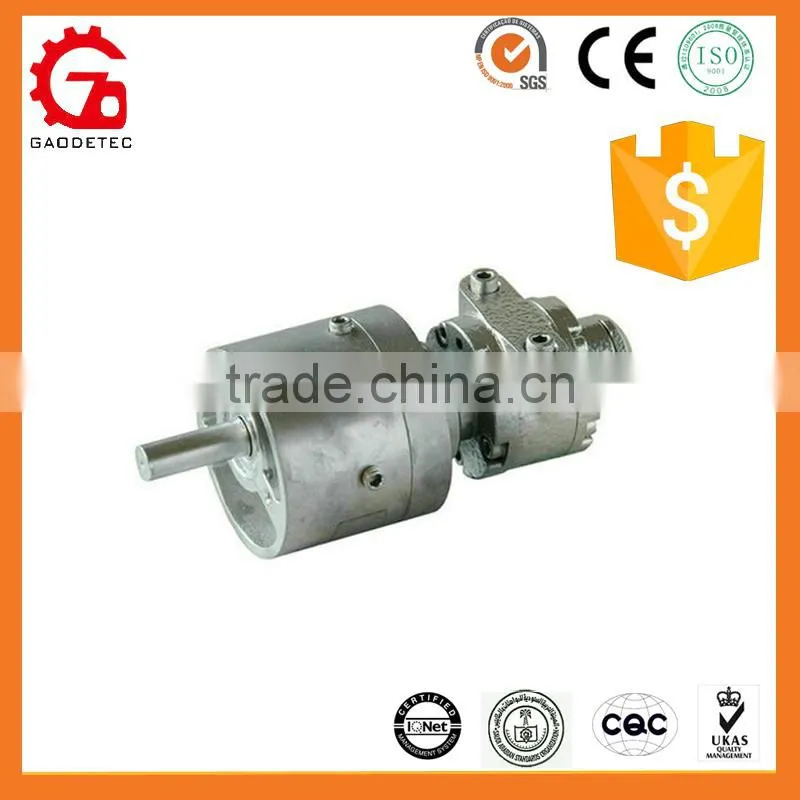

1. Air Gear Motor:
Known industry wide for their rugged construction and reliability, air motors are used in a variety of applications. Air
Powered Gear motors are available in right angle and in-line models offering a maximum torque range of 73 to 5,200 lb.in(8 to 587Nm) and gear ratios from 10:1 to 60:1 single reduction gear reducers.A full line of recommended accessories is
also available.
Technology Parameters of Air Gear Motor:
Model | Gear Ratio | Operation Data | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | ||||||
Hp | Kw | Nm | Ib.in | rpm | M^3/h | cfm | rpm | Nm | Ib.in | ||
1AM-NRV-95 | 15:1 | 0.34 | 0.26 | 7.1 | 62 | 350 | 36 | 21 | 30 | 8.1 | 72 |
1UP-NRV-16 | 15:1 | 0.32 | 0.23 | 5.5 | 49 | 400 | 36 | 21 | 30 | 8.0 | 71 |
4AM-RV-10 | 10:1 | 1.26 | 0.94 | 31 | 274 | 300 | 98 | 57.5 | 30 | 48 | 425 |
4AM-RV-15 | 15:1 | 1.25 | 0.9 | 45.2 | 400 | 200 | 102 | 60 | 20 | 72 | 640 |
WG01 | 20:1 | 0.64 | 0.48 | 21 | 172 | 110 | 34 | 20 | 12 | 28 | 240 |
WG02 | 20:1 | 0.90 | 0.68 | 29 | 256 | 150 | 46 | 27 | 17 | 40 | 343.5 |

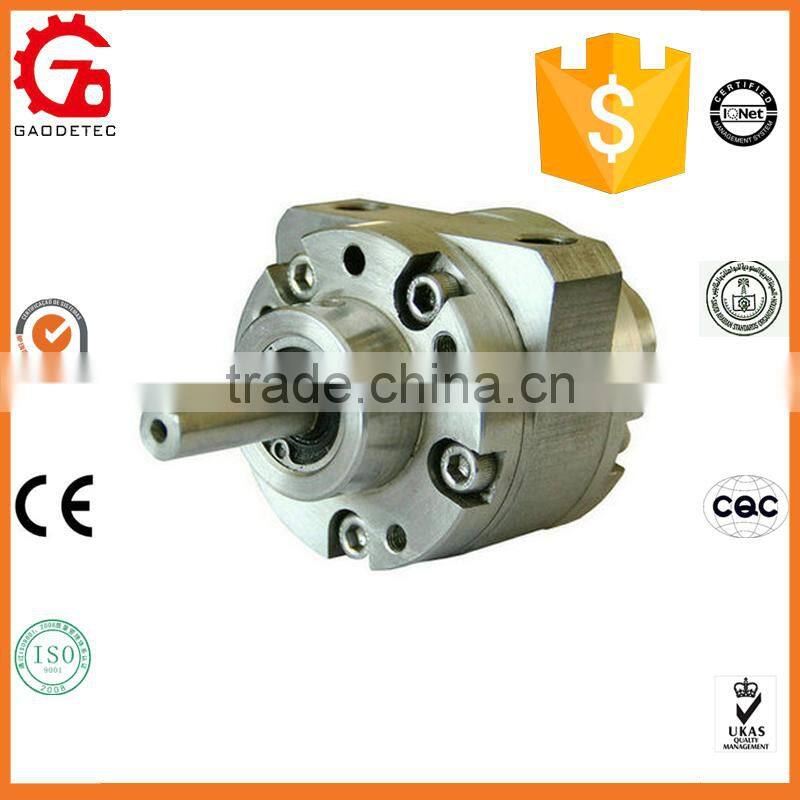

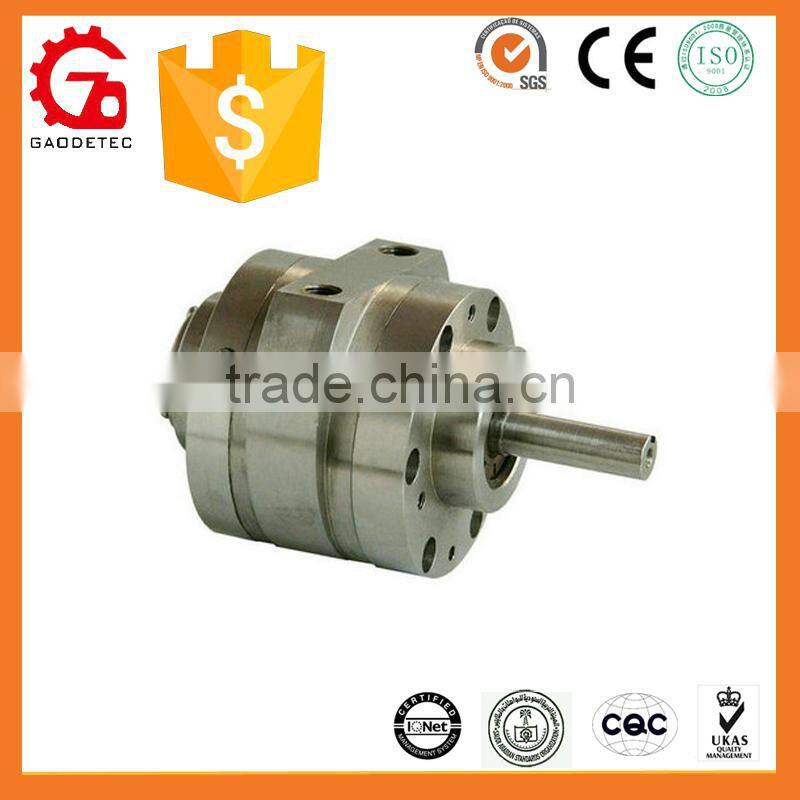

2. Stainless Steel Air Motor:
Stainless Steel Air Motors offer fully sealed operation with two basic models ranging from .45 to 1.7 HP (0.33 to 1.3 kW)
and with motor speeds up to 10,000 RPM
Technology Parameters of Stainless Steel Air Motor:
Model | Operation Data | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air Consumption | Rotate Speed | Torque | |||||
Hp | Kw | Nm | Ib.in | rpm | M^3/h | cfm | rpm | Nm | Ib.in | |
1AM-V-S-113 | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
1AM-VF-S-113 | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
1AM-V-S-127 | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.60 |
4AM-NRV-251SS | 1.7 | 1.30 | 4.1 | 36.0 | 3000 | 132.5 | 78 | 300 | 6.3 | 56.00 |
Workshop:
Made in China with ISO CE air vane motor used for packing machine
