3 ton anti-explosion mining used air pneumatic winch
1.reasonable design, compact structure, convenient control
2.easy to operate
3.stable under extremely conditions

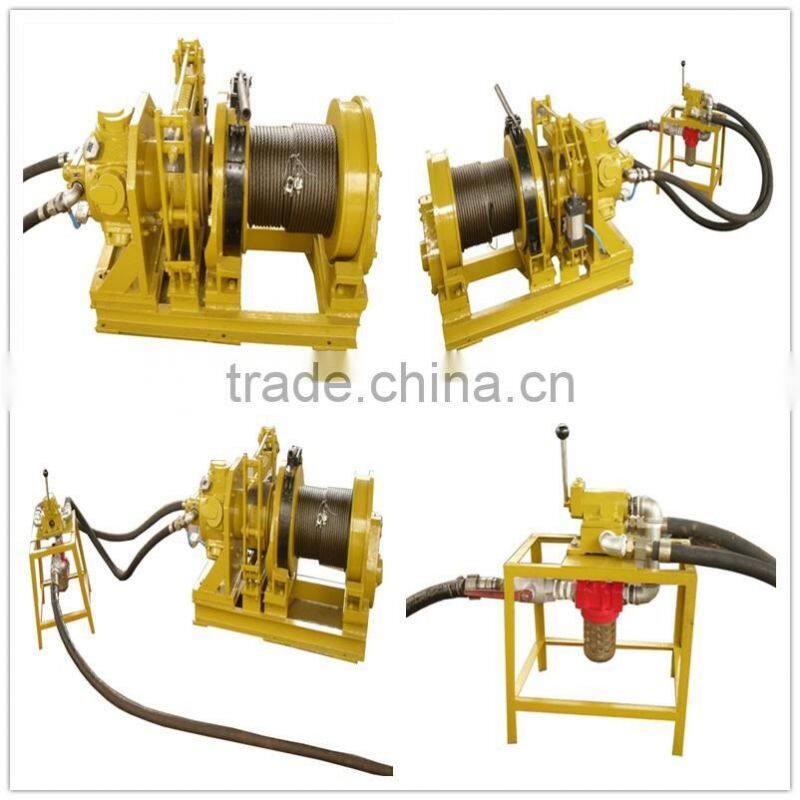

This 3 ton air powered winch is powered by GMH15 piston air motor and remotely operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
3 ton anti-explosion mining used air pneumatic winch Technical data
3 Ton air powered winch | ||||
1 | Air pressure(Mpa) | 0.6-0.8 | ||
2 | Rated Tension(KN) | 30 | ||
3 | Rated Speed(m/min) | 24 | ||
4 | Air motor | Rated power(KW) | 15 | |
Cylinder Qty.(pcs) | 5 | |||
5 |
Drum | Quantity | 1 | |
Diameter(mm) | 222 | |||
Width(mm) | 335 | |||
Rope capacity(m) | 150 | |||
6 | Rope diameter(mm) | 16 | ||
7 | Air hose diameter(inch) | 1.25 | ||
8 | Dimension | length(mm) | 1200 | |
width(mm) | 470 | |||
height(mm) | 750 | |||

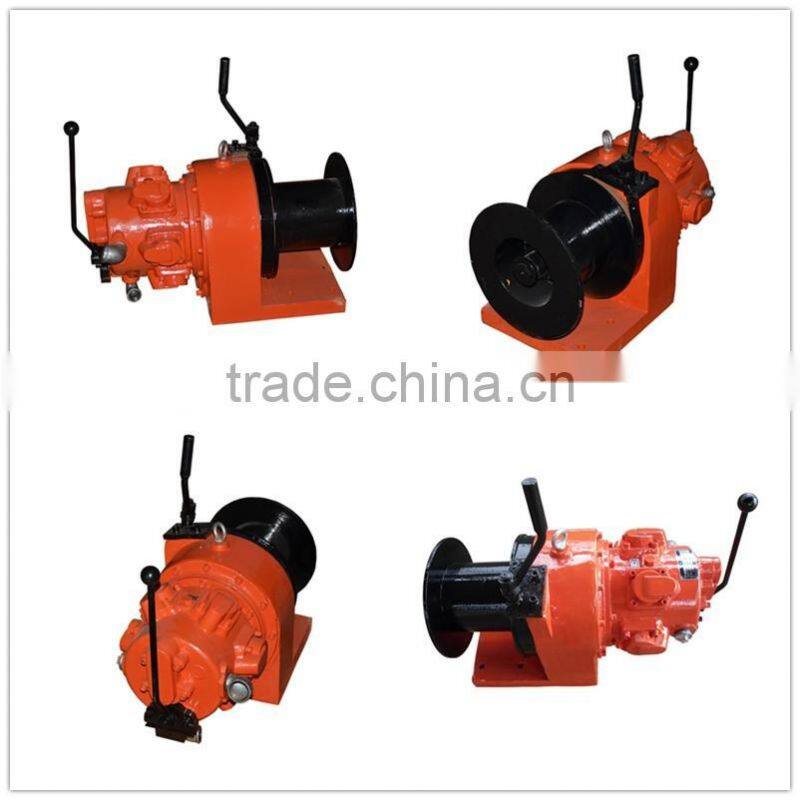

Other air pneumatic winch :
1 Ton:
2 ton:
5 ton:

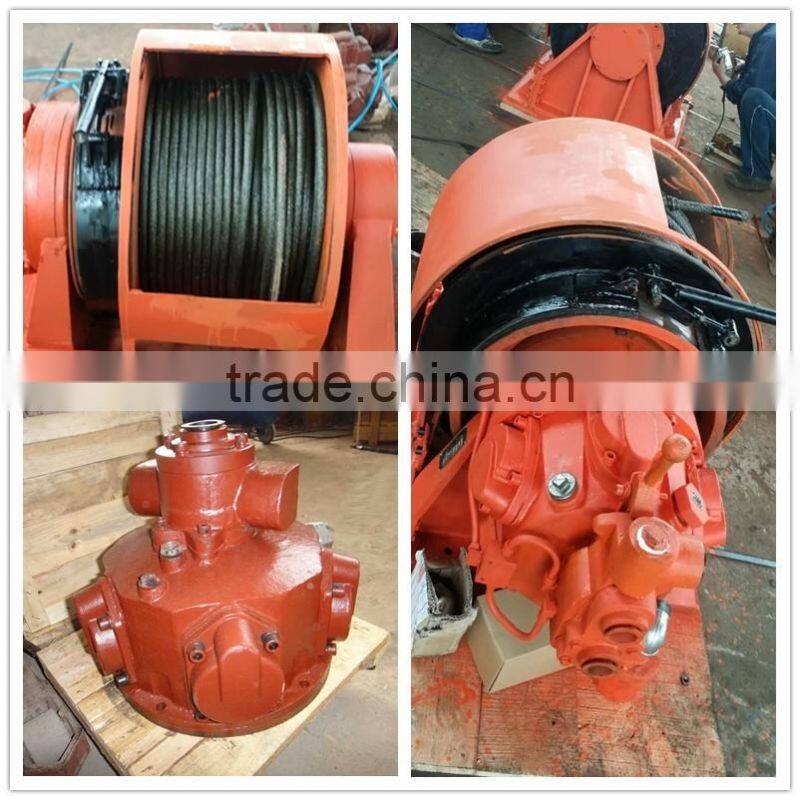

Air motor:
Package:
Workshop:
Certificate:
