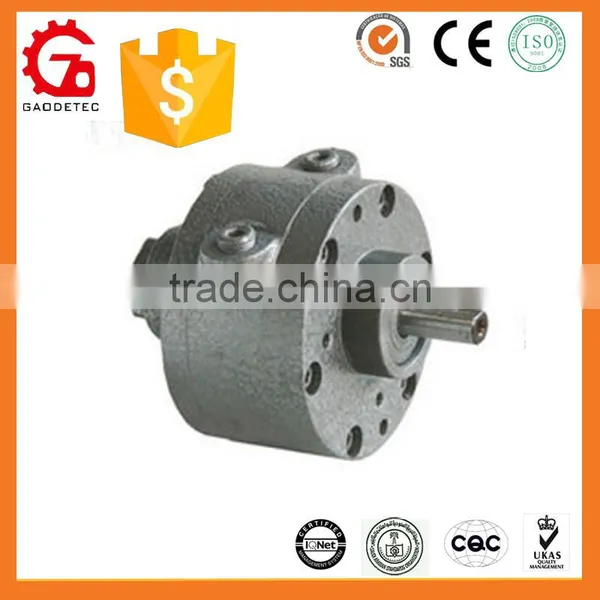

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

Zhengzhou Gaode Equipment Co., Ltd.
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor thumbnail-1
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor thumbnail-2
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor thumbnail-3
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor thumbnail-4
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor photo-1
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor photo-2
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor photo-3
0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor photo-4
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
GEC
Model Number:
2AM
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name GEC
Model Number 2AM

We are a member of trade assurance on Alibaba, and our trade assurance amount is USD49,000.00

Through trade assurance you can 100% payment refund up to trade assurance amount for orders

not meeting agreed Delivery or Quality terms.

Product Description

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.



Product Feature

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

  1. Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
  2. proof water, fire, moisture and explosion
  3. can work in humid, high temperatures, high dust and other proof working environment

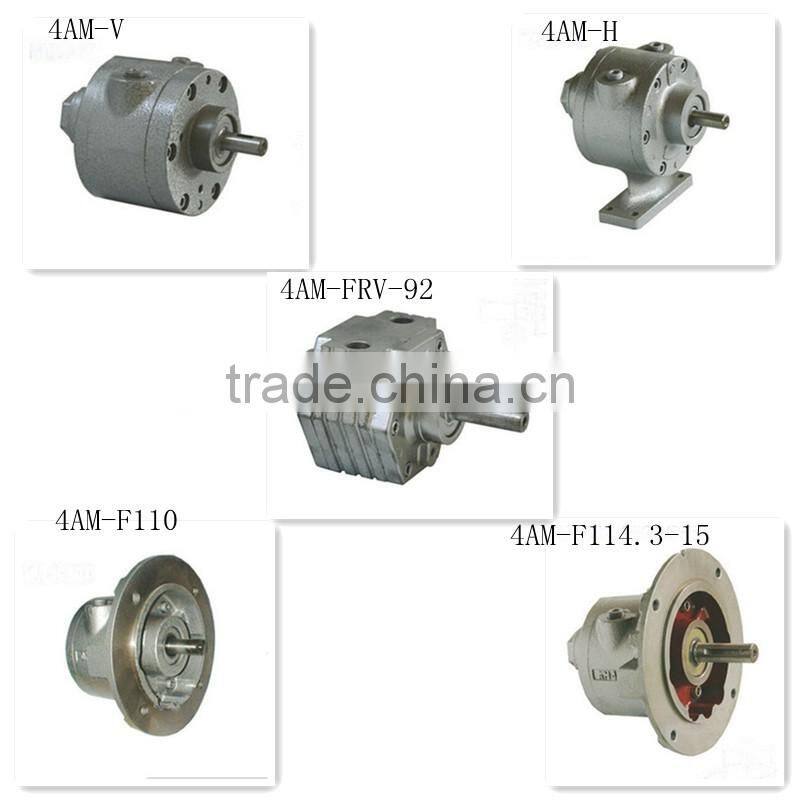

Product Picture

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

2AM-V:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

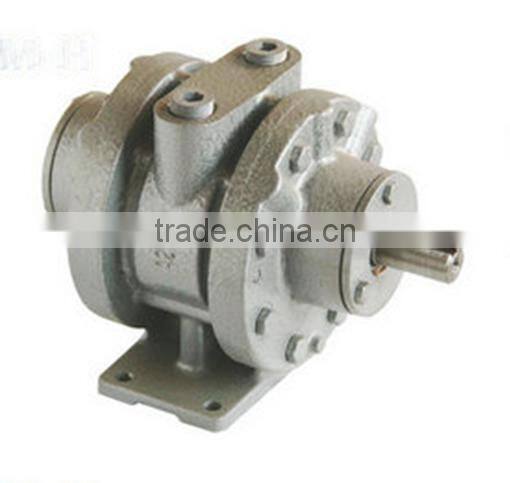

2AM-H:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

2AM-F110:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

2AM-F114.3-15:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor











Technology Parameter

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

Model

Maximum Speed

Maximum Torque

Power

Torque

Rotate Speed

Air consumption



Rotate Speed

Torque

hp

kw

Nm

lb.in.

rpm

m3/h

cfm

rpm

Nm

lb.in.

1AM

0.45

0.33

0.31

2.75

10000

35.1

20.5

650

0.65

5.6

 1UP

0.45

0.33

0.58

5.25

6000

47

27

500

0.68

6.0

2AM

0.93

0.68

2.20

19.50

3000

49.5

30

350

3.05

26.1

4AM

1.70

1.30

4.10

36.00

3000

132.5

78

300

6.3

56

6AM

4.00

3.00

10.00

84.00

3000

228

128

300

13

115

8AM

5.25

3.90

14.40

132.00

2500

293

175

300

21

185

16AM

9.50

7.00

34.00

290.00

2000

475

275

300

43

372

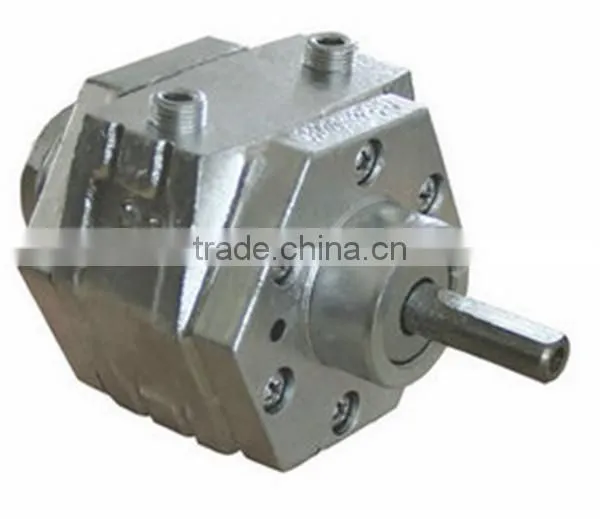

Other Model Vane Air Motor:

1AM:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

1UP:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

4AM:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

6AM:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

8AM:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

16AM:

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

Related Products

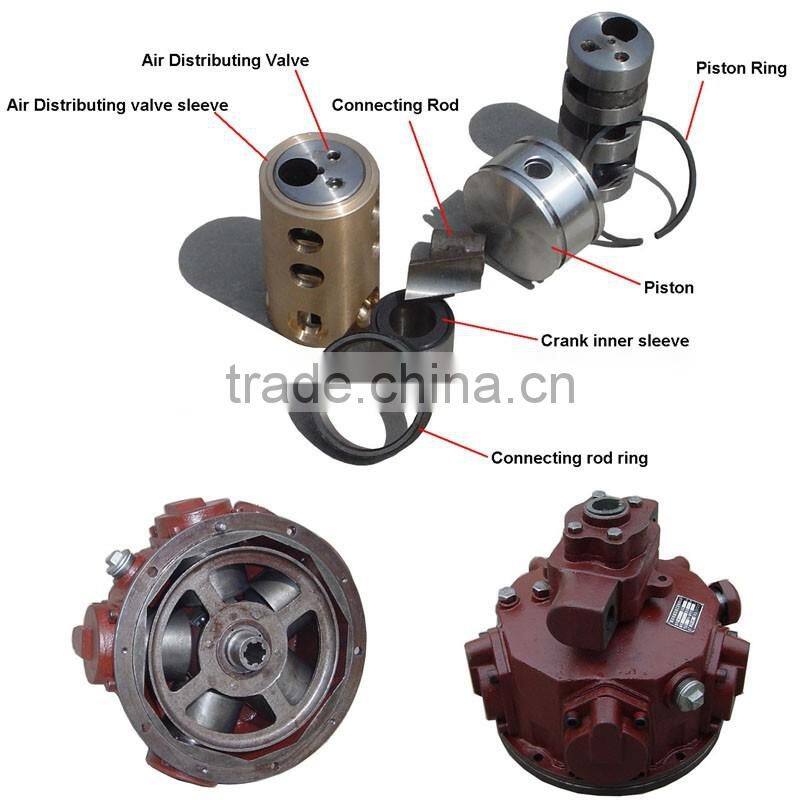

 Other Type Air Compressor Motor: Piston Air Motor

Parameters of Piston Air Motor:

Model

Rated Power        Kw(hp)

Rated Rev.      RPM

Rated Torque       NM

Starting Torque     NM

Air Consumption     m3/min(CFM)

Working Pressure   Mpa(PSI)

Weight   KG(lbs)

GMH3

3(4)

2800

10

13

3.6(129)

0.5(66)

24

GMH3B

GMH3D

GMH3.2

3.2(4.4)

1000

30.5

39.7

3.84(137)

0.5(66)

22

GMH4

4(5.4)

2000

21.4

27.9

4.8(171)

0.63(83)



GMH4D

4(5.4)

1000

38

49

4.8(171)

0.63(83)

30

GMH4A

GMH6

5.88(8)

900

62.6

81

8(286)

0.63(83)

72

GMH6A

GMH8

8(10.9)

650

117.5

152

9.4(336)

0.63(83)

74

GMH15

14.7(20)

650

216

280

17(607)

0.63(83)



GMH15A

GMH18.4

18.4(25)

600

286

371

21.5(768)

0.63(83)



GMH22

22(30)

600

300

400

21(750)

0.63(91)



GMH25

25(34)

600

380

480

27.3(975)

0.8(115)





0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

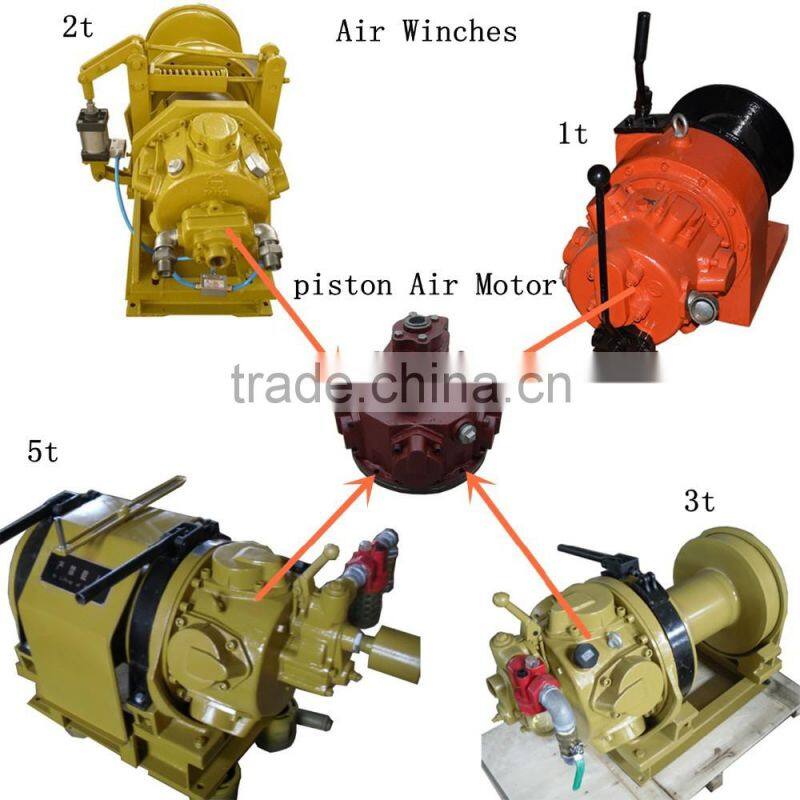

Application



0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor

Troubleshooting chart:

Symptom

Possible Causes

Corrective Action





Doesn’t run.

  1. Dirt or foreign material.
  2. Internal rust.
  3. Motor is jammed.
  4. Worn vanes.
  5. Bearing failure.
  1. Inspect and wash.
  2. Inspect and wash.
  3. Disassemble and clean.
  4. Inspect and replace.
  5. Inspect and replace.




Runs well then slows down.

  1. Restricted exhaust.
  2. Motor requires cleaning.
  3. Air source inadequate.
  4. Air source far from motor.
  5. The sealant is corrosion.

  1. Inspect and repair.
  2. Disassemble and clean.
  3. Check air resource.
  4. Adjust air resource.
  5. Inspect and replace.





Low torque.

  1. Dirt or foreign material.
  2. Low air pressure.
  3. Motor requires cleaning.
  4. Worn out bearings.
  5. Worn air motor vanes.
  6. The sealant is corrosion.



  1. Disassemble and clean.
  2. Increase pressure.
  3. Disassemble and clean.
  4. Inspect and replace.
  5. Inspect and replace.
  6. Inspect and replace.







Low speed.

  1. Dirt or foreign material present.
  2. Internal rust.
  3. Low air pressure.
  4. Air source restricted.
  5. Restricted exhaust.
  6. Motor is jammed.
  7. Air source CFM inadequate.
  8. Air source far from motor.
  9. Worn vanes.

  1. Disassemble and clean.
  2. Inspect and wash.
  3. Increase pressure.
  4. Check air hose.
  5. Inspect and repair.
  6. Disassemble and clean.
  7. Check air resource.
  8. Adjust air resource.
  9. Inspect and replace.





Workshop

0.93Hp 0.68Kw 2.2Nm Small Vane Air Compressor Motor

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor



Certifications

 0.93Hp 0.68Kw 2.2Nm Small Vane Air Compressor Motor

0.93Hp 0.68Kw 2.2Nm Small Vane Air Motor
