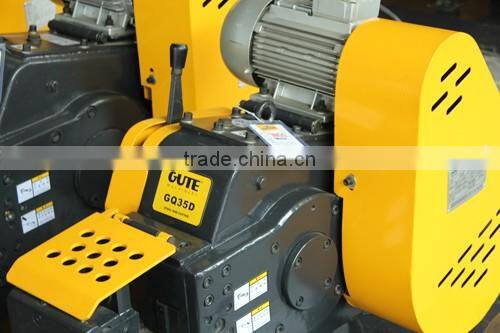

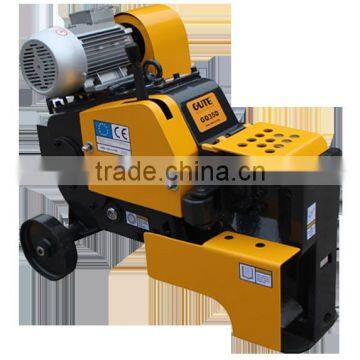

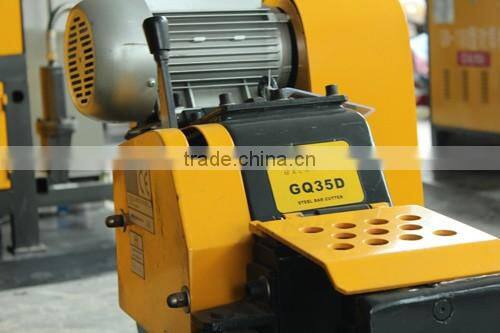

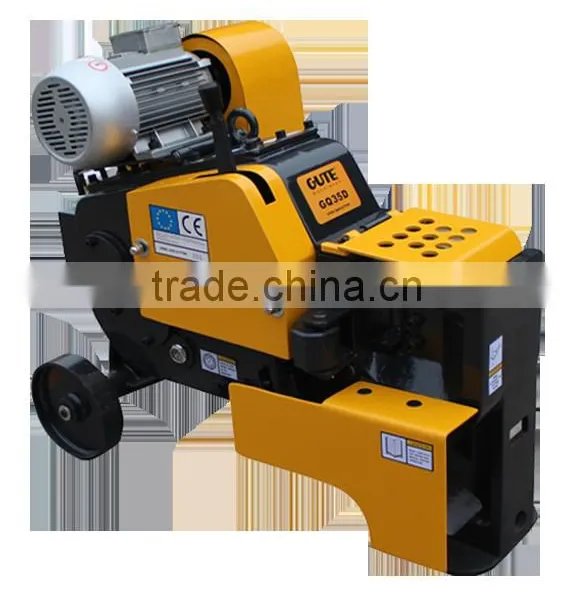

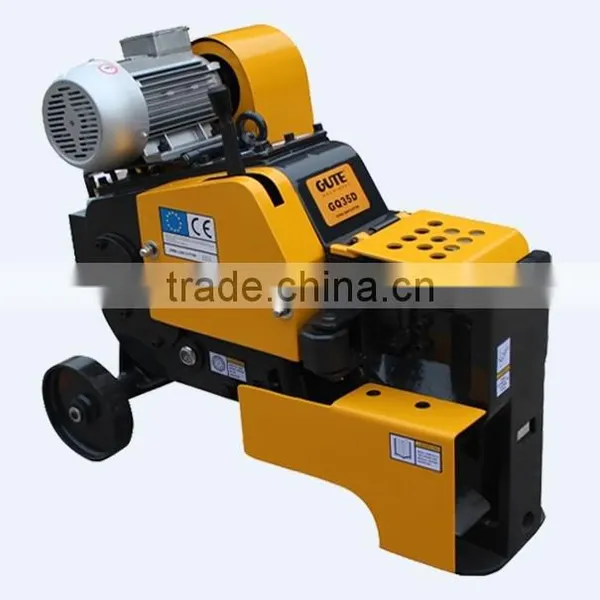

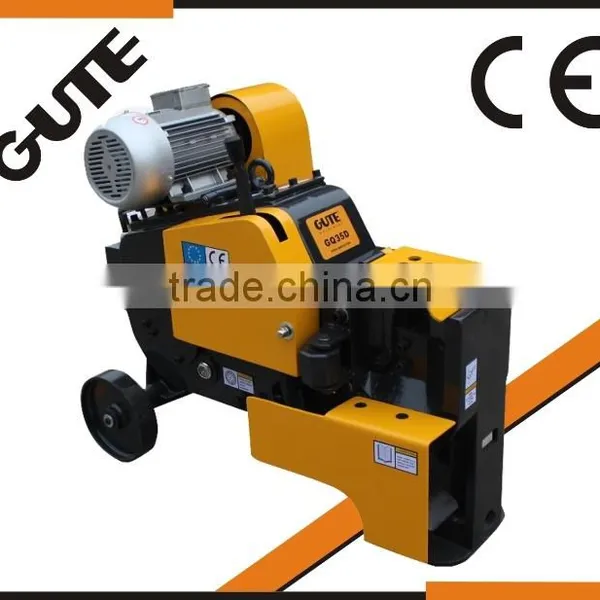

CE certificated GQ35D deformed bar cutter
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION

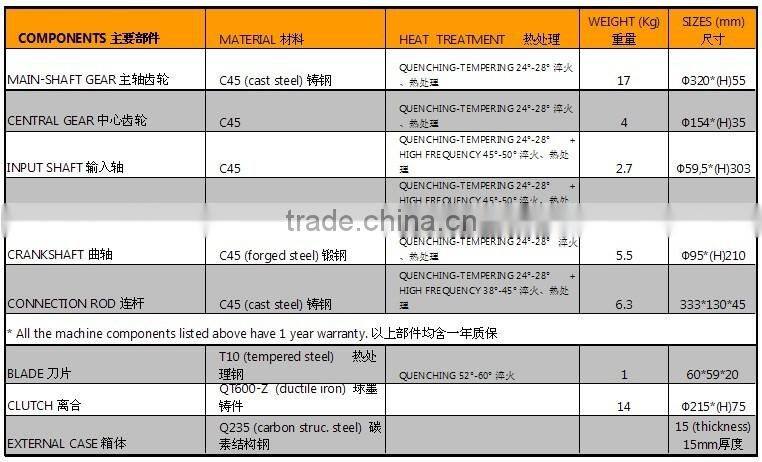

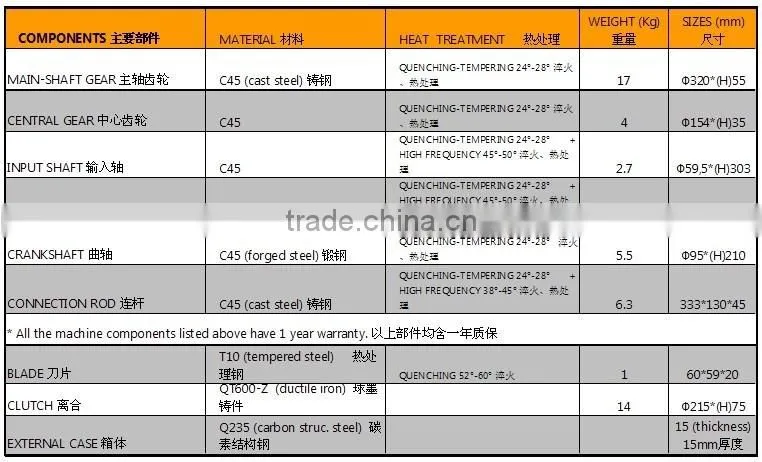

• GW35D deformed bar cutter adopts GEARS, SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment (quenching/ tempering/ high frequency) and 15mm thick external case to ensure reliable performances also under heavy loads and long working life.
• CONNECTION ROD has high hardness degree on attaching part with the blade, its internal side is made of tin-bronze to avoid abrasions while touching the crankshaft.

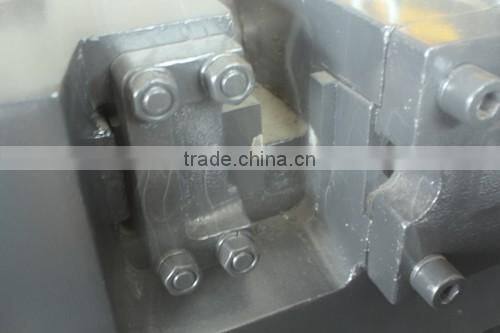

• Thick and durable BLADES to ensure accurate cutting with all kinds of steel bar (square blade or moon-shape blade option).
• High cutting efficiency with low power consumption.

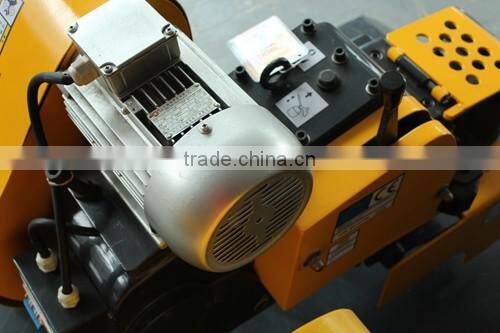

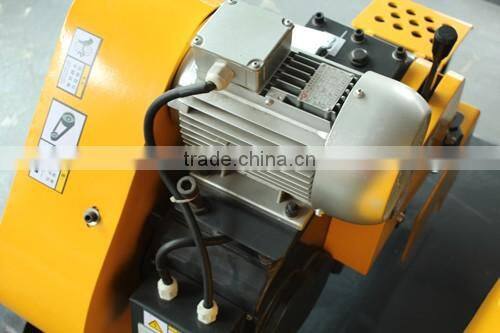

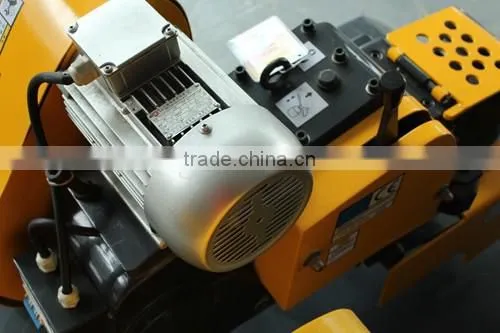

• CE Certificated dust proof MOTOR with aluminium shell.

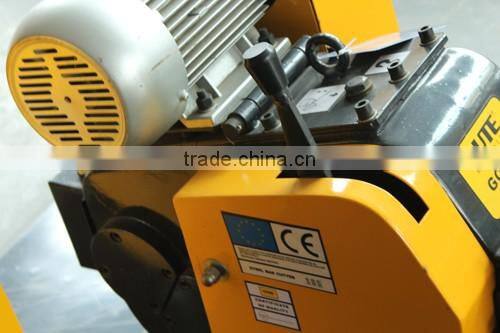

• CE Certification (2006/42/EC - 2006/95/EC).
MOTOR TYPE
GQ35D
• MOTOR TYPE: Y90L-2
• MOTOR POWER: 2.2 kw-2P
• MAGNETIC STARTER: QCX8-16
* Motors has 1 year warranty.
* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)
* FREQUENCY OPTIONS: 50Hz / 60Hz

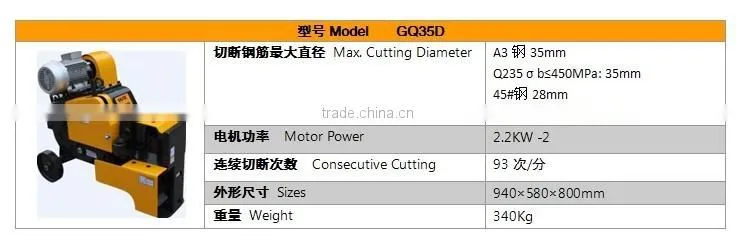

Machine Data

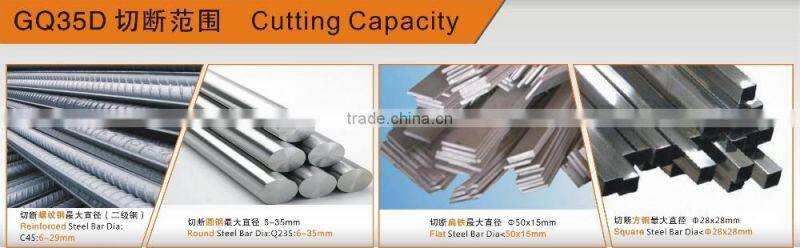

| CUTTING CAPACITY | 6-35 mm (ob ≤450N/mm2) | 6-28 mm (ob ≤650N/mm2) | ||||
| FLAT STEEL | 50 x 15 mm | |||||
| ANGLE STEEL | 42 x 42 mm | |||||
| TYPE OF MOTOR | Y90L-2 | |||||
| MOTOR POWER | 2.2 KW-2P | |||||
| MOTOR ROTATION SPEED | 2880 R/min | |||||
| CUTTING SPEED | 93 T/min | |||||
| NOISE VALUE (1 m meter) | ≤75dB(A) | |||||
| WEIGHT | 332 Kg. | |||||
| EXTERNAL DIMENSIONS | 940*580*800 mm | |||||
| UNIT PRICE RMB | 8700.00 | |||||
| CERTIFICATION | 2006/42/EC - 2006/95/EC | |||||
