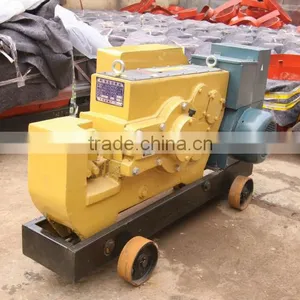

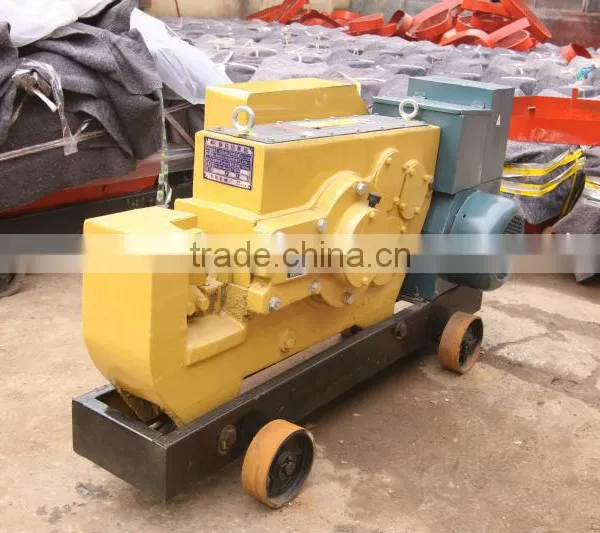

GQ40 high density bar cutting machine
• This cutting machine is mainly used for cutting carbon steel, cold and hot round steel,
screw hread steel, deformed steel, flat steel , angle steel and square steel in construction project.
• It’s made of high steel knife seat and connecting shaft ,high speed international standard motor and firm reinforcing covering
• This machine is small, solid,lubricant better,little power loss,opration easy,high efficiency, convenient for moving and the knife can be controlled by manual.
Technical parameter & high density bar cutting machine
| Cutting diameter of round steel (Q235-A) | 6-40mm |
| Max cutting capacity of flat iron | 70*15mm |
| Max cutting diameter of square steel (Q235-A) | 32*32mm |
| Max cutting capacity of angle steel | 50*50mm |
| Motor power | 3KW |
| Voltage | 380V |
| Motor revolving speed | 2870r/min |
| Overall size | 1260*530*750mm |
| Gross weight | 390kgs |
Shipment and payment
1. Shipment: Settle the shipment by sea cargo/by air cargo for mass production
2. Payment: by T/T,Western Union, L/C Special issues can be discussed
Packing for high density bar cutting machine
